48-Pin Industrial Rectangular Connector – HDC-HE-048 Series, 16A, Rugged Aviation-Grade Plug & Socket

Original price was: $40.72.Current price is: $27.15.

Quantity
SKU: N/A Category: Brand:

Description

SPECIFICATIONS

Heavy Duty Connectors HDC-HE-048-1/2 F/M 48pin 500V 16A Industrial rectangular Aviation connector plug Screw connection,hdc connector

Working current: 16A

Working voltage: 500V

Rated pulse voltage: 6KV

Pollution level: 3

Isolation resistance: ≥10

Material: Polycarbonate

Operating temperature range: -40℃~+125℃

Flame retardant grade (according to UL94): V0

Installation method: hole installation

Connectors Material: Copper

Surface treatment: silver plated

Contact resistance:=<1m ohm

Wiring form: screw connection

Screw tightening torque/test torque: 0.25Nm+

Wiring forms: screw fixing

Metal upper case/base

Material: Cast aluminum alloy

Surface treatment: high temperature powder coating

Locking device: stainless steel or iron galvanized

Operating temperature range: -40℃~+125℃

Protection class: IP65

Explore more from our collection.

Additional information

Connector Specification

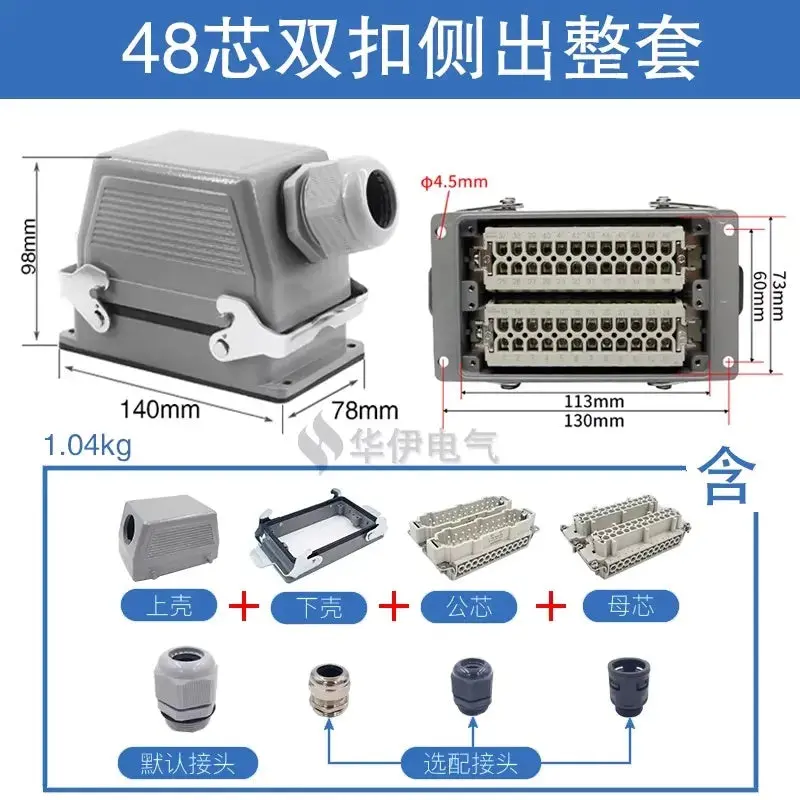

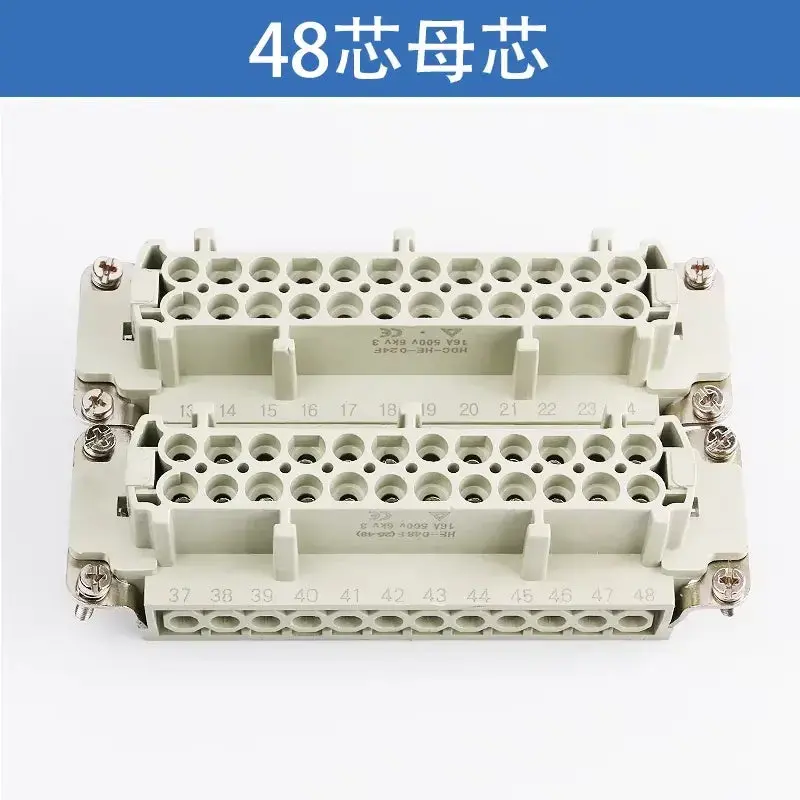

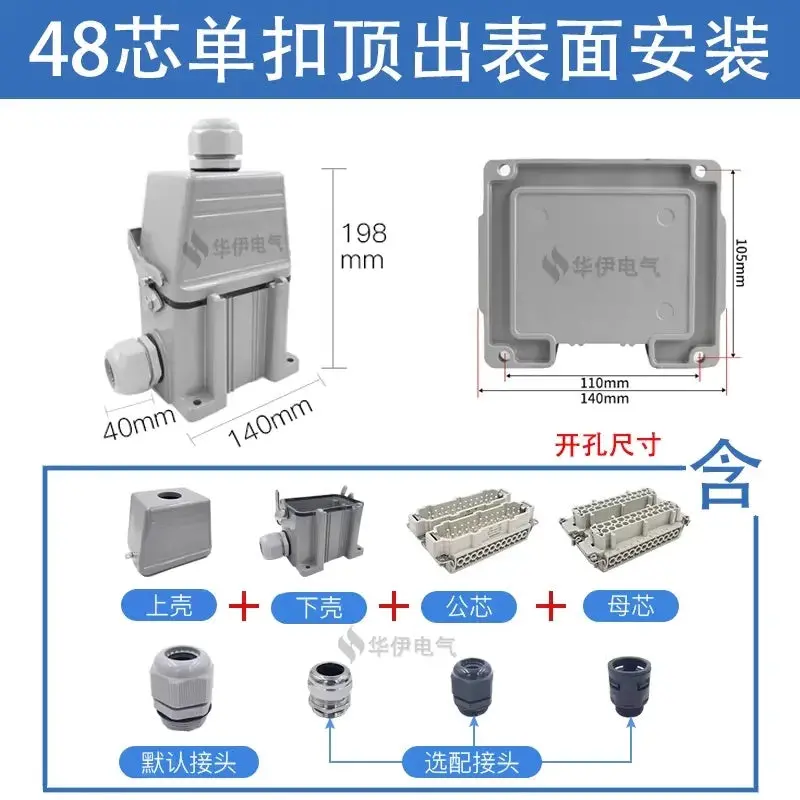

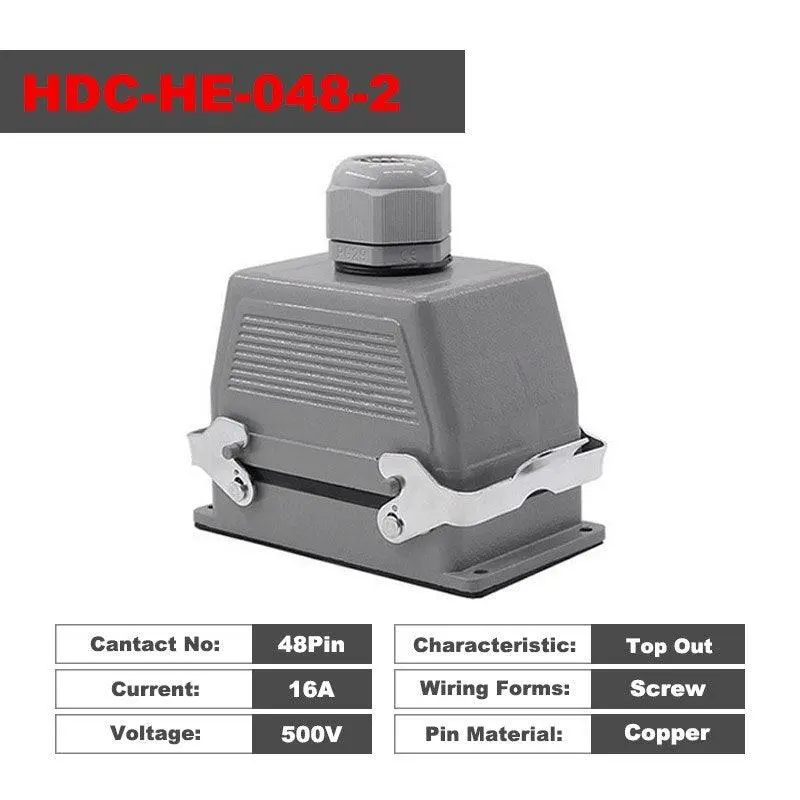

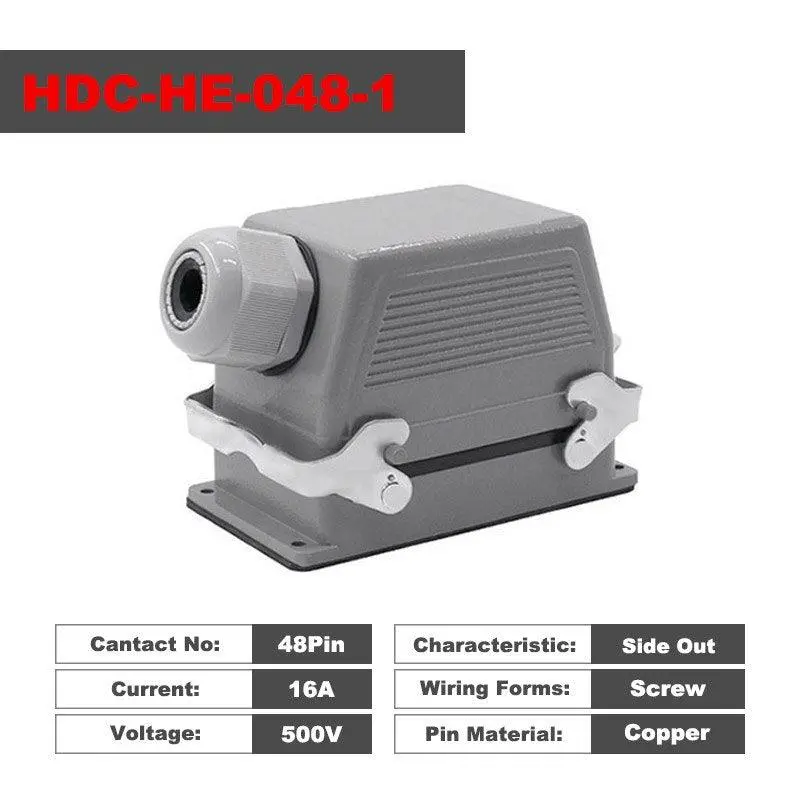

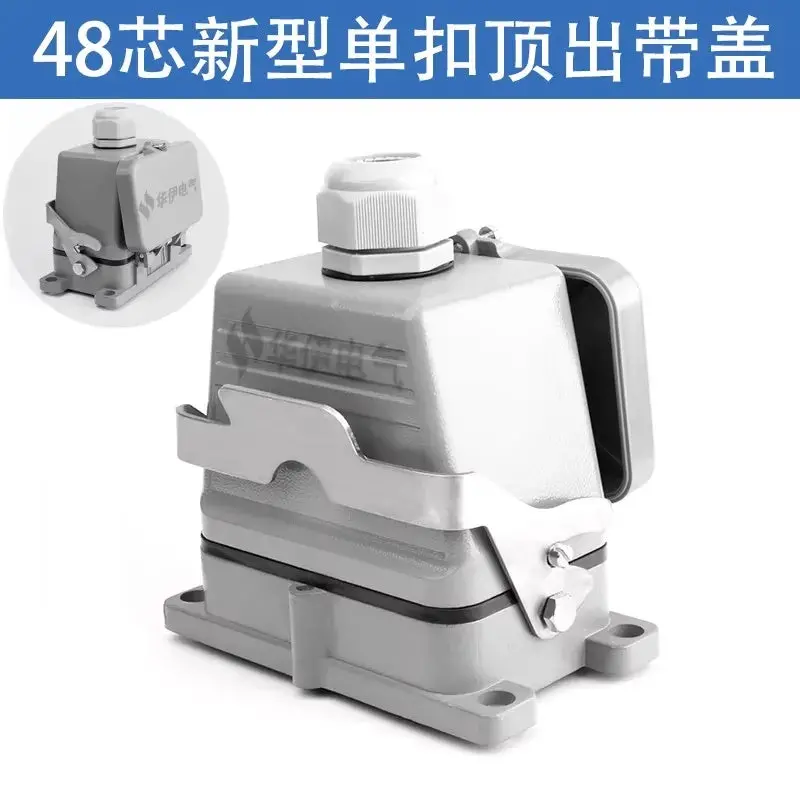

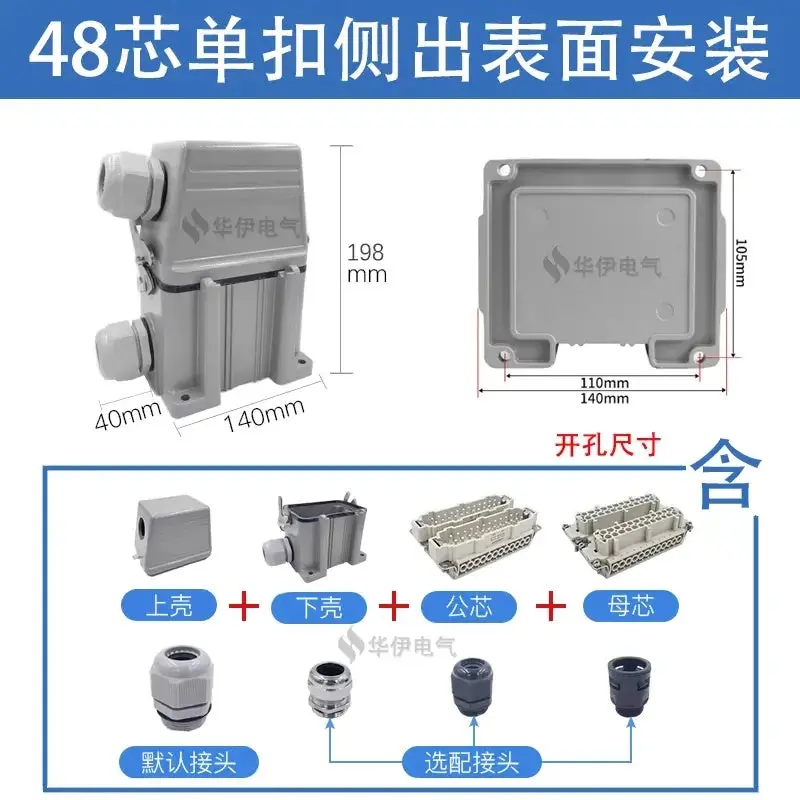

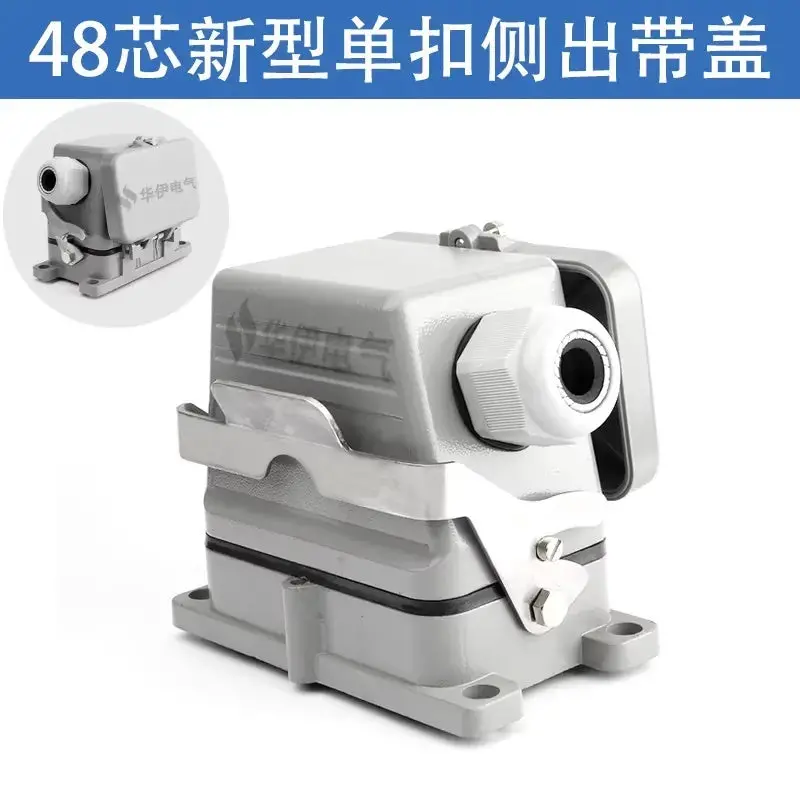

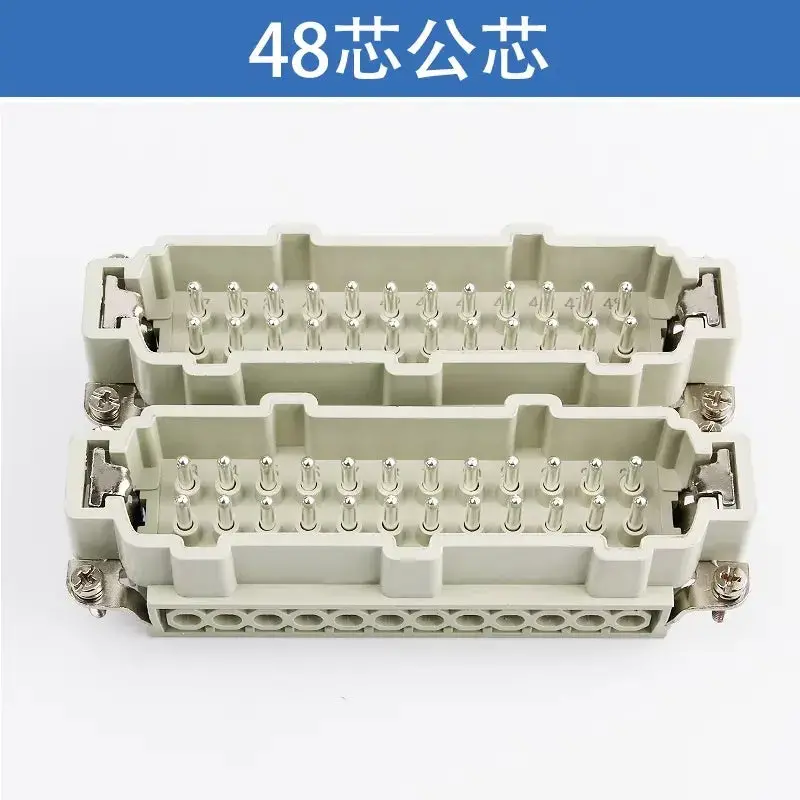

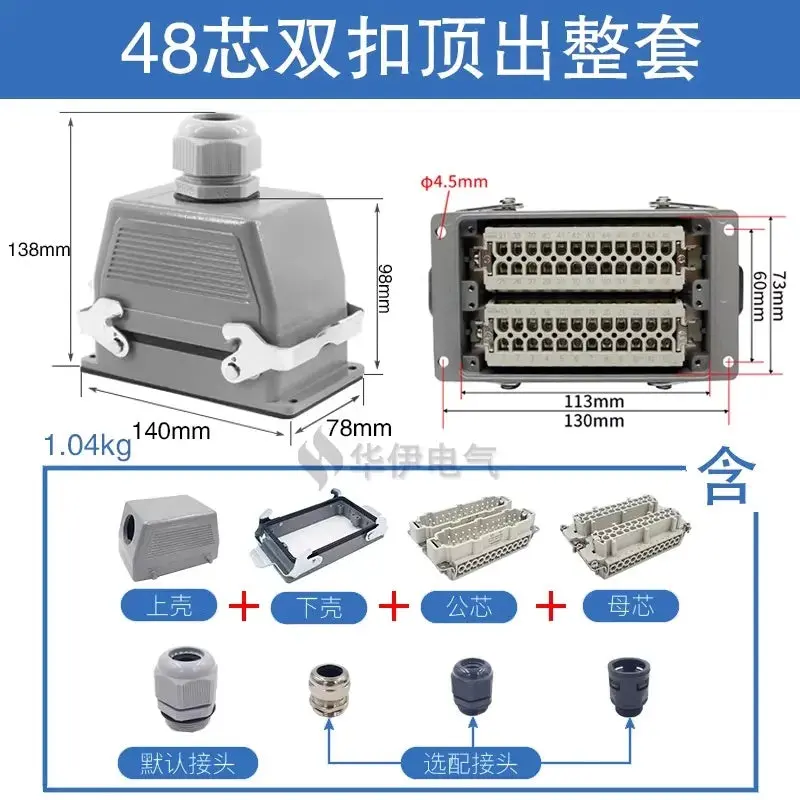

48 pin double clip Side-Out HDC-HE-048-1, 48 pin double clip Top-Out HDC-HE-048-2, 48 pin new type double clip Side-Out HDC-HE-048-1 Big, 48 pin new type double clip Top-Out HDC-HE-048-1 Big, 48 pin double clip Side-Out Surface mount HDC-HE-048-3, 48 pin double clip Top-Out Surface mount HDC-HE-048-4, 48 pin Cable butt joint type, 48 pin double clip Side-Out with Cover, 48 pin double clip Top-Out with Cover, 48 pin double clip Side-Out Surface mount with Cover, 48 pin double clip Top-Out Surface mount with Cover, 48 pin Male connector, 48 pin Female connector
