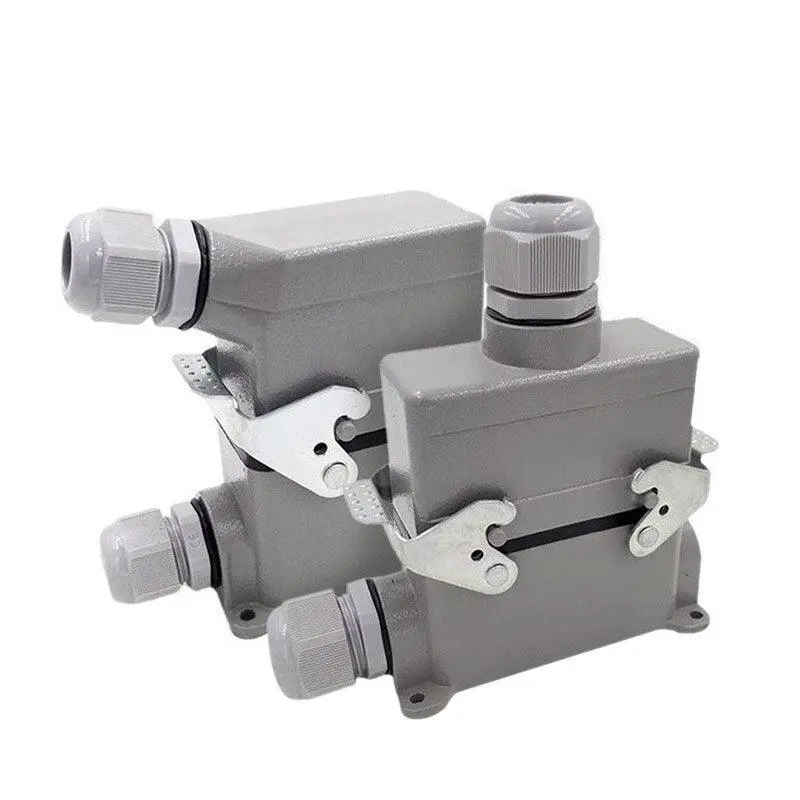

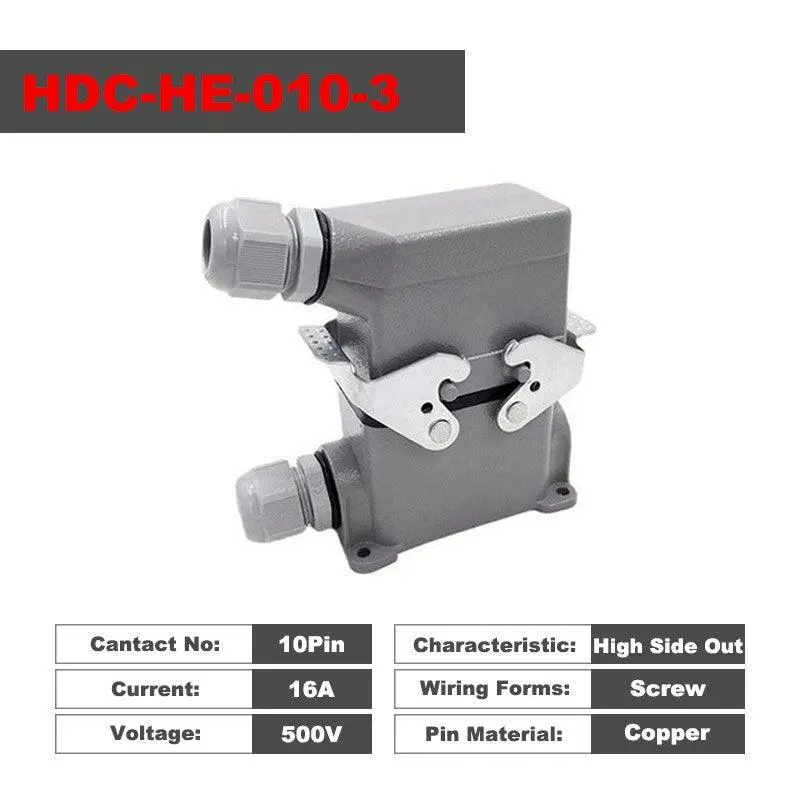

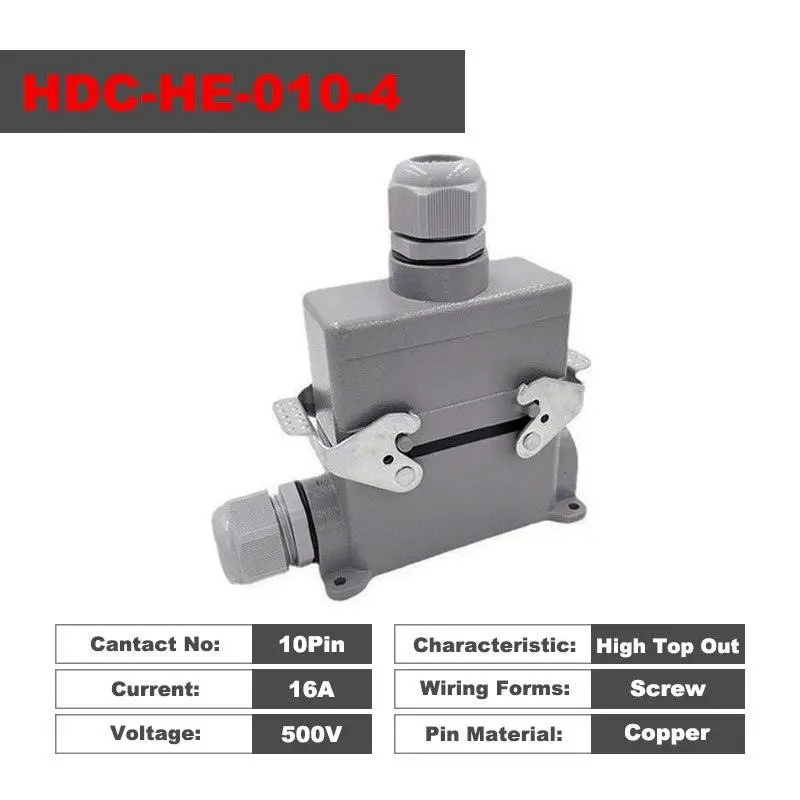

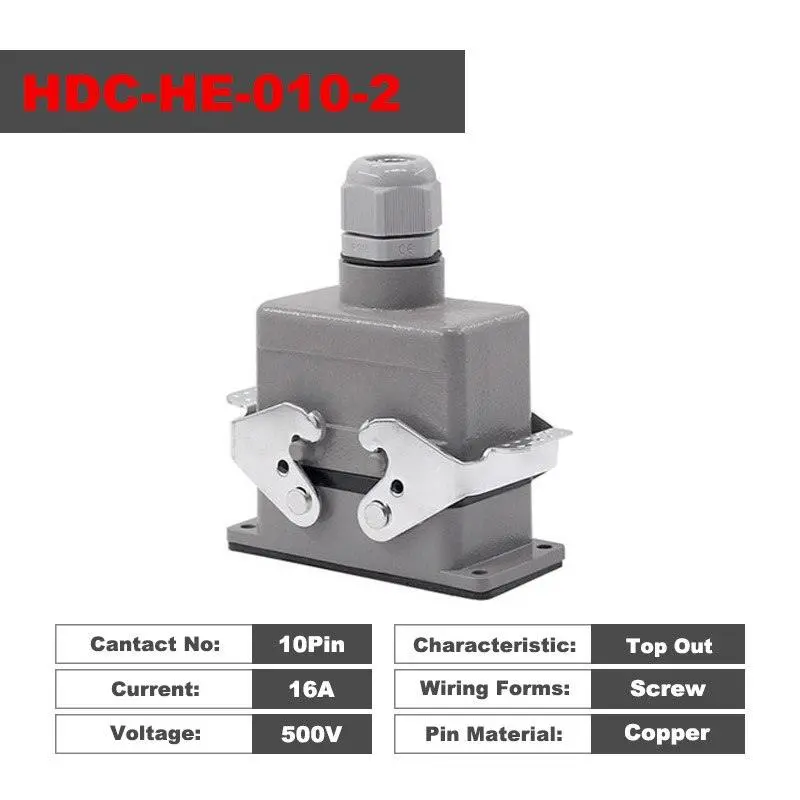

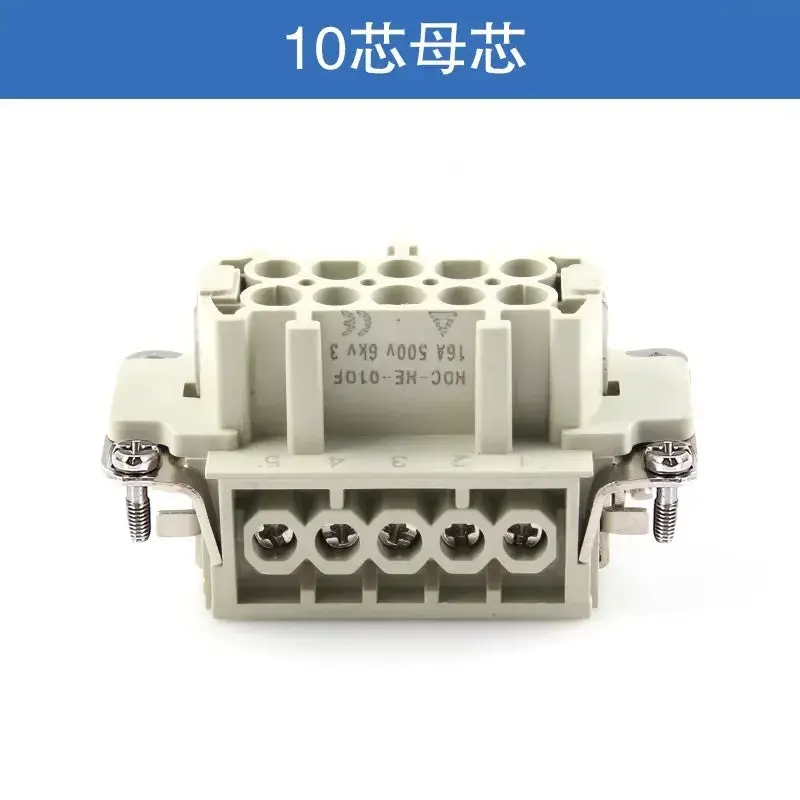

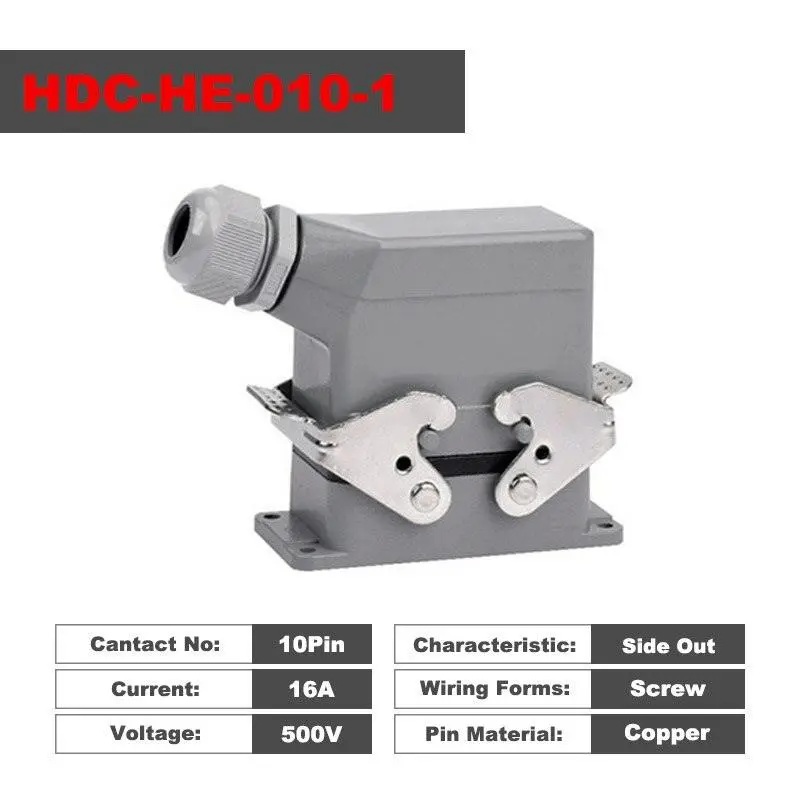

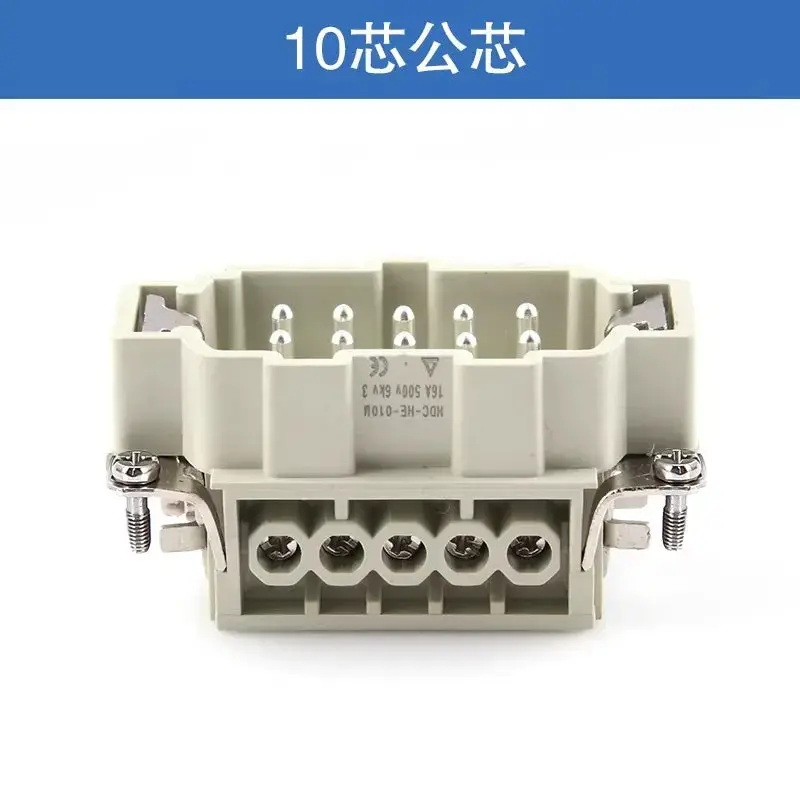

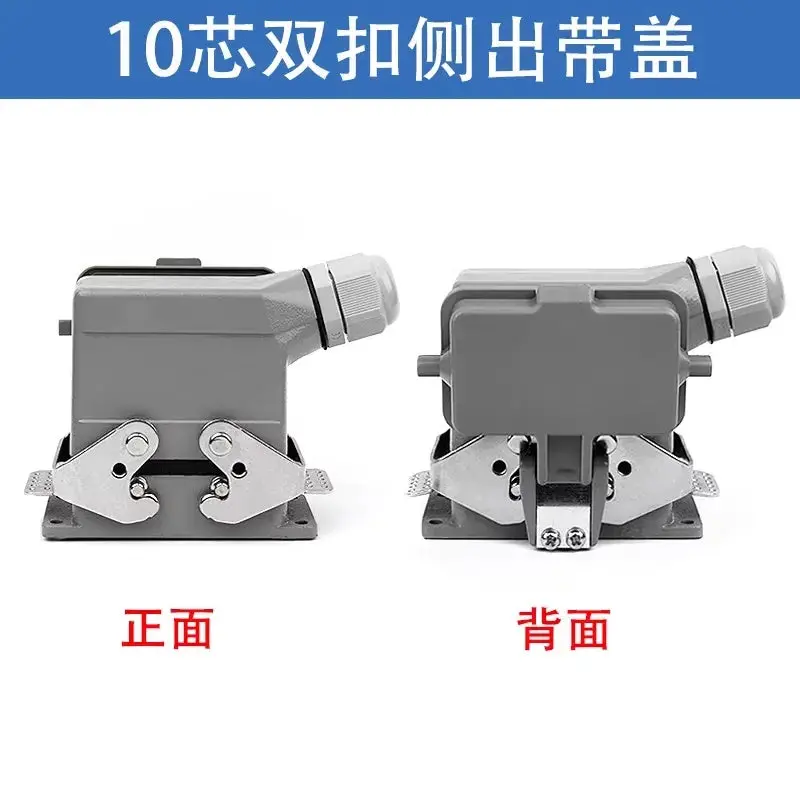

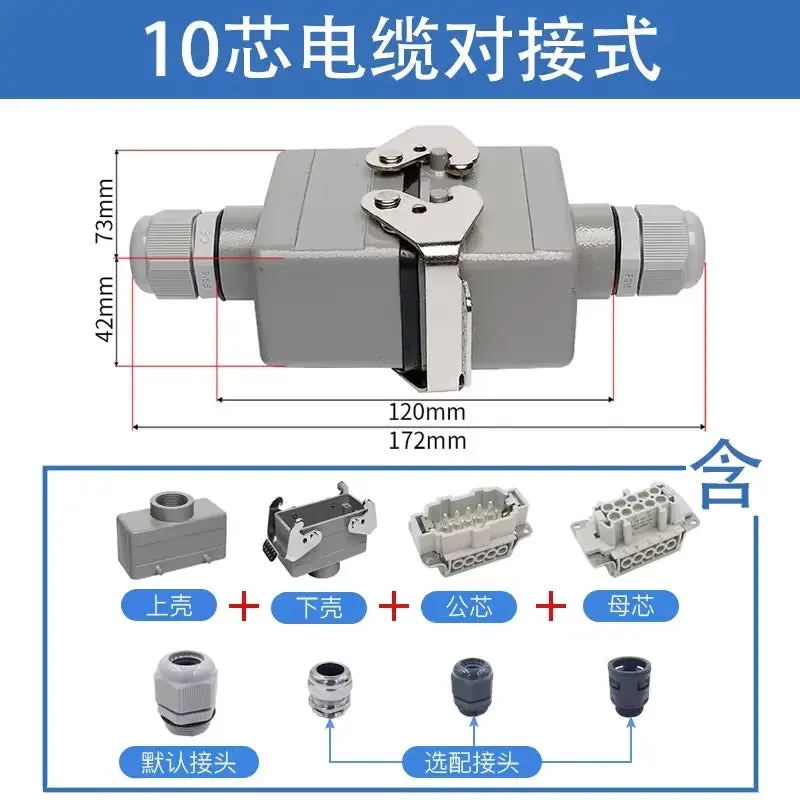

Heavy Duty Connectors HDC-HE-010-1/2/3/4 F/M 10pin 16A Screw connection Industrial rectangular Aviation connector plug,hdc connector
The HDC-HE-010 series rectangular heavy-duty connector is a high-performance industrial connection solution, specifically designed for 10-pin signal and power transmission scenarios. Available in four configurations (HDC-HE-010-1/2/3/4) with both female (F) and male (M) options, it features a rated current of 16A, ensuring stable and reliable power supply for heavy-load industrial equipment.With a rugged rectangular structure, this connector is built to withstand harsh industrial environments, including high temperature, humidity, dust, and vibration. It adopts a secure locking mechanism to prevent accidental disconnection, ensuring continuous operation even in complex working conditions such as industrial automation, machinery, power cabinets, and outdoor equipment.Crafted from high-quality materials, the connector boasts excellent insulation performance and corrosion resistance, effectively extending its service life. The standardized pin layout and easy installation design improve assembly efficiency, making it widely applicable in various industrial fields that require stable and durable electrical connections.Product Parameters
| Insert Body | Metal Upper Housing/Base | ||
|---|---|---|---|
| Operating Current | 16A | Material | Die-cast Aluminum Alloy |
| Operating Voltage | 500V | Surface Treatment | High-temperature Powder Coating |
| Rated Impulse Withstand Voltage | 6kV | Locking Device | Stainless Steel or Zinc-plated Iron |
| Pollution Degree | 3 | Operating Temperature Range | -40°C ~ +125°C |
| Insulation Resistance | ≥10Ω | Protection Class | IP65 |
| Material | Polycarbonate | ||
| Operating Temperature Range | -40°C ~ +125°C | Contacts | |
| Flammability Class (per UL94) | V0 | Material | Copper |
| Operating Voltage (per UL/CSA) | 500V | Surface Treatment | Silver-plated |
| Number of Contact Pins | 4/6/10/16/20/24/32/48 pins | Contact Resistance | ≤1mΩ |
| Mounting Method | Cutout Mounting | Wiring Type | Screw Crimping |
| Screw Tightening Torque / Test Torque | 0.25Nm |
