SPECIFICATIONS

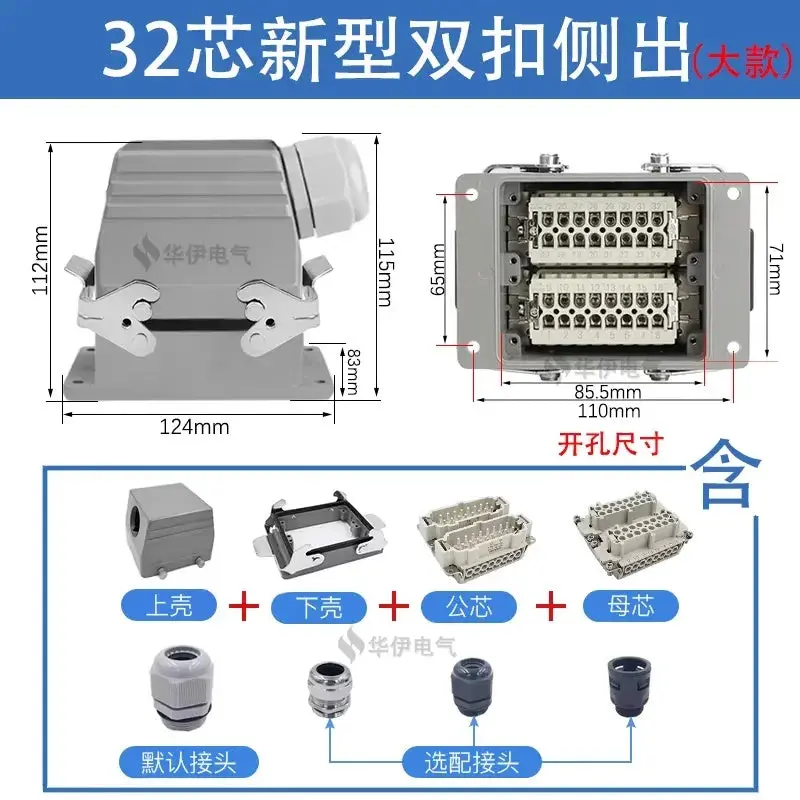

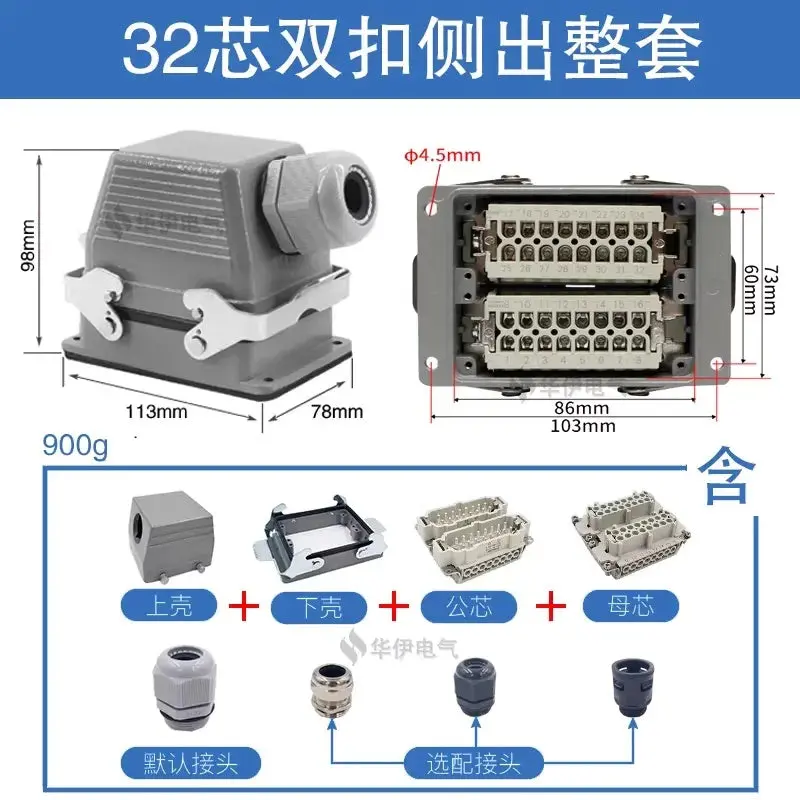

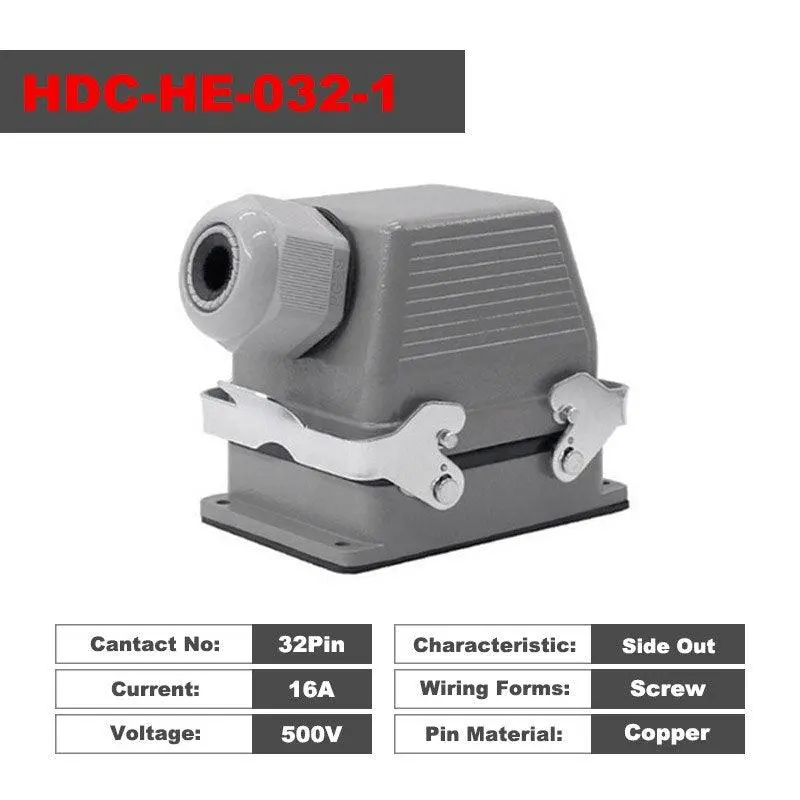

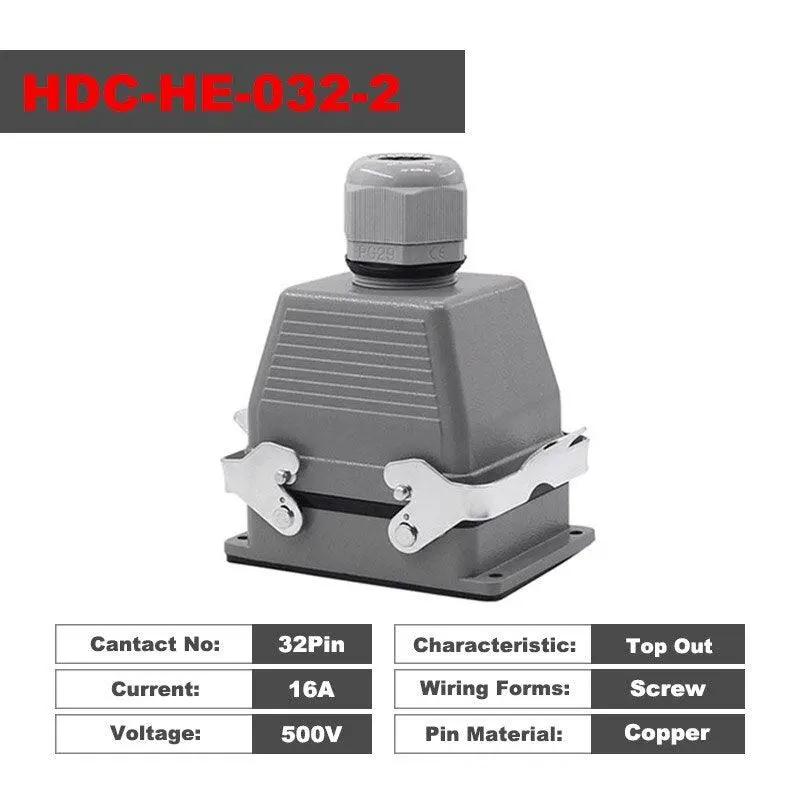

Heavy Duty Connectors HDC-HE-032-1/2 F/M 32pin 16A Industrial rectangular Aviation connector plug Screw connection,hdc connector

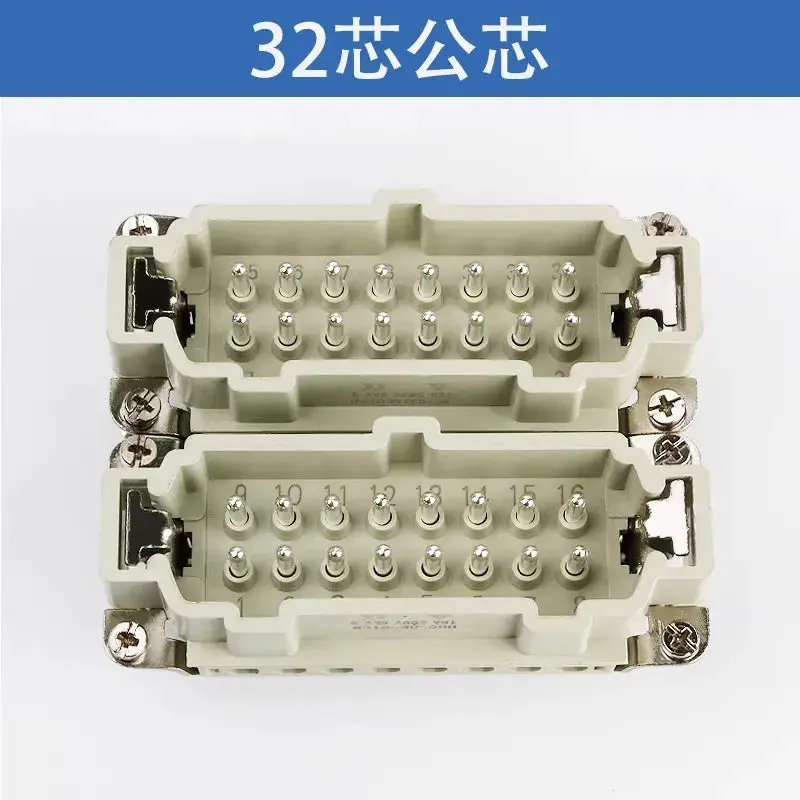

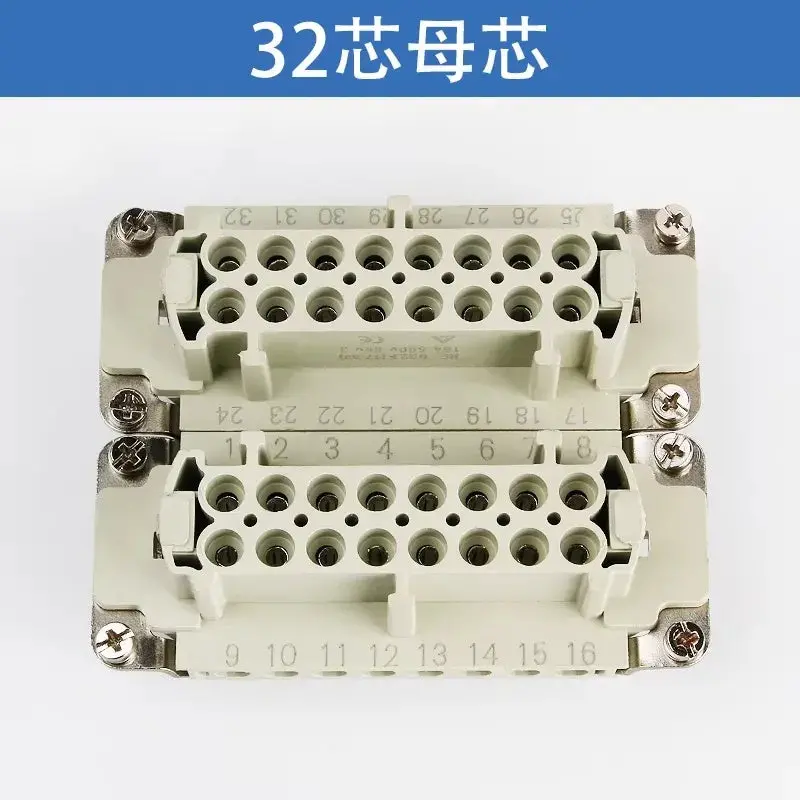

This heavy duty connector (aviation plug & socket) adopts HDC-HE series standard design, with 32 pins and rated current 16A. It features stable connection, high waterproof and dustproof performance, strong anti-vibration and corrosion resistance. Widely used in machinery, automation equipment, power distribution cabinet, electrical engineering and other industrial occasions. The product includes female and male connectors for reliable and fast wiring and assembly.

Working current: 16A

Working voltage: 500V

Rated pulse voltage: 6KV

Pollution level: 3

Isolation resistance: ≥10

Material: Polycarbonate

Operating temperature range: -40℃~+125℃

Flame retardant grade (according to UL94): V0

Installation method: hole installation

Connectors Material: Copper

Surface treatment: silver plated

Contact resistance:=<1m ohm

Wiring form: screw connection

Screw tightening torque/test torque: 0.25Nm+

Wiring forms: screw fixing

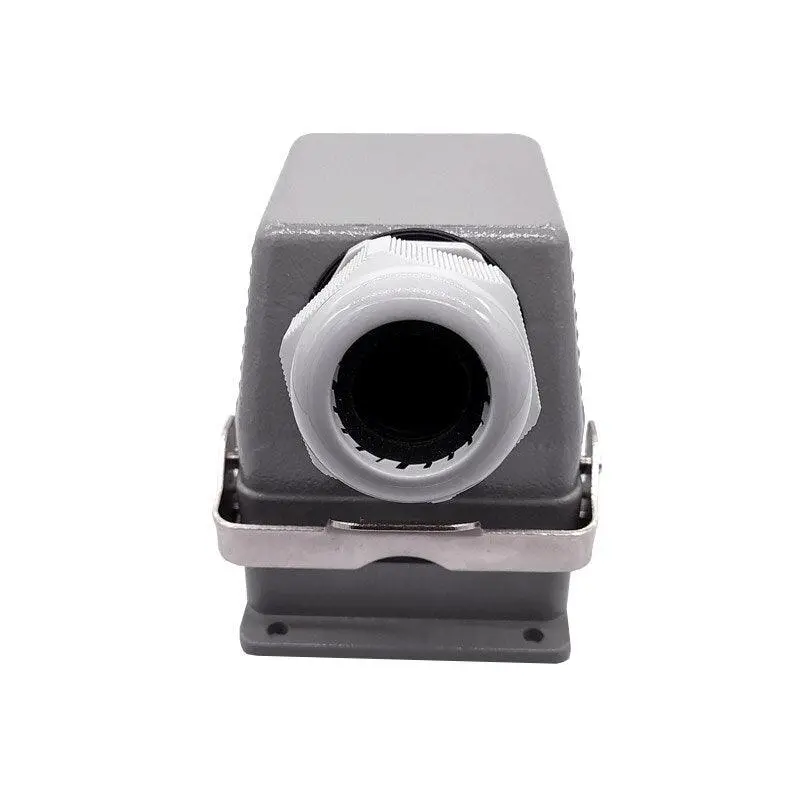

Metal upper case/base

Material: Cast aluminum alloy

Surface treatment: high temperature powder coating

Locking device: stainless steel or iron galvanized

Operating temperature range: -40℃~+125℃

Protection class: IP65
