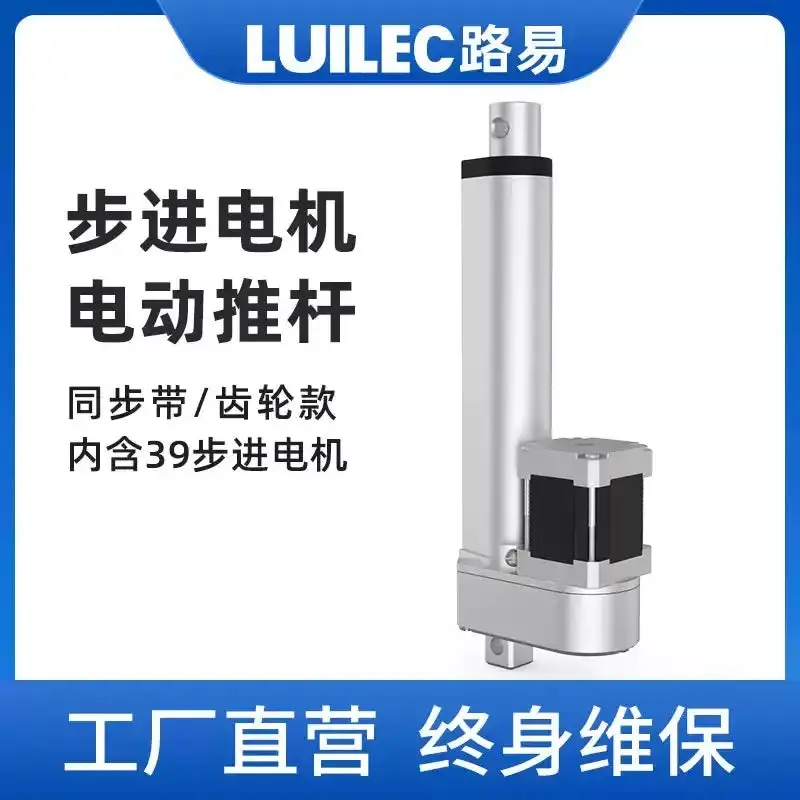

Dc Stepper Linear Actuator, Gear & Timing Belt Type 13
Dc Stepper Linear Actuator, Gear & Timing Belt Type 14
Dc Stepper Linear Actuator, Gear & Timing Belt Type 15
Dc Stepper Linear Actuator, Gear & Timing Belt Type 16
Dc Stepper Linear Actuator, Gear & Timing Belt Type 17
Dc Stepper Linear Actuator, Gear & Timing Belt Type 18
Dc Stepper Linear Actuator, Gear & Timing Belt Type 19
Dc Stepper Linear Actuator, Gear & Timing Belt Type 20
Dc Stepper Linear Actuator, Gear & Timing Belt Type 21
Dc Stepper Linear Actuator, Gear & Timing Belt Type 22
Dc Stepper Linear Actuator, Gear & Timing Belt Type 23
Dc Stepper Linear Actuator, Gear & Timing Belt Type 24
Dc Stepper Linear Actuator, Gear & Timing Belt Type 25
Dc Stepper Linear Actuator, Gear & Timing Belt Type 26

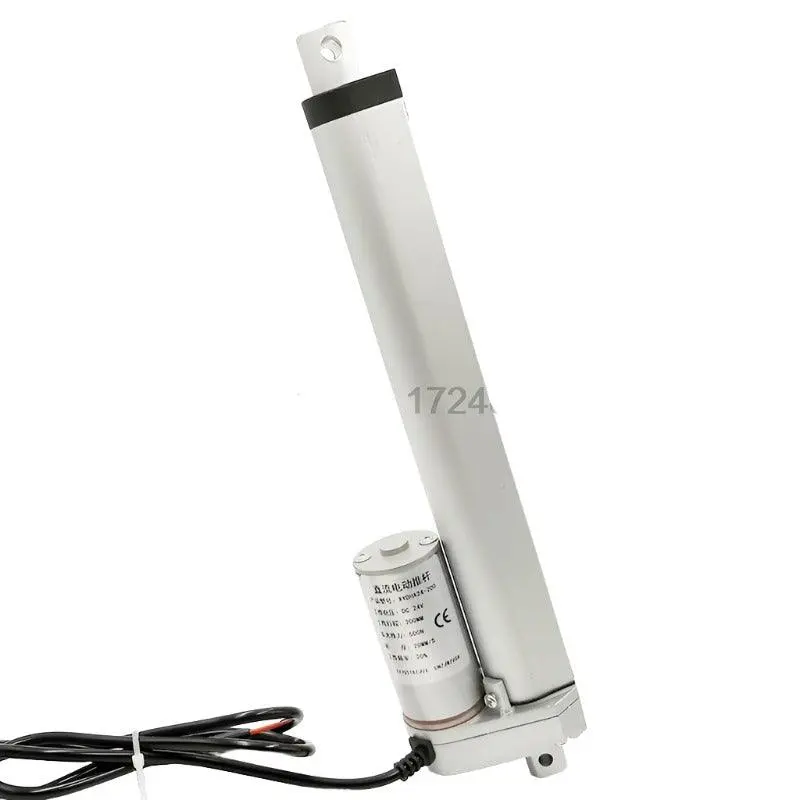

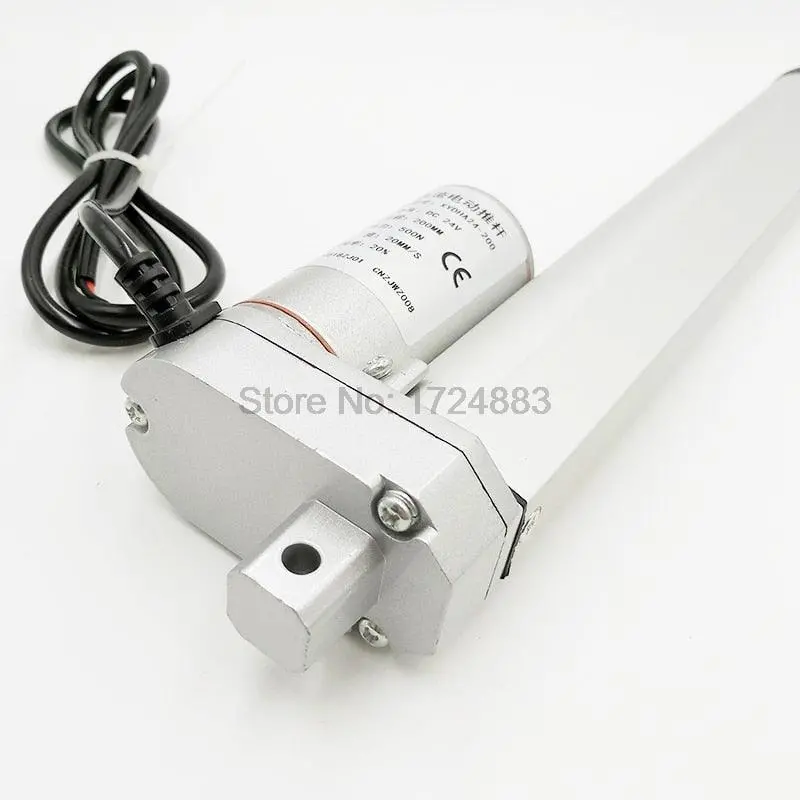

Stepper Motor–Driven Linear Actuator with Timing Belt & Gear Transmission

Price range: $51.25 through $91.34

Quantity
SKU: N/A Category: Brand:

Description

Stepper Motor Linear Actuator, Gear Reduction / Timing Belt Drive Electric Telescopic Rod, 9-36V DC Push-Pull Cylinder, 10mm-2500mm Stroke

Product Description

  • Two Drive Options: Choose between Gear Reduction (BJXL) or Timing Belt (BTXL) versions to match your speed/force needs:
    • Gear Type: 7-12mm/s speed, up to 500N thrust, ideal for high-force, low-speed applications.

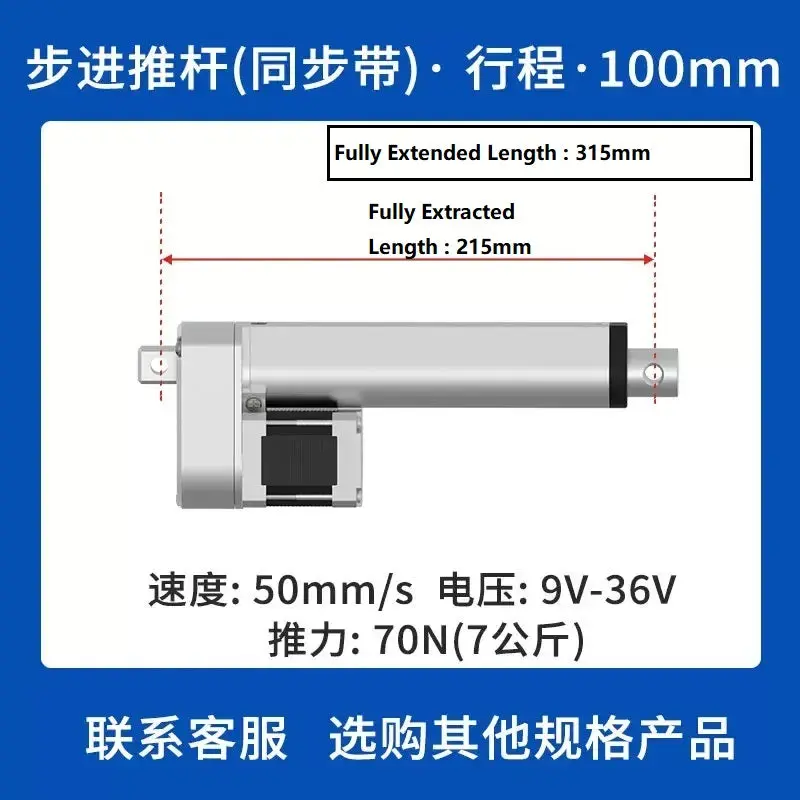

    • Timing Belt Type: 15-50mm/s speed, up to 200N thrust, perfect for fast, light-duty linear motion.

  • Stepper Motor Control: Precise stepper motor design enables accurate positioning and repeatable movement, suitable for automation and precision projects.
  • Wide Compatibility: Works with 9-36V DC power, supporting various industrial and DIY power systems. Rated power: 20-30W.
  • Adjustable Stroke: Customizable stroke length from 10mm to 2500mm (10-500mm as standard options), meeting diverse linear motion requirements.
  • Reliable Protection: Built-in limit switches prevent over-travel damage; IP54 rated for dust and water resistance.
  • Durable & Quiet: High-quality aluminum alloy construction ensures longevity; operates at ≤42dB for low-noise performance.
  • Extreme Environment Ready: Works reliably in temperatures from -40°C to +102°C, suitable for harsh industrial and outdoor use.
  • Versatile Applications: Ideal for automation systems, robotics, DIY projects, adjustable furniture, and industrial lifting equipment.

DATA SHEET

字段 内容
Title Stepper Motor Linear Actuator (Gear / Timing Belt Type)
Keywords stepper linear actuator, electric telescopic rod, DC push pull cylinder, gear reduction actuator, timing belt actuator, 9-36V linear motor, stepper motor rod, IP54 electric actuator, automation linear actuator
Motor Type Stepper Motor
Drive Mechanism Gear Reduction (BJXL) / Timing Belt (BTXL)
Voltage Range 9-36V DC
Rated Power 20-30W
Stroke Range 10mm – 2500mm (Customizable)
Thrust Range 10N – 500N

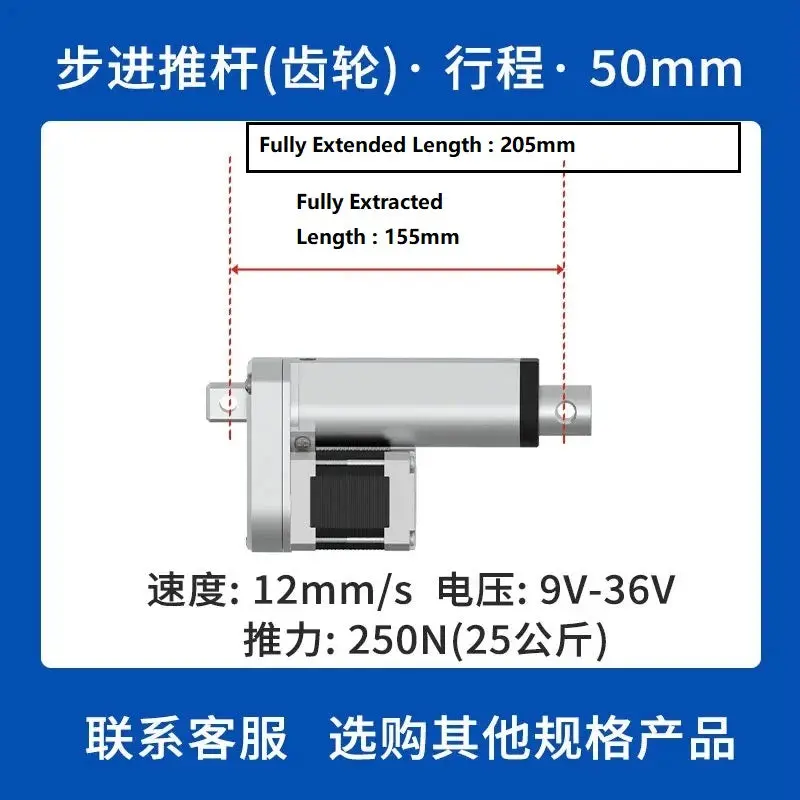

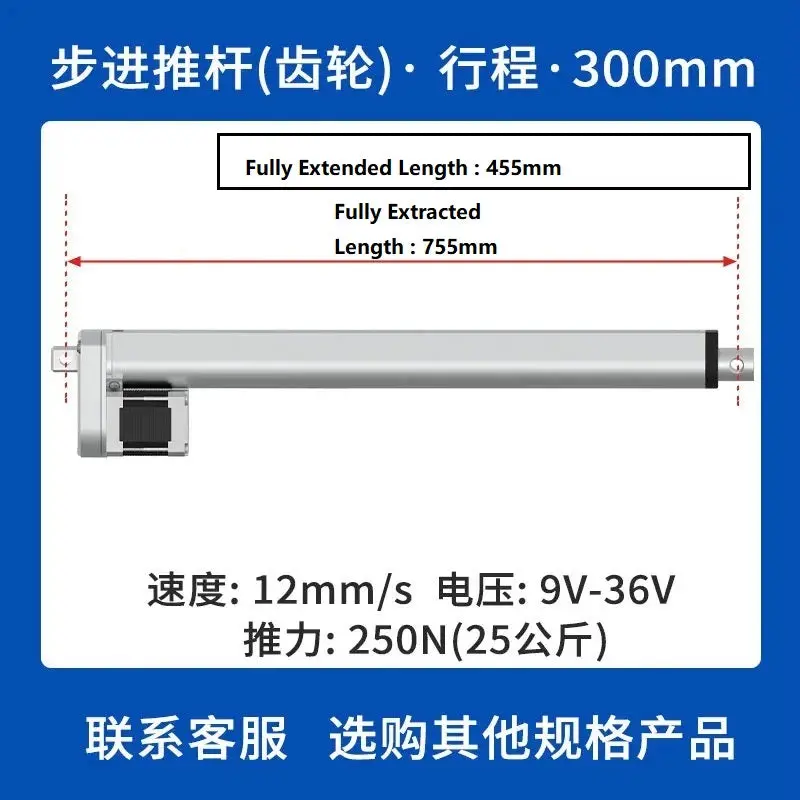

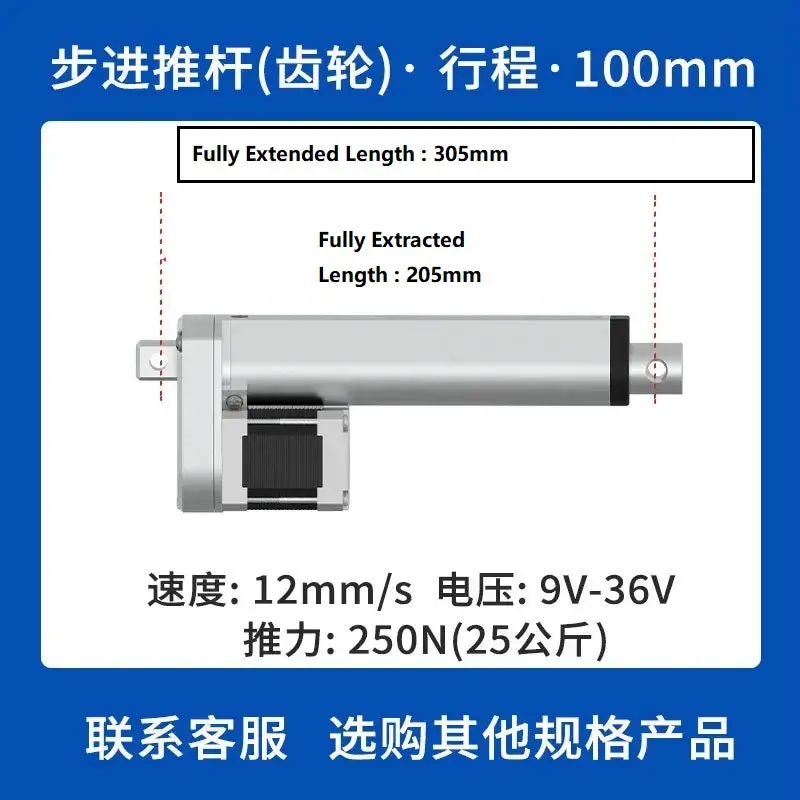

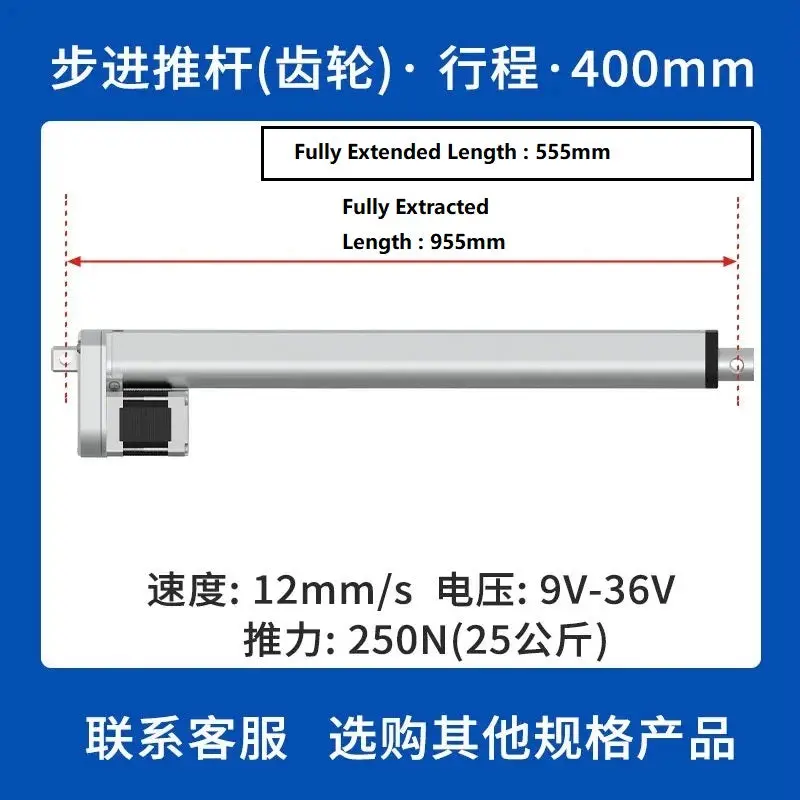

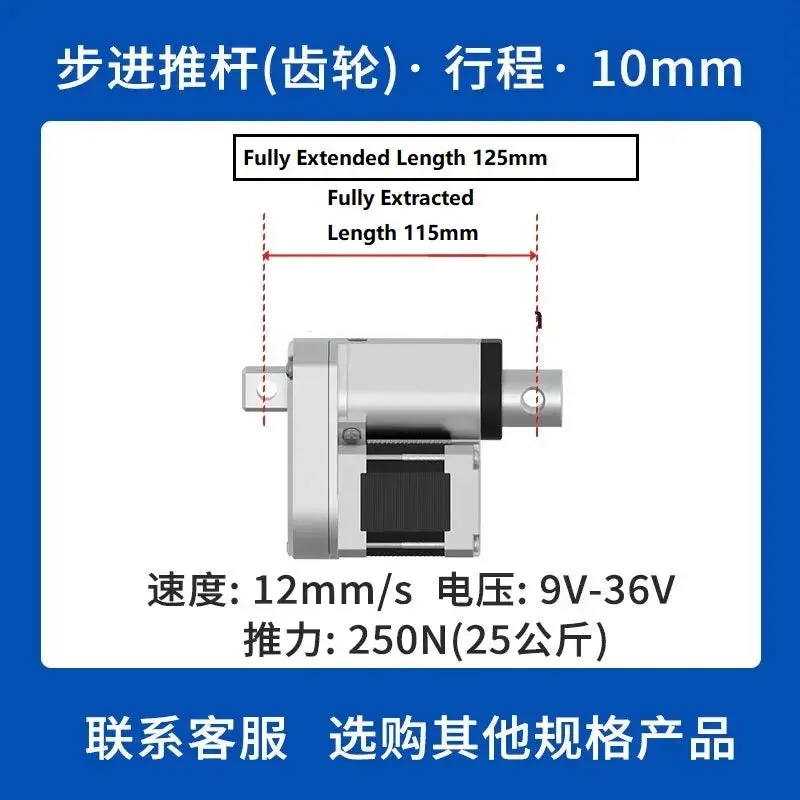

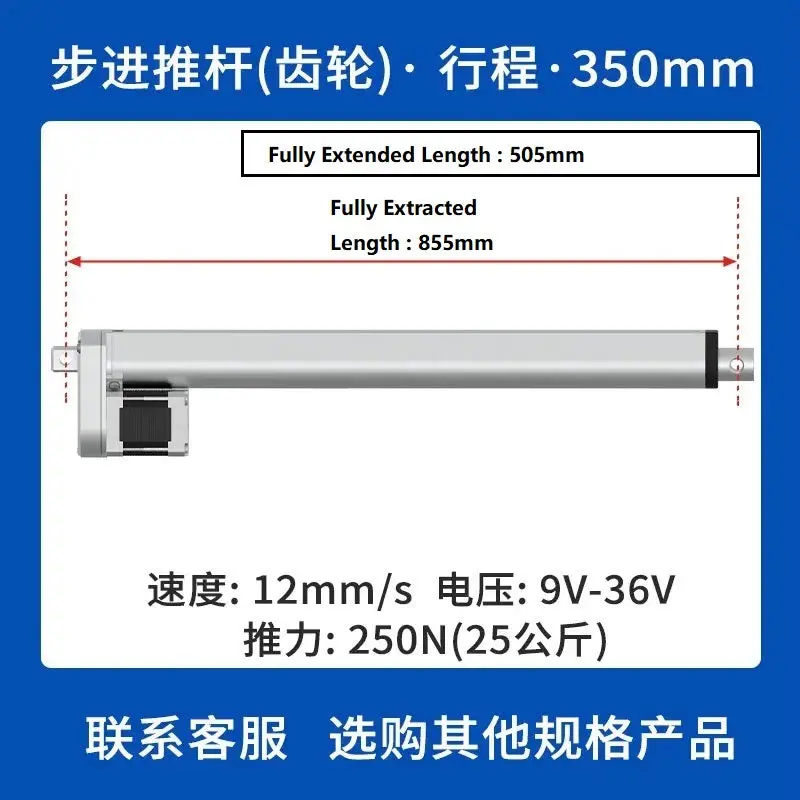

Speed Options (Gear) 7mm/s (500N), 12mm/s (250N)

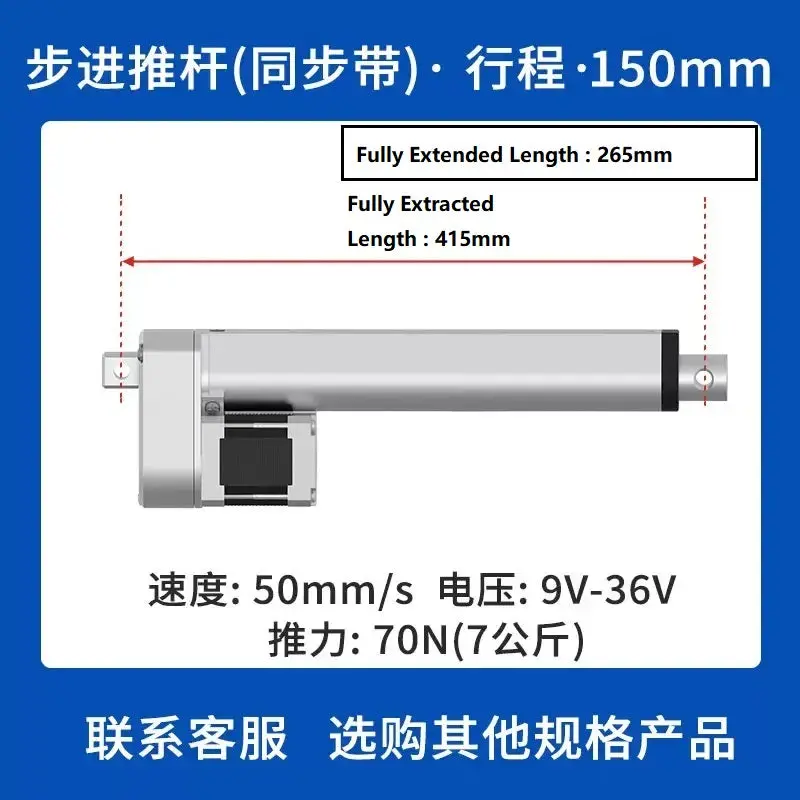

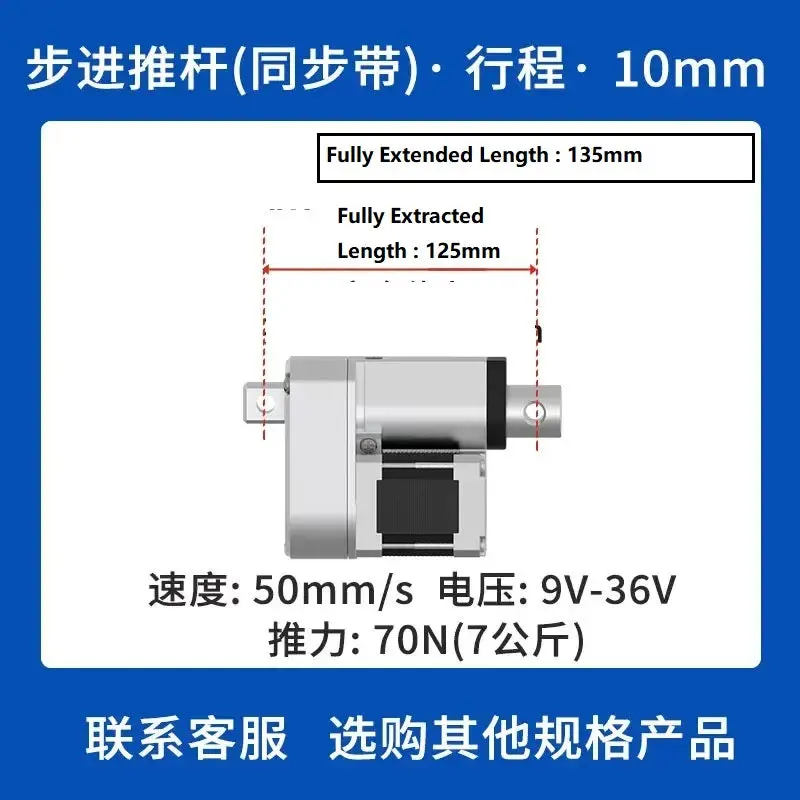

Speed Options (Belt) 15mm/s (200N), 25mm/s (150N), 50mm/s (70N)
Protection Features Built-in Limit Switches
IP Rating IP54
Noise Level ≤ 42dB
Operating Temperature -40°C ~ +102°C
Material Aluminum Alloy
Applications Automation Systems, Robotics, DIY Projects, Industrial Lifting, Adjustable Furniture

Explore more from our collection.

Additional information

Step Motor Actuator Type

Linear Actuator Gear Reducer Type DC9V~36V, Linear Actuator Timing Belt Reducer Type DC9V~36V
Model NO.

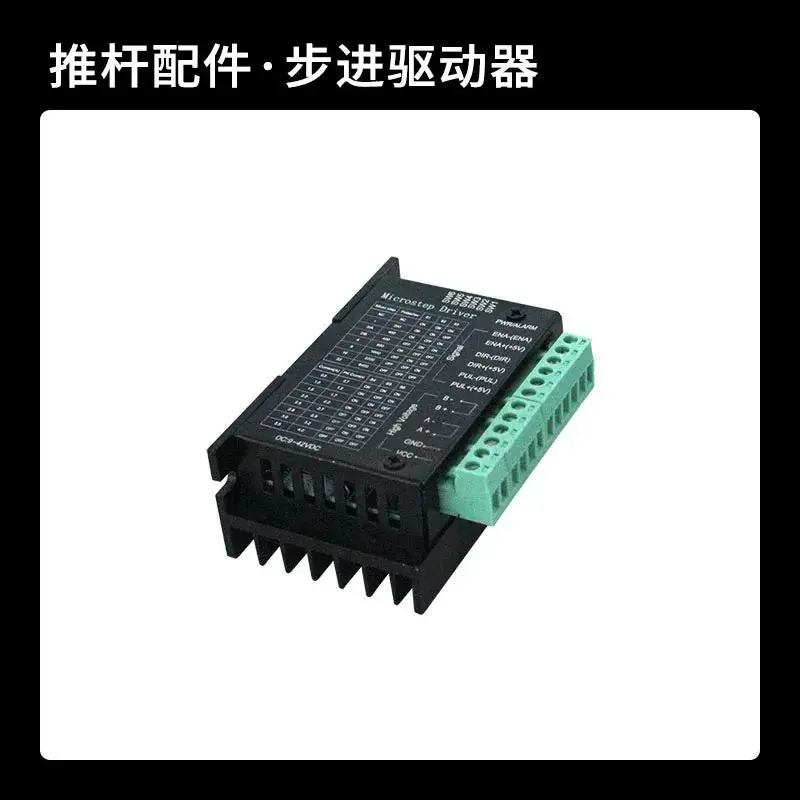

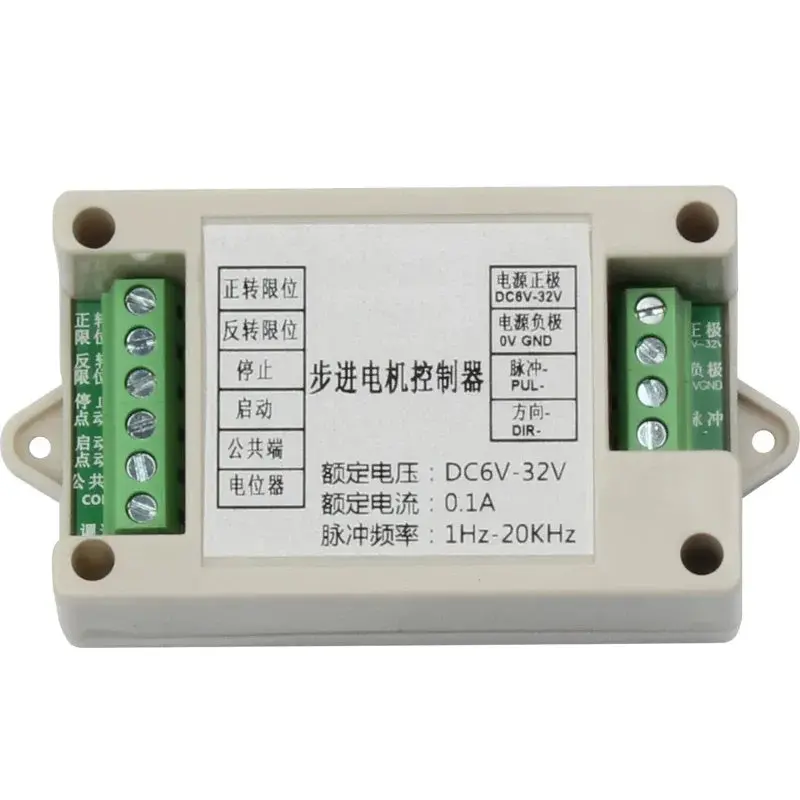

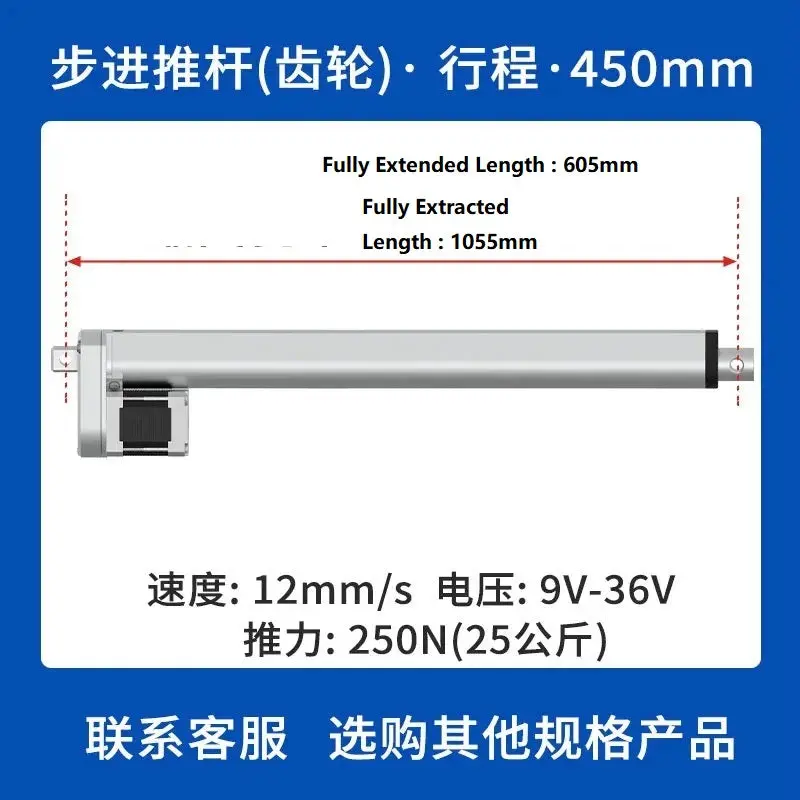

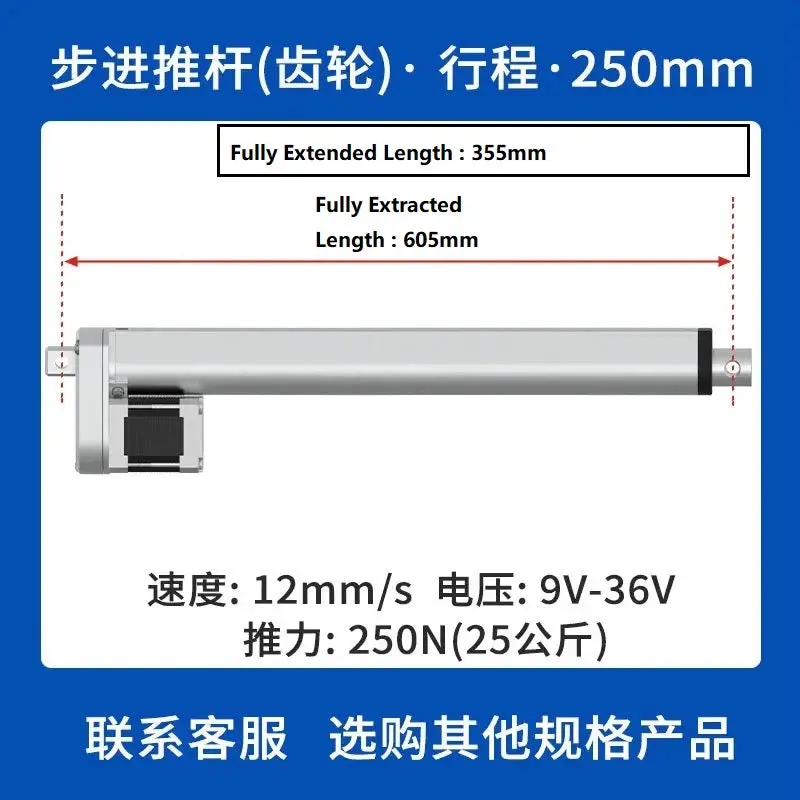

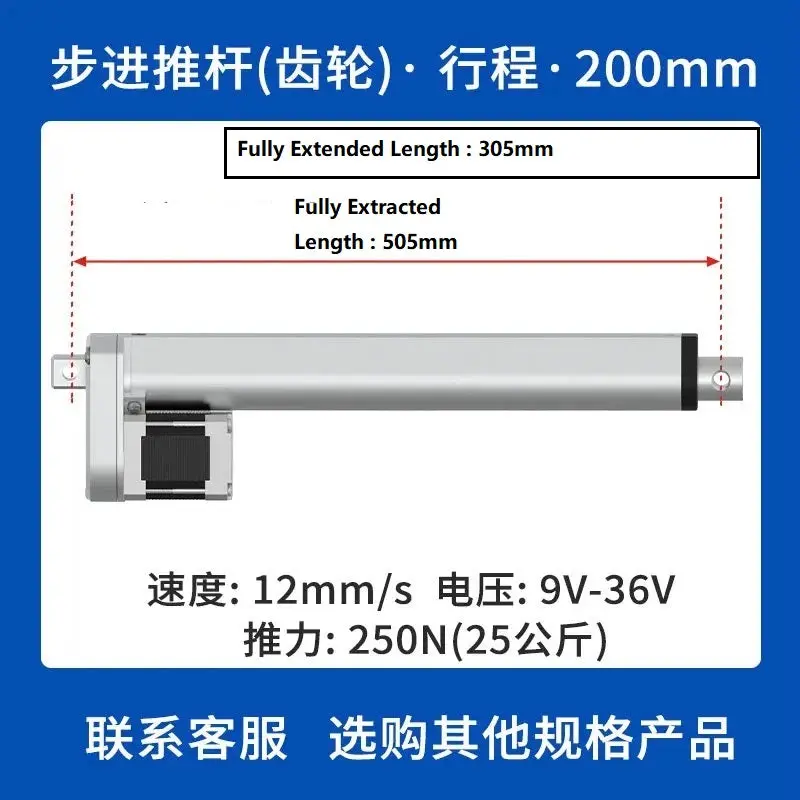

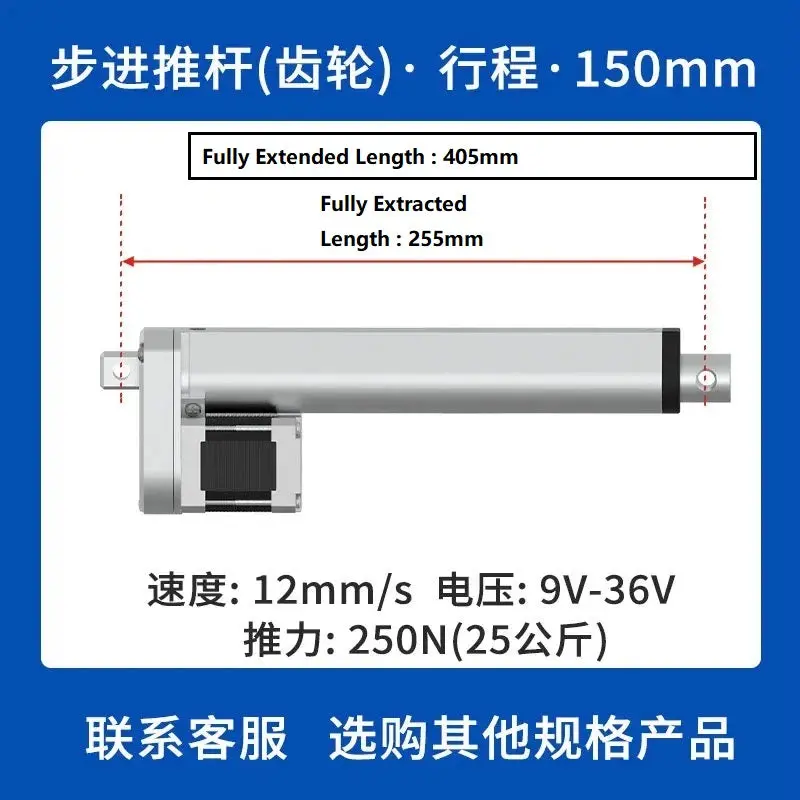

Stroke 10MM/ Speed 12mm/s-250N (25KG), Stroke 50MM/ Speed 12mm/s-250N (25KG), Stroke 100MM/ Speed 12mm/s-250N (25KG), Stroke 150MM/ Speed 12mm/s-250N (25KG), Stroke 200MM/ Speed 12mm/s-250N (25KG), Stroke 250MM/ Speed 12mm/s-250N (25KG), Stroke 300MM/ Speed 12mm/s-250N (25KG), Stroke 350MM/ Speed 12mm/s-250N (25KG), Stroke 400MM/ Speed 12mm/s-250N (25KG), Stroke 450MM/ Speed 12mm/s-250N (25KG), Stroke 500MM/ Speed 12mm/s-250N (25KG), Actuator Controller, Stepper Motor Driver
