Electric Linear Actuator Motor with Hall Sensor Feedback, 1200N Max Thrust, 60mm/s Speed, 10-1000mm Stroke, DC 12/24V Telescopic Actuator
Electric Linear Actuator Motor with Hall Sensor Feedback, 1200N Max Thrust, 60mm/s Speed, 10-1000mm Stroke, DC 12/24V Telescopic Actuator
Product Description

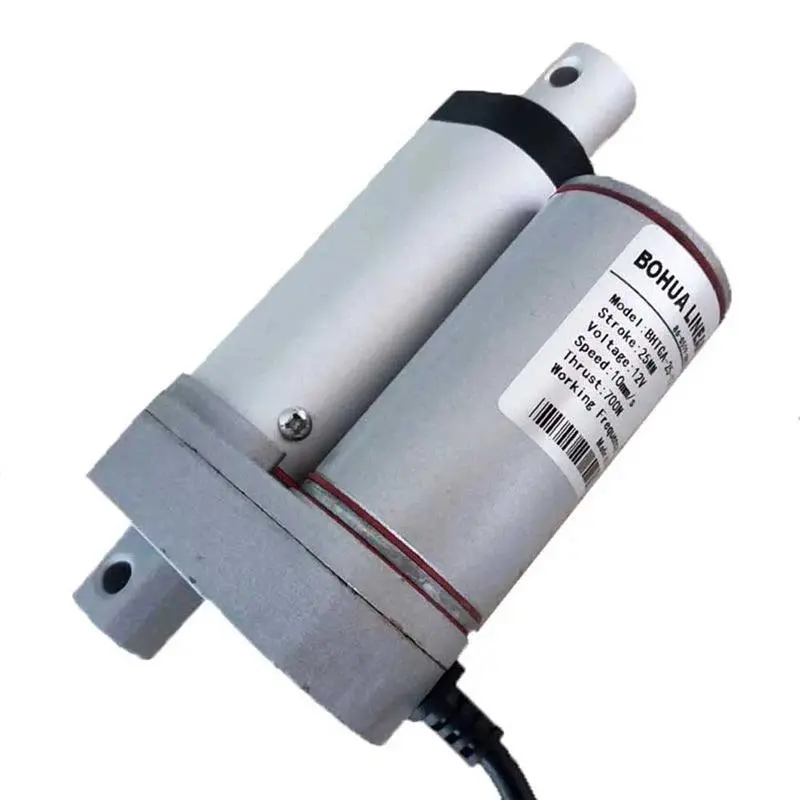

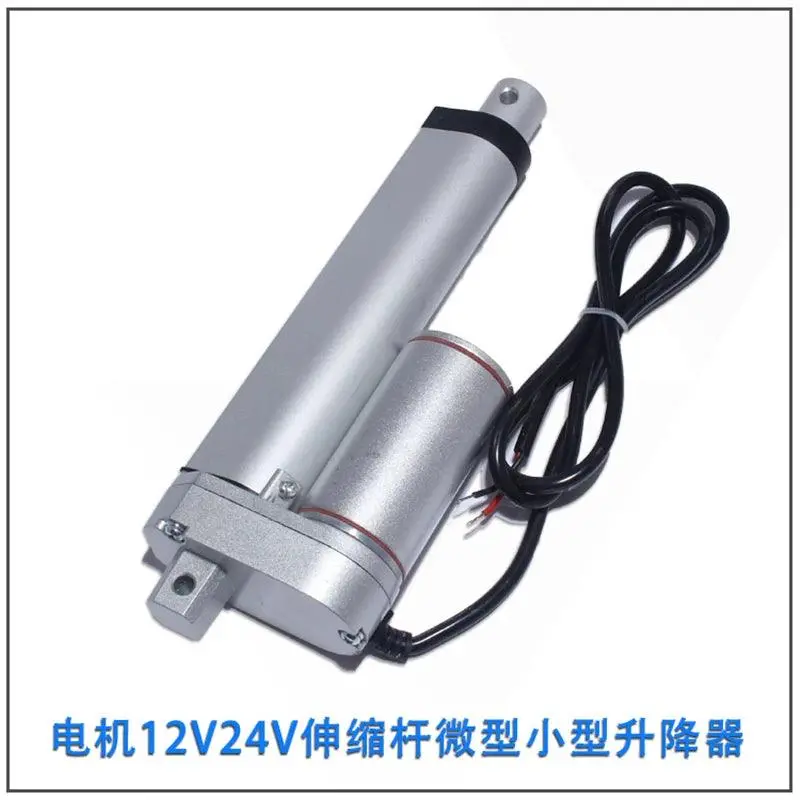

This is a high-performance DC linear actuator equipped with a Hall encoder (dual-channel A/B phase) for precise position feedback and multi-unit synchronous control (1-to-many synchronized telescoping). Designed for both industrial and consumer applications, it converts rotary motion into linear reciprocating motion with reliable, quiet operation.
Key Features
- Hall Encoder Feedback: Dual-channel A/B phase output enables accurate position tracking, speed monitoring, and multi-actuator synchronization for coordinated lifting/opening tasks.
- Dual Voltage Compatibility: Operates at 12V DC or 24V DC to match different power system requirements.
- Strong & Durable Construction: Built with solid aluminum alloy inner and outer tubes, ensuring rust resistance, high strength, and long service life.

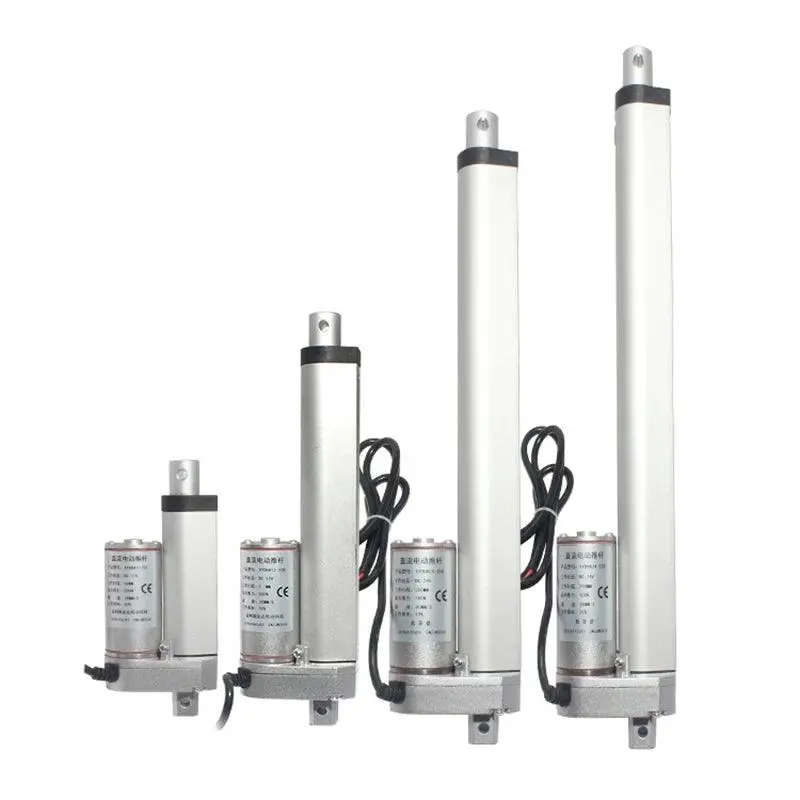

- Adjustable Stroke: Available in stroke lengths from 10mm to 1000mm (customizable 50mm~1000mm) to fit various installation spaces.
- High Load & Speed: Delivers a maximum thrust of 1200N with a top speed of 60mm/s, supporting heavy-duty lifting applications.
- Safety & Reliability: Equipped with built-in limit switches to prevent over-travel damage, and dust/water-resistant design for enhanced durability.
- Low Power Consumption: Rated power of 45W ensures energy-efficient operation without sacrificing performance.
Applications
- Medical Equipment: Electric dental chairs, hospital beds, rehabilitation wheelchairs
- Furniture & Office: Height-adjustable desks, smart massage chairs, recliners
- Industrial Automation: Electric lifting platforms, scissor lifts, window opening systems
- Smart Home: Automatic window openers, motorized curtains, adjustable cabinets
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Linear Actuator / Electric Telescopic Rod |
| Motor Type | DC Motor with Hall Encoder |
| Control Method | Hall Signal Synchronous Control |
| Rated Voltage | 12V DC / 24V DC |
| Rated Power | 45W |
| Max Thrust | 1200N |
| Speed Range | Up to 60mm/s |

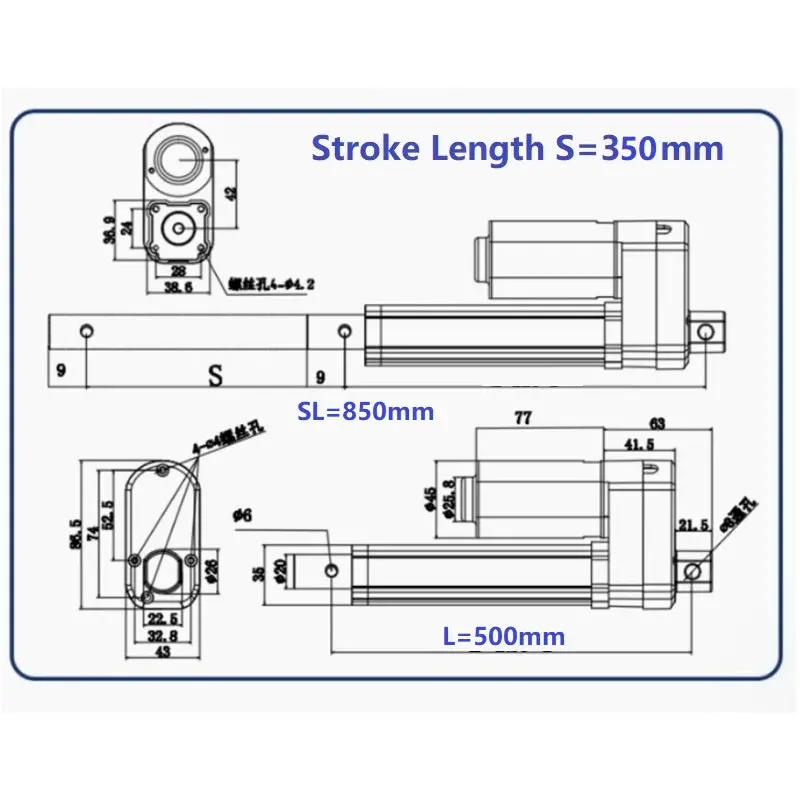

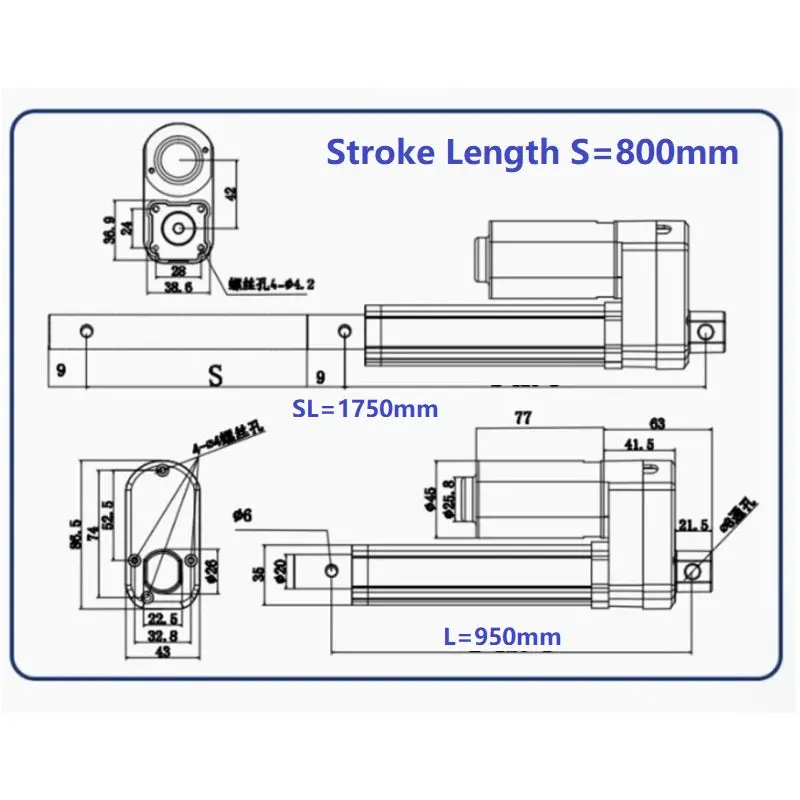

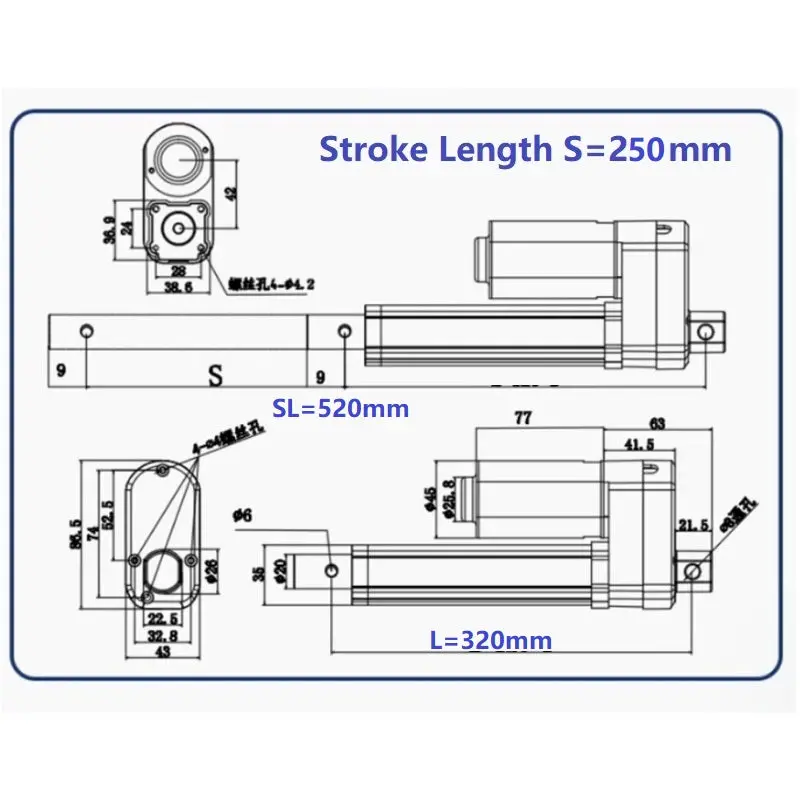

| Stroke Length | 50mm~1000mm (Customizable) |
| Feedback Signal | Hall Sensor (A/B Phase) |
| Housing Material | Aluminum Alloy |
| Safety Feature | Built-in Limit Switches |
| Protection Performance | Dustproof & Waterproof |
| Application Scenarios | Medical Equipment, Office Furniture, Industrial Automation, Smart Home |
| Compatibility | Supports 1-to-Many Synchronous Operation |

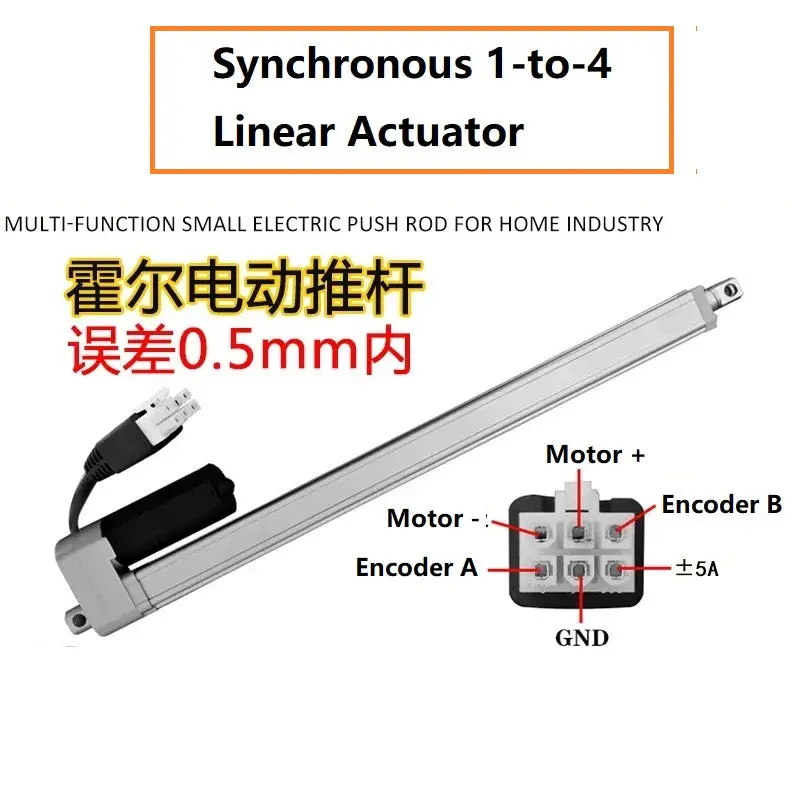

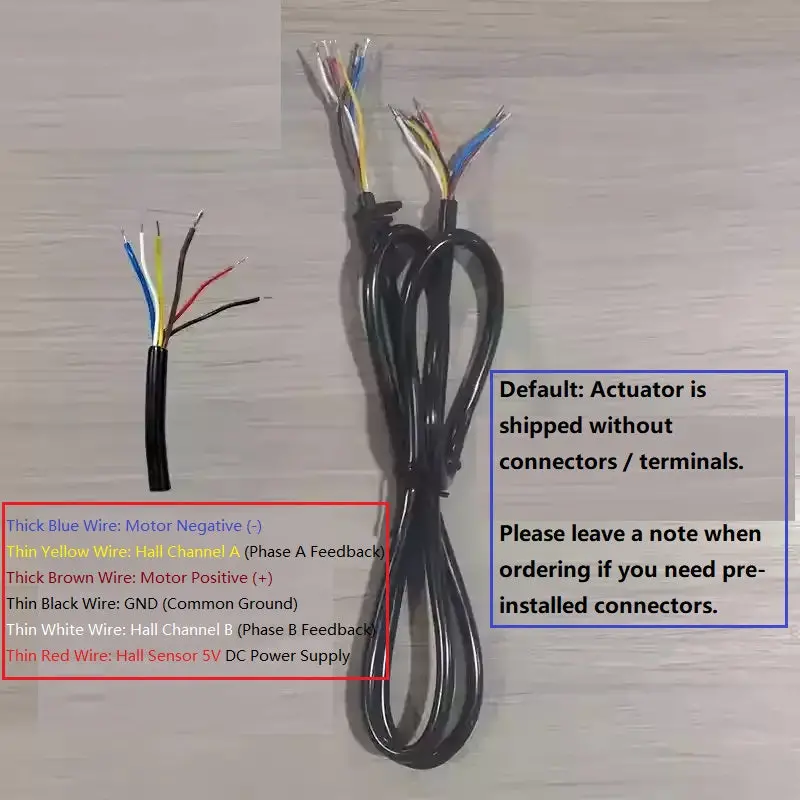

| Connection Type | 6-Pin Connector (Motor + Hall Signals) |
