Description
LUILEC Linear Actuator 1400N 12V/24V 2500mm Stroke Adjustable Speed Electric Push Rod
Specification

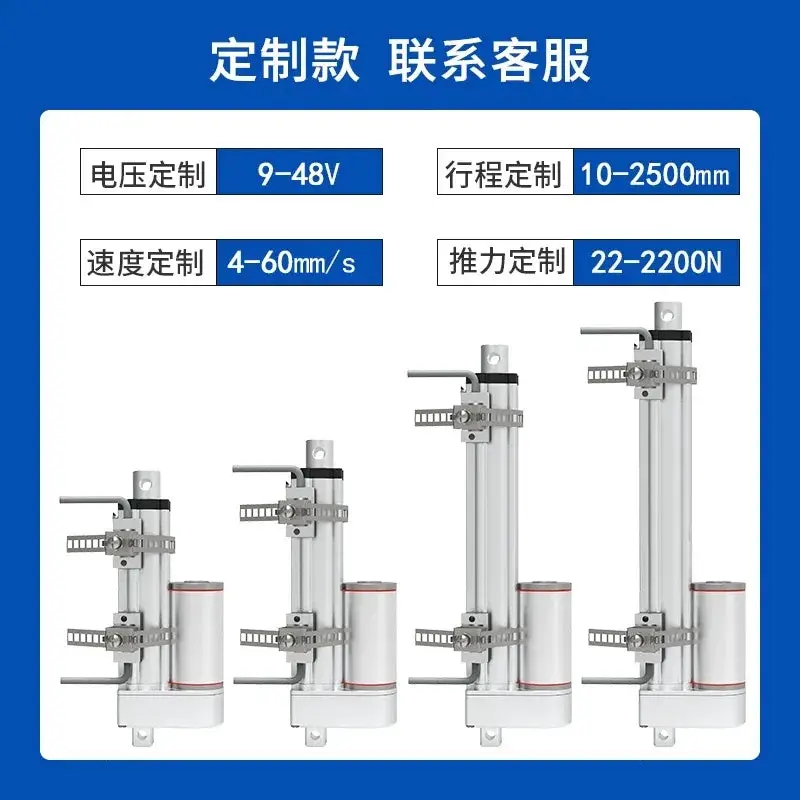

The LUILEC Adjustable Stroke Linear Actuator is a heavy-duty, multi-functional telescopic linear motion solution designed for industrial automation, large-scale lifting, and custom mechanical projects. Featuring an ultra-long adjustable stroke range of 10-2500mm, users can precisely set the extension length according to specific needs—eliminating the constraints of fixed-stroke models.
Powered by 12V/24V/36V/48V DC voltage options, it delivers a maximum thrust of 1400N (140kg) with an adjustable speed range of 7-60mm/s, ensuring powerful and stable performance for heavy loads. Equipped with built-in limit switches, the actuator automatically stops at both ends to prevent over-travel and damage, ensuring safe and reliable operation.
Constructed with durable aluminum alloy housing and an IP54 dust/water-resistant rating, it operates at a noise level of 56dB and can withstand extreme temperatures from -40°C to 102°C, making it suitable for indoor, outdoor, and harsh industrial environments.
The package includes 5 interchangeable joint options (default Joint No.2 is shipped for integrated, non-detachable stroke). For custom joint requirements, please contact customer service to note your preferred model. Ideal for solar tracking systems, industrial machinery, DIY heavy lifts, and automatic door/window mechanisms.
Features
- Custom Stroke Design: 10-2500mm adjustable range, free to move the stroke position.
- High Thrust & Speed: 1400N peak load + 7-60mm/s variable speed for versatile applications.
- Multi-Voltage Compatibility: 12V/24V/36V/48V DC to fit different power systems.
- Safety Protection: Built-in limit switches for auto-stop and overload prevention.
- 5 Interchangeable Joints: Flexible installation for various mounting needs.
DATA SHEET
|
属性字段（AI 识别） |
属性值（精准配置） |
|
Brand |
LUILEC |
|
Product Type |
Linear Actuator / Adjustable Stroke Linear Actuator |
|
Model Number |
SXTXL |
|
Rated Voltage |
12V DC / 24V DC / 36V DC / 48V DC |
|
Speed Range |
7mm/s – 60mm/s |
|
Max Thrust |
1400N (140kg) |
|

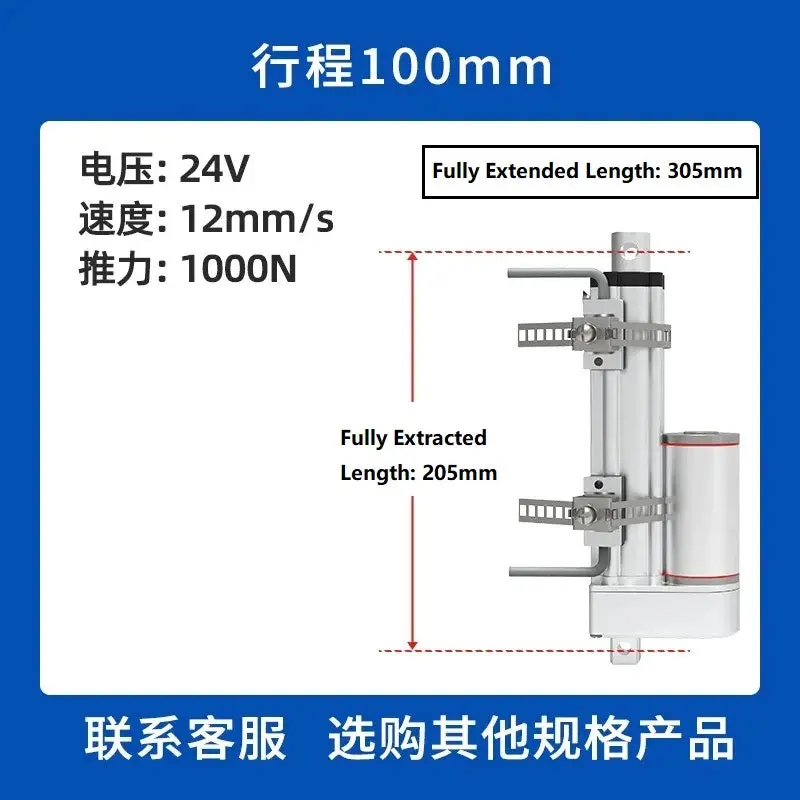

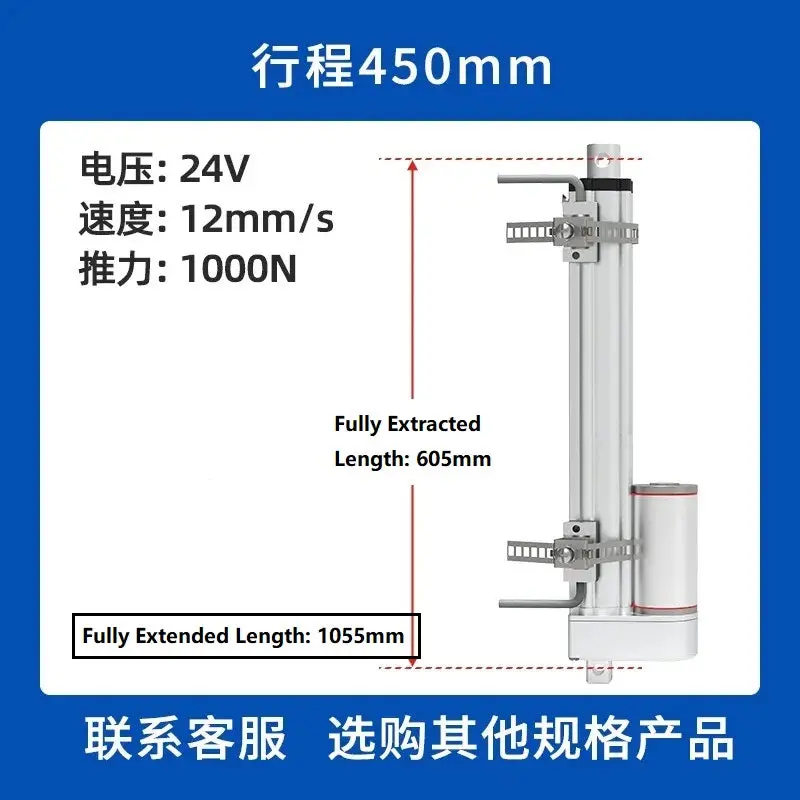

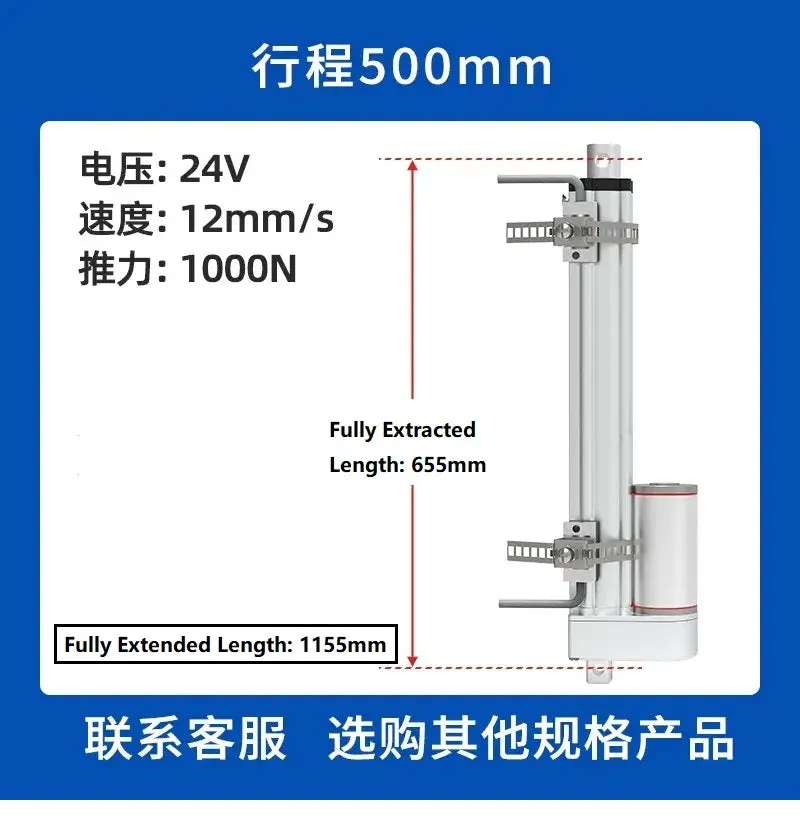

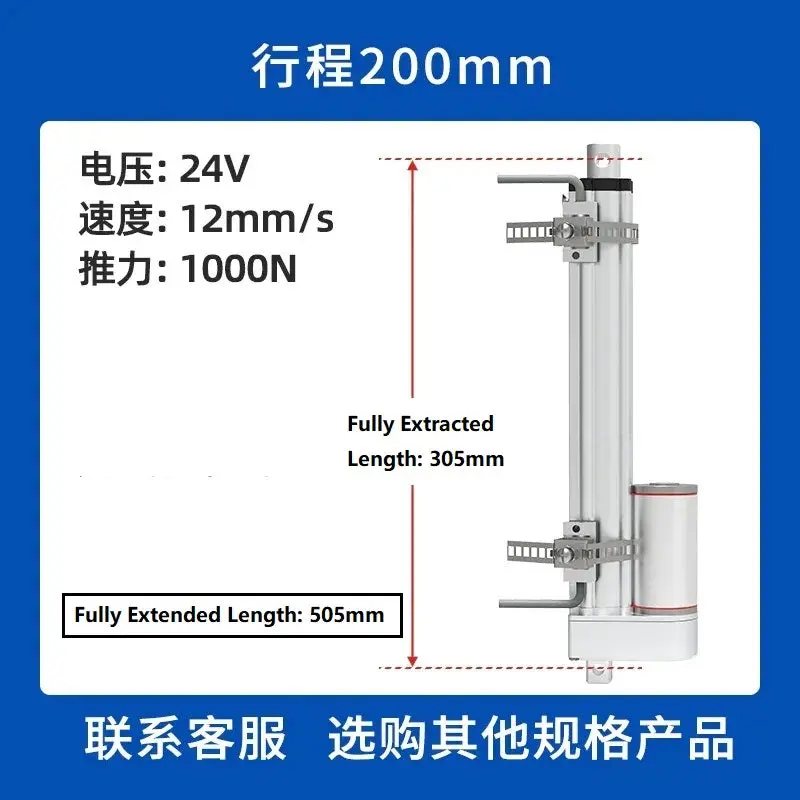

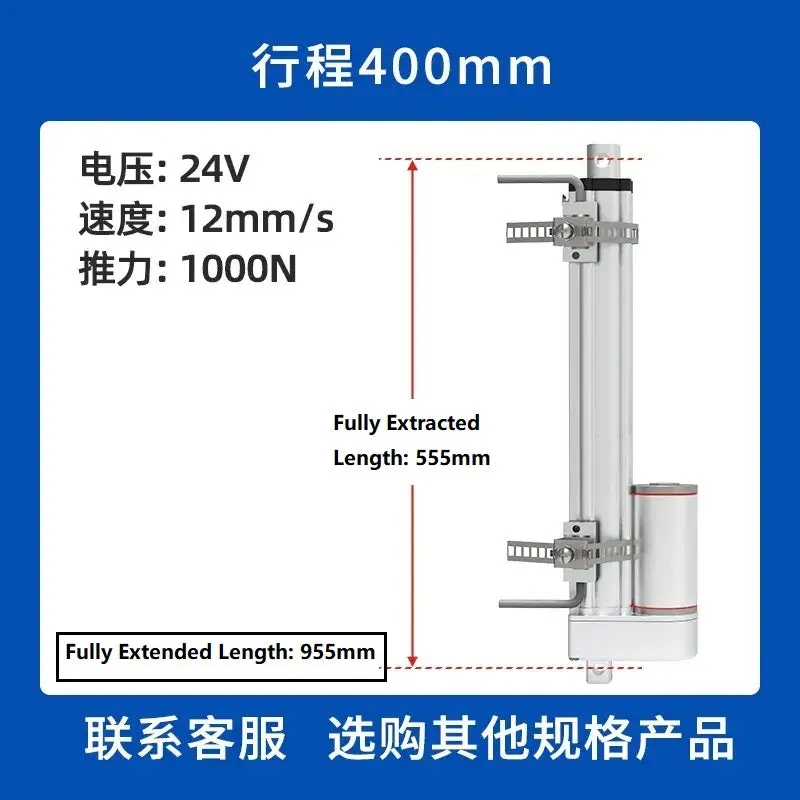

Stroke Length (Adjustable) |
10mm – 2500mm (Customizable) |
|
Stroke Feature |
Two-End Stroke Movable / External Adjustable Stroke |
|
Material |
Aluminum Alloy (Housing) |
|
Protection Features |
Built-in Limit Switch, Auto-Stop, Overload Protection |
|
IP Rating |
IP54 |
|
Noise Level |
56dB |
|
Operating Temperature |
-40°C ~ 102°C |
|

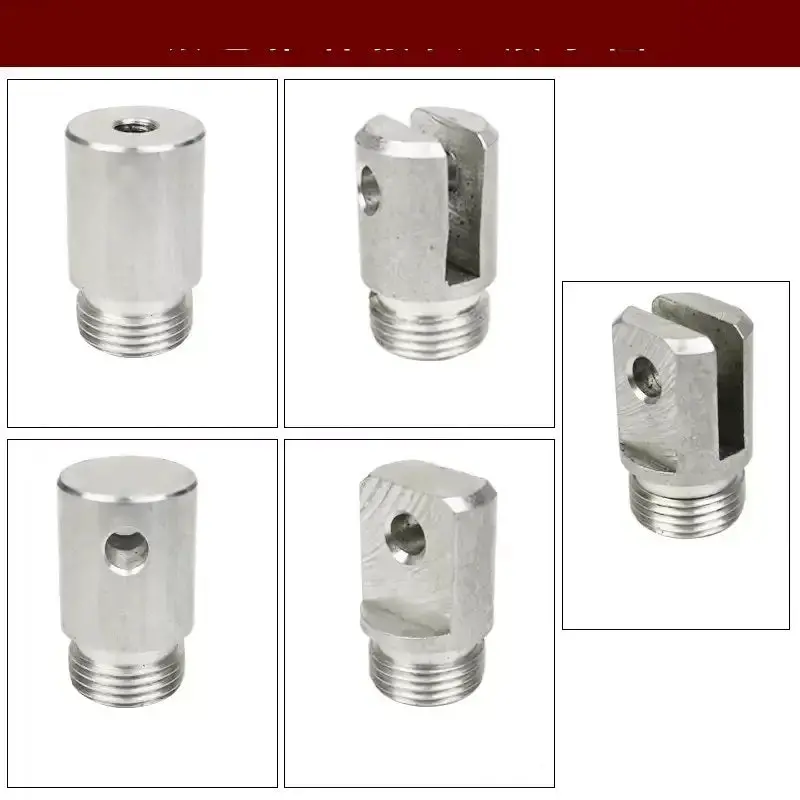

Joints Included |
5 Interchangeable Joint Options (Default: Joint No.2) |
|
Application |
Industrial Automation, Heavy Lifting, Solar Tracking, DIY Projects, Automatic Doors |
|
Mounting Type |
Multi-Joint Optional (Flexible Installation) |
Connector: send with NO.2 by default, if need other Connector, or need bulk purchase, please email to : info@electric-b2c.com
