Description

SPECIFICATIONS

IP68 Electrical Cable Waterproof Connector T Shape 2 3 Pin 3 Way

Outdoor Waterproof ABS Plastic Gland Electrical Junction Box  ip68 connector

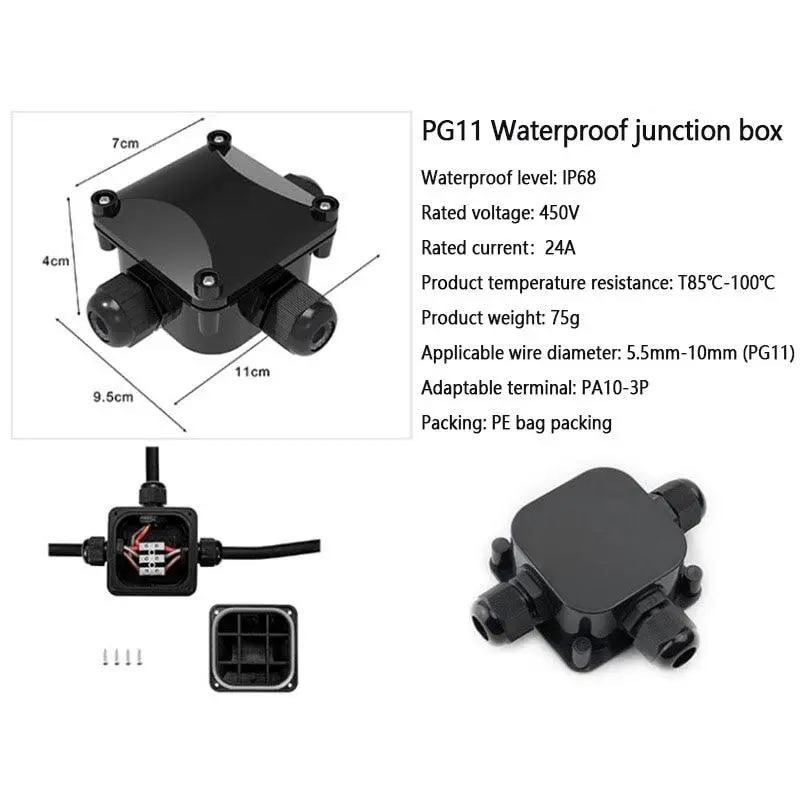

Specification: PG11 three-way junction box

Scope of application: Outdoor connector

Origin: CN(Origin)

Name: Waterproof junction box

Model: PG11

Material: ABS

Material: ABS

Item number: mdli229

Function: waterproof

Certification: RoHS,CE

100% brand new and high qualityMating connector:IP65 PG9,IP68 PG11 For the wires with diameters: 4mm-8mm,5mm–10mmClamping range: 4 SquareHole diameter: 19mm/ 0.75″Supply voltage: 24A / 450VWaterproof: IP68Fireproofing grade: 94V-2Certification: CETemperature Range:-20~+130 degreeMaterial: Polycarbonate-Thermoplastic ABSDimensions: 115 x 95 x 50mm/ 4.5″ x 3.7″ x 2″Color: BlackQuantity :1 PCNote: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow 1-5mm measuring deviation due to manual measurement.
