Description

SPECIFICATIONS

IP68 cable waterproof connector quick connector

installation 2/3/4/5 pin cable wire

outdoor DIY sealing sleeve connector ip68 connector

voltage current: 450V-500V 20A-30A

Wiring mode: screw crimping

Waterproof grade: IP68

Voltage: 415V

Terminal material: brass nickel plated

Product name: waterproof connector

Origin: CN(Origin)

Number of cores: 2 cores / 3 cores / 4 cores 5 cores

Model Number: IP68

Applicable material: PA66 nylon flame retardant

IP68 cable waterproof connector quick connector installation 2/3/4/5 pin cable wire outdoor DIY sealing sleeve connector

product name :IP68 waterproof connector series

Working temperature -40℃~85℃
Applicable cable Φ3~7MM 6~12MM 10~16MM
Applicable material PA66 nylon flame retardant

Terminal material: brass nickel plated
Connection method: screw crimping

Rated voltage current: 450V-500V 20A-30A

Number of cores: 2 cores / 3 cores / 4 cores/ 5 cores

Wiring:

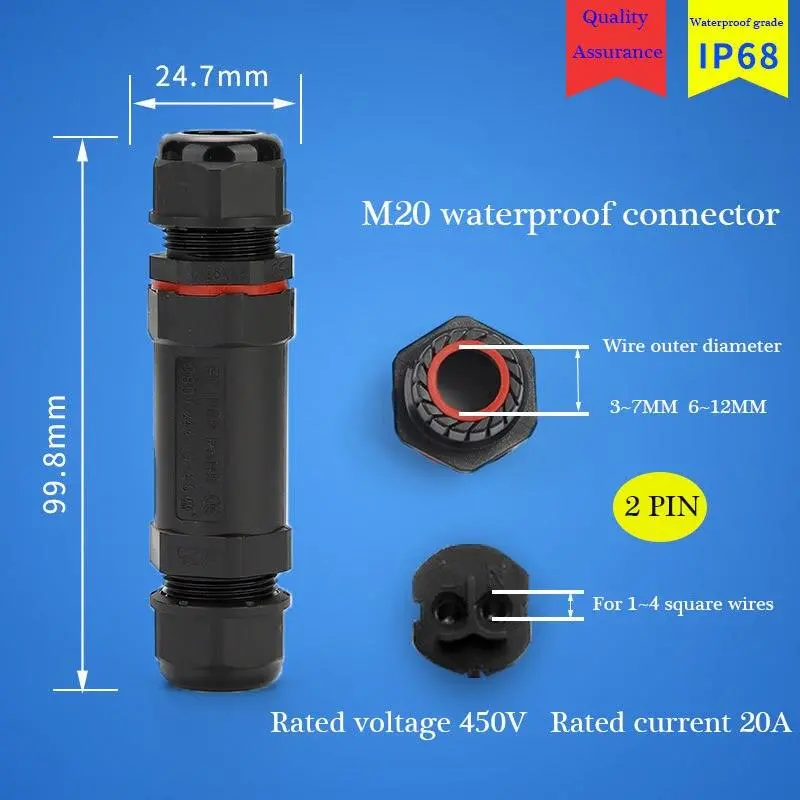

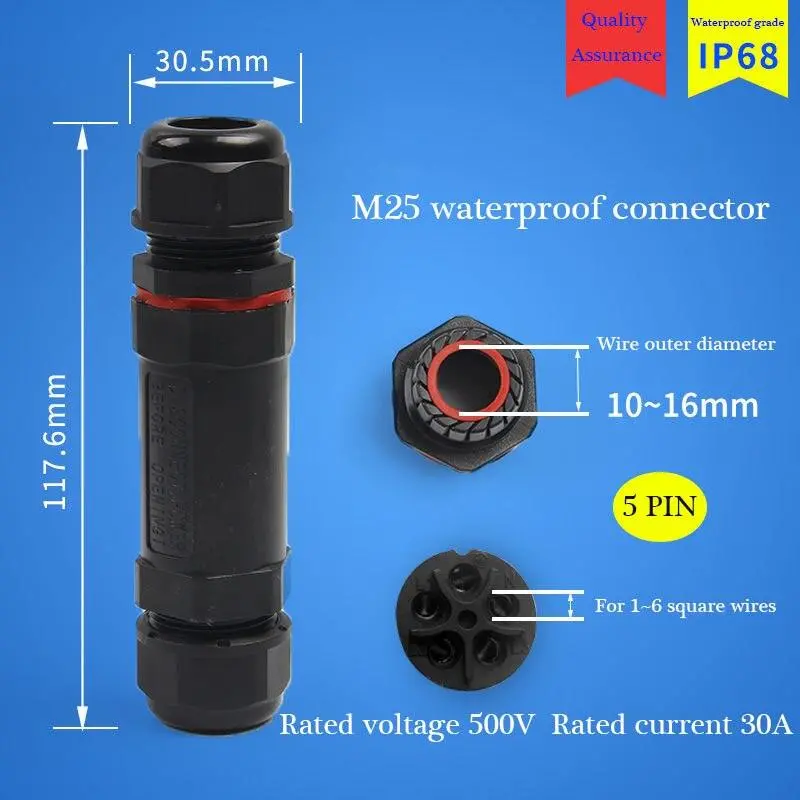

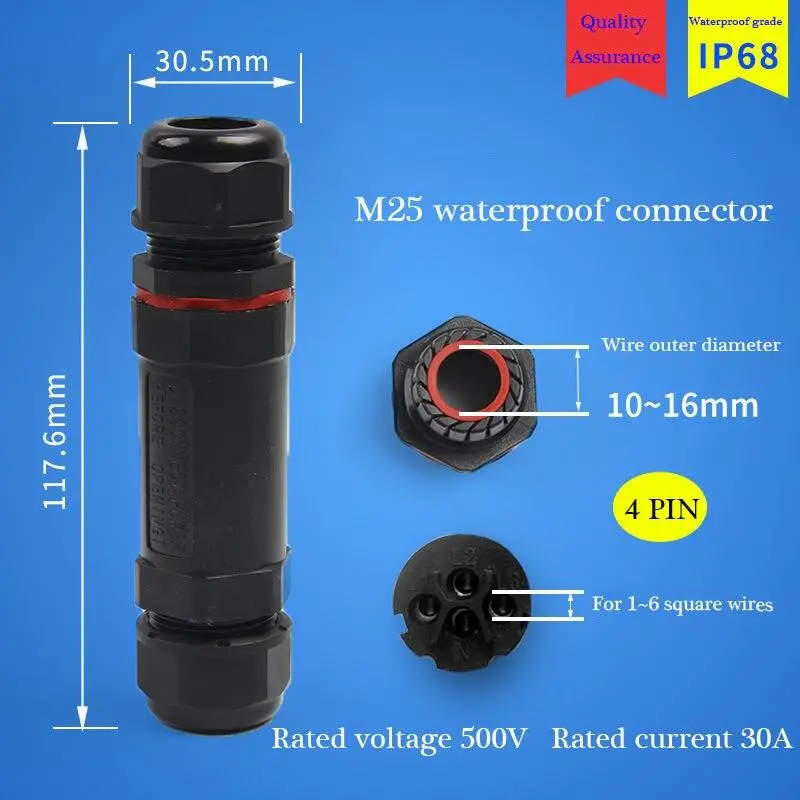

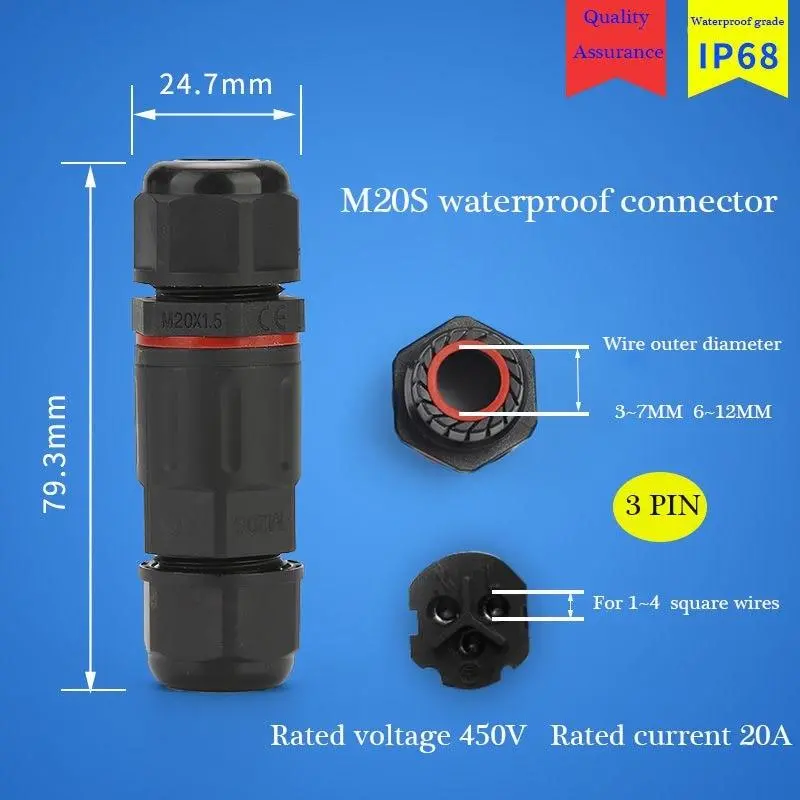

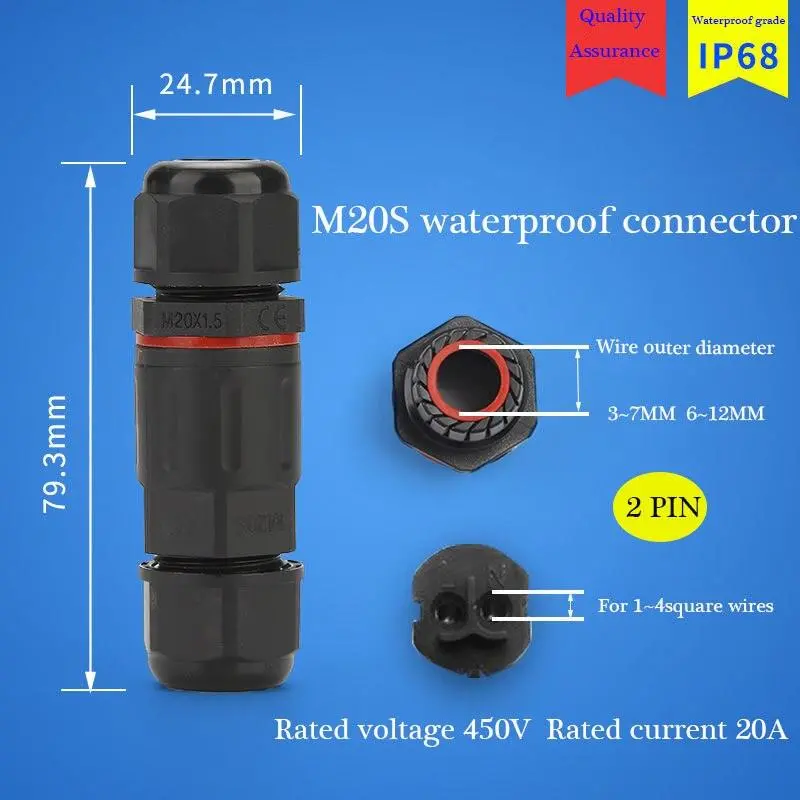

M20s2Pin0.3mm ²-4.0mm ² M253PIN1.5mm ²-6mm ²
M20s3Pin0.3mm ²-4.0mm ² M254PIN1.0mm ²-6mm ²
M20s4Pin0.3mm ²-2 , 5mm ² M255PIN0.75mm ²-6mm ²
M202Pin0.3mm ²-4.0mm ² UM253PIN1.5mm ²-6mm ²
M203Pin0.3mm ²-4.0mm ² UM254PIN1.0mm ²-6mm ²
M204Pin0.3mm ²-2.5mm ² UM255PIN0.75mm ²-6mm ²

Scope of application:
Products are widely used in: park street lights, water pump wiring, engineering sites, urban outdoor lighting projects, lighthouses, cruise ships, aviation, industrial equipment, cables, sprinklers…
