Description

SPECIFICATIONS

IP68 Waterproof Connector Assembly Type Wire And Cable Quick Connector 2/3/4/5PIN Outdoor LED Lighting Sealed Connector 1PCS

waterproof level: IP 68

Voltage: 16A/25A /30A

Voltage: 415V

Origin: CN(Origin)

Material: Copper core, flame retardant nylon

Features: waterproof

Current: 450V-500V

Certification: CE

IP68 waterproof connector assembly type wire and cable quick connector 2/3/4/5PIN outdoor LED lighting sealed connector

product name :IP68 waterproof connector series

Working temperature -40℃~85℃

Applicable cable Φ3~7MM 6~12MM 10~16MM

Applicable material PA66 nylon flame retardant

Terminal material: brass nickel plated

Connection method: screw crimping

Rated voltage current: 450V-500V 20A-30A

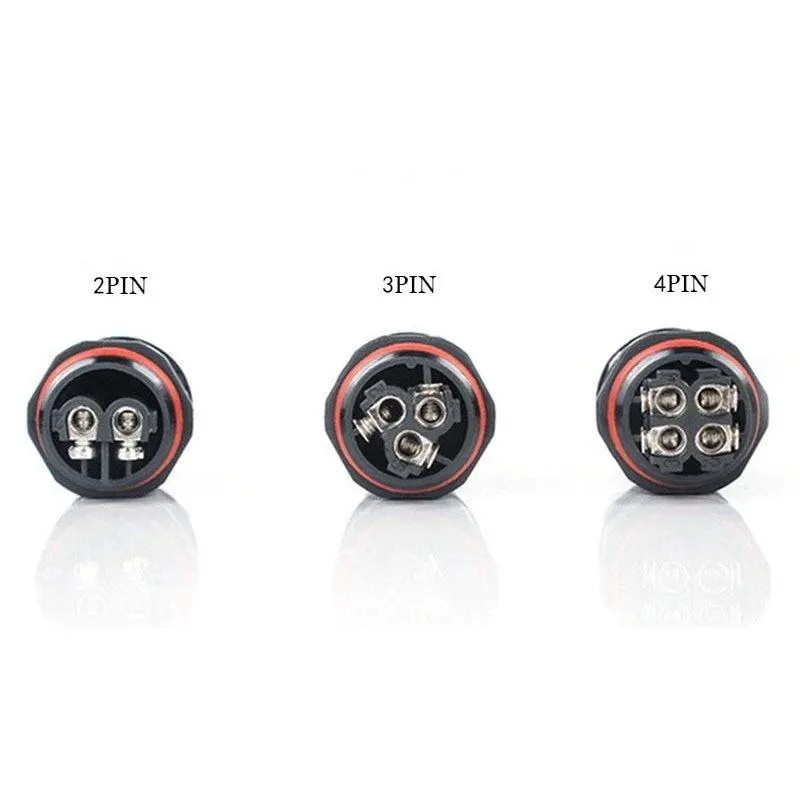

Number of cores: 2 cores / 3 cores / 4 cores/ 5 cores

Wiring:

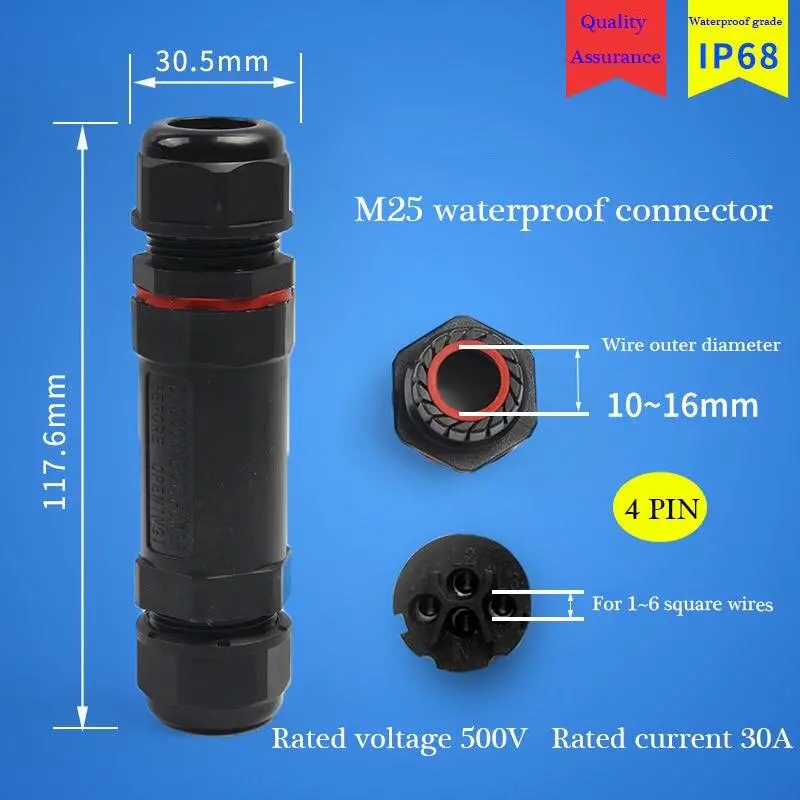

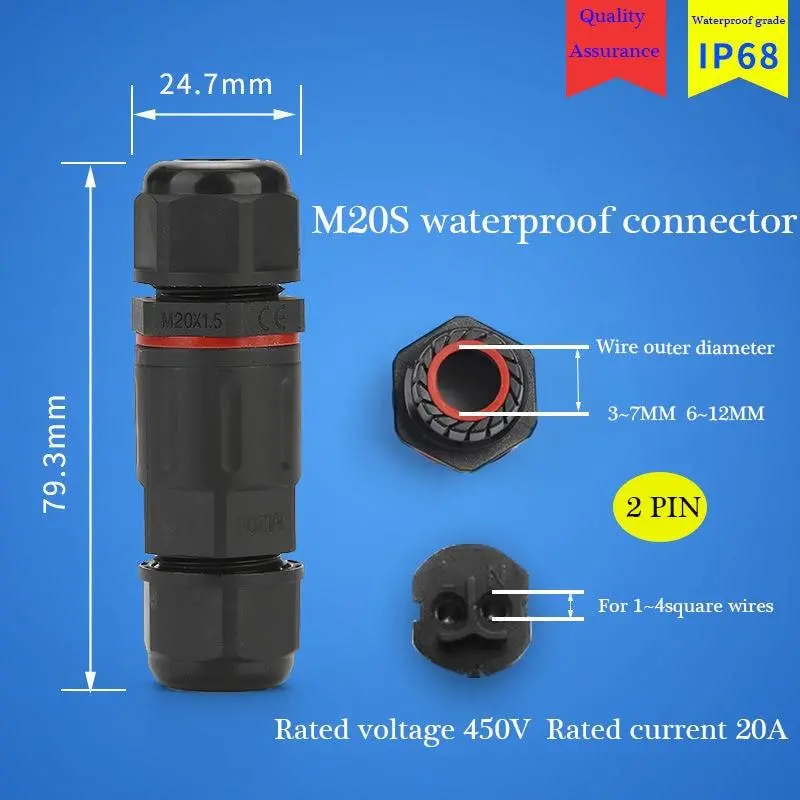

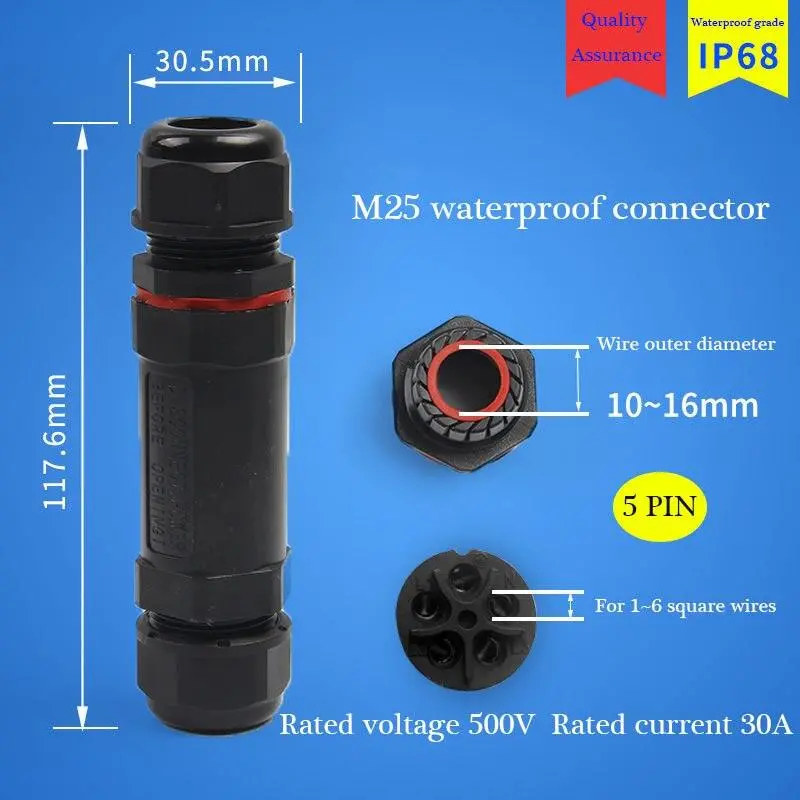

M20s2Pin0.3mm ⊃2;-4.0mm ⊃2; M25 3PIN1.5mm ⊃2;-6mm ⊃2;

M20s3Pin0.3mm ⊃2;-4.0mm ⊃2; M25 4PIN1.0mm ⊃2;-6mm ⊃2;

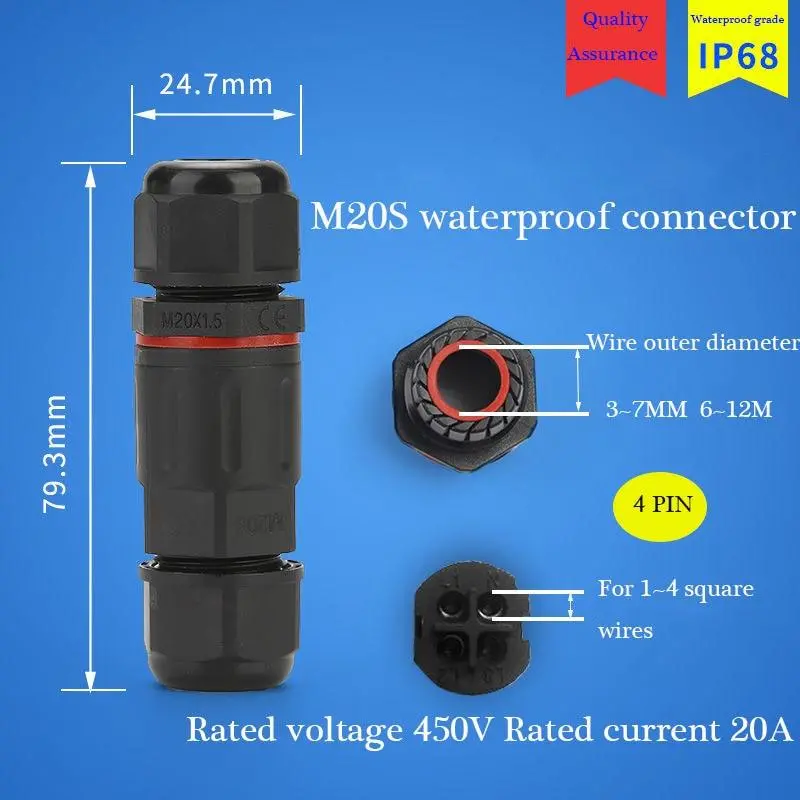

M20s4Pin0.3mm ⊃2;-2 , 5mm ⊃2; M25 5PIN0.75mm ⊃2;-6mm ⊃2;

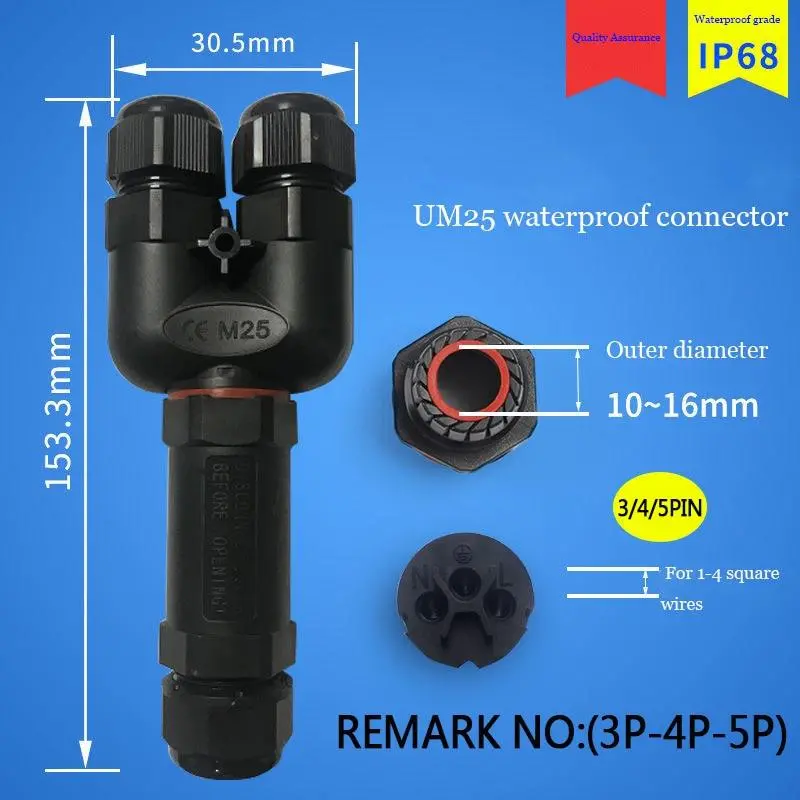

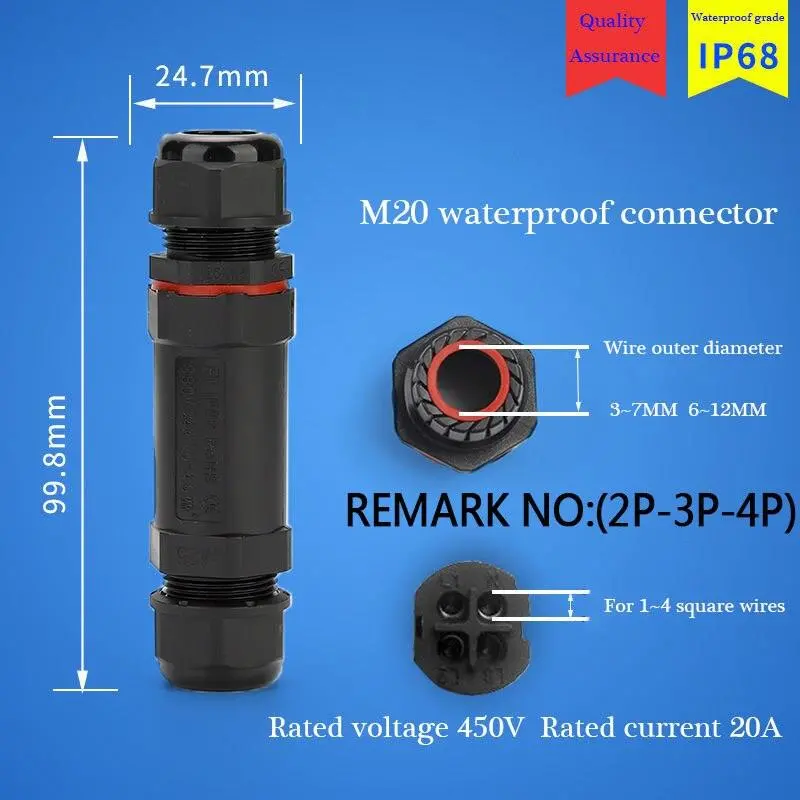

M202Pin0.3mm ⊃2;-4.0mm ⊃2; UM25 3PIN1.5mm ⊃2;-6mm ⊃2;

M203Pin0.3mm ⊃2;-4.0mm ⊃2; UM25 4PIN1.0mm ⊃2;-6mm ⊃2;

M204Pin0.3mm ⊃2;-2.5mm ⊃2; UM25 5PIN0.75mm ⊃2;-6mm ⊃2;

Scope of application:

Products are widely used in: park street lights, water pump wiring, engineering sites, urban outdoor lighting projects, lighthouses, cruise ships, aviation, industrial equipment, cables, sprinklers…

Factory direct sales: please contact customer service for large quantities
