SPECIFICATIONS

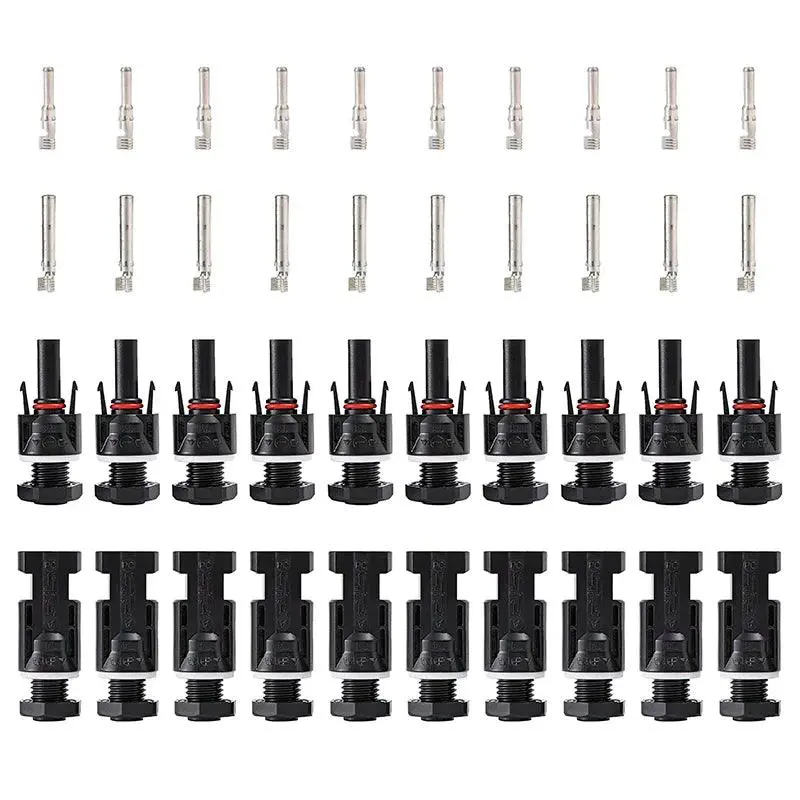

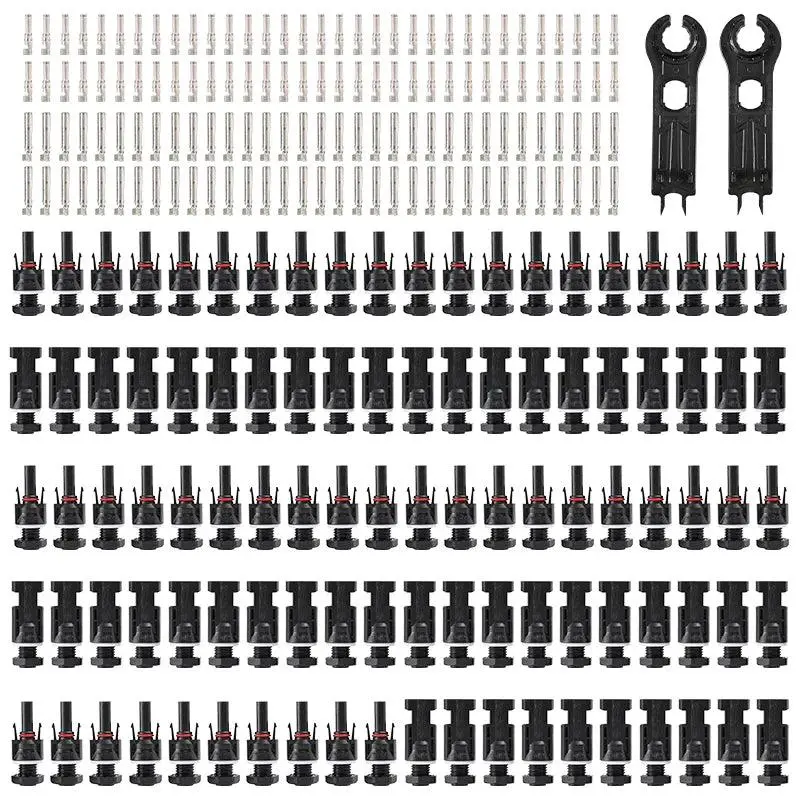

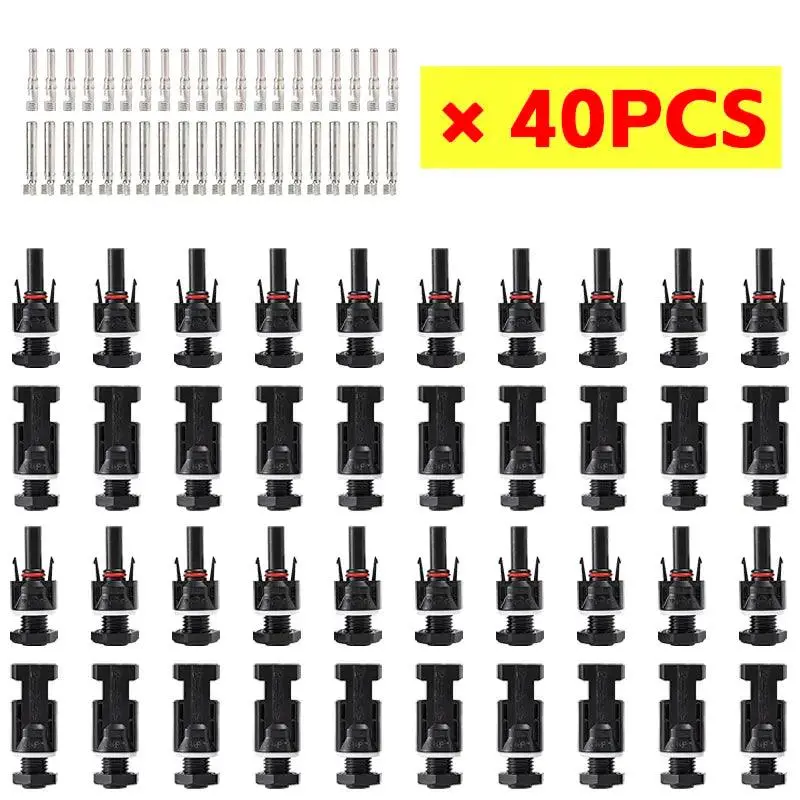

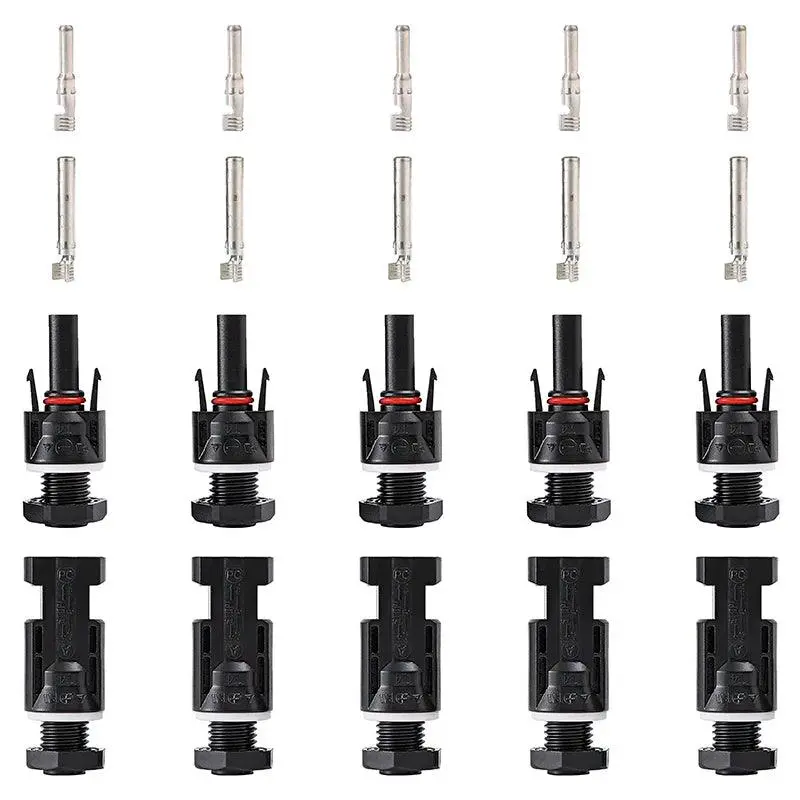

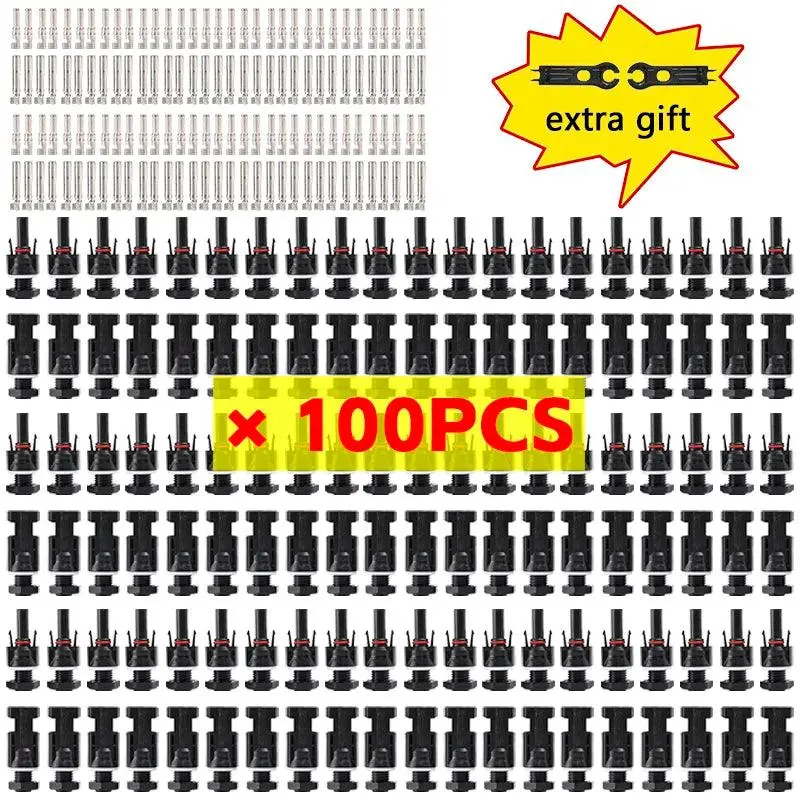

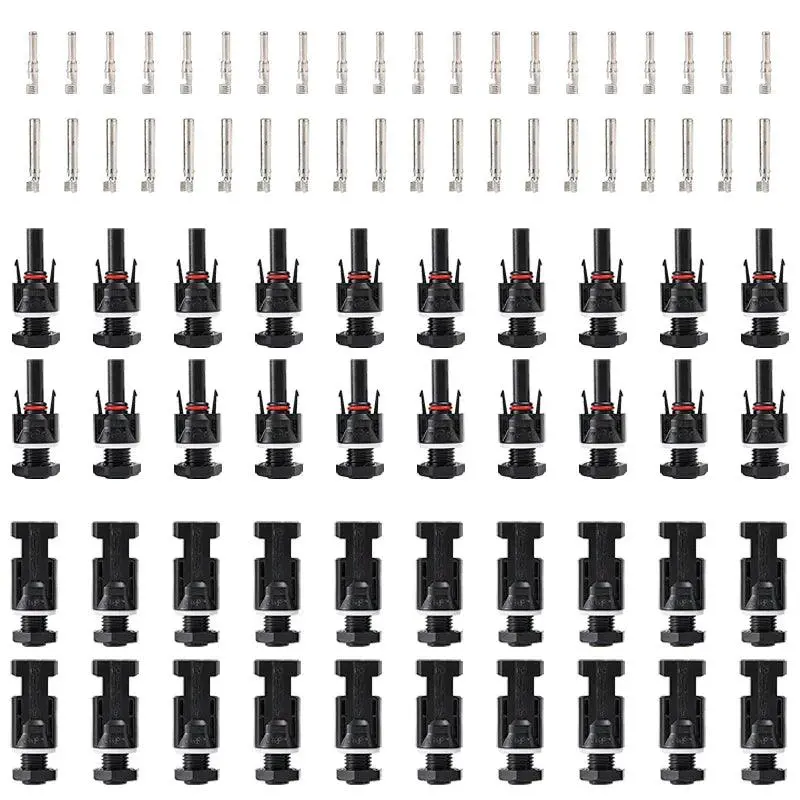

Free Shipping 10/20/40/100PCS Solar PV Connectors for Solar Panel Mount Inverter Panel IP67 DC1000V Solar connector PV coupler

Brand Name: PVMC

Origin: Mainland China

Model Number: connector-BD

Rated current:: 30A

Rated voltage:: 1000V DC

Degree of waterproof:: IP67

Flammability rating:: UL94-V0

Safety:: Class II

Specifications

* Rated current: 30A (2.5m㎡–6m㎡)

* Rated voltage: 1000V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP67

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 2.5m㎡–6m㎡( include AWG13,AWG12, AWG11,AWG10 )

* Adapter Wire: OD 5mm-7mm

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃～ +85℃

* Connection: Clamp
