Description

SPECIFICATIONS

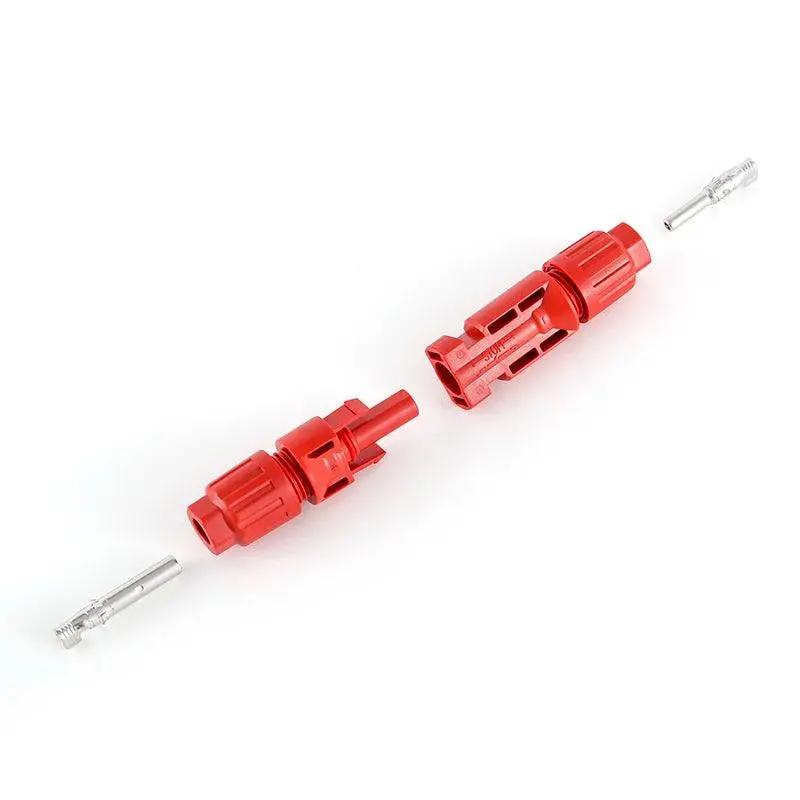

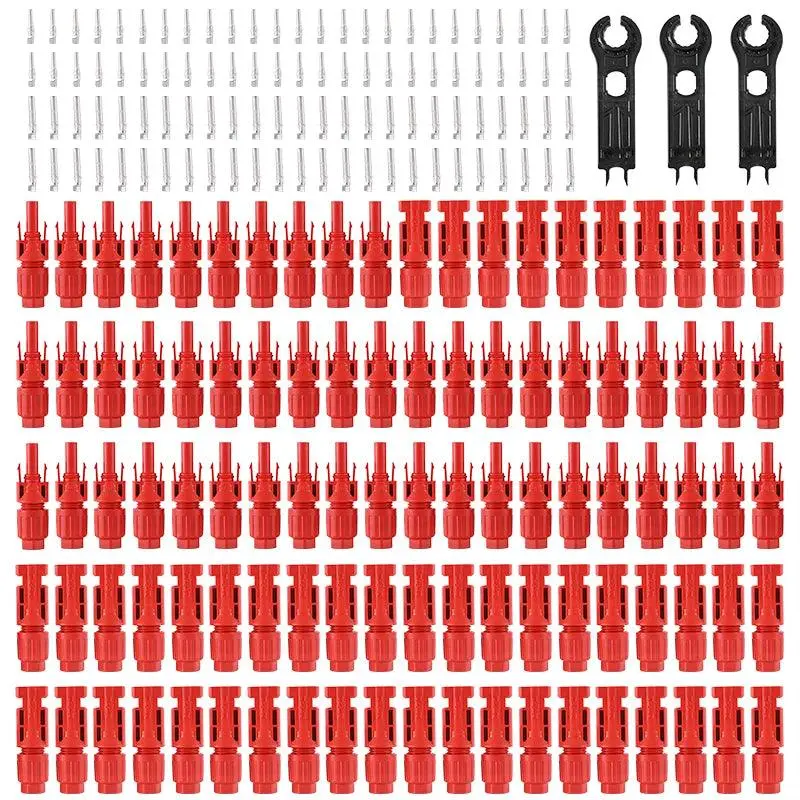

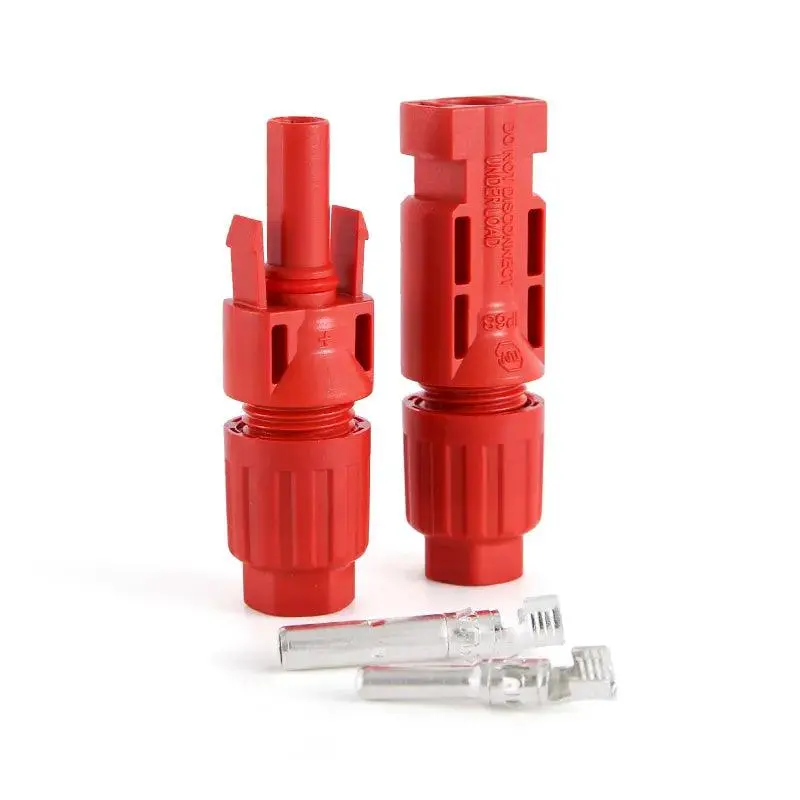

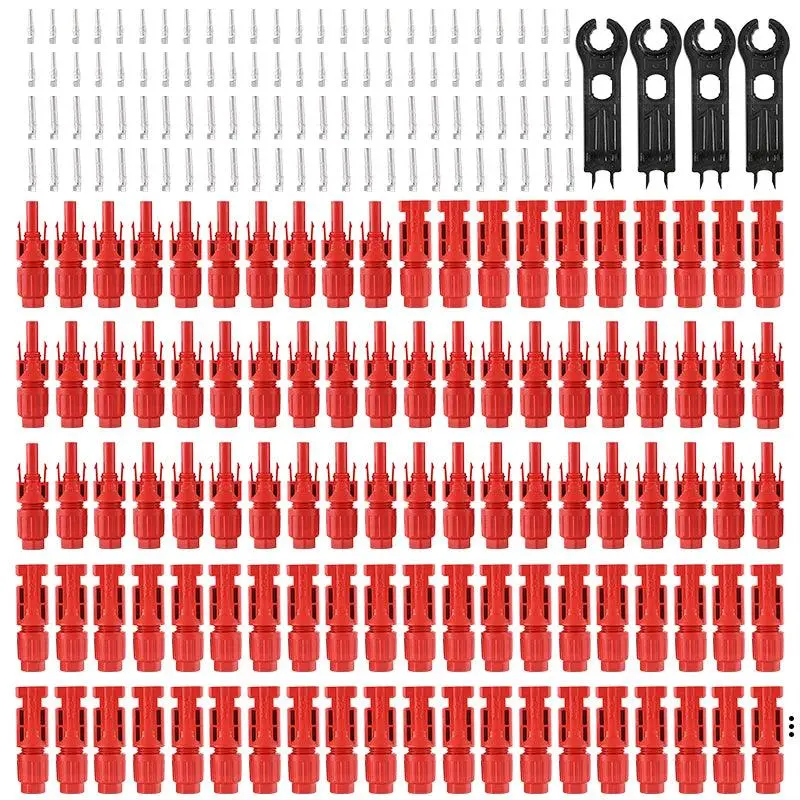

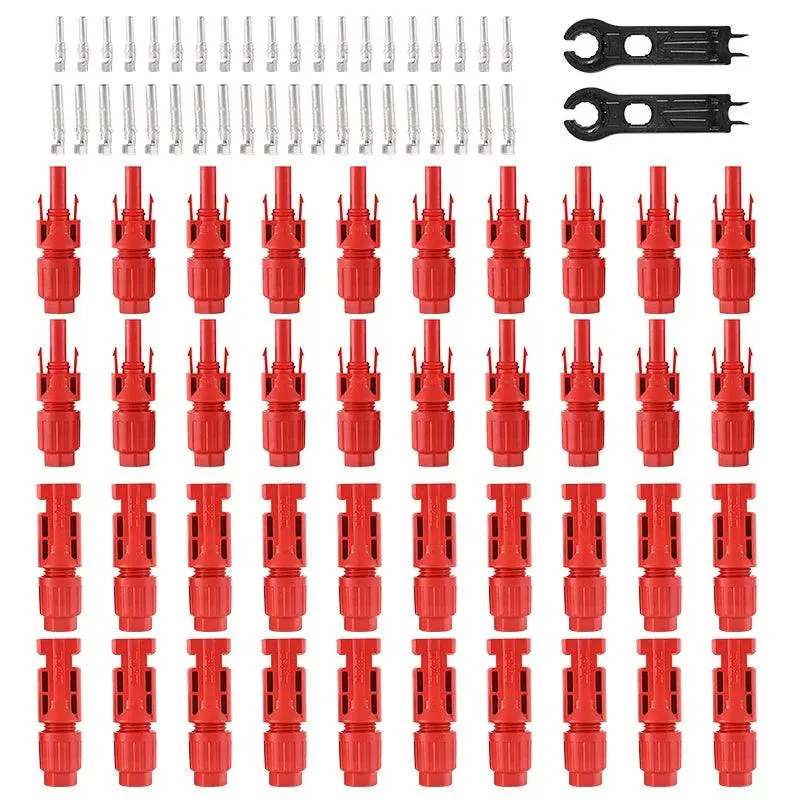

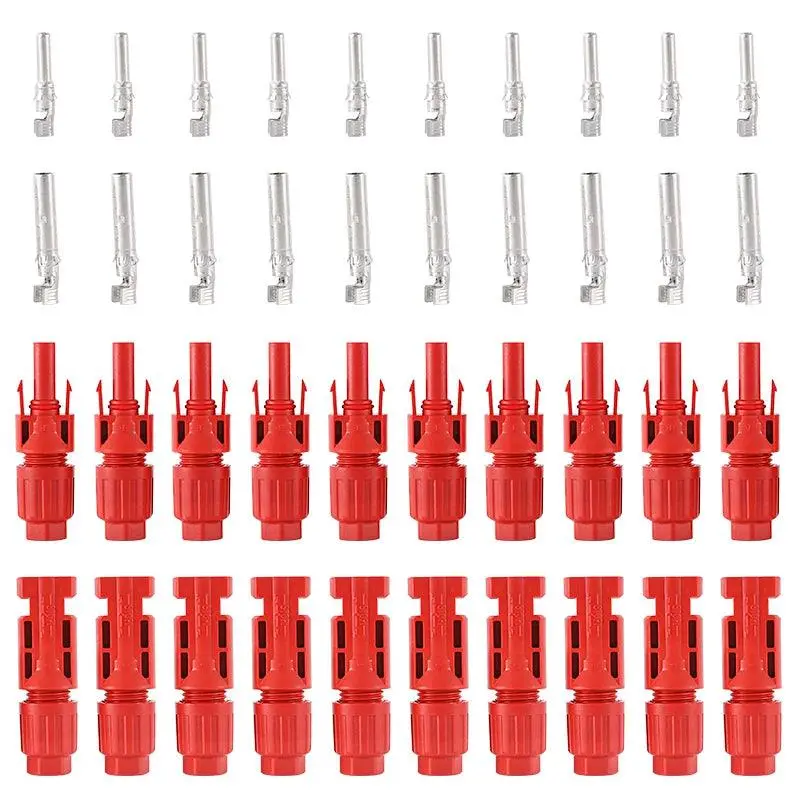

TÜV IP68 DC Solar Red Connector 200/100/40/20/10 Pcs 1000V30A PV Panel Stecker Connectors Kit for Cable 2.5/4/6mm2 Wholesale

Brand Name: PVMC

Origin: Mainland China

Model Number: 1000v

Certification: CE

Rated voltage: 1000V(Solar Connectors Rated voltage)

Rated current: 30A( Connector Rated current)

Degree of waterproof: IP68

Adapter Wire: OD 5mm-7mm

Connector Insulation material: PPO/PPE

Flammability rating: UL94-V0

Connector contact resistance: ≤0.5mΩ

Certificate: TUV

TÜV IP68 DC Solar Red Connector 200/100/40/20/10 Pcs 1000V30A PV Panel Stecker Connectors Kit for Cable 2.5/4/6mm2 Wholesale

* Rated current: 30A (2.5m㎡–6m㎡)

* Rated voltage: 1000V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP68

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 2.5m㎡–6m㎡( include AWG13,AWG12, AWG11,AWG10 )

* Adapter Wire: OD 5mm-7mm

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃～ +85℃

* Connection: Clamp
