Description
Product Description
The 60GA775 DC Gear Motor is a high-performance miniature geared motor with a 60mm diameter metal gearbox and a powerful 775 DC motor core. It delivers high torque at low speed, operates stably, and has a long service life, making it ideal for smart home devices, industrial automation, robotics, and DIY projects.
Key Features

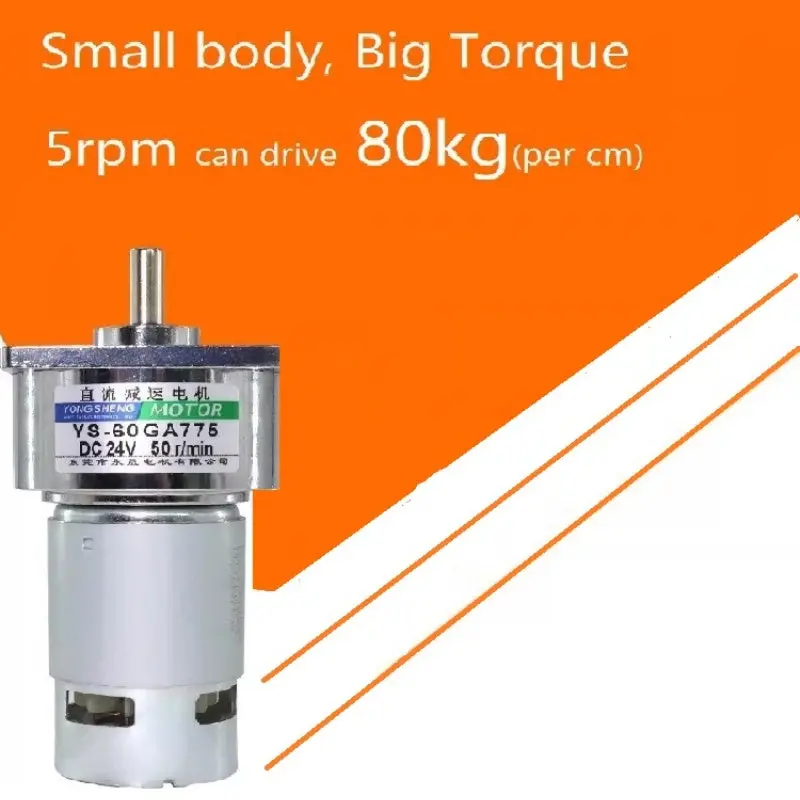

- High Torque Output: Max. 80 kgf·cm torque at 10 RPM, perfect for heavy-duty low-speed applications

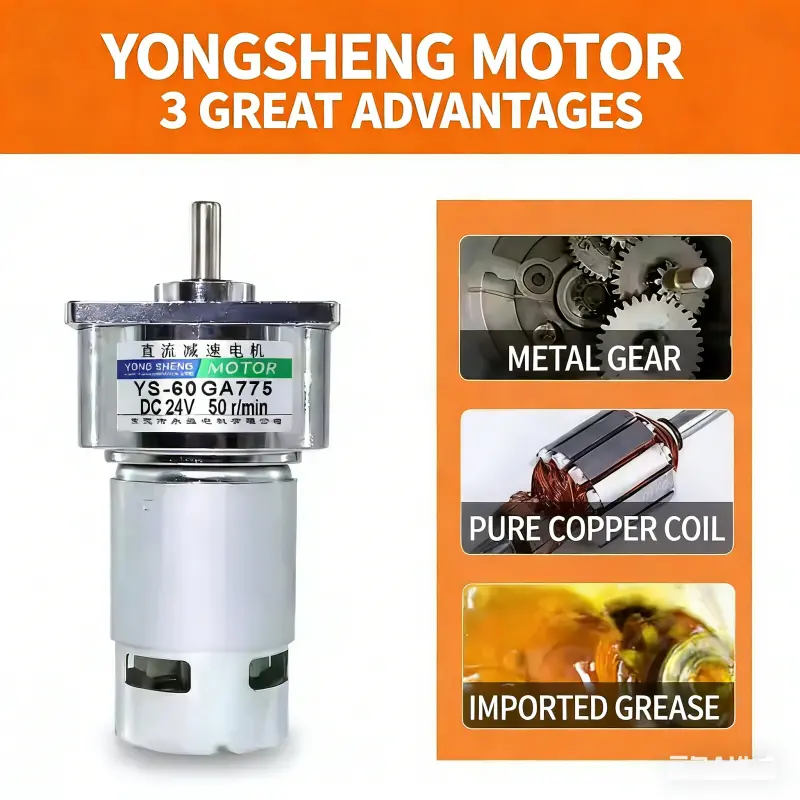

- Durable Metal Gears: Precision metal gear construction ensures high strength and wear resistance
- Pure Copper Coil: Efficient heat dissipation and stable performance under continuous operation
- Lubricated with Imported Grease: Reduces noise and extends service life
- Wide Voltage Range: Supports DC 12V / 24V, compatible with various power supplies
- Reversible & Speed Adjustable: Easy to control direction and speed via PWM
- Standard D-Shaft Output: Convenient for installing couplings, gears, or pulleys
Specifications
- Model: 60GA775
- Gearbox Diameter: 60mm
- Voltage: DC 12V / 24V
- Power: 35W
- Speed Range: 10–1000 RPM (depending on reduction ratio)
- Torque: Up to 80 kgf·cm
- Shaft Type: D-type shaft (8mm diameter)
- Overall Size: 60*160mm
- Gear Material: Metal
Applications
- Smart home: Automatic curtains, door locks, window openers
- Industrial automation: Vending machines, electronic locks, small conveyors
- Robotics & DIY: Robotic arms, RC cars, model making
- Other: Medical equipment, office devices, intelligent instruments
