5 Pair/lot Waterproof Solar Panel Solar PV Junction Box 1 Way PV Combiner Boxes for Solar Panel FS0146

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: PV Combiner Boxes

Amount of Rails: 1 Rail Terminal

Rated Voltage: TUV 1000V DC

Rating Current: 3-20A (Potting)

Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Cable Size: 2.5mm sq (1M)

Protection Class: Class II

Pollution Degree: 2

Pin Od: 4.0mm

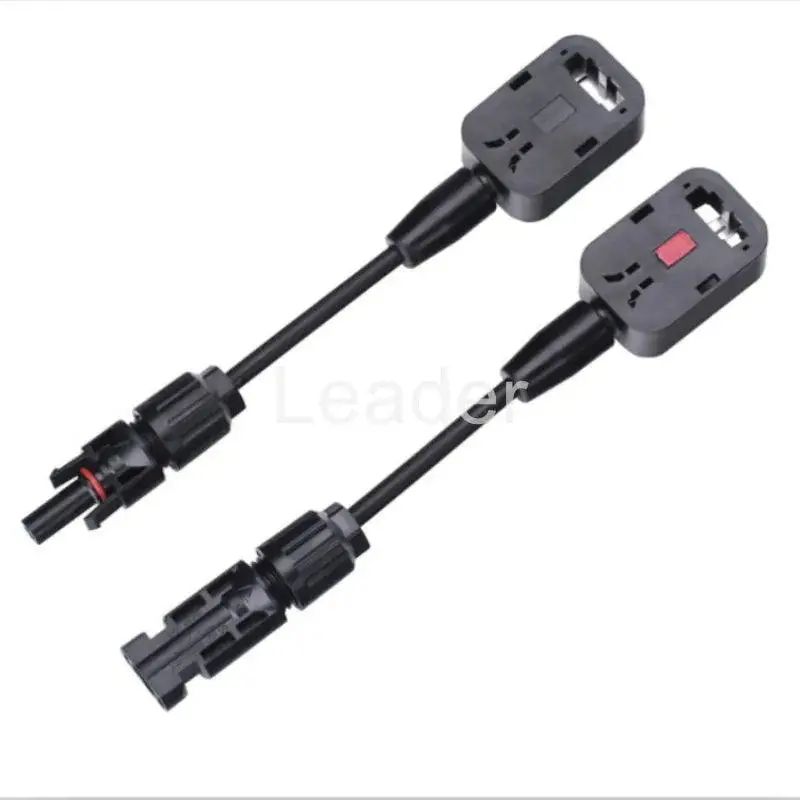

1 Way Solar Junction Box with 1M 2.5mm2 Cable and IP67 SOLAR Connector



Production introduction:

Product No.	SM-JB1A
Amount of rails	1 rail terminal
Rated Voltage	TUV 1000V DC
Rating current	3-20A(Potting)
Suitable cable cross sections	2.5mm2-6.0mm2 / 14AWG-10AWG
Pin OD	4.0mm
Proof voltage	TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree	2
Protection class	Class II
Contact Material	Copper, tin plated
Contact resistance	≤5mΩ
Protection degree	IP67
Withdrawal Force	≥50N
Temperature Range	-40ºC~+85ºC
Flame Class	UL94V-0

Compnay information:

LENDER ENERGY Company

LEADER ENERGY is a new energy enterprise,located in GUANGDONG, China,specializing in R&D, manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc; with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems,  and by the products R&D,mold design,production,sales through-train service.With advanced technology, our products have been authorized by TUV Rhineland,UL,CE successfully. LEADER Company adheres to self R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, hold the belief of ‘survive for excellence,development for innovation’,insist on being professional,large-scale brand. Main products:
