Description

SPECIFICATIONS

50 Pcs/lot 4 Way PV Combiner Boxes Photovoltaic Junction Box for Solar System, 3 Diodes Solar JB with  Connector XH0200

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: 4 way solar panel box

Amount of Rails: 4 rail terminals

Rated Voltage: TUV 1000V DC

Rated Current: 3-20A

Proof Voltage: TUV 6000V AC(1min) / UL 2200V DC (1min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Cable Size: 4mm sq

Protection Class: Class II

Pollution Degree: 2

Pin Od: 4.0mm

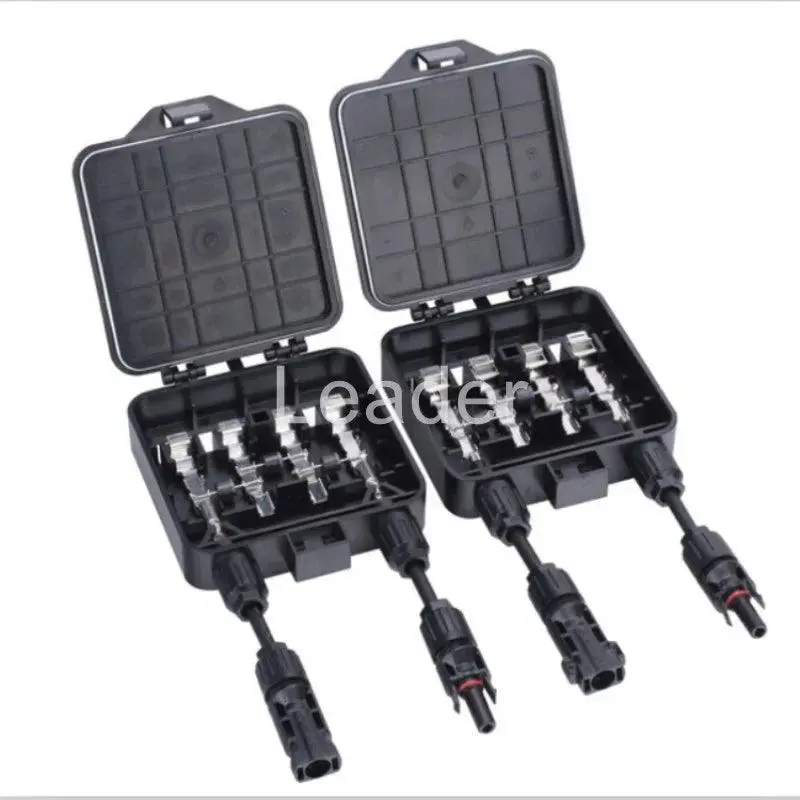

4 Way Solar Junction Box with 3 Diodes and IP67 SOLAR Connector



Production introduction:

Product No.	SM-JB4A
Amount of rails	4 rail terminals
Rated Voltage	TUV 1000V DC
Rating current	3-20A
Suitable cable cross sections	2.5mm2-6.0mm2 / 14AWG-10AWG
Pin OD	4.0mm
Proof voltage	TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree	2
Protection class	Class II
Contact Material	Copper, tin plated
Contact resistance	≤5mΩ
Protection degree	IP67
Withdrawal Force	≥50N
Temperature Range	-40ºC~+85ºC
Flame Class	UL94V-0
