Description

SPECIFICATIONS

42mm 775 Planetary Gear DC Reduction Motor 12V 24V Adjustable Low Speed 7-1351RPM PWM Electric Motor Metal High Torque 90KG，motor 775,motor 775 12v,motor 775 24v,12 volt 775 dc motor,12v 775 dc motor,775 dc motor 12v torque

Brand Name: Electrical Center B2C

Shaft：8MM

The 42GP-775 is a 42mm outer diameter brushed DC planetary gear motor. It’s core features are high torque and an all-metal gear structure, making it widely used in robotics, smart home automation, and power tools.

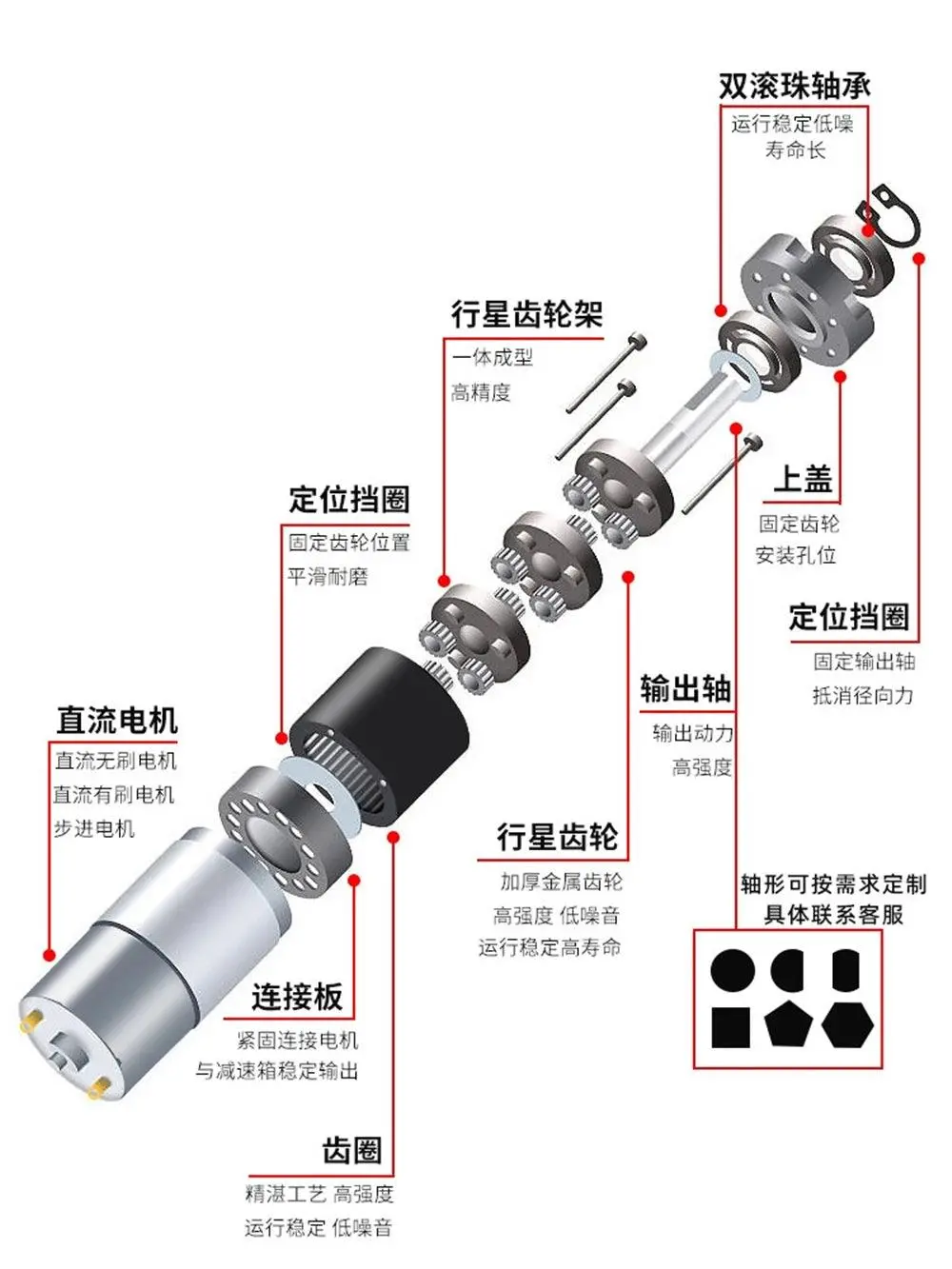

⚙️ Key Specifications • Voltage: Mainstream options are 12V/24V DC, compatible with a wide voltage range of 6–30V. • Power: Rated at approximately 35W, with higher peak power. • Torque: No-load to stall torque ranges from 1.3–253 kg·cm, depending on the gear ratio. • Speed: No-load speed covers approximately 6.5–2200 rpm. A higher gear ratio results in lower speed but higher torque. • Structure: All-metal gears, pure copper coils, double ball bearings, and a D-shaped output shaft (8mm diameter, 22mm length). • Configuration: The encoder-equipped version (-EN suffix) is an AB two-phase incremental type with 17 pulses per revolution, supporting 3.3V/5V control. 🛠️ Typical Applications Ideal for power scenarios requiring high torque and stable operation, such as intelligent robots, electric curtains/clothes dryers, e-bike assists, industrial robotic arms, power tools, and small-scale equipment.

Model Number: 42gp-775-1250 gear motor
