SPECIFICATIONS

10W Planetary Gear High Torque 48KG DC Motor 12V 24V Reducer Speed 5-500rpm PWM Controller Reverse Forward Moter X38GA38SRZ

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Output Power: 10W

Commutation: Brush

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Torque: 48kg.cm

 low rpm dc motor,high torque low rpm electric motor,10rpm,12v dc motor high torque low rpmIntroduction of the motor1. Name of the motor: X38GA38SRZ mini geared motor planetary in dc motor2. What is a planetary geared motor?Planetary geared motor is a new type of geared motor with wide versatility.Adopts 20CvMnT gears. The motor has small size, low noise, large output torque, stable operation and long life.3. Rated voltage : DC 24V4. DC 24V ; You can choose the no load speed have :10rpm/30rpm/50rpm/100rpm/200rpm/300rpm/500rpm/600rpm/800rpmIf you choose 24v 10rpm/min, the torque is 47 KG.CM5. Power : 10W6. Direction of rotation of the motor: CW Or CCW ; Support Reversed7. Gear material: Metal gears make the motor last longer8. The diameter of the shaft is 8mm9. The speed of the motor can be adjusted using the speed controller. This motor and speed controller are sold in combination.  You can refer to the combination sales introduction below.10. Ultra low noise11. This motor is suitable for a variety of micro-automation equipment. As long as you confirm that the motor voltage and torque of your choice are suitable for the voltage and load of your project before purchase, there is no limit to the scope of use of this motor.For example, advertising exhibition equipment; stage lighting; various valves; scientific research equipment; sports equipment; automatic door locks; instrumentation equipment.The following is the motor parameter tableSincere reminderYour project load should not exceed rated torque of the motor, otherwise the life of the motor will be reducedThe parameters in the table below are the parameters for the motor connection rated voltage 24vIf the motor is connected to a non-rated voltage input, all parameters of the motor will change.

The following is a description of the quality materials and structures of this motor.

1. The rotor are all made of pure copper coil, which makes the operation and service life of the motor more stable.

2. This is the metal gear in the gearbox. One gear controls the peripheral gears. The motor is more powerful and the gears are more wear-resistant. It is very suitable for use in high-end smart equipment, which can reduce the maintenance cost of your project.

The size is for reference only,the measurement will be slightly different,please pay attention before buying

Note: the reduction ratio or speed is different, the length of the gearbox is also different. Therefore, the length of the following motors is only for reference. The speed of the motor is greater than 100rpm, and the length of the reduction box will gradually become shorter. If your project has high requirements for the size of the motor, we recommend that you do not purchase

How to buy the products you need

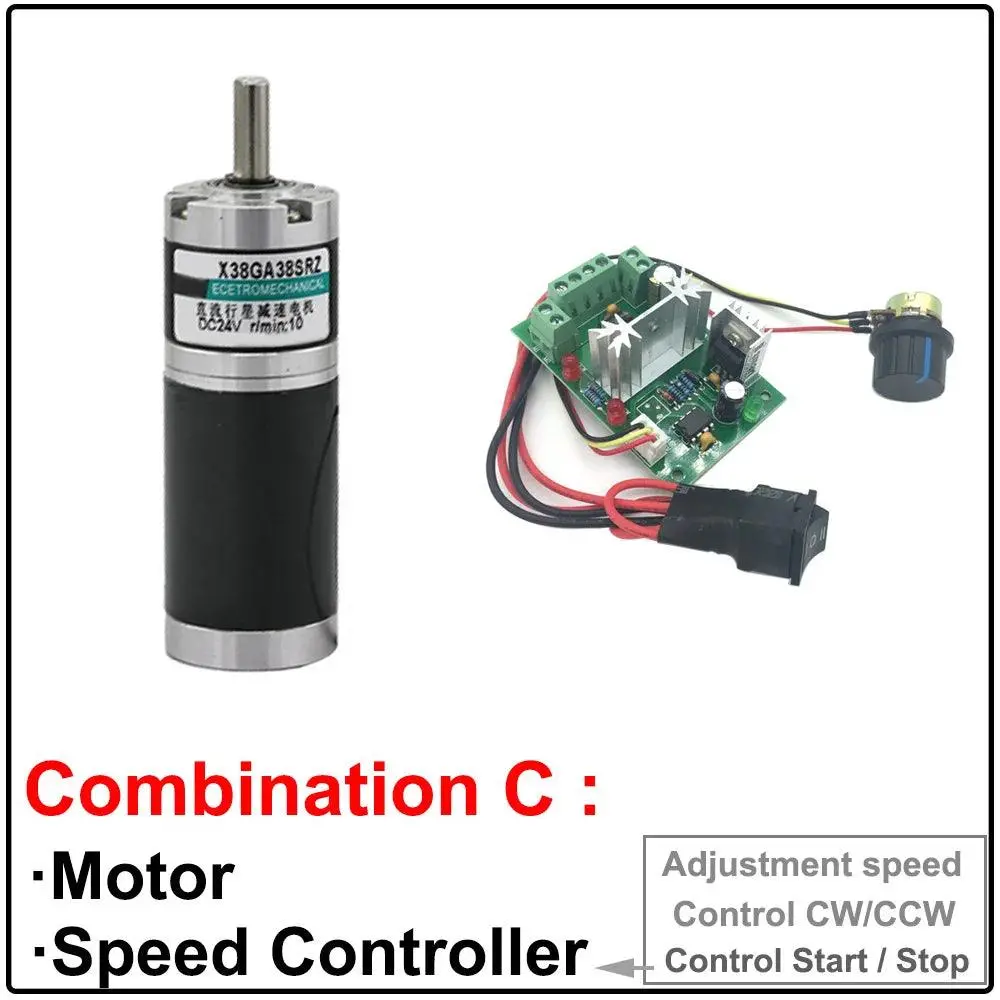

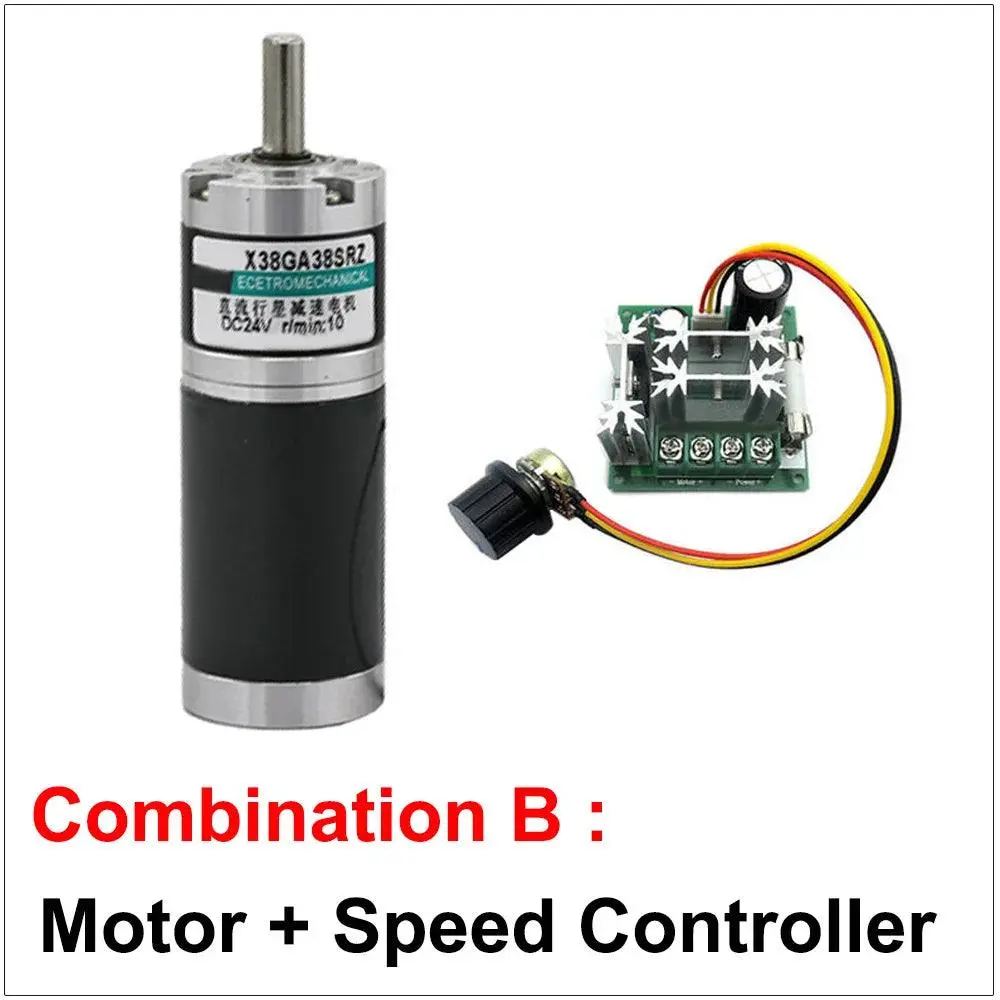

Combination A : You will receive a motorCombination B : You will receive a motor and speed controller;The controller can adjust the speed of the motor;Combination C : You will receive a motor and speed controller;The controller can adjust the speed of the motor and change the direction of rotation of the motor, start and stopCombination D : You will receive a motor and wireless controller;The wireless controller can control the direction of rotation of the motor, start or stop, and can remotely control the motor using the remote control, but it is not recommended to be too far awayFor example 1, the speed of the motor you choose 24v 10rpm and Combination A ; You will receive a motor with 24v 10rpmFor example 2, the speed of the motor you choose 24v 10rpm and Combination B ; You will receive a motor 24v 10rpm and a speed controller  (This controller only supports adjusting the speed of the motor)

The following is the picture of the motor
