12V DC Mini Linear Actuator Motor, 10mm~150mm Adjustable Stroke, Micro Electric Telescopic Rod for DIY Projects
Micro Electric Linear Actuator, 12V, 180N Force, 5-30mm/s Speed, Compact Reciprocating Lift Cylinder
Product Description
This mini linear actuator is a compact, lightweight solution for small-scale automation and DIY projects. With adjustable stroke lengths from 10mm to 150mm, multiple speed/load combinations, and 12V DC compatibility, it’s ideal for small lifting, pushing, and positioning tasks in tight spaces.
Key Features
- ✅ Adjustable Stroke & Speed:

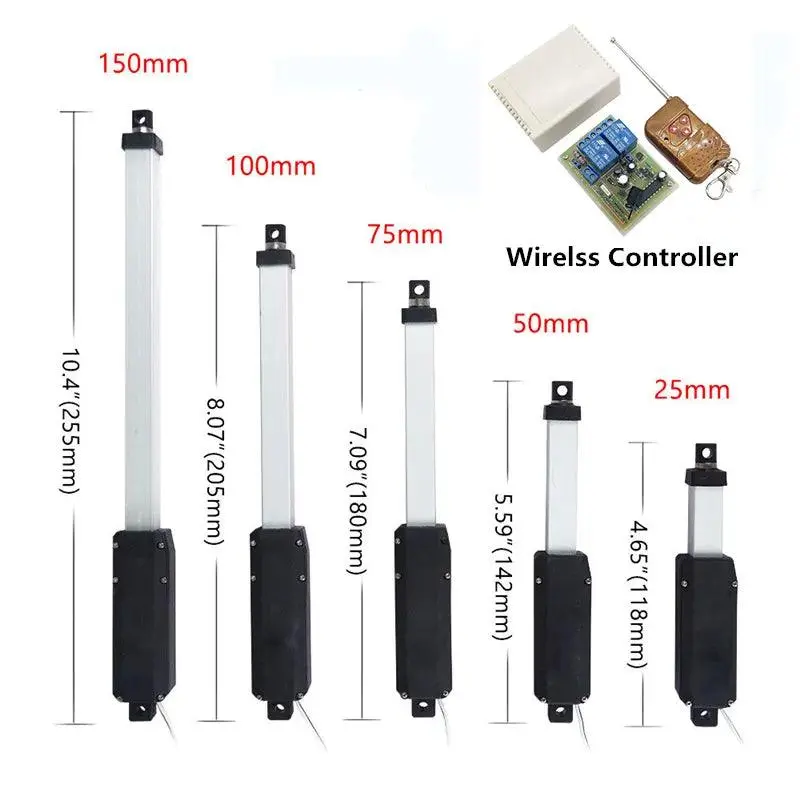

- Standard stroke from 10mm to 150mm (customizable).

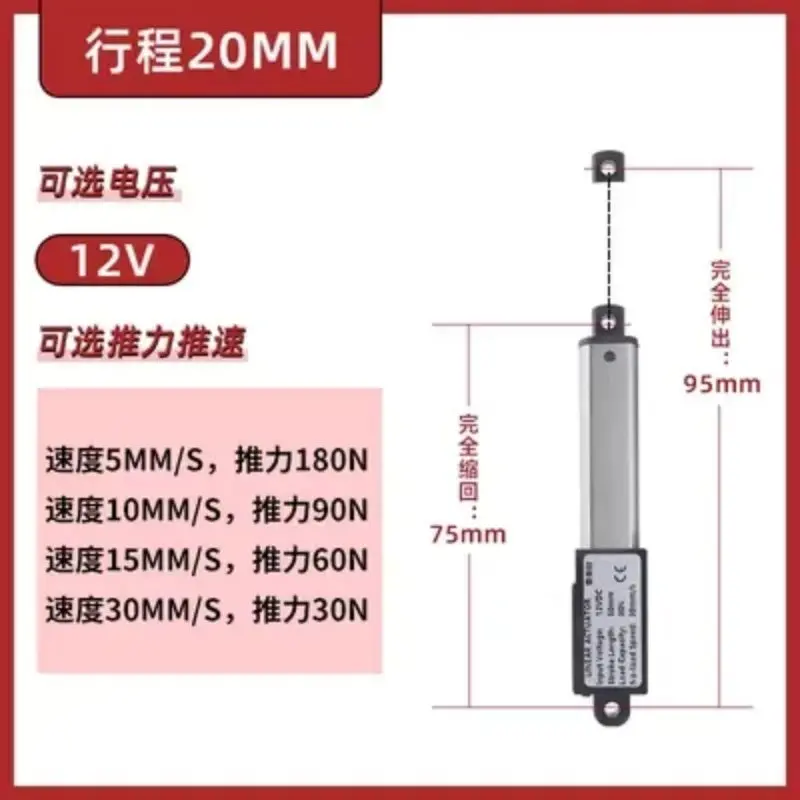

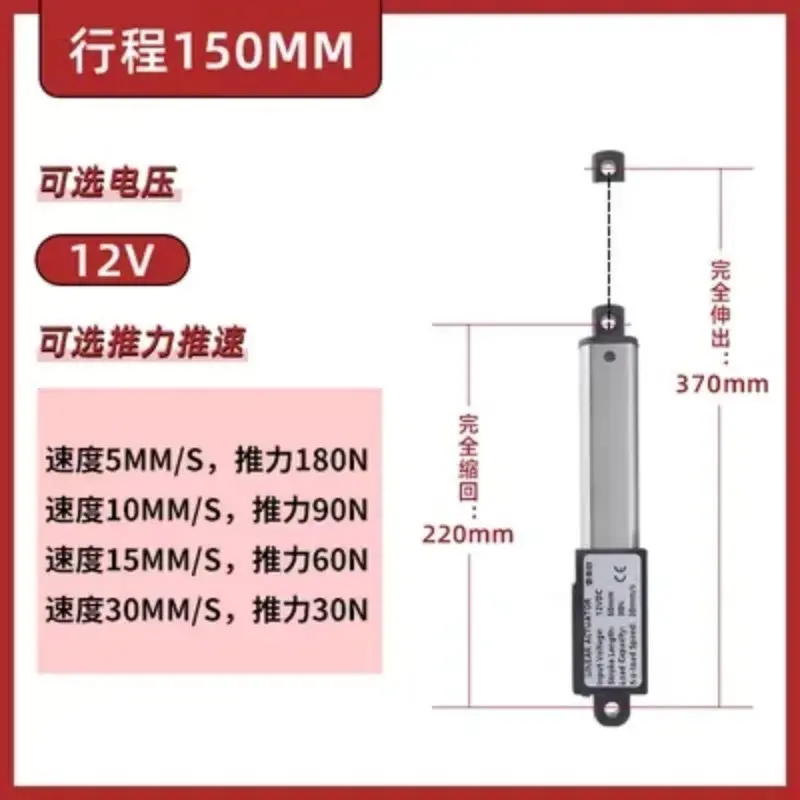

- Speed/load options: 5mm/s(180N), 10mm/s(90N), 15mm/s(60N), 30mm/s(30N).
- ✅ Compact & Lightweight Design: Miniature form factor made of aluminum alloy + plastic, perfect for projects with limited installation space.
- ✅ Wide Operating Range:
- Working voltage: 12V DC.
- Operating temperature: -26℃ ~ +85℃, suitable for diverse indoor environments.
- Protection rating: IP54 (dustproof, splash-resistant).
- ✅ Efficient & Low-Power: Rated power 10W, no-load current only 0.4A, energy-efficient for small-scale use.

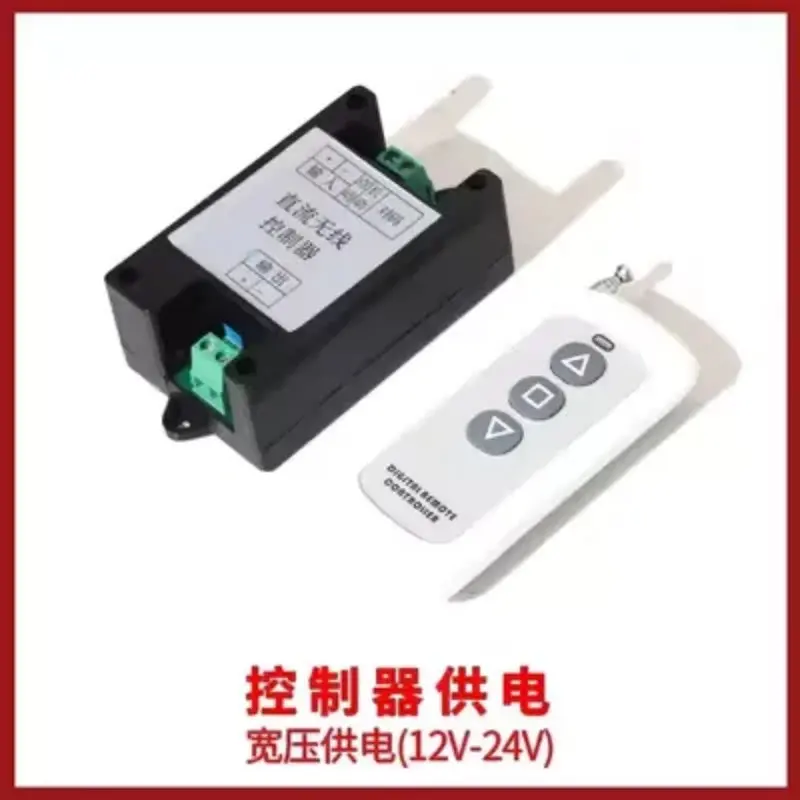

- ✅ Versatile Control Options: Compatible with wired/wireless remote controls and power supplies (sold separately) for flexible operation.
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Mini Linear Actuator / Micro Electric Telescopic Rod |
| Rated Voltage | DC 12V |

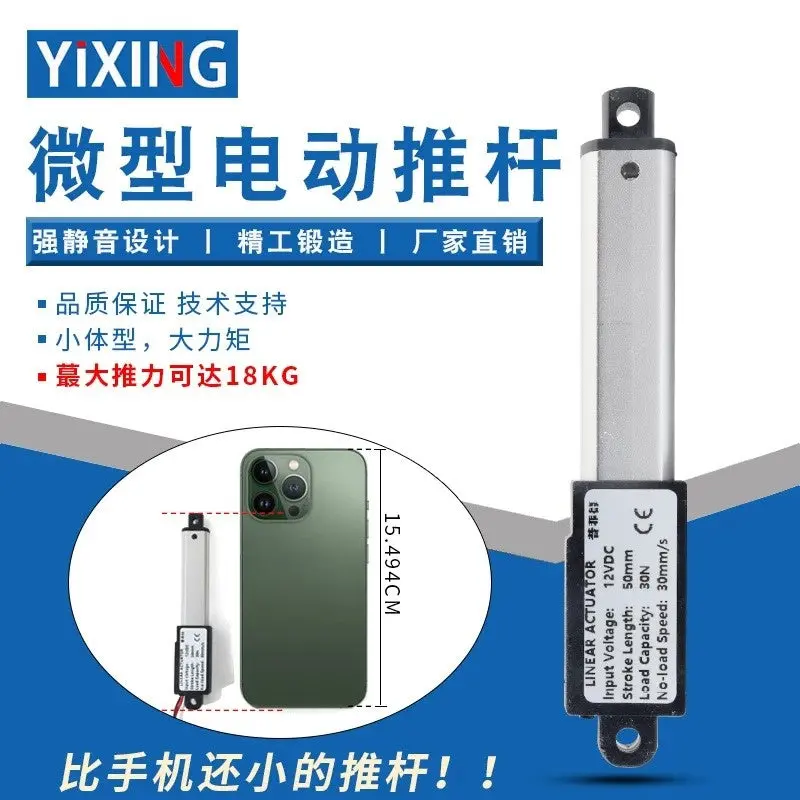

| Max Thrust | 180N (18kg) |

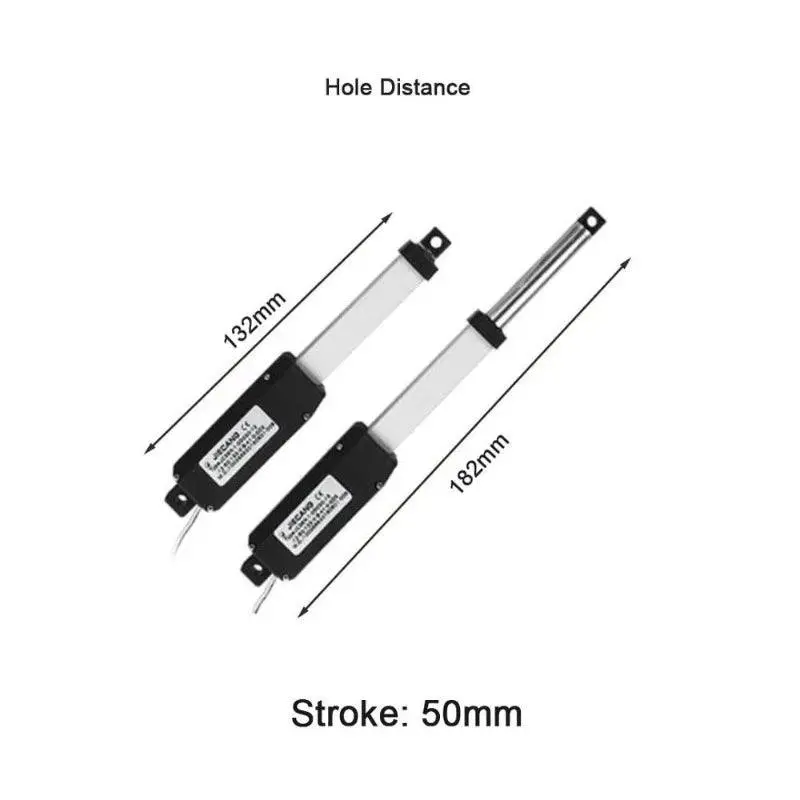

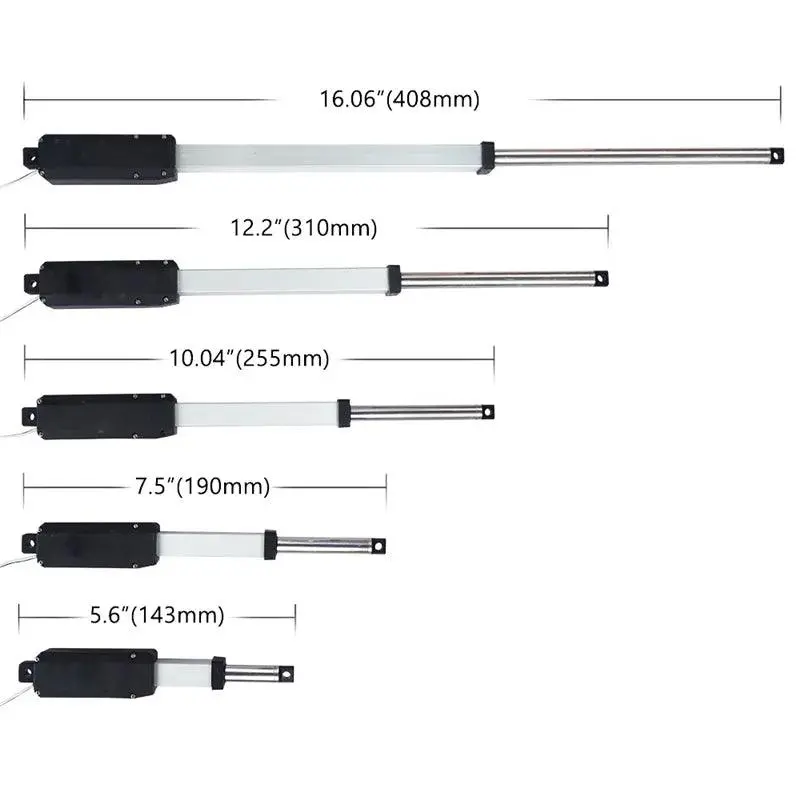

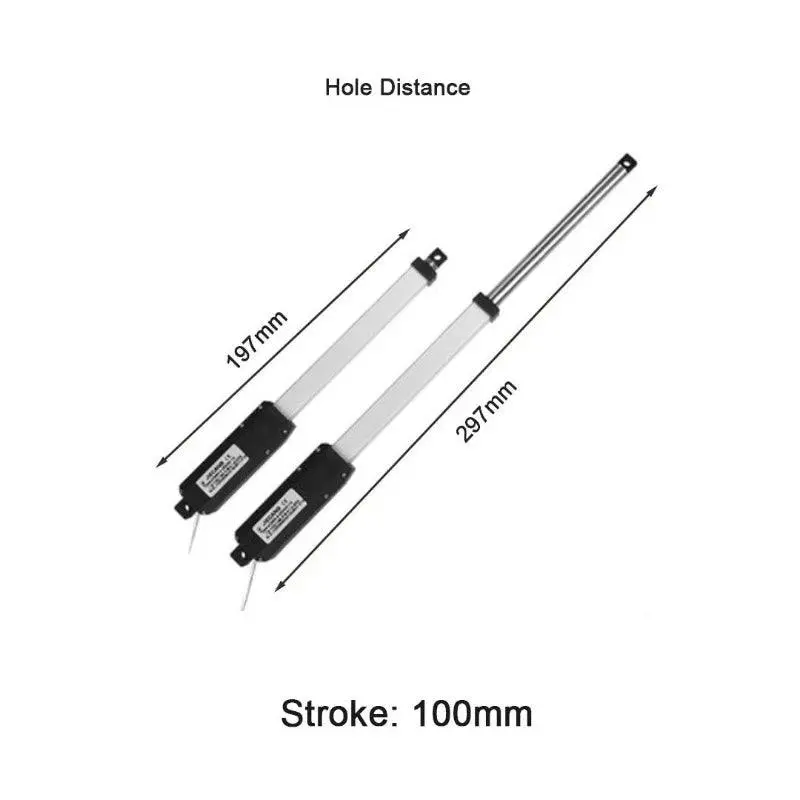

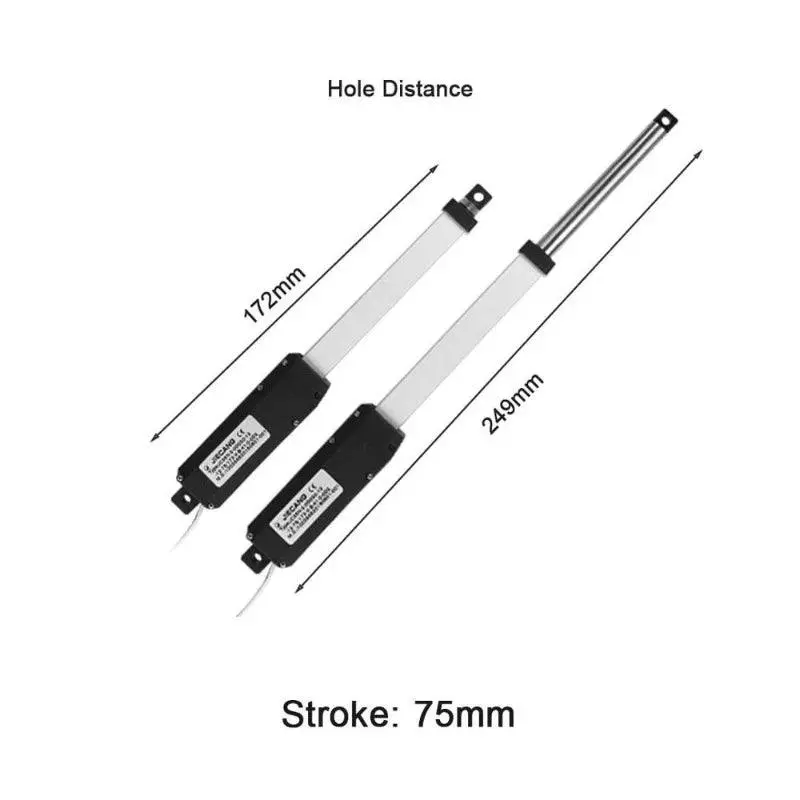

| Stroke Length | 10mm~150mm (Customizable) |
| Speed Options | 5mm/s, 10mm/s, 15mm/s, 30mm/s |
| Rated Power | 10W |
| Material | Aluminum Alloy + Plastic |
| Protection Rating | IP54 |
| Operating Temperature | -26℃ ~ +85℃ |
| No-Load Current | 0.4A |

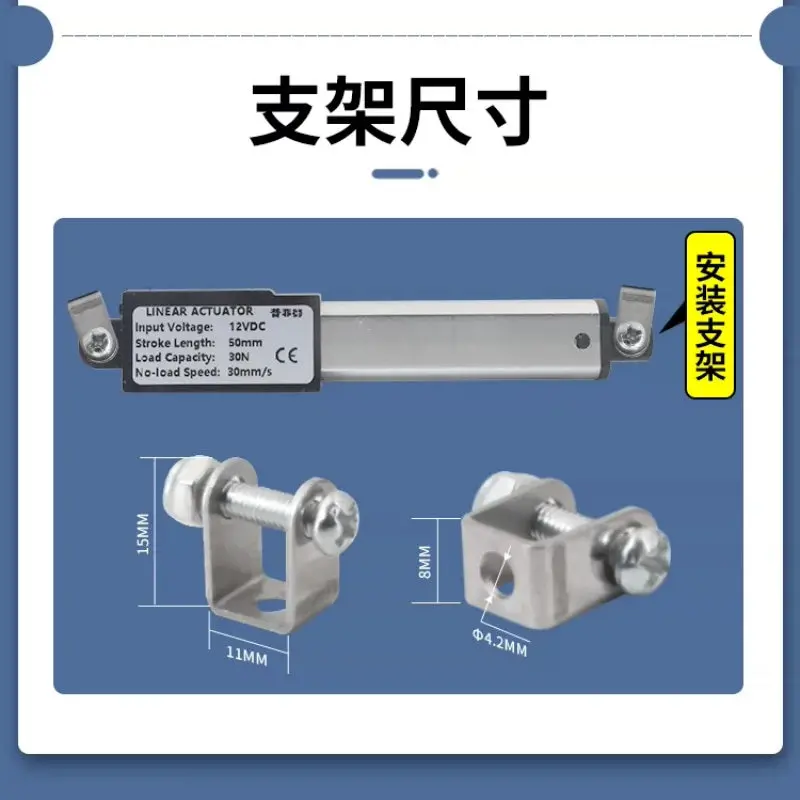

| Included Accessories | Mounting Bracket |

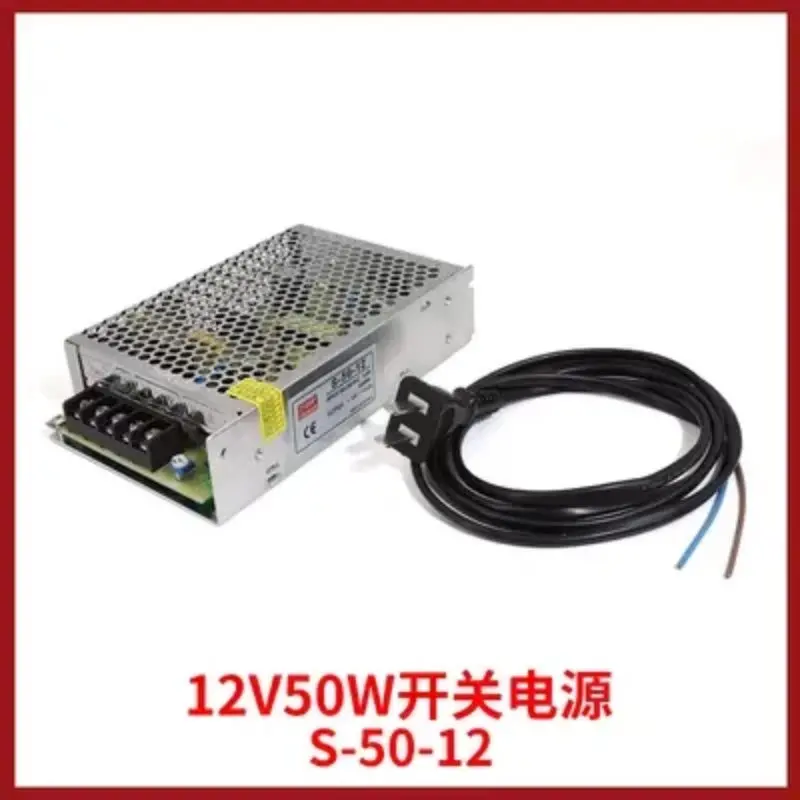

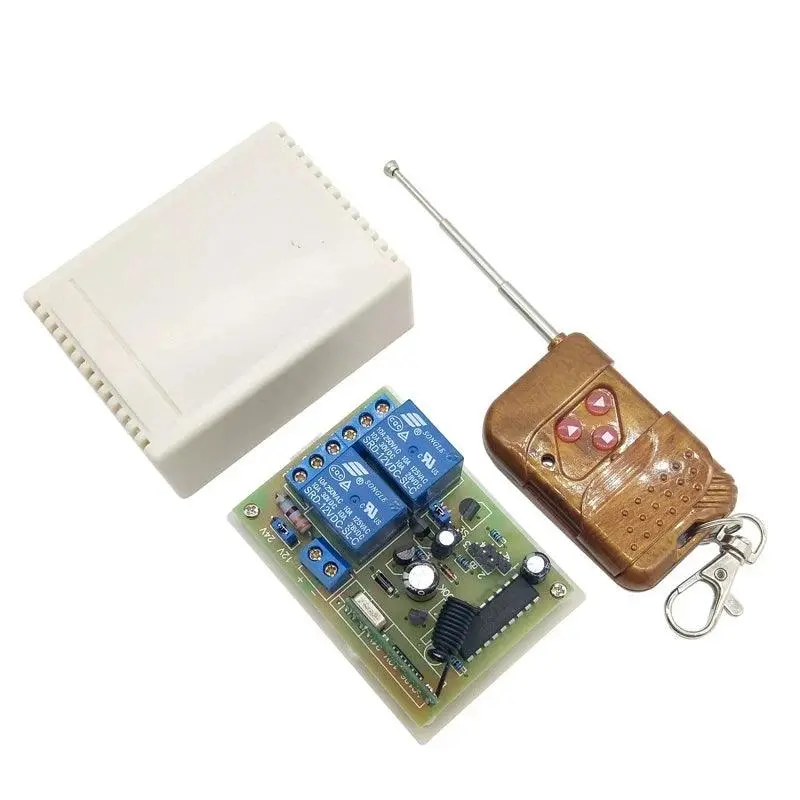

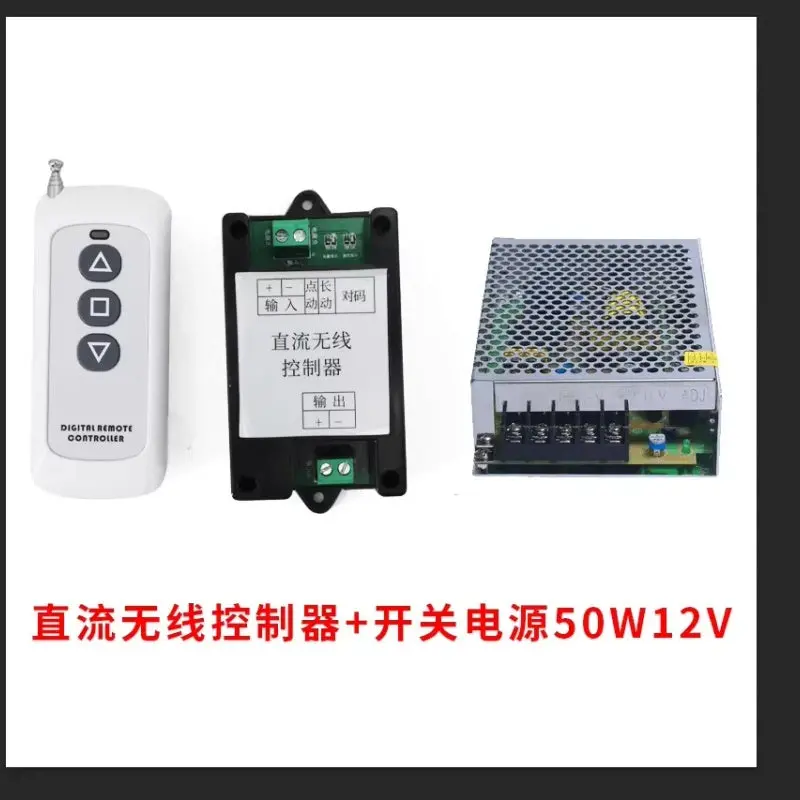

| Optional Accessories | Wireless Remote Control, 50W 12V Power Supply |
| Applications | DIY Projects, Robotics, Small Automation, Smart Home, Prototyping |
Applications
- DIY & Small Automation: Hobby projects, robotics, small lifting mechanisms
- Smart Home: Miniature cabinets, motorized small fixtures, pet doors
- Electronics: Camera sliders, small equipment positioning
- Education & Prototyping: Student projects, engineering prototypes, small-scale automation demos
Package Contents (Customizable)
- 1 x Mini Linear Actuator (12V DC)
- 1 x Mounting Bracket (included)
- Optional: Wireless Remote Control / 50W 12V Power Supply (sold separately)
