Wireless Remote Control Kit for Linear Actuators, 12/24V DC, Extend/Retract/Stop Control, Fixed Code
DC Linear Actuator Remote Controller, 12V/24V Wide Voltage, Multi-Function Control Box with Transmitter & Receiver
Product Description
This DC linear actuator wireless remote controller is designed for easy, remote operation of electric telescopic rods. Compatible with both 12V and 24V DC systems, it supports multiple control modes (momentary, interlock, self-latch) and offers reliable, long-range control for your linear actuator projects.
Key Features
- ✅ Wide Voltage Compatibility: Works with 12V or 24V DC power systems, fitting most standard linear actuators.
- ✅ Multiple Control Modes:
- M4 (Momentary): Hold the button to operate, release to stop.
- L4 (Interlock): Only one channel active at a time, prevents simultaneous conflicting commands.
- T4 (Self-Latch): Press once to activate, press again to stop; channels operate independently.
- ✅ Fixed Code Technology: Simple pairing via soldering, with three states (high, low, floating) for easy matching between transmitter and receiver.
- ✅ Reliable Performance:
- 433MHz / 315MHz operating frequency with >-105dBm receiver sensitivity.
- Relay contact rating: 10A @ 250V AC / 10A @ 30V DC, supporting various loads.
- Receiver with common/normally open/normally closed contacts for flexible circuit integration.
- ✅ User-Friendly Design:
- Three-button remote (Extend/Stop/Retract) for intuitive operation.
- Compact receiver with housing, ready for quick installation.
- Long control range (varies with environment, up to 100m in open space).
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Linear Actuator Wireless Remote Controller |
| Compatible Voltage | DC 12V / 24V |
| Rated Power | 60W |
| Control Functions | Extend / Stop / Retract |
| Control Modes | Momentary (M4), Interlock (L4), Self-Latch (T4) |
| Operating Frequency | 433MHz / 315MHz |
| Receiver Sensitivity | >-105dBm |
| Relay Rating | 10A @ 250V AC / 10A @ 30V DC |
| Encoding Type | Fixed Code (Soldering Pairing) |
| Output Contacts | Common / Normally Open / Normally Closed |
| Control Range | Up to 100m (open area) |
| Package Contents | Remote Control, Receiver with Housing |
| Applications | Linear Actuators, Electric Windows, Industrial Control, Smart Home |
| Compatibility | Fits most standard 12V/24V DC linear actuators |
Applications
- Linear Actuator Control: Electric telescopic rods, lifting systems, hospital beds, nursing beds
- Industrial Control: Motor forward/reverse control, hoisting equipment, signal control
- Smart Home: Electric windows, door locks, motorized cabinets, TV lifts
- Security Systems: Burglar alarms, remote monitoring, automated access control
Important Notes
- Press only one button at a time on the remote to avoid interference.
- The control range varies significantly with the environment (obstacles, interference). Not recommended for applications requiring strict range consistency.
- The receiver supports a variety of loads; verify compatibility with your actuator before use.
1) This product is a wireless transmission signal, non-directional, can pass through the wall
2) Working voltage ： DC 12V/24V
3) Working frequency: 433MHz-315MHZ
4) Remote control distance: open space without interference load test 100 meters (radio products practical application vary depending on the environment from the remote control, the gap is very large, which have strict requirements careful to buy!)
5) Load types: for electric burglar alarm, remote control electric windows, signal control, industrial control, motor reversing, lifting equipment and other control circuitry. Remote control switch module relay contact Independent output, Very suitable for direct control of various types of load
6) Receiving sensitivity:> – 105dB
7)The relay contact capacity: 10A 250VAC | 10A 30VDC

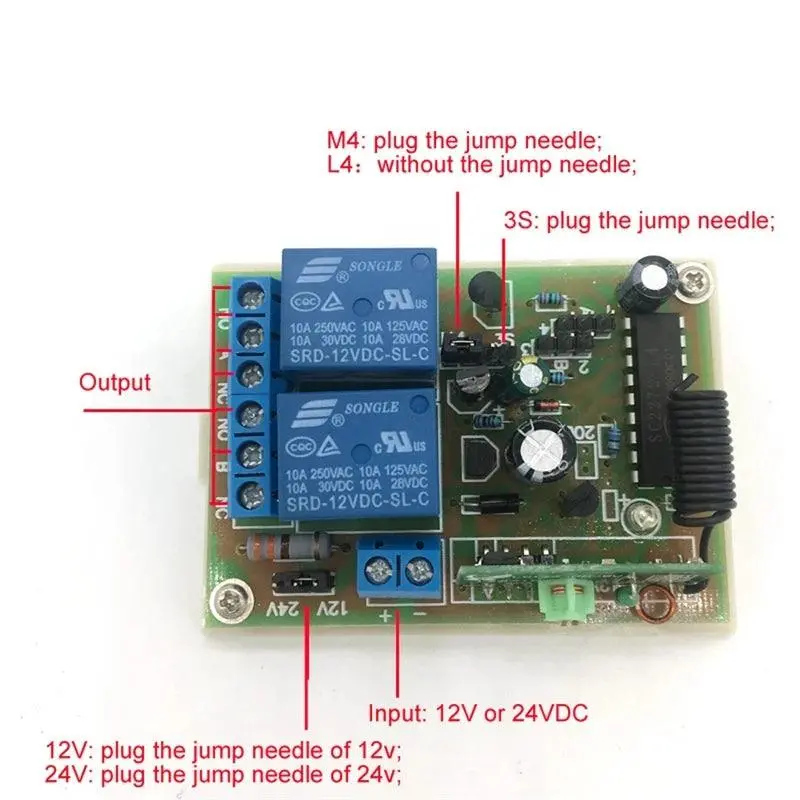

8) Control mode: Work mode: M4 (Jog: Press grimdeath outputs, let go to stop output), L4 (interlock: Road at the same time there can be only one output), T4 (self-locking: Road mutual independent output, independently of each other, click the output and click stops output)
Tips: Remote control buttons Press only one button can not hold down two or more keys simultaneously, otherwise it will affect the normal work interfere with each other.

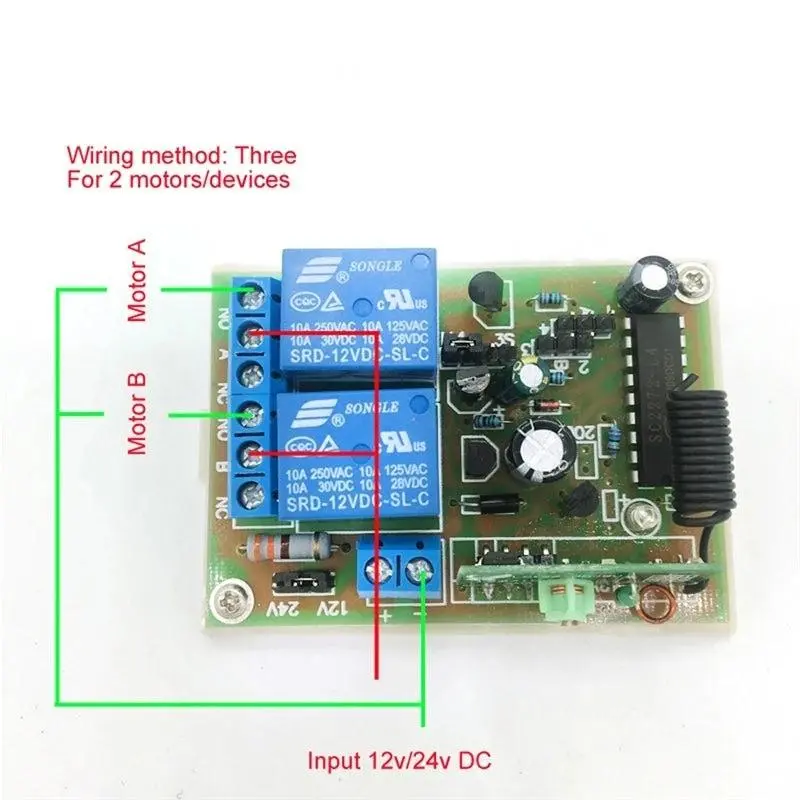

9) Output: relay common / normally open / normally closed (flexible application can control a variety of load voltage)
10) Encoding: fixed code (welding yards) motherboard and pin remote control codes need to correspond to the state are: high, low, left floating.
11) Configure Explanation: Remote Control + Receiver + shell (1set)
