Description

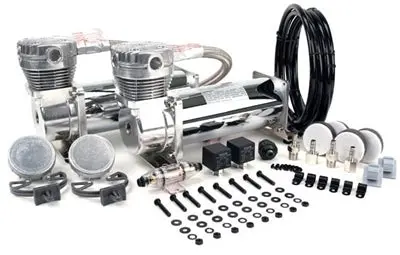

| Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial application, air horns or off-road pneumatic needs. Each Dual Pack includes two VIAIR 480C Pewter, Chrome or Stealth Black air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.
Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.
|
|
|
Features
– (2) 480C (Pewter, Chrome or Stealth Black) Air Compressors
– (2) Air Filter Assemblies
– (2) Remote Mount Brackets
– (2) Sets of Remote Mount Fittings
– (2) Sets of Spare Air Filter Elements
– (2) Leader Hose Clips
– (6) Air Line Clips with Included Hardware
– (8) Sets of Nuts, Bolts, Washers and Lock Washers
– (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
– (2) 40-Amp Relays
– (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
– Air Line (For Remote Mount Filter Installation) |
|
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 10.0 Gallon
– Max. Amp Draw: 44 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
– Net Weight: 22.10 lbs.
| PSI |
CFM |
A |
BAR |
LPM |
A |
| 0 |
3.53 |
25 |
0 |
100.0 |
25 |
| 10 |
3.10 |
28 |
1.0 |
86.5 |
29 |
| 20 |
3.00 |
31 |
2.0 |
81.4 |
33 |
| 30 |
2.86 |
33 |
3.0 |
76.8 |
35 |
| 40 |
2.75 |
35 |
4.0 |
72.7 |
37 |
| 50 |
2.64 |
36 |
5.0 |
67.6 |
39 |
| 60 |
2.55 |
37 |
6.0 |
61.2 |
41 |
| 70 |
2.43 |
39 |
7.0 |
55.3 |
42 |
| 80 |
2.26 |
40 |
8.0 |
50.1 |
44 |
| 90 |
2.12 |
41 |
9.0 |
45.0 |
44 |
| 100 |
1.97 |
42 |
10.0 |
40.6 |
43 |
| 110 |
1.84 |
43 |
11.0 |
36.8 |
41 |
| 120 |
1.72 |
44 |
12.0 |
32.4 |
40 |
| 130 |
1.59 |
44 |
13.0 |
28.0 |
37 |
| 140 |
1.49 |
43 |
14.0 |
24.8 |
36 |
| 150 |
1.38 |
42 |
|
| 160 |
1.29 |
41 |
|
| 170 |
1.18 |
40 |
|
| 180 |
1.09 |
39 |
|
| 190 |
0.97 |
37 |
|
| 200 |
0.90 |
36 |
* Supply Voltage: 13.8 Volts |
| 2.5 Gallon Tank |
Fill Rate |
| 0 to 200 PSI |
2 min. 22 sec. (± 10 sec.) |
| 165 to 200 PSI |
38 sec. (± 05 sec.) |
| 5.0 Gallon Tank |
Fill Rate |
| 0 to 200 PSI |
5 min. 02 sec. (± 10 sec.) |
| 165 to 200 PSI |
1 min. 25 sec. (± 05 sec.) |
| 10.0 Gallon Tank |
Fill Rate |
| 0 to 200 PSI |
10 min. 30 sec. (± 15 sec.) |
| 165 to 200 PSI |
3 min. 10 sec. (± 10 sec.) |
