Description
Ultra-Thin Momentary Metal Push Button Switch, IP65 Waterproof Self-Reset Lighted Tact Switch with Wire, 16/19/22/25/30mm, Single/Dual/Tri-Color LED, 3-6V/12-24V, for Automotive, Industrial Control, DIY
Product Description
This ultra-thin metal momentary push button switch is a premium micro-travel tactile switch designed for space-saving applications, combining durability, easy installation and visual feedback.
Key Advantages

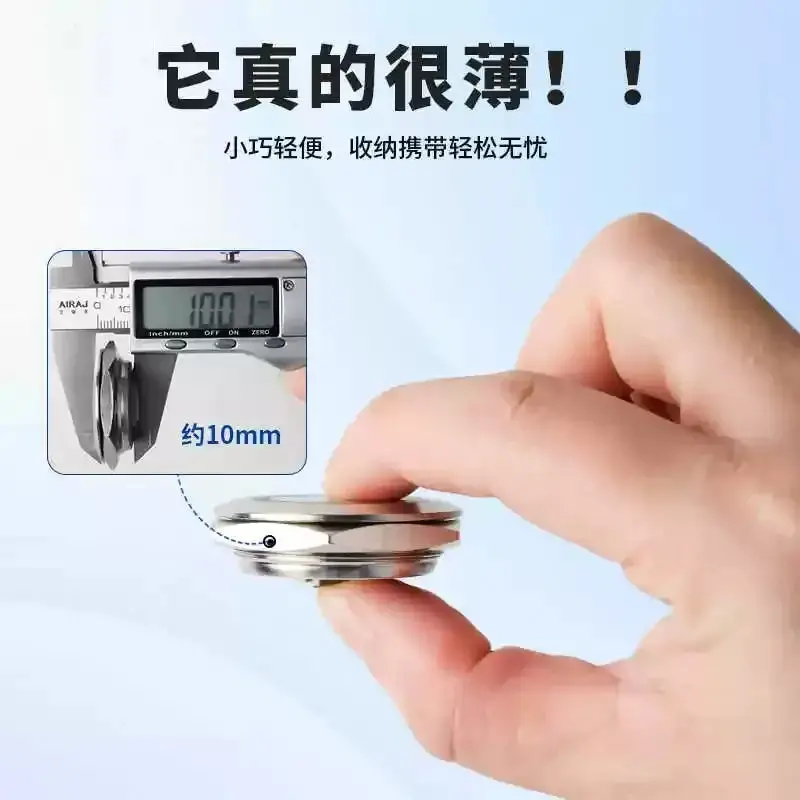

- Slim & Compact：Ultra-short wire and ultra-thin body design, lightweight and portable, perfect for tight spaces in automotive dashboards, control panels and DIY electronics.
- Reliable Momentary Operation：1NO (SPST) contact structure with self-reset function, only energized when pressed, ensuring safe and accurate momentary control.

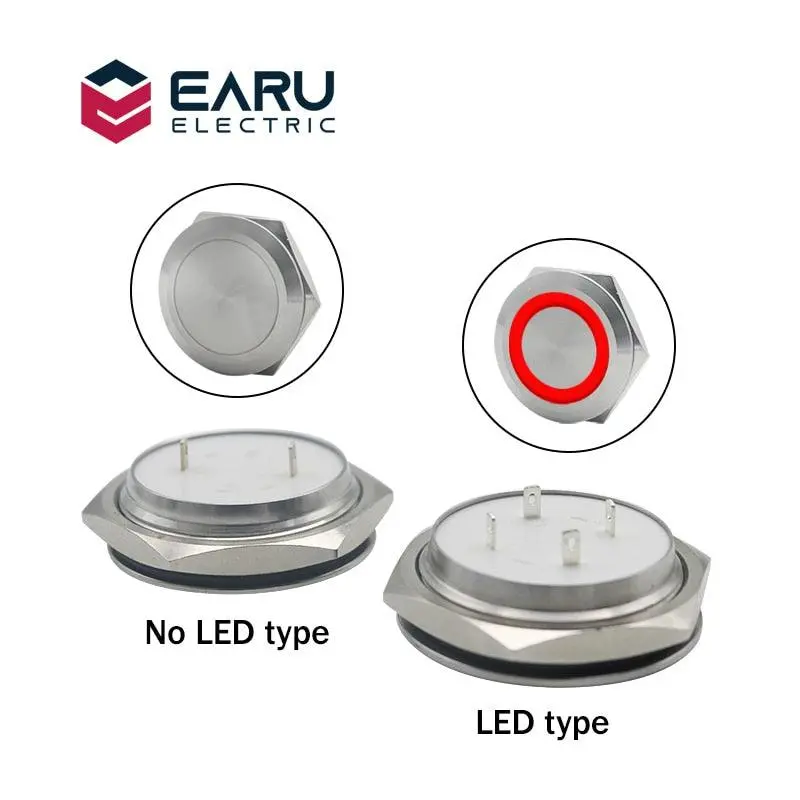

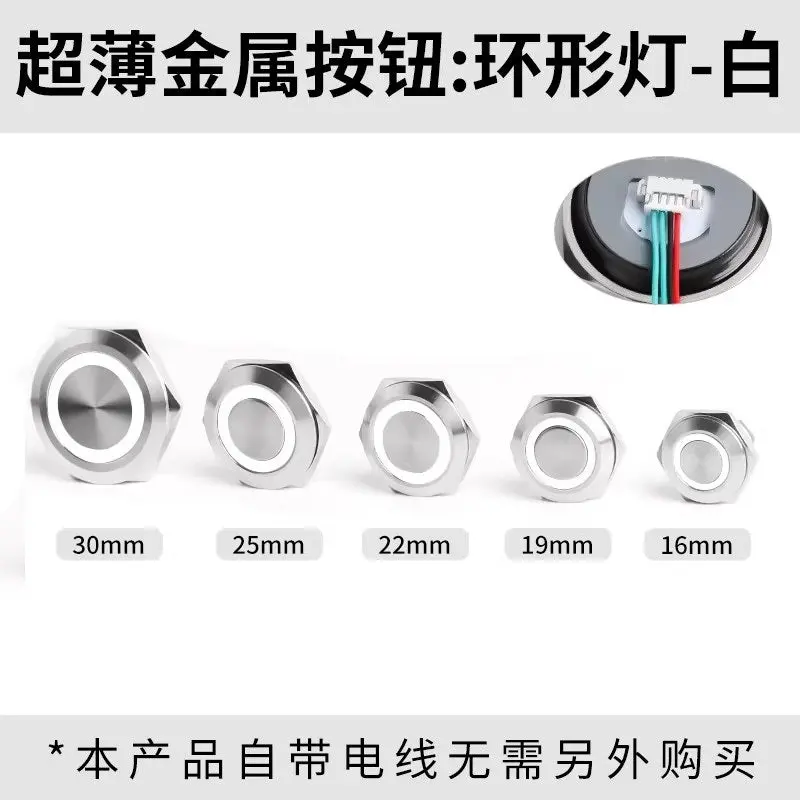

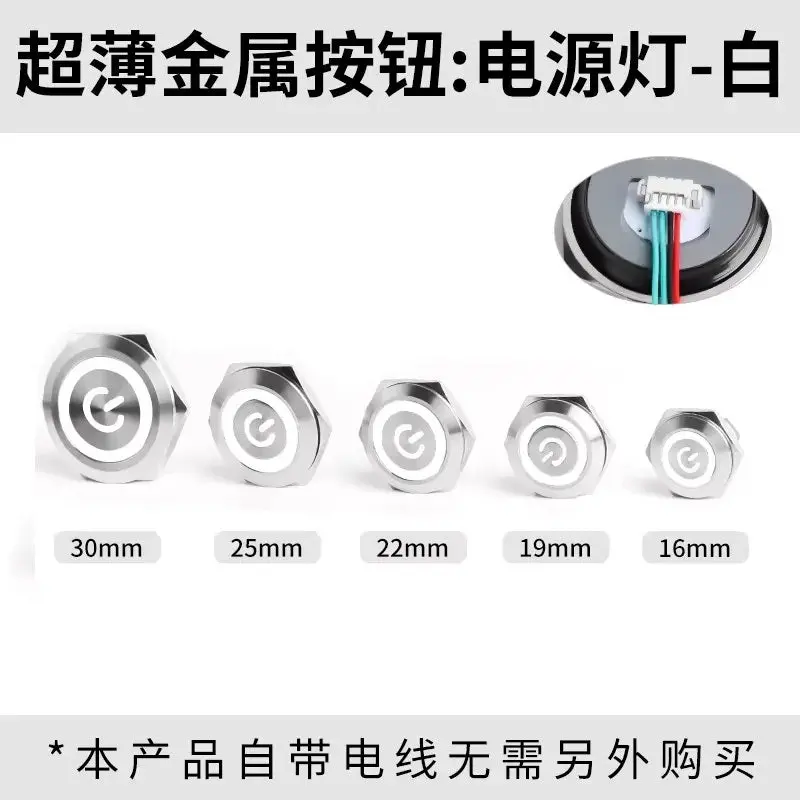

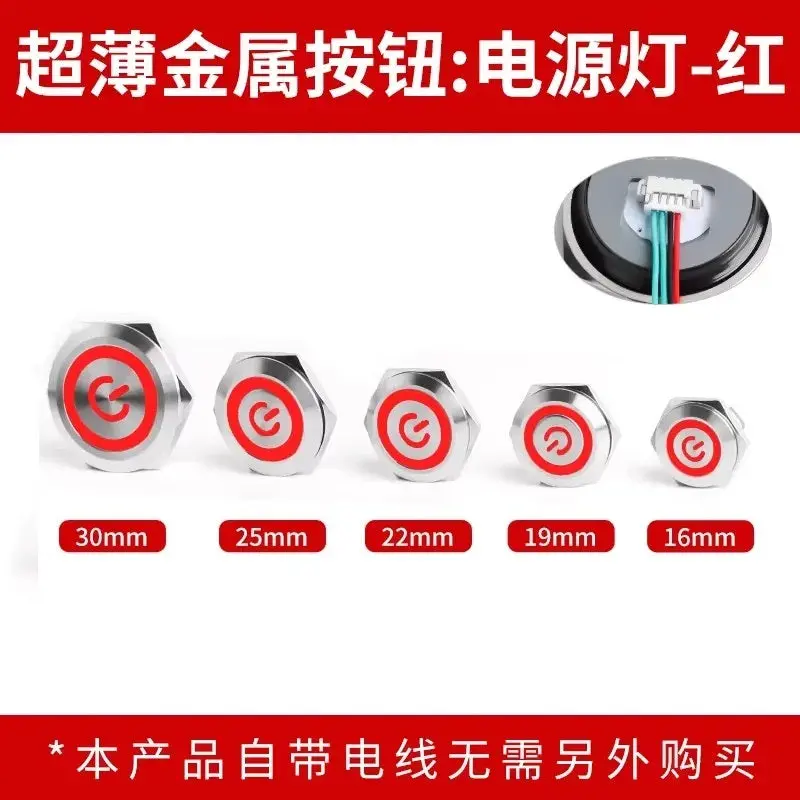

- Versatile LED Indicator：Choose from single, dual (default red-green) or tri-color (default red-green-blue) LED, with ring or power indicator style, compatible with 3-6V and 12-24V circuits.
- Durable & Waterproof：304 stainless steel housing with IP65 dustproof and waterproof rating (IP67 customizable), resistant to corrosion and vibration, suitable for indoor and outdoor use.

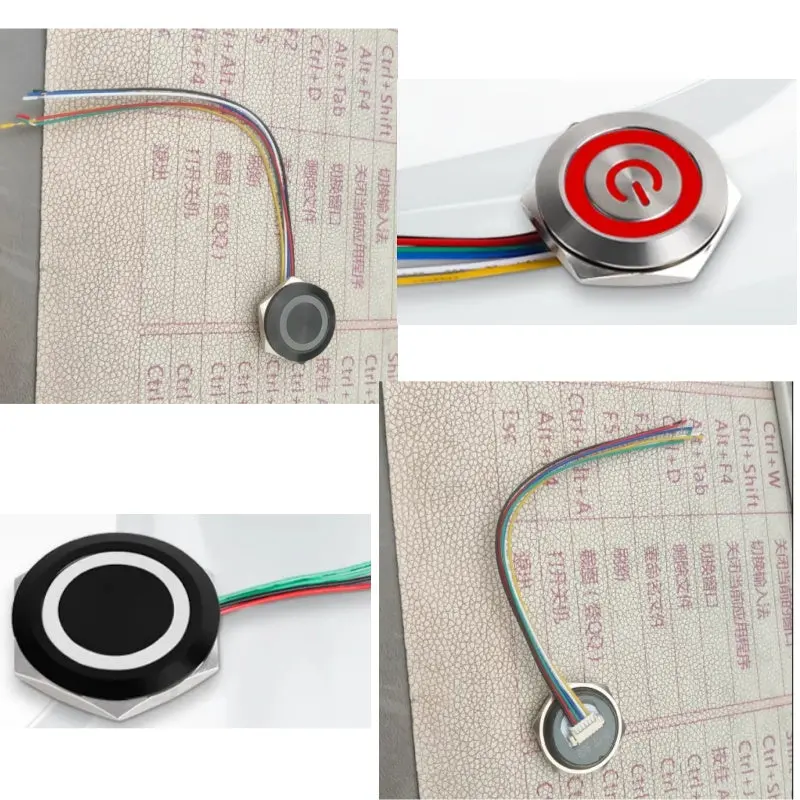

- Hassle-Free Wiring：Equipped with a ribbon wire connector for quick and secure wiring, eliminating the need for soldering, ideal for fast installation and maintenance.
- Fully Customizable：Support custom head styles (flat/high/spherical), logo, text and symbols to match your specific project requirements.
Technical Specifications
- Product Name: Ultra-Thin Metal Momentary Push Button Switch
- Operation Type: Momentary (Self-Reset Only)
- Contact Form: 1 Normally Open (1NO / SPST)

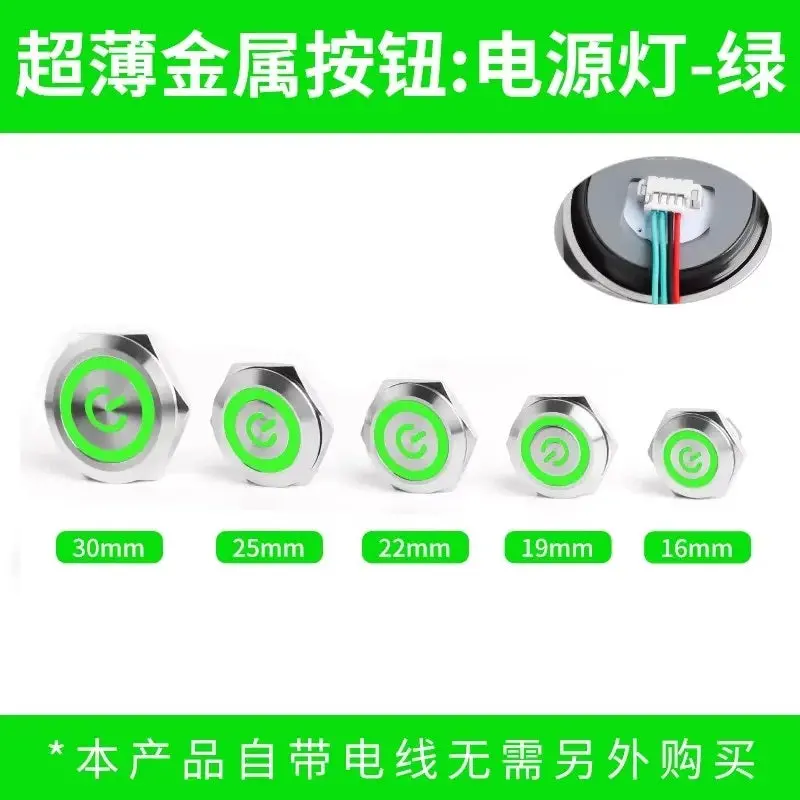

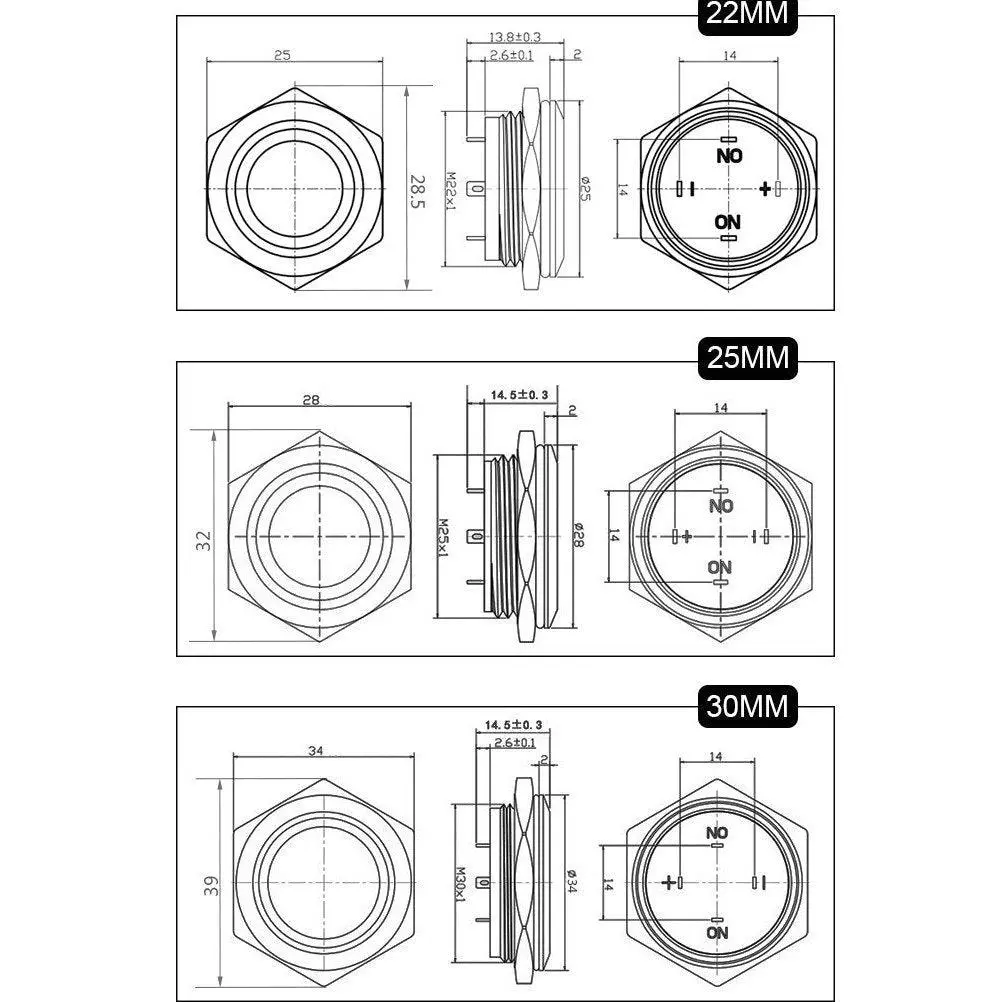

- Mounting Diameter: 16mm / 19mm / 22mm /25mm /30mm
- LED Type: Single / Dual / Tri-Color (Red/Green/Blue/Yellow/White)
- Operating Voltage: 3-6V / 12-24V
- Rated Current: ≤1A
- Housing Material: 304 Stainless Steel (Silver) / Anodized Black
- Protection Level: IP65 (IP67 Customizable)
- Terminal Type: Pre-Wired Ribbon Connector
- Head Style: Flat / High / Spherical (Customizable)
- Customization: Support Custom Logo, Text, Symbol, Pattern
Wide Application
Perfect for automotive modification, motorcycle control, industrial equipment, smart home devices, marine electronics, DIY projects, Arduino/Raspberry Pi builds, and any application requiring a compact, reliable momentary push button with LED indicator.
Is Smart Device: No
Features: mini
Current: 5A
Certification: CE
Certification: ce,NONE
Brand Name: EARUELETRIC
Material: Silver is Stainless Steel, black is aluminium oxide
Color: Silver Or Black
LED Color: White Yellow Red Green Blue
Switch Rating: AC 220V
Press Distance : ≤0.5mm
Waterproof Grade: IP65
LED Voltage: 3-6V,12-24V,220V
Operation Type: Momentary （like the button of Car or Computer）
