Description

SPECIFICATIONS

Current: 1-63A

Over-under protection: 220-265V

Temperature protection: 40-150℃

Power protection: 1-26KW

Undervoltage protection: 76-240V

Rated Working Voltage: AC90-280V

Brand Name: EARUELETRIC

Model Number: EAKCB-T-M

Type: Mini

Rated Voltage: 220V

Is Smart Device: YES

Origin: Mainland China

is_customized: Yes

Certification: CE

Type: Circuit breaker

Choice: yes

semi_Choice: yes

We are factory, we can provide OEM service, if you need product with your logo, please contact us!

Note:

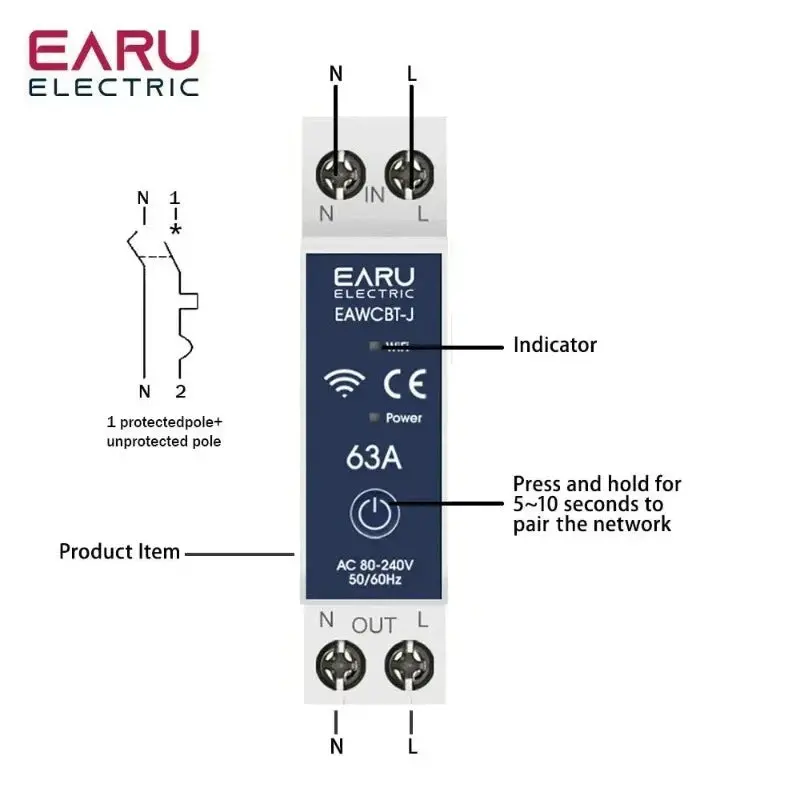

Wiring : Power must enter from the top and must be a live line + neutral (L+N)

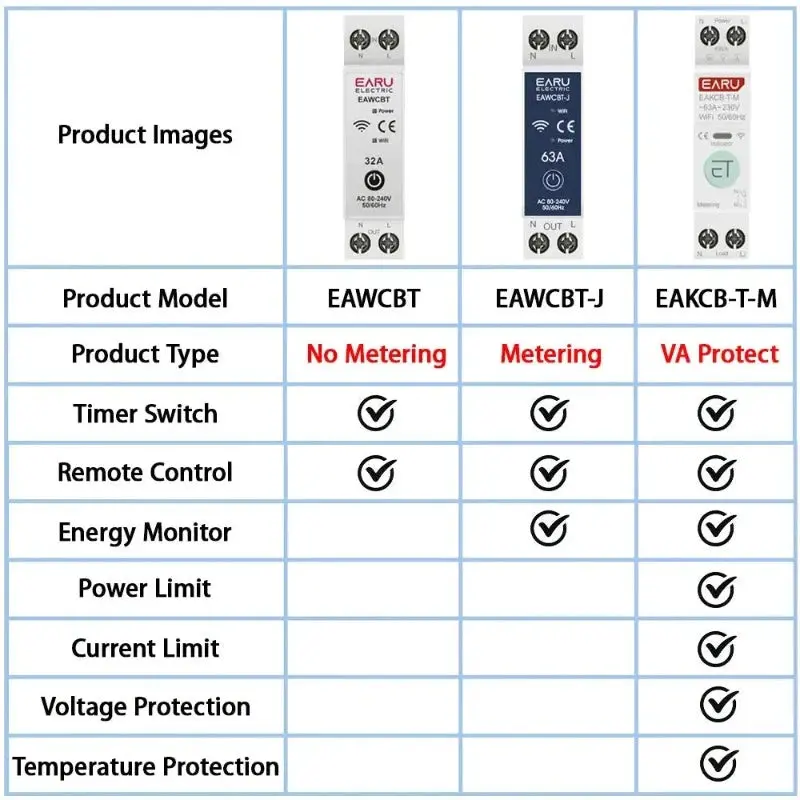

The Black model has no power meter function
Black model is pure switch type, white model is multi-function type.

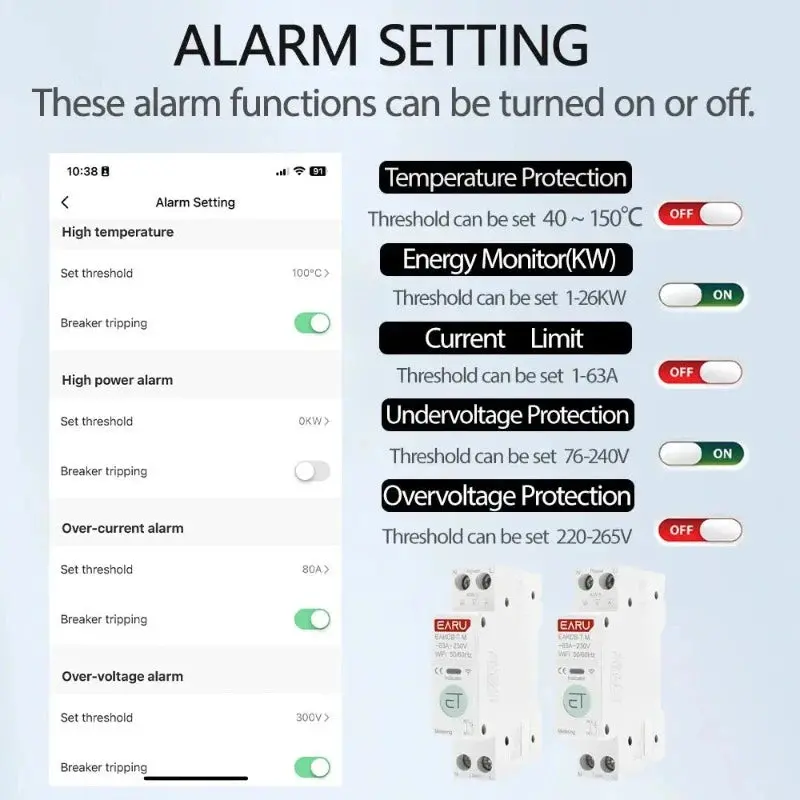

Functions:

1.Current Litmit(1-63A adjustable)

2.Power Limit(1-26KW adjustable)

3.Over-Voltage Protection(220-265V adjustable)

4.Unde-Voltage Protection(76-240V adjustable)

5.Temperature Protection(40-150℃)

6.Energy Monitor

7.Timer Switch

8.Remote Control ON/OFF

Remote control at anytime from anywhere your mobile phone can get Internet signal by TUYA APP/Smart Life APP, no distance limit
Voice control by Amazon Alexa Echo/Google Assistant

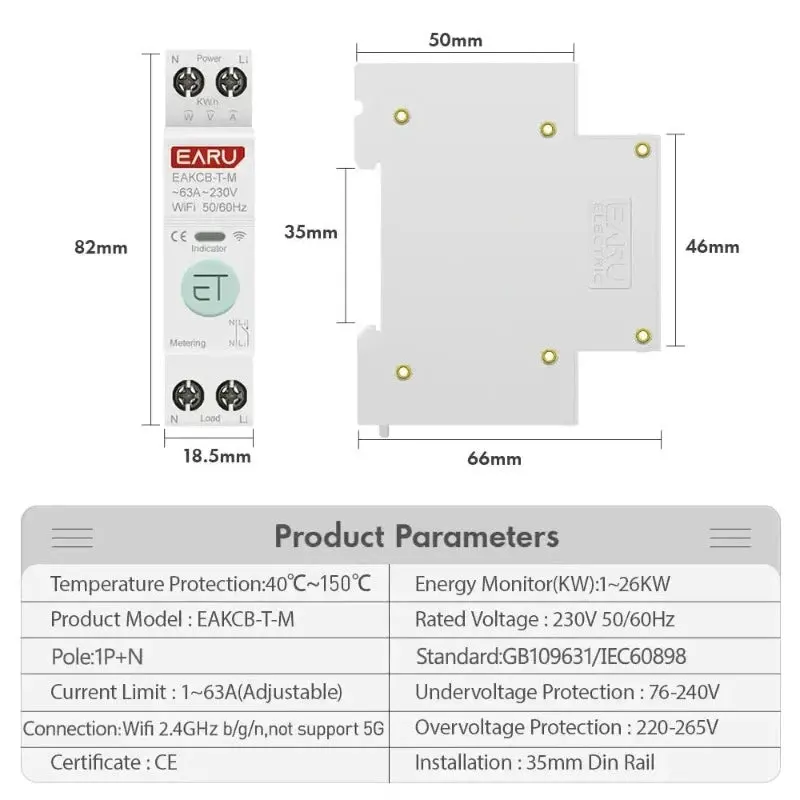

Specificaions:
Working Voltage: AC90-280V, 50/60Hz

Wireless Type: Wi-Fi 2.4GHz b/g/n,not support 5G

Support system: Android/IOS

Installation: 35MM Din Rail

Mechanical Life: Over 100000Times ON/OFF Switch
