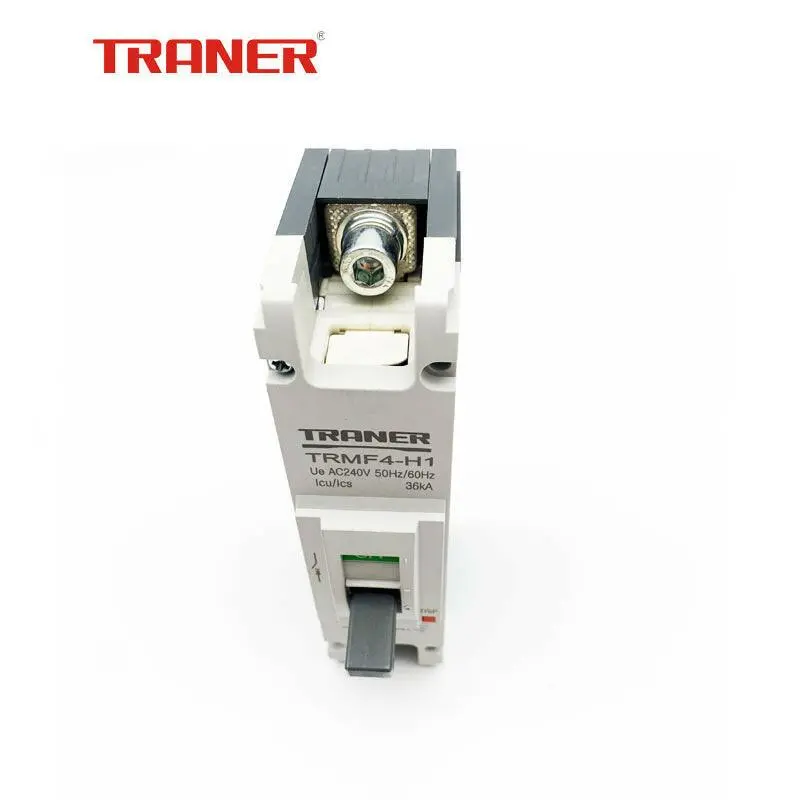

TRMF4-250 Single-Pole Molded Case Circuit Breaker – 230V, 36kA, 15–125A Thermal Adjustable

Description

 Specification

Single Pole MCCB Thermal Adjustable TRMF4-250 230V/36kA 1P 15-125A Mould Case Circuit Breaker

Please send an email to: info@electric-b2c.com for bulk purchasing.

About this item

• Distribute Electric Energy – Mainly used to distribute electric energy and protect circuits and power equipment from overload, short circuit, under voltage and other faults
• Good Flame Retardancy – The thermosetting material has good flame retardancy, will only gradually carbonize even if encounters an open flame, and will not burn, so that is safe
• Suitable For Extreme Environments – Rated current for 100A, frequency is 50/60Hz. Environmental operating temperature from 20℃60℃, suitable for more extreme environments
• Short Circuit And Overload Protection – Possess the characteristics of small size, short circuit protection, overload protection, flame retardant shell, high segmentation, short arcing, etc.
• Protection Of Motor – Can also be used for infrequent starting and overload, short circuit and under voltage protection of the motor

Product Description

Item Type: Moulded Case Circuit Breaker
Model: TRMF4-250/1P

Dimension(L*W*H): 150x38x60mm
Material: Thermoplastic PA6+ contact copper
Frame Current(AF): 250A
Frequency: 50/60Hz
Rated Insulation Voltage (Ui): AC 230V
Rated Voltage (Ue): AC 230V
Rated Impulse Withstand Voltage (Uimp): 6KV

Rated short circuit Breaking Capacity, Icu: 36kA
Ics=75%Icu Cat A
Package List:

1 x Circuit Breaker
1 x Screw Pack
