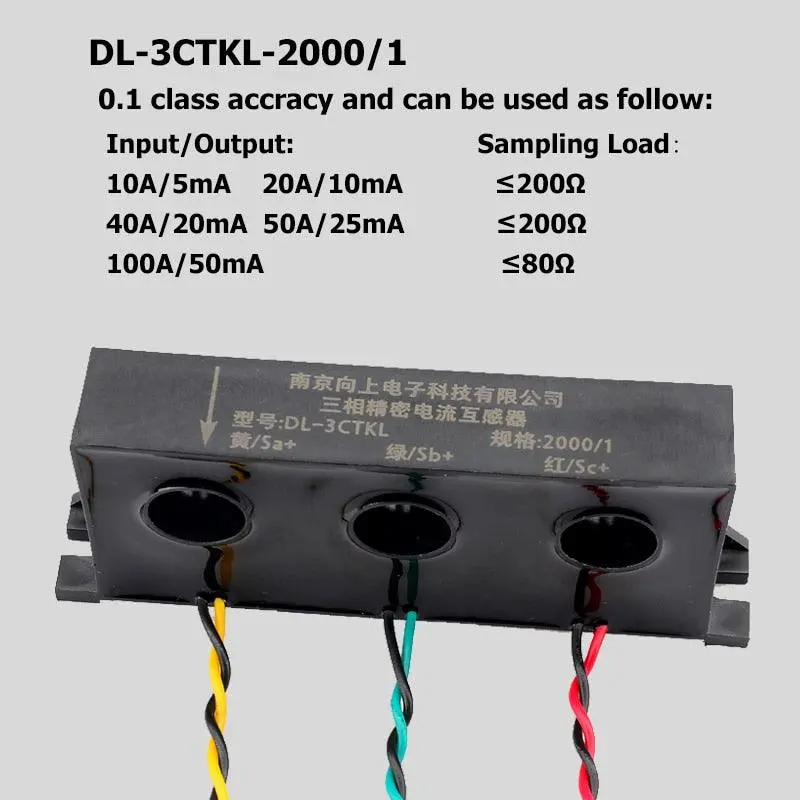

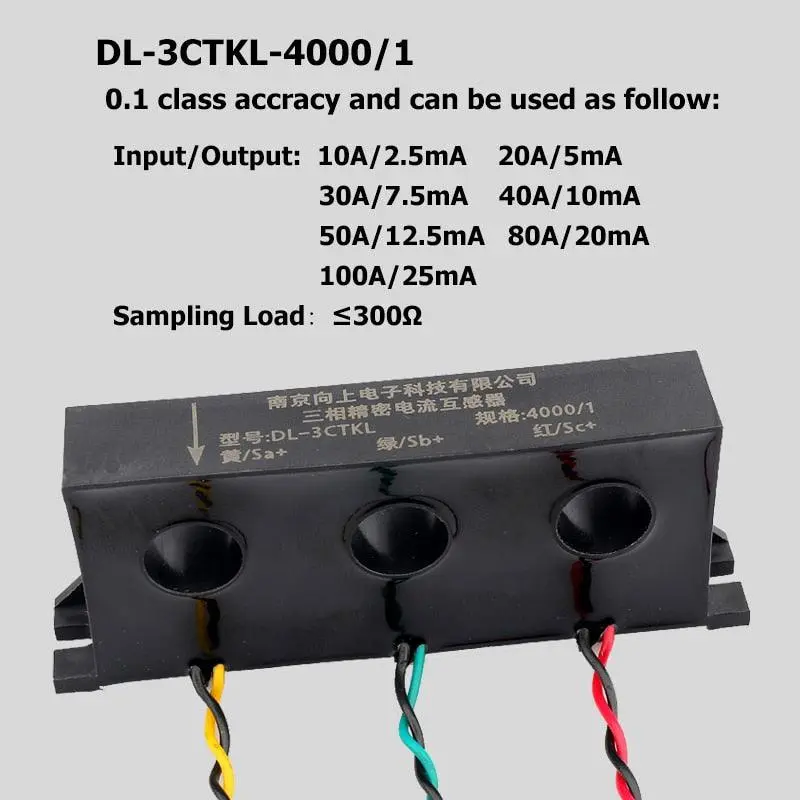

Three-Phase Current Transformer – DL-3CTKL Model, 100A Primary with 25mA or 50mA Secondary Outputs (Ratios: 1:2000 or 1:4000)

Price range: $6.33 through $6.71

Quantity
SKU: N/A Category: Brand:

Description

SPECIFICATIONS

3 Phase Transformer Current Protection and measurement DL-3CTKL 100a/50mA 1:2000 100A/25mA 4000:1 High Precision ct for sale

Work voltage: 0.66/0.72kV

Work frequency: 50/60Hz

Warranty: 1 year

Usage: Current

Phase: Three

Origin: Mainland China

Operating temperature: -40℃~+85℃

Model Number: DL-3CTKL

Insulation resistance: Normal than 1000MΩ

Dimension: 96*38*16mm

Compressive strength: 3kV/50Hz/1min

Coil Structure: Toroidal

Coil Number: Autotransformer

Certification: RoHS,UL

Brand Name: njxse

Explore more from our collection.

Additional information

Ships From

China
Color

DL-3CTKL 1000-1, DL-3CTKL 2000-1, DL-3CTKL 3000-1, DL-3CTKL 4000-1, DL-3CTKL 5000-1
