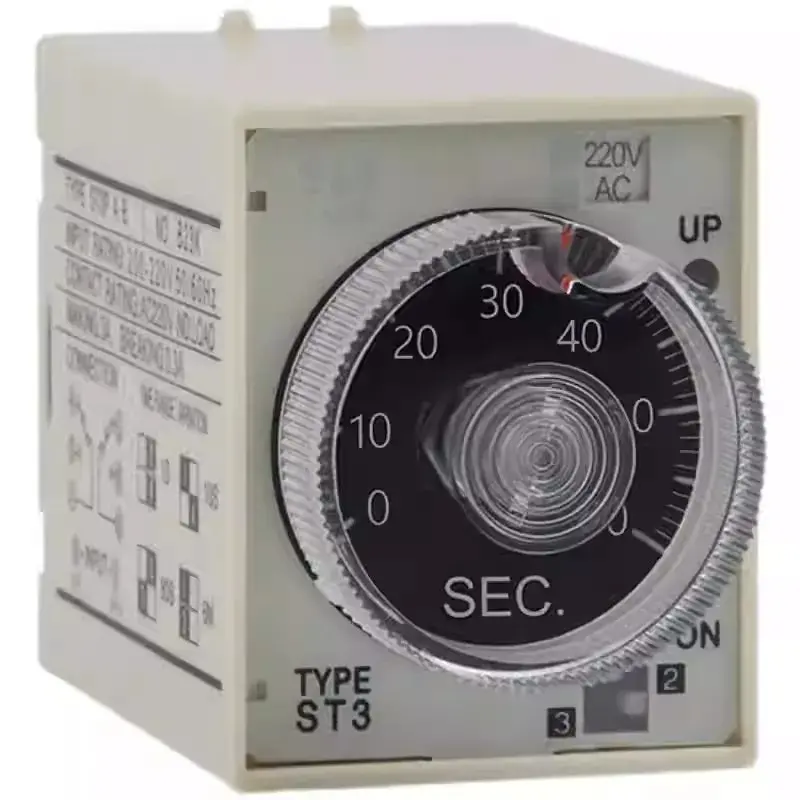

ST3P Series Time Delay Relay – ST3PA & ST3PC Models for Industrial Timing Applications

Description

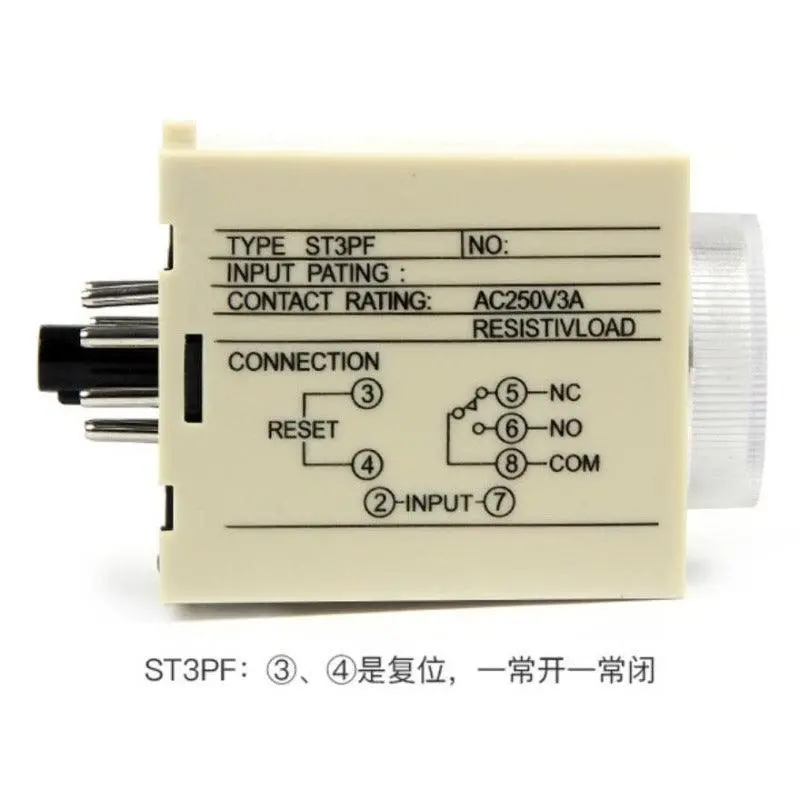

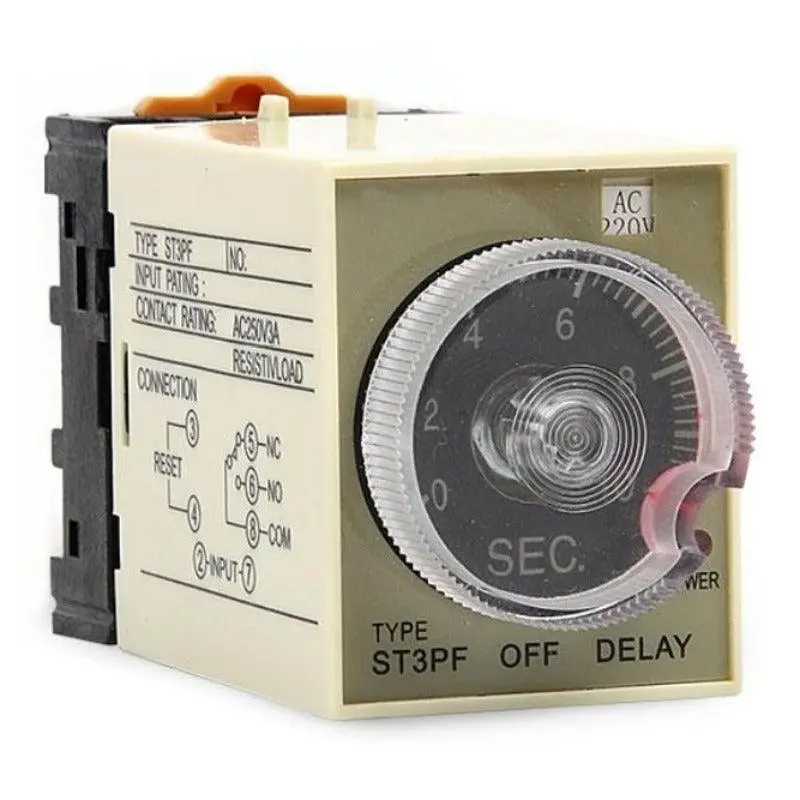

MR- ST3PF Time relay AC220V Power Off Delay Timer|

Time Relay with Base 8Pin  30S 60S 3M 10M

Product Description

The ST3P series time relay is a high-performance electronic timing control device, integrating the advantages of small size, light weight, high delay precision, wide delay range, strong anti-interference ability, good reliability and long service life. It is widely applied in various automatic control circuits that require high precision and high reliability, suitable for AC 50Hz/60Hz (rated voltage up to 380V) or DC (12V/24V) control systems, and complies with GB 14048.5, IEC 60947-5-1 and other relevant standards. The series includes two core models: ST3PA and ST3PC, which are designed with different contact configurations to meet diverse timing control needs.

1. ST3PA Time Relay

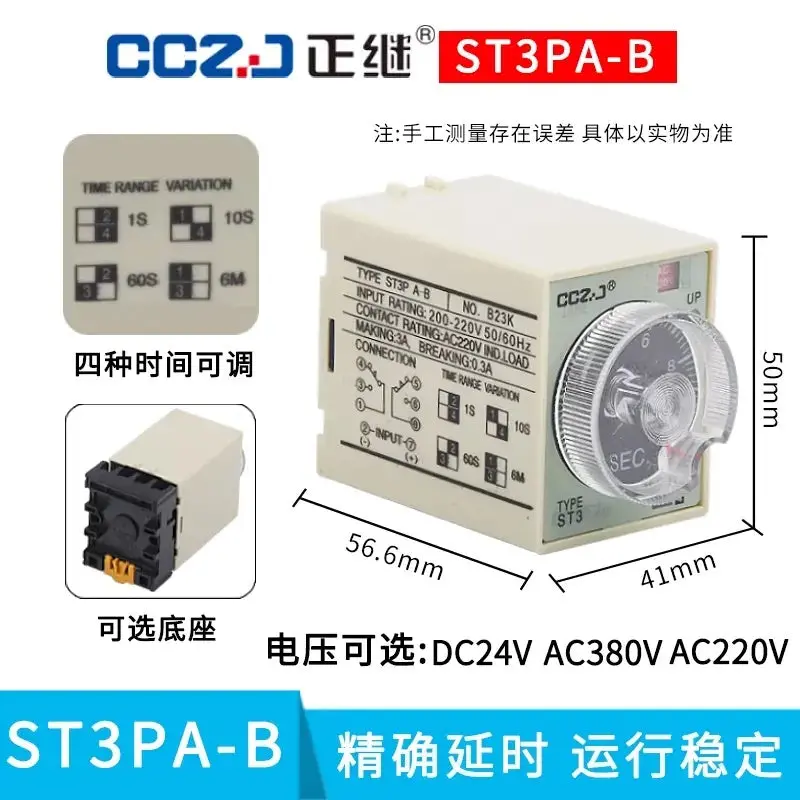

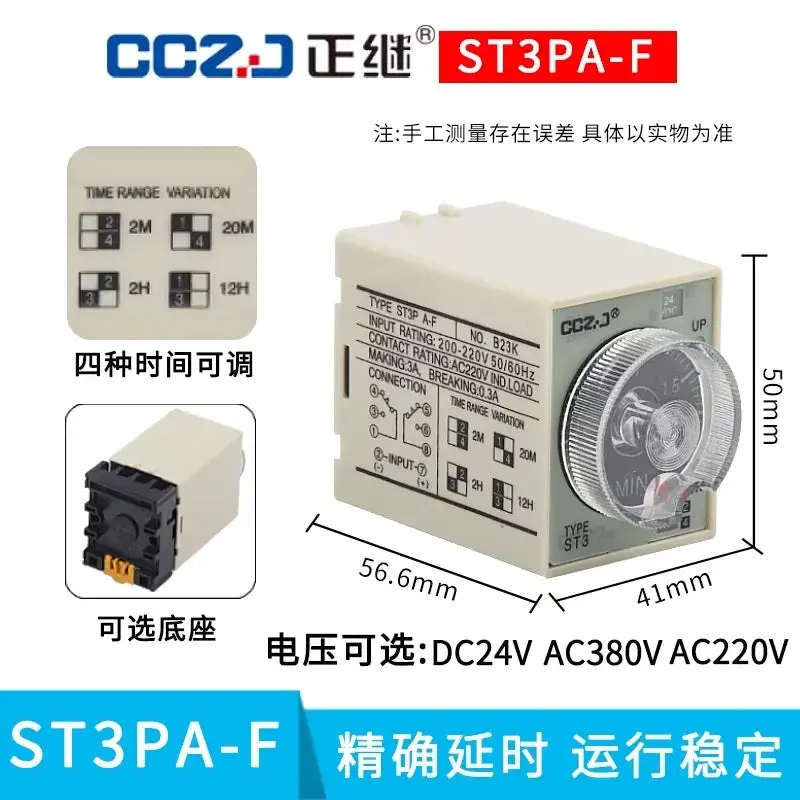

Core Feature: Equipped with dual groups of on-delay conversion contacts (DPDT timed contacts), which can realize two independent delay control functions simultaneously, and the delay time can be flexibly adjusted according to actual needs.Technical Parameters:

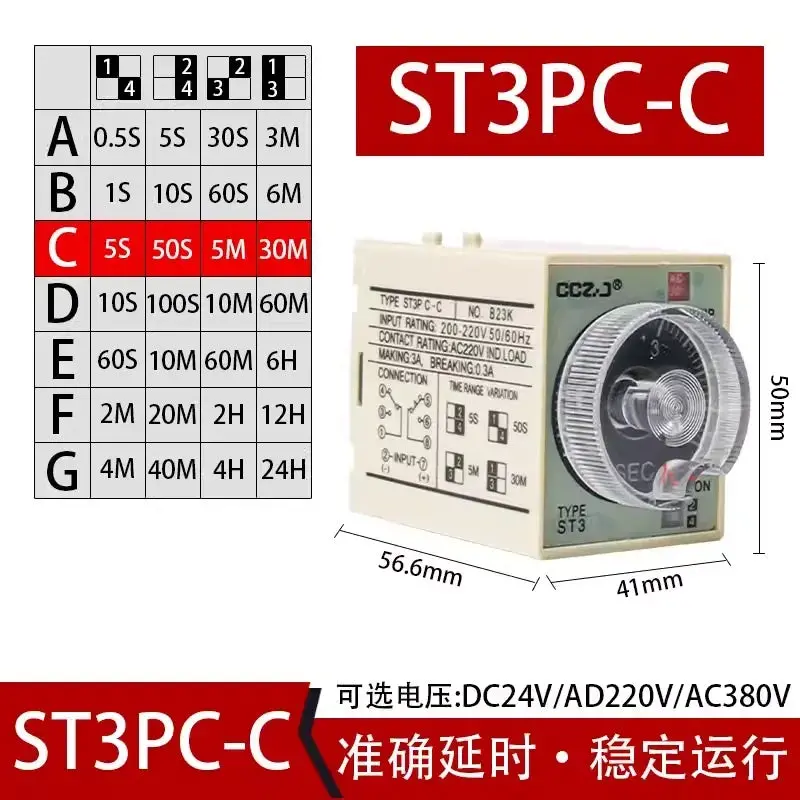

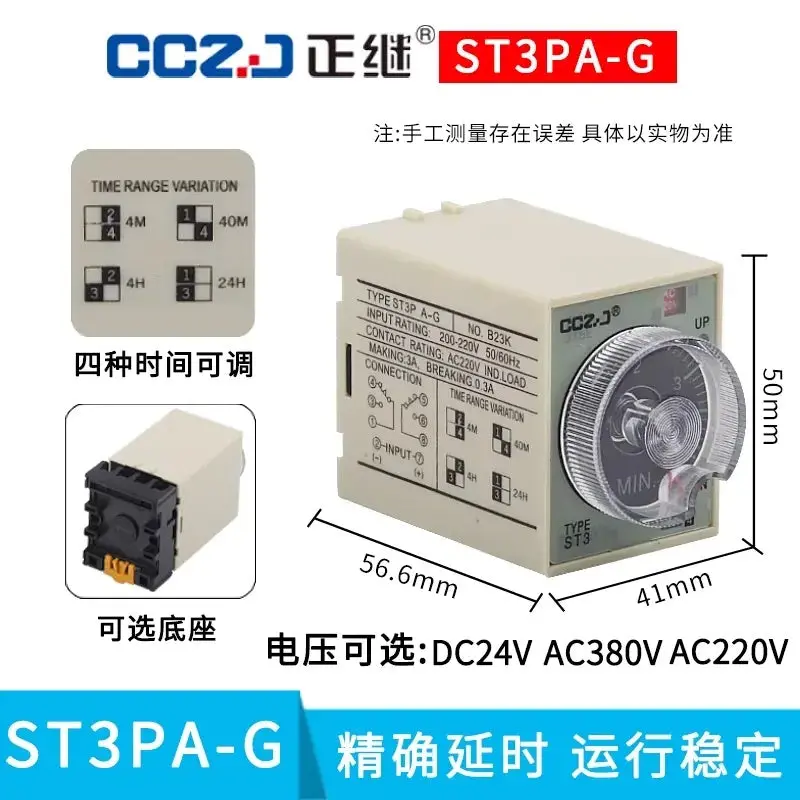

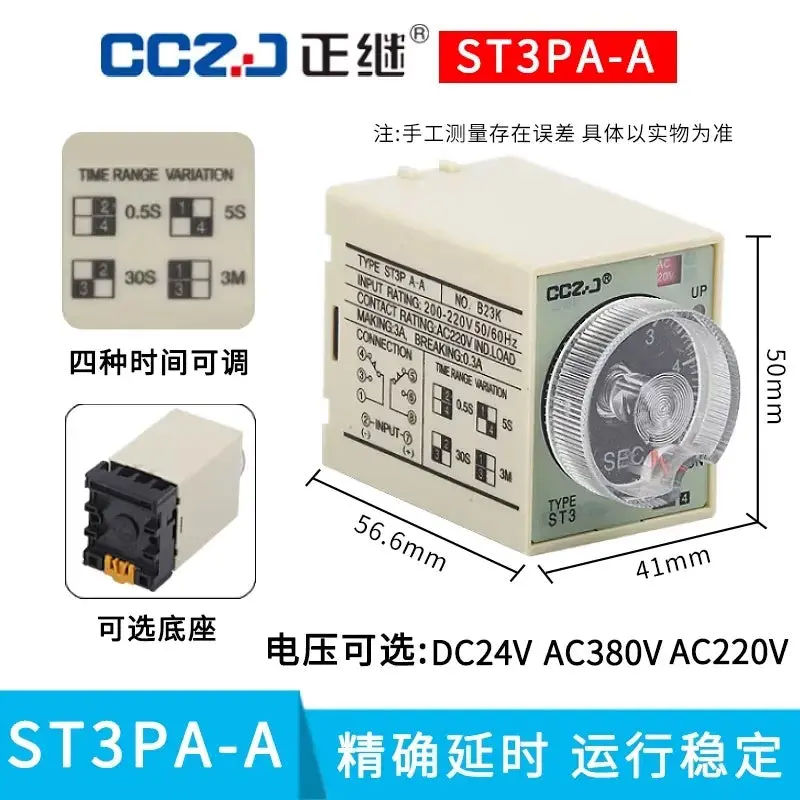

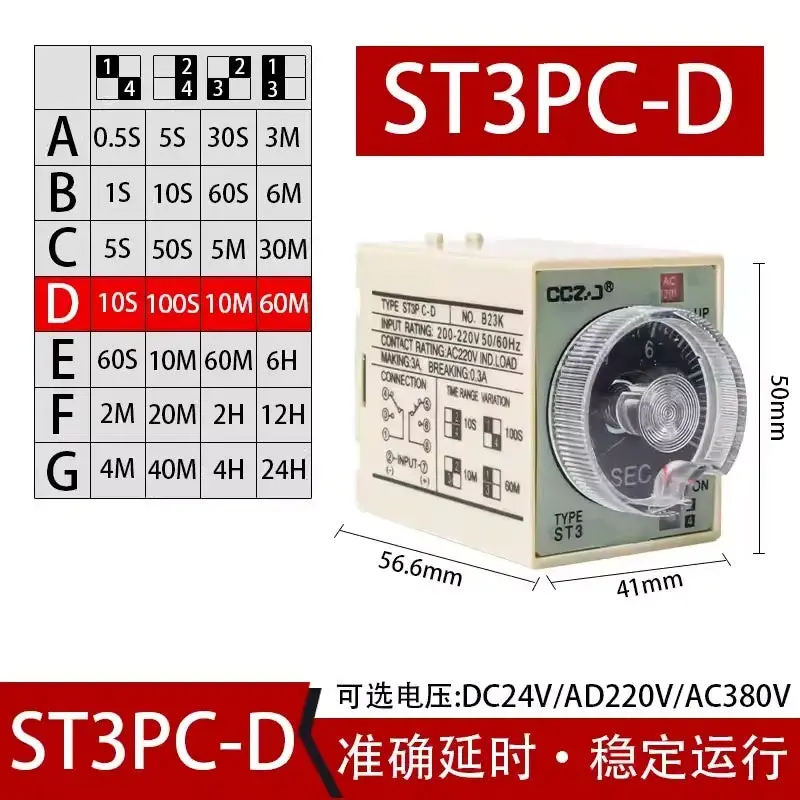

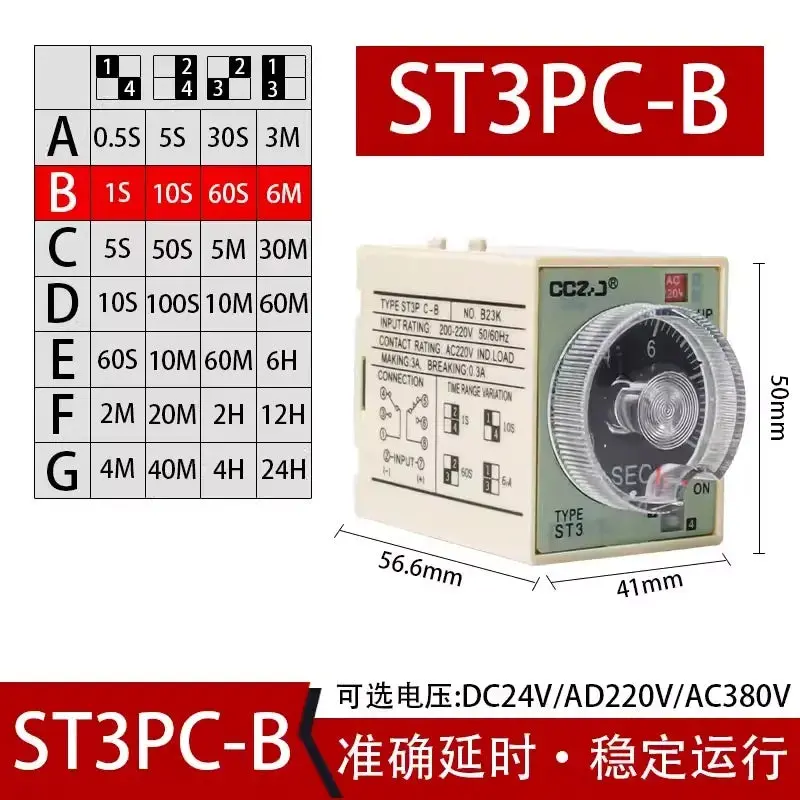

• Delay Range: Multiple gears optional (Code A-G), ranging from 0.05s to 24h, covering most industrial timing scenarios (e.g., Code A: 0.05-0.5s/5s/30s/3min; Code G: 0.5-4min/40min/4h/24h).
• Supply Voltage: AC 24V/36V/48V/110V/220V/380V; DC 12V/24V, with voltage fluctuation tolerance of 85%-110% of rated voltage.
• Repeat Error: ≤0.5% + 20ms, ensuring high timing accuracy for long-term stable operation.
• Contact Capacity: 3A @ 250V AC, 5A @ 28V DC, suitable for most low-voltage control circuits.

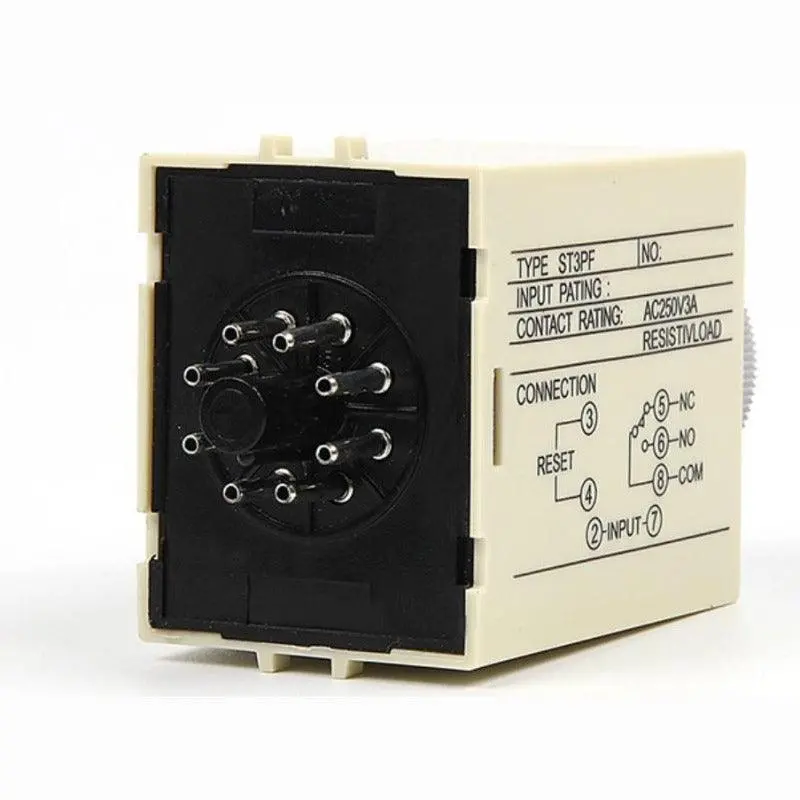

• Installation Type: Plug-in type, compatible with PF083A, PF085A, US-08 sockets; panel installation is available with optional accessories (FTR F01/F02).

Application Scenarios: Suitable for automatic control occasions that require two independent delay actions, such as sequential start/stop of motors, delay activation of multiple loads, and interlocking control of production lines, widely used in machinery, electronics, electrical equipment and other industries.

2. ST3PC Time Relay

Core Feature: Equipped with one group of instantaneous conversion contacts (SPDT instantaneous) and one group of on-delay conversion contacts (SPDT timed), integrating instantaneous and delay control functions in one device, which can meet the mixed timing needs of different actions in the same control circuit.Technical Parameters:

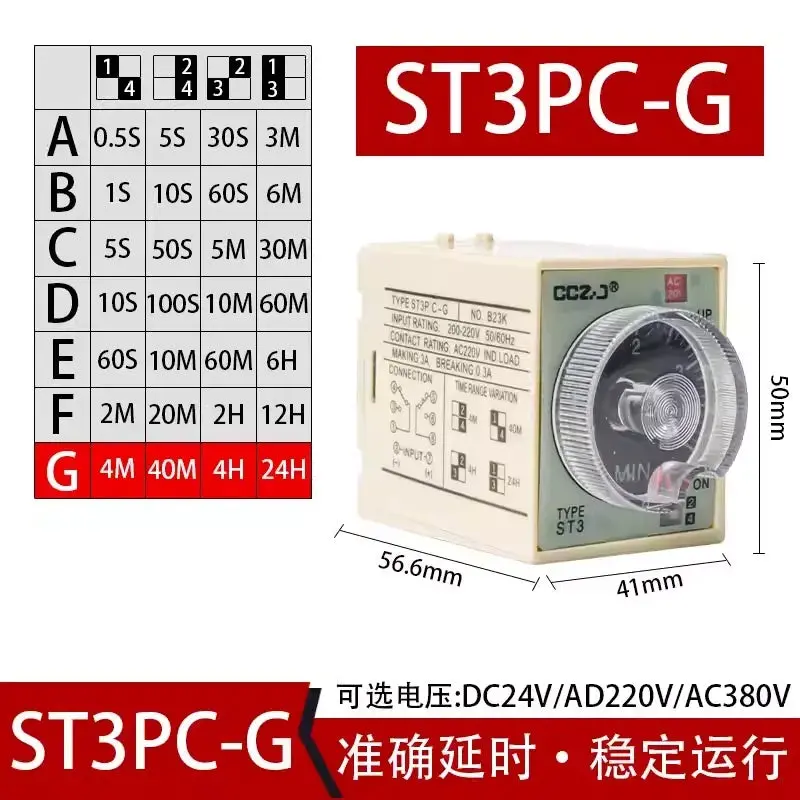

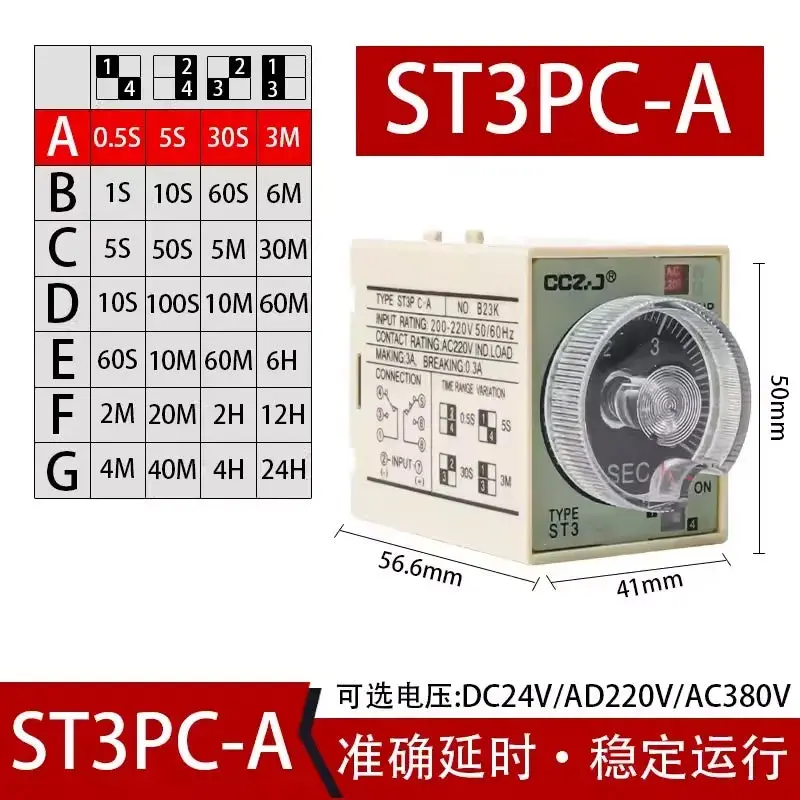

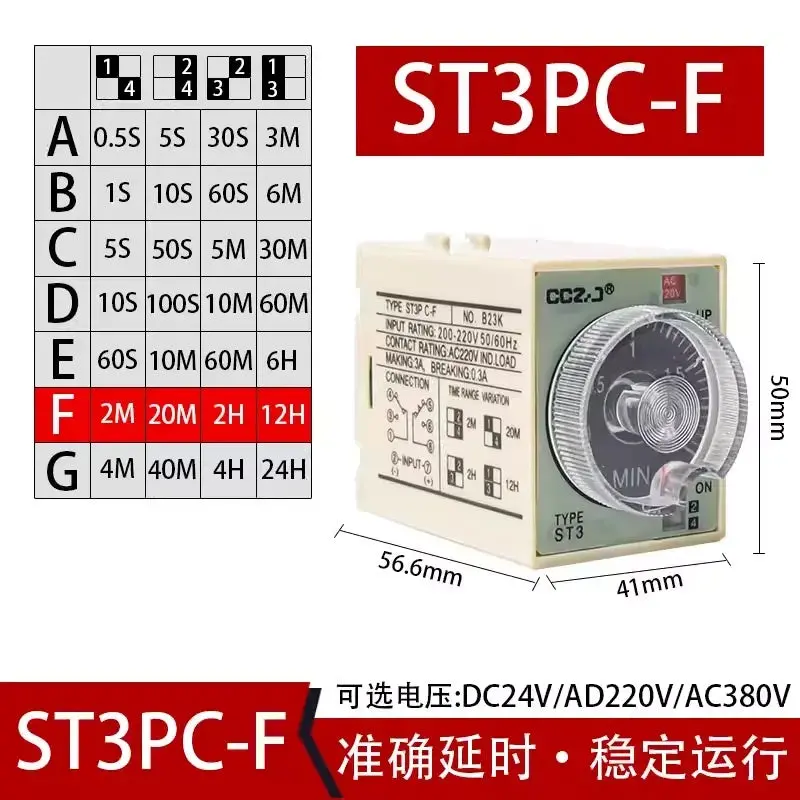

• Delay Range: Same as ST3PA, multiple gears optional (Code A-G), adjustable from 0.05s to 24h, with clear scale and easy operation via knob adjustment.
• Supply Voltage: Consistent with ST3PA, AC 24V/36V/48V/110V/220V/380V; DC 12V/24V, adapting to different power supply environments.
• Repeat Error: ±0.3% ±0.05s, setting error ≤0.5% ±0.05s, ensuring precise control of both instantaneous and delay actions.
• Contact Configuration: 1 SPDT instantaneous contact (no delay, action synchronously with power-on) + 1 SPDT delay contact (action after set delay time).
• Mechanical & Electrical Life: Mechanical life up to 1×10⁶ times, electrical life 1×10⁵ times, ensuring long-term stable operation in harsh industrial environments.

Application Scenarios: Ideal for control circuits that require both immediate action and delayed action, such as emergency stop instantaneous signal transmission + equipment delay shutdown, alarm instantaneous trigger + delay reset, and automatic control systems of textile, printing, packaging machinery.

Common Features of ST3PA & ST3PC

• Adopt large-scale integrated circuits, ensuring high precision and stable performance, with strong anti-interference ability against static electricity, radiation and transient pulses.

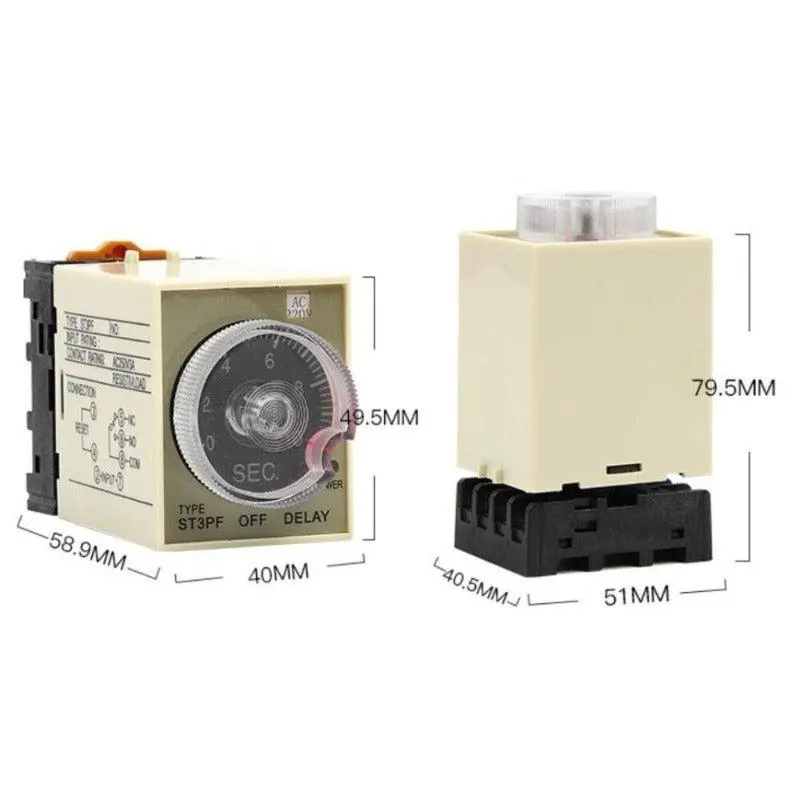

• External Dimensions: 50×40×57.5mm, panel cutout size 50.5×40.5mm, compact design, saving installation space.
• Operation Indication: Equipped with LED indicator, clearly showing power-on and timing status for easy operation and maintenance.
• Safety Protection: Comply with relevant safety standards, with reliable insulation performance, avoiding electric shock and equipment damage; do not disassemble the case to prevent malfunction.

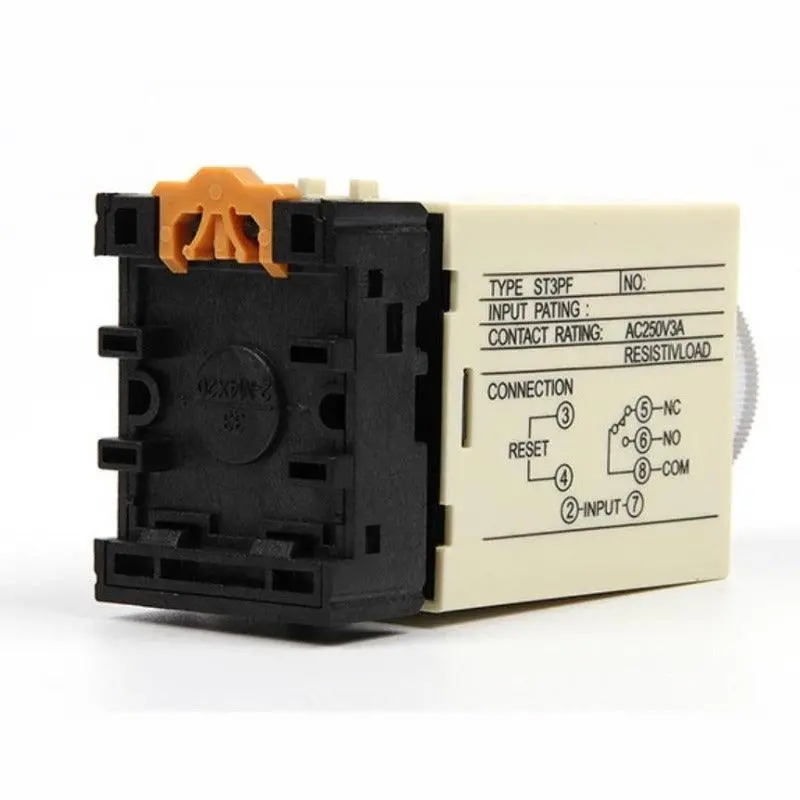

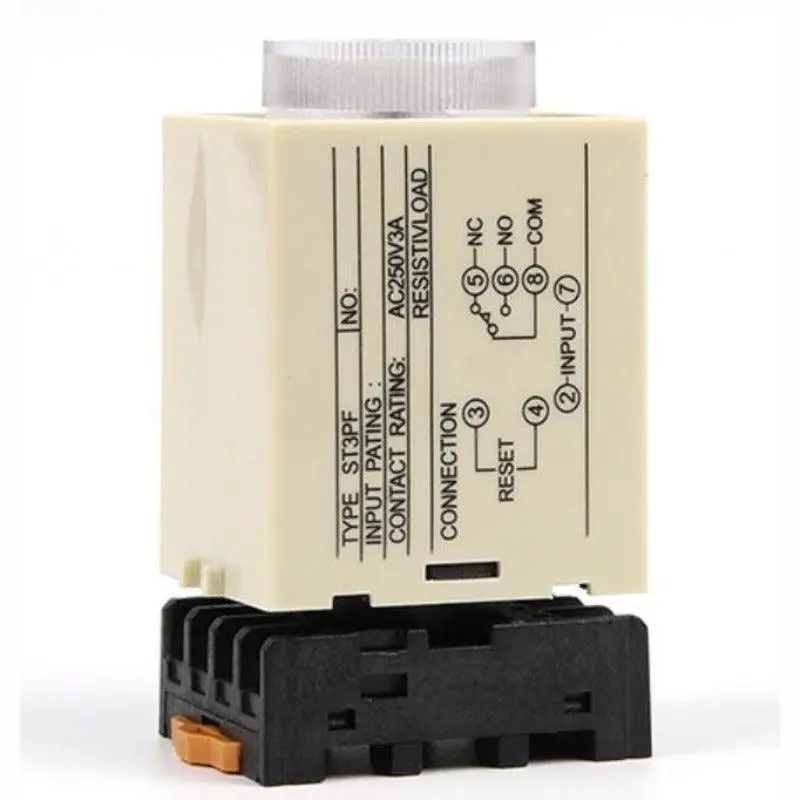

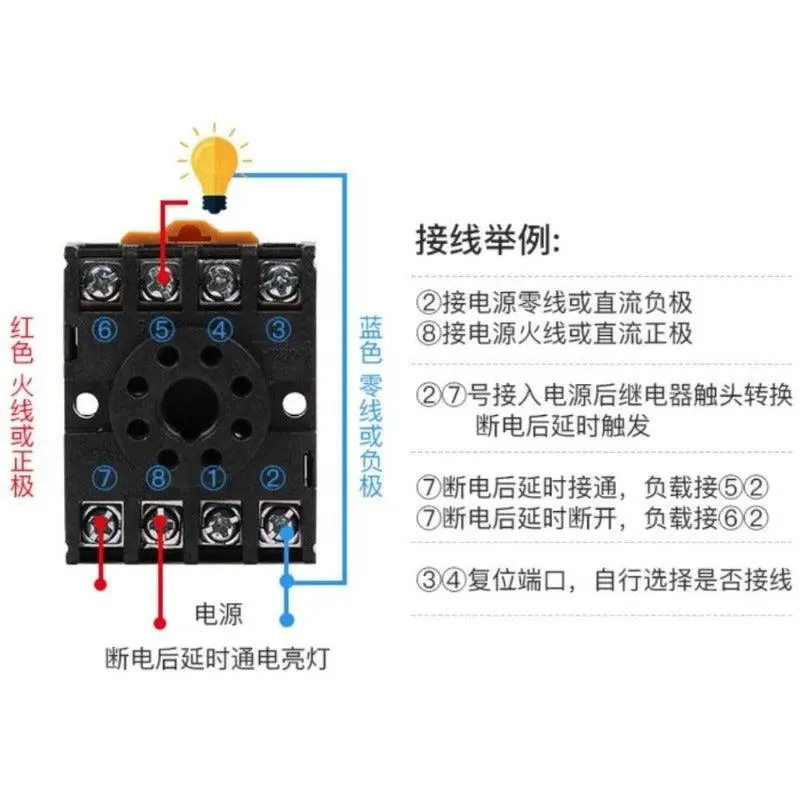

Base Connection Diagram

• ST3PA time relay dual group delay 0.05s-24h
• ST3PC time relay 1 instantaneous 1 delay contact
• high precision ST3P series time relay
• AC 220V DC 24V ST3PA time relay
• industrial plug-in time relay ST3PC
• ST3P time relay for motor sequential control
• ST3PA/ST3PC time relay compatible with PF083A socket
