Description

SPECIFICATIONS

of dust and water: IP51

Operating humidity: ≤75%

Storage humidity: ≤95%

Storage temperature: -30°C-+70°C

Type 1: Without RS485

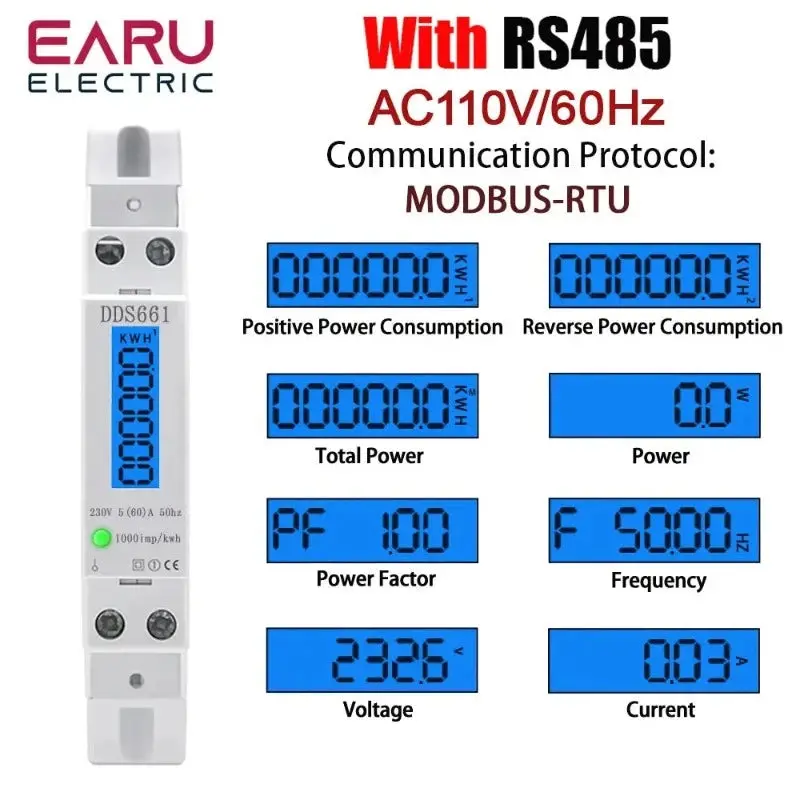

Type 2: With RS485( Modbus-RTU )

Measurement Method: Forward and Reverse Measurement

Rated Voltage: AC 110V 60Hz

Brand Name: EARUELETRIC

Power Supply: AC

Model Number: DDS661

Display Type: Analog and Digital

Accuracy Class: 1.0

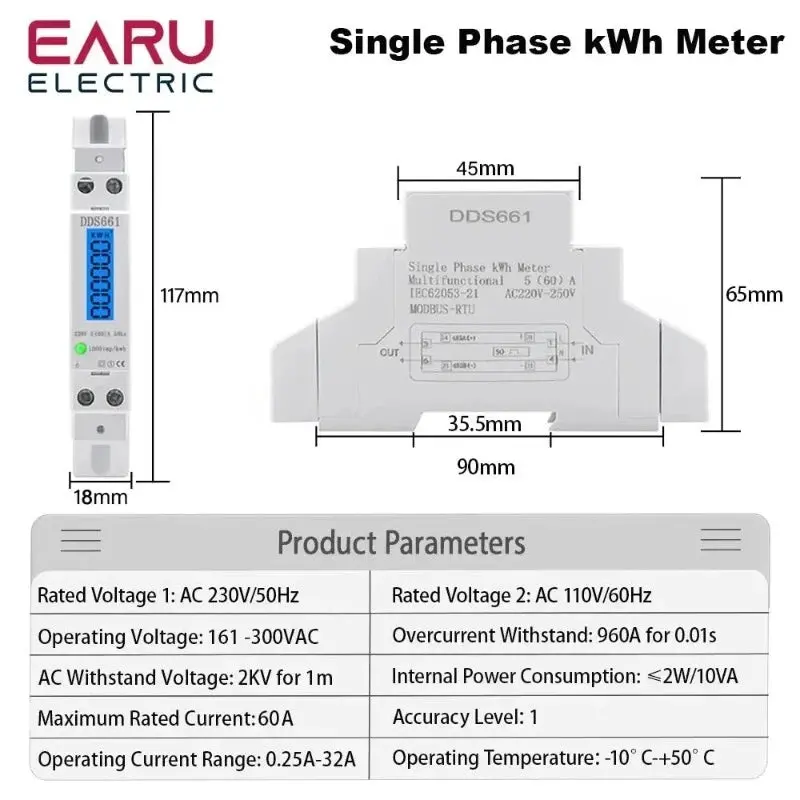

Dimensions: 117mm*18mm*65mm

Rated Voltage: 230V

Operating Temperature: -10℃- +50℃

Phase: single phase

Max Operating Current: 20A – 49A

Output Voltage: 230V 50Hz

Origin: Mainland China

DIY Supplies: ELECTRICAL

Choice: yes

semi_Choice: yes

Single Phase Backlight Wattmeter Power LCD Digital Display Consumption Meter KWh 5(60)A 230VAC 50Hz Watt Din Rail Energy Meter

Features:

Materiel: ABSAccuracy Level: 1.0Rated Voltage: AC230V/50Hz   AC110V/60HzConstant Pulse: 1000imp / kWhDisplay: LCDOperating Temperature: -10 ~ 50°C
