Description
SPECIFICATIONS

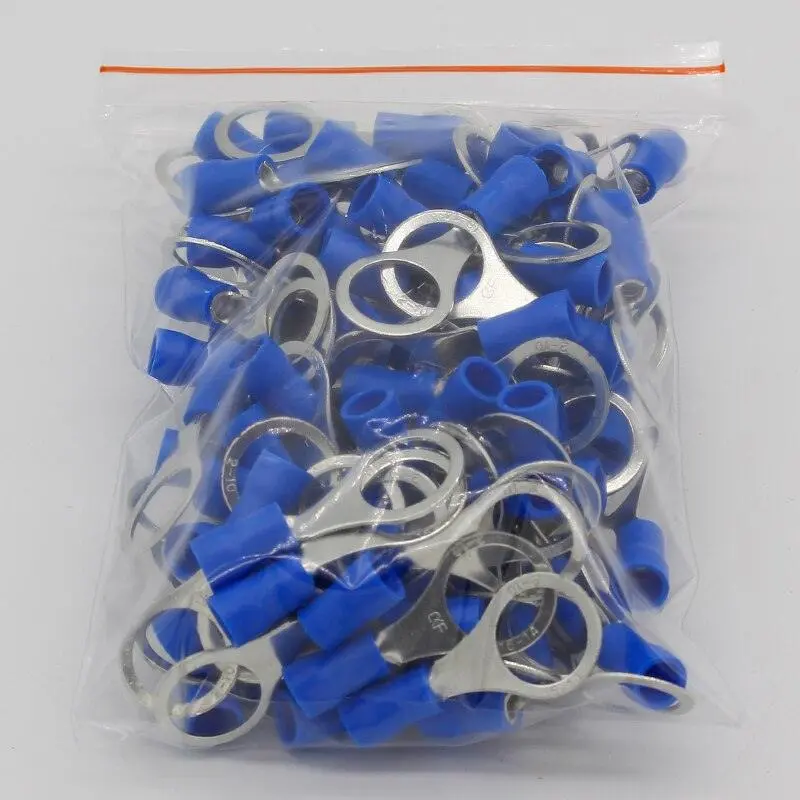

RV2-10 Blue Ring insulated terminal Cable Wire Connector suit 1.5-2.5mm cable Crimp Terminal 100PCS/Pack RV2.5-10 RV
Model Number: RV2-10
Certification: CE
Brand Name: ELECAPITAL
| Conductor cross section:1.5-2.5 mm⊃2;(American Wire Gauge 16-14)Maximum current:Imax=27A | ||||||||
| ITEMNO | Size | Color | ||||||
| US-madeboltnumber | Bolthole diameter | B | L | F | H | DΦ | ||
| d2 | mm | mm | mm | mm | mm | |||
| RV2 – 3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue |
| RVS2 – 3.5 | #6 | 3.7mm | 6.6 | 17.8 | 4.3 | |||
| RVM2 – 3.5 | #6 | 3.7mm | 6.6 | 21.0 | 7.0 | |||
| RVL2 – 3.5 | #6 | 3.7mm | 8.5 | 22.5 | 7.75 | |||
| RVS2 – 4 | #8 | 4.3mm | 6.6 | 21.0 | 7.0 | |||
| RVL2 – 4 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RVS2 – 5 | #10 | 5.3mm | 8.5 | 22.5 | 7.75 | |||
| RVL2 – 5 | #10 | 5.3mm | 9.5 | 22.5 | 7.25 | |||
| RV2 – 6 | 1/4 | 6.5mm | 12.0 | 27.6 | 11.0 | |||
| RV2 – 8 | 5/16 | 8.4mm | 12.0 | 27.6 | 11.0 | |||
| RV2 – 10 | 3/8 | 10.5mm | 13.6 | 30.2 | 13.9 | |||
|
|
