SPECIFICATIONS

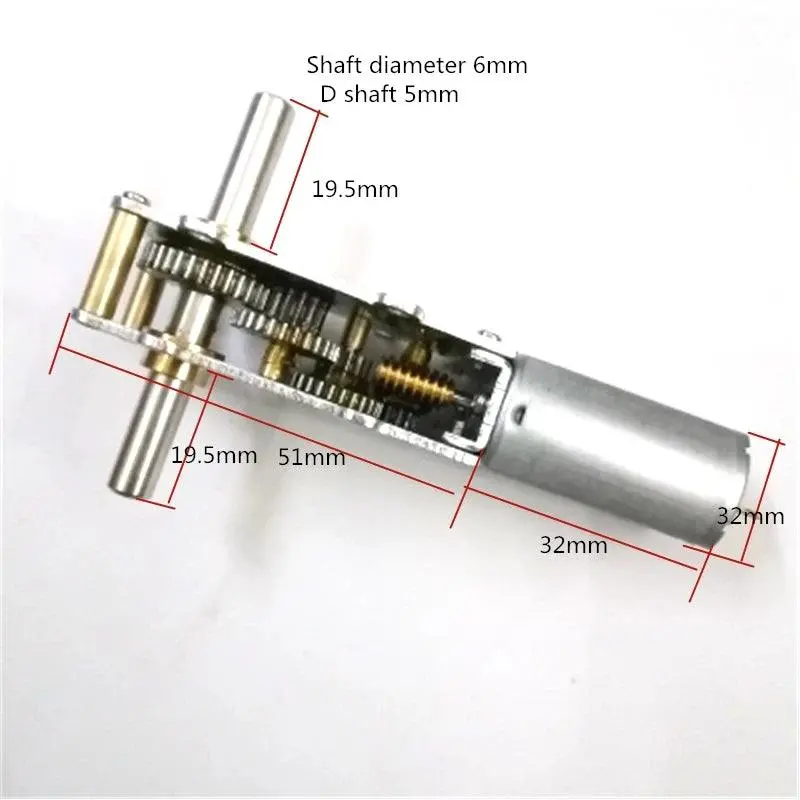

Double Shaft Length 19mm DC Gear Motor Electric 3V 6V 12V 24V Low Speed 3.5rpm To 120rpm Self-locking Motor Metal 12 Volt Engine

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brush

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

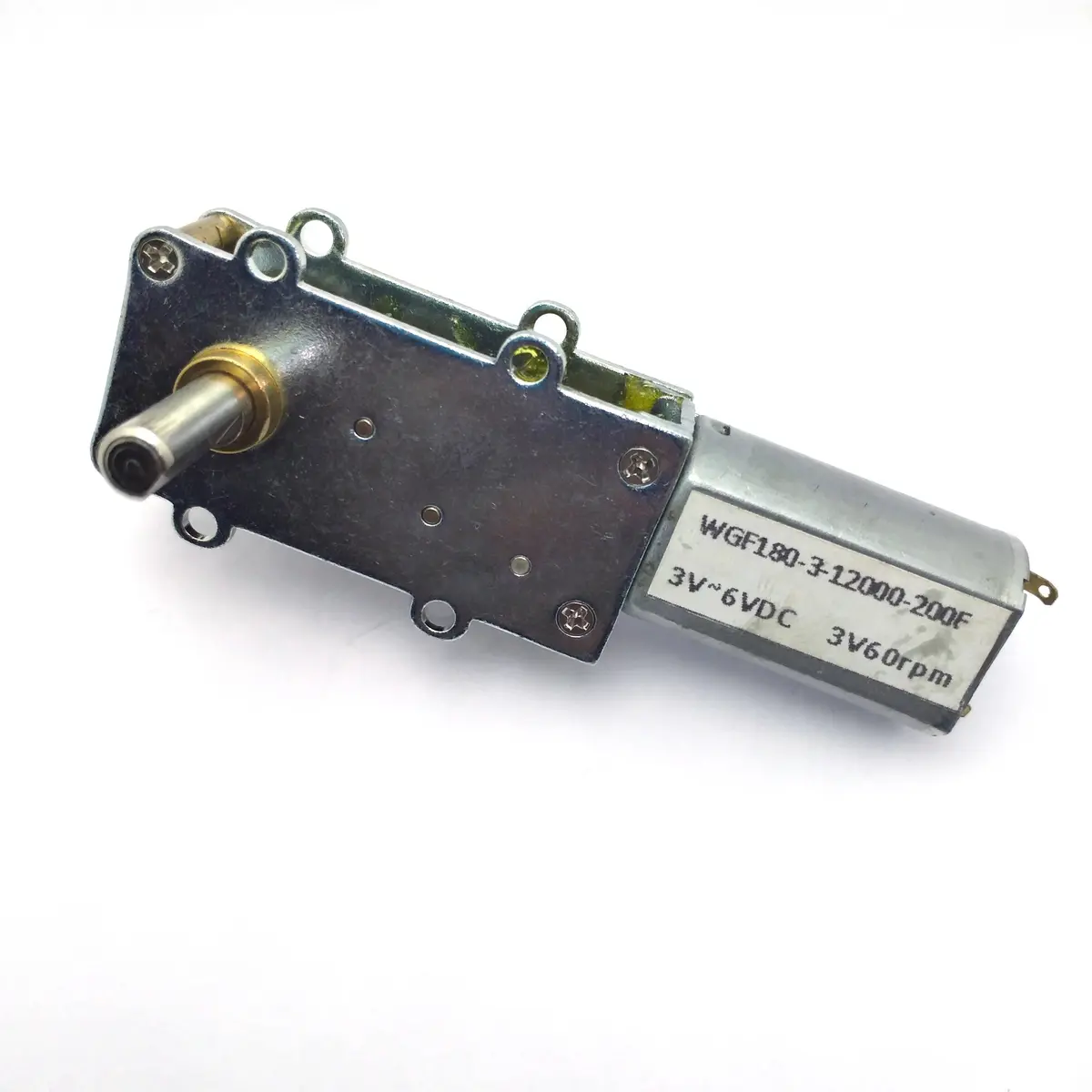

Model Number: WGF180-55

WGF180 turbine worm gear motor (metal gear)

Use voltage: DC 3V-24VWeight: 100gReduction ratio is 1: 200    1: 404    1: 734      1: 1014No-load speed: (rpm / min)DC 1.5V  7rpm 8rpm 13rpm 28rpmDC 3V   4rpm  5rpm  6rpm 7rpm 8rpm 11rpm 14rpm 15rpm 29rpm 30rpm  60rpmDC 4.5V   17rpm 24rpm 43rpm 90rpmDC 6V    2.5rpm 3.5rpm  6rpm 7rpm  8rpm  9rpm 12rpm 13rpm 14rpm 16rpm  2rpm  24rpm  29rpm  30rpm 32rpm 45rpm 58rpm 60rpm 120rpmDC 12V   5rpm 7.5rpm 12rpm 13rpm 16rpm 24rpm  27rpm 29rpm 32rpm 44rpm 59rpm 60rpm  90rpm 120rpmDC 24V   10rpm 15rpm  24rpm  27rpm 32rpm  55rpm  59rpm 120rpmNote: Pls contact me if you needvoltage and speedFor example: Message DC12V 5rpm, then we will ship a motor dc12v5rpmGWF180 turbo worm gear motor. Small size and high torque through large reduction ratio.The Motors are widely used in: display racks, vending machines, electric curtains, crafts, robots, electric toys and so on:

Pls leave message ofVoltageandNo load Speedwhich you want, we have to shipping cargo according to our store if without message. Thanks for your understand!

Pls contact me if you have any question
