Description

SPECIFICATIONS

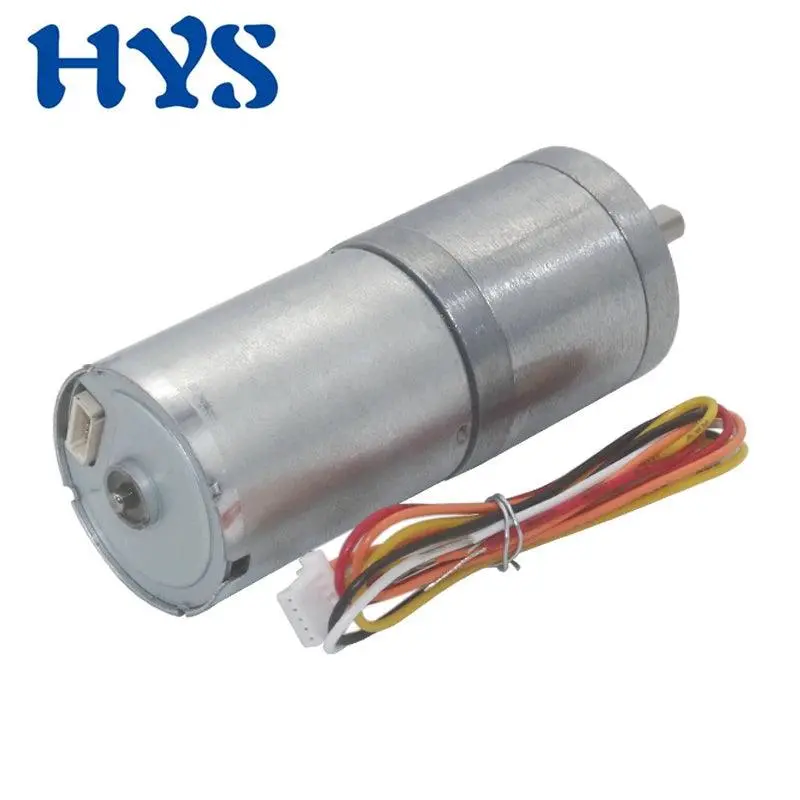

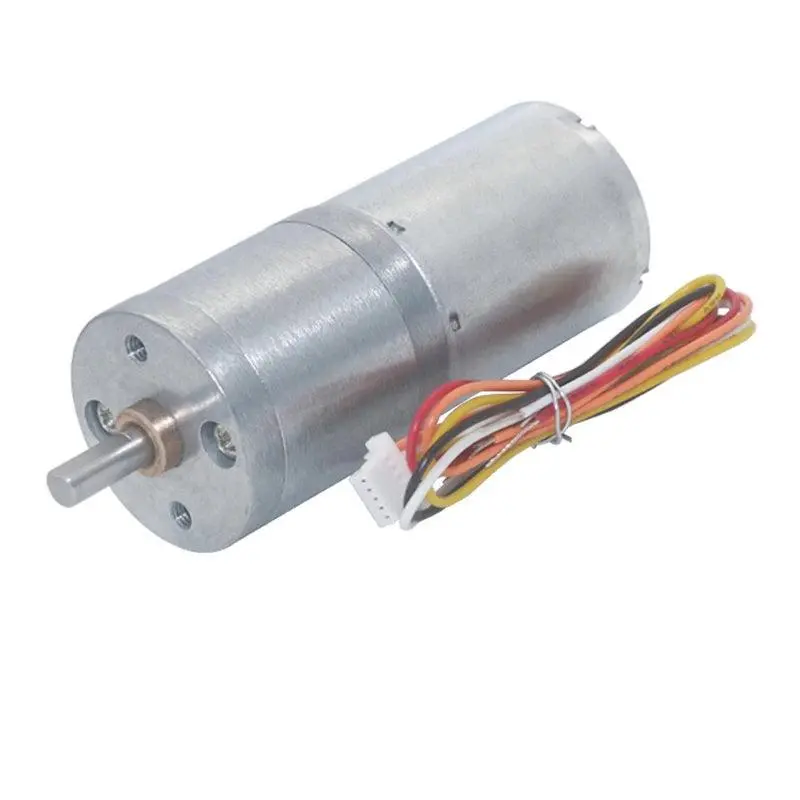

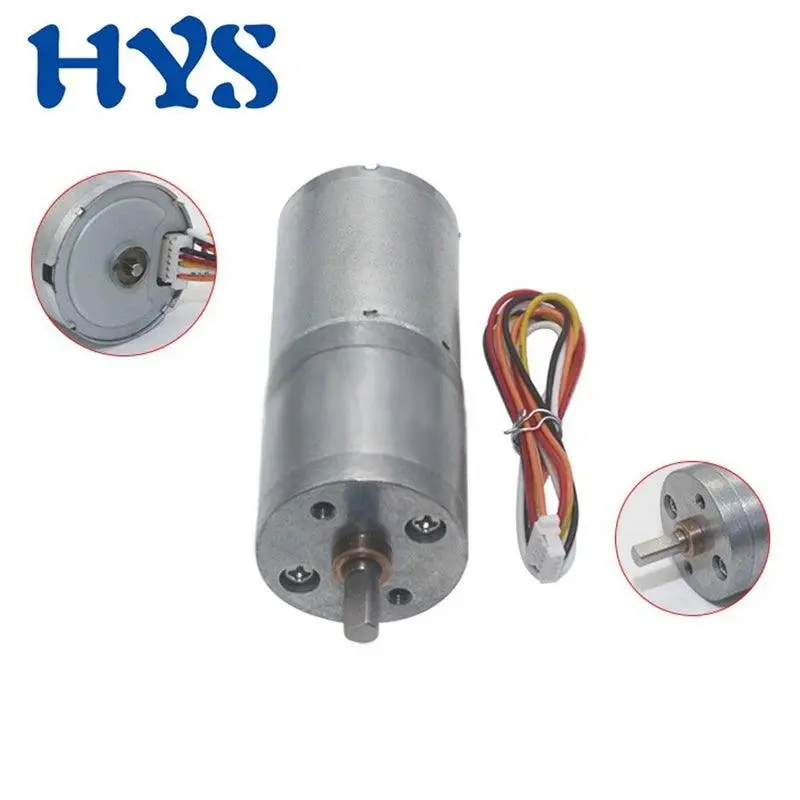

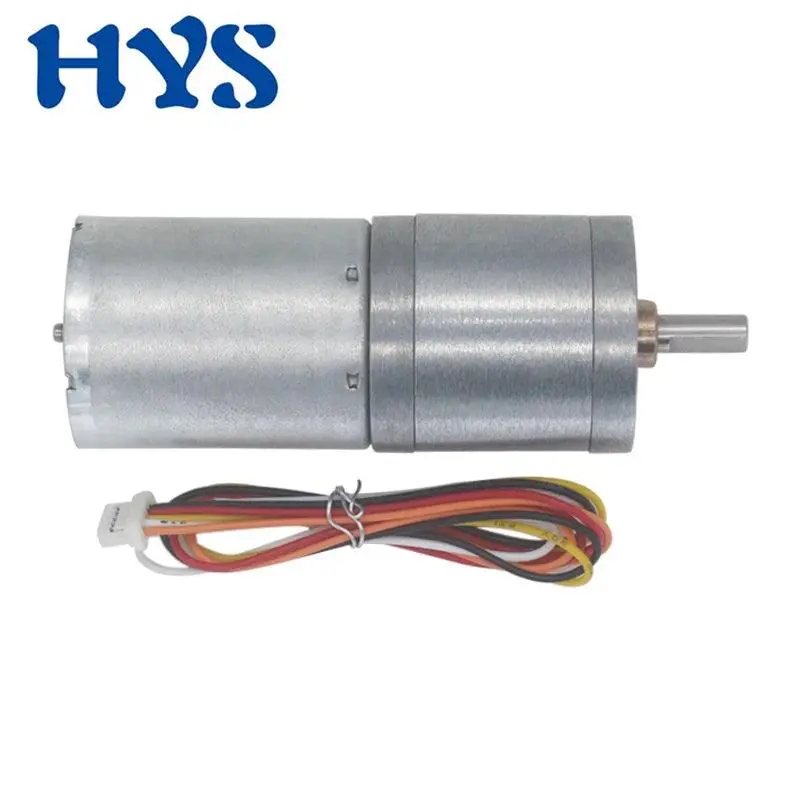

Long Life 12V 24V Mini Brushless Electric DC Geared Motor With Brake Reversed FG Signal 14 To 1550RPM BLDC Motor 24V In DC Motor

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Commutation: Brushless

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

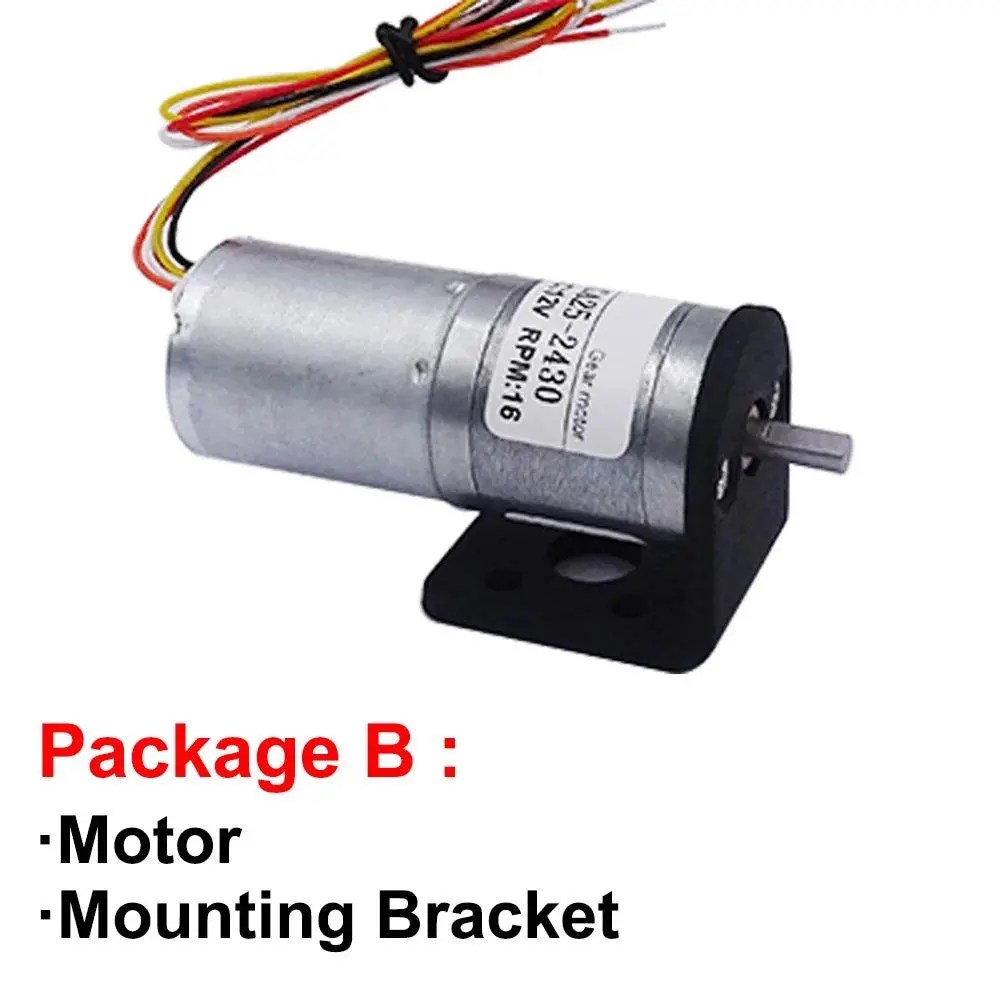

Model Number: JGA25-2430 Speed Motor

Wiring Method:
Black line:  power supply  negative –  ( Not connected wrong)
Red line:   power supply  positive +  ( Not connected wrong)
Orange Line:  CW / CCW commutation line, the orange line to the black line change turned.
Yellow Line:  FG output signal line, Hall signal
White line: Duty ratio, pulse width speed 15~25 kHz
