Description

SPECIFICATIONS

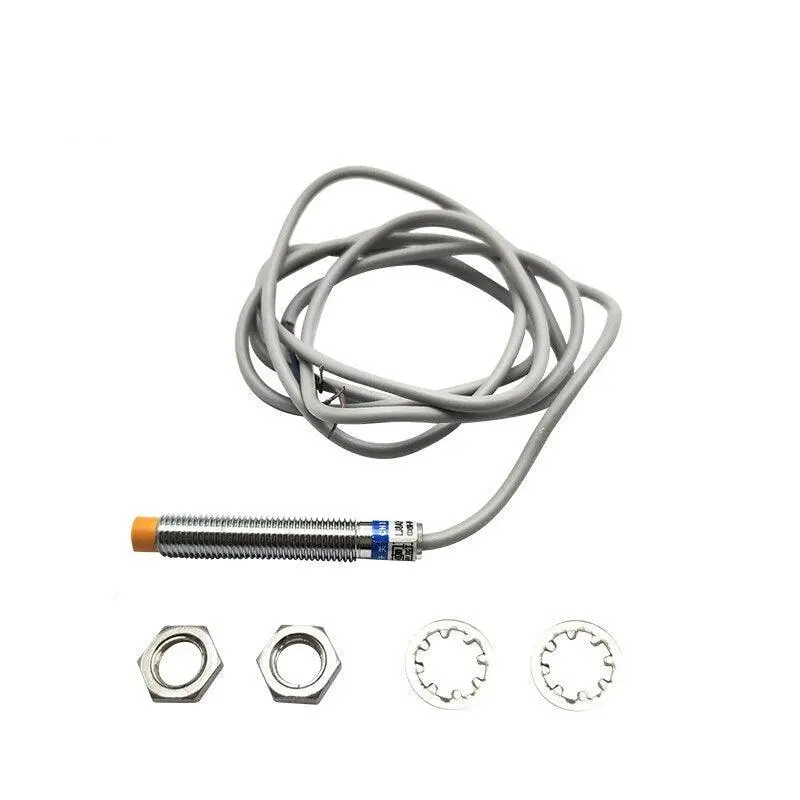

M8 1mm & 2mm Induction Metal Sensor Inductive Screen Shield Type sensor Proximity Switch LJ8A3 NPN PNP AC DC NO NC BX BY AX AY

Switch Type: Proximity Switch

Supply voltage: 6V-36V

Sensing object: Magnetic metals

Model Number: LJ8A3-1/ LJ8A3-12

Material: copper

Is Smart Device: NO

Features: Inductive proximity sensor

Detection distance: 1mm & 2mm

Certification: CCC,ce

Model number:  LJ8A3-1 / LJ8A3-2

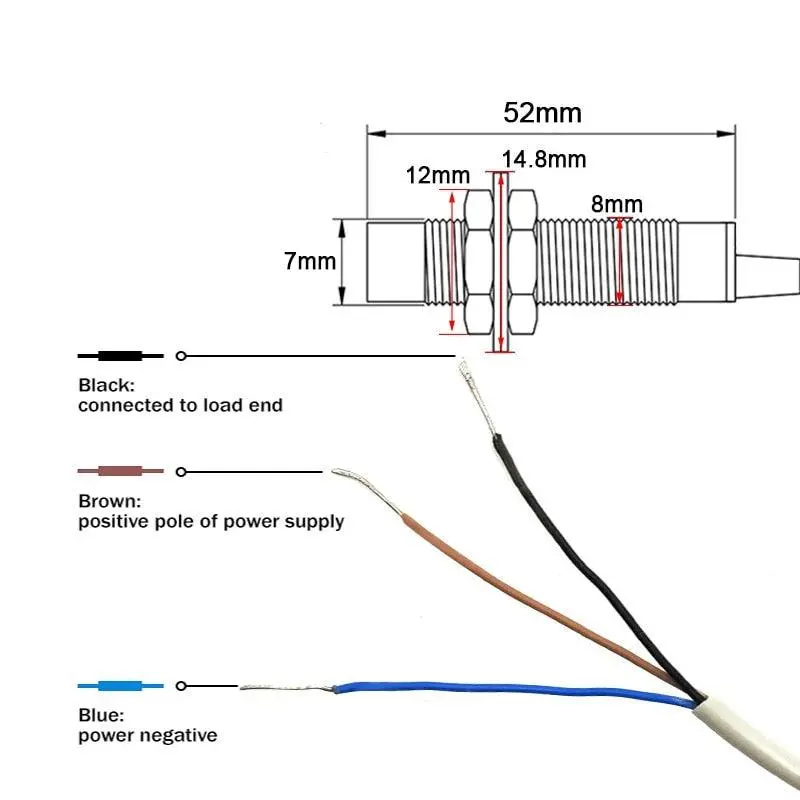

External dimensions:  M8
Installation type:  Non-Screen Shield
Detection distance:  1/2mm
Supply voltage:  DC 6-36V / AC 90-250V
Output current:  DC type: 200mA max; AC Type: 400mA
Standard detected object:  Mild steel (12x12x1mm)
Sensing object:  Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency:  500Hz
Output indication:  Red LED
Short-circuit protection:  NO
Reverse connection protection:  Yes
Insulation resistance:  50MΩ min (between charging part and housing)
Dielectric strength:  1000Vac, 1min (between charging part and housing)
IP Rating:  IP65
Operating temperature:  25 to 70 °C (13 to 158 °F)
Cable length:  1.2m, PVC cable
Material:  Brass-nickel plated; Sensing surface; ABS
