Description

SPECIFICATIONS

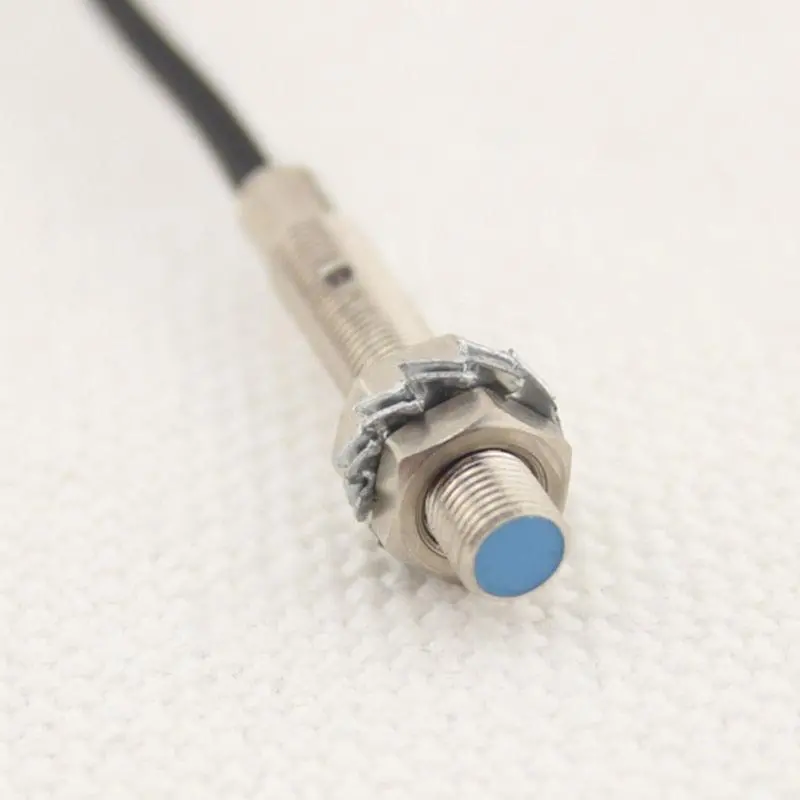

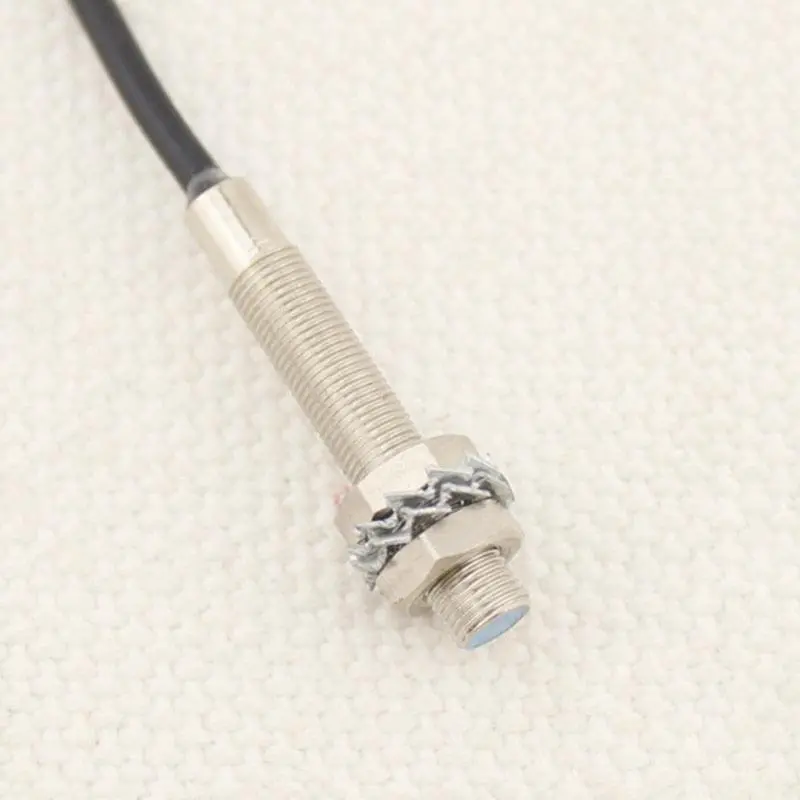

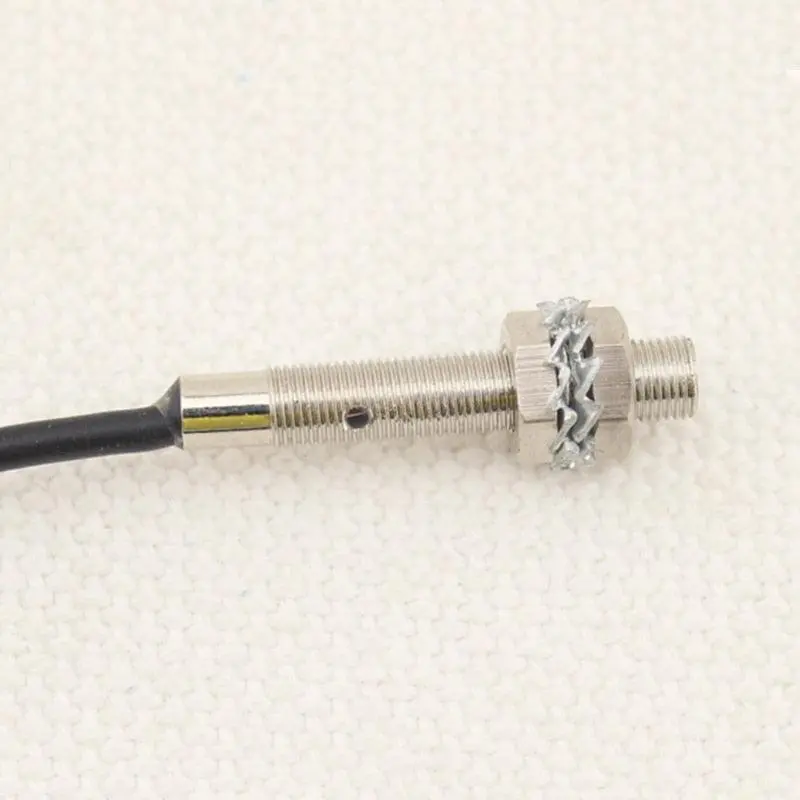

M5 1mm Cylinder Inductive Proximity Sensor Switch

LJ5A3-1-Z/BX/AX/BY/AY/EX

3/2-wire

PNP/NPN

NO NC DC6~36V

Wire:: 3/2-Wire type

Warranty: 1Y

Voltage:: DC6~36V

The diameter: 5mm

Switch Type:: PNP/NPN NO/NC

Switch Type: Proximity Switch

Product Name:: Proximity Sensor switch

Origin: CN(Origin)

Model Number: LJ5A3-1-Z/BX/AX/BY/AY/EX

Material: Copper

Item Type: Switches

Features: Proximity Sensor switch

Detecting distance:: 1mm

Current: 200mA

LJ5A3-1-Z/BX:  NPN Normally Open 3-Line type 5mm diameter ; 1mm detection distance

LJ5A3-1-Z/AX: NPN Normally Close 3-Line type 5mm diameter ; 1mm detection distance

LJ5A3-1-Z/BY: PNP Normally Open 3-Line  type 5mm diameter ; 1mm detection distance

LJ5A3-1-Z/AY: PNP Normally Close 3-Line type  5mm diameter ; 1mm detection distance

LJ5A3-1-Z/EX:  Two-wire Normally Open 5mm diameter ; 1mm detection distance

DATA SHEET DOWNLOAD
