Description

SPECIFICATIONS

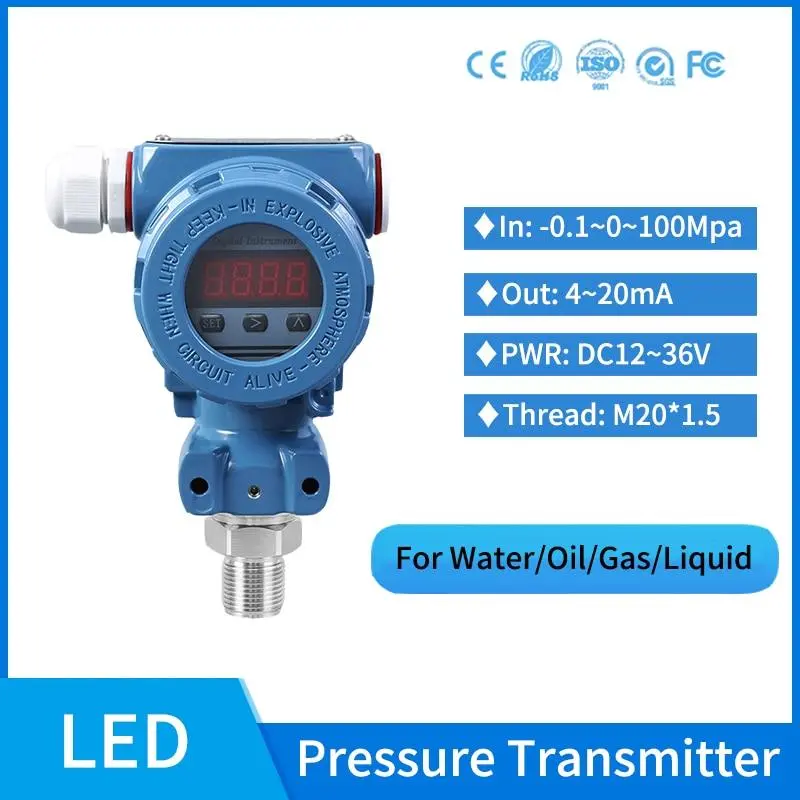

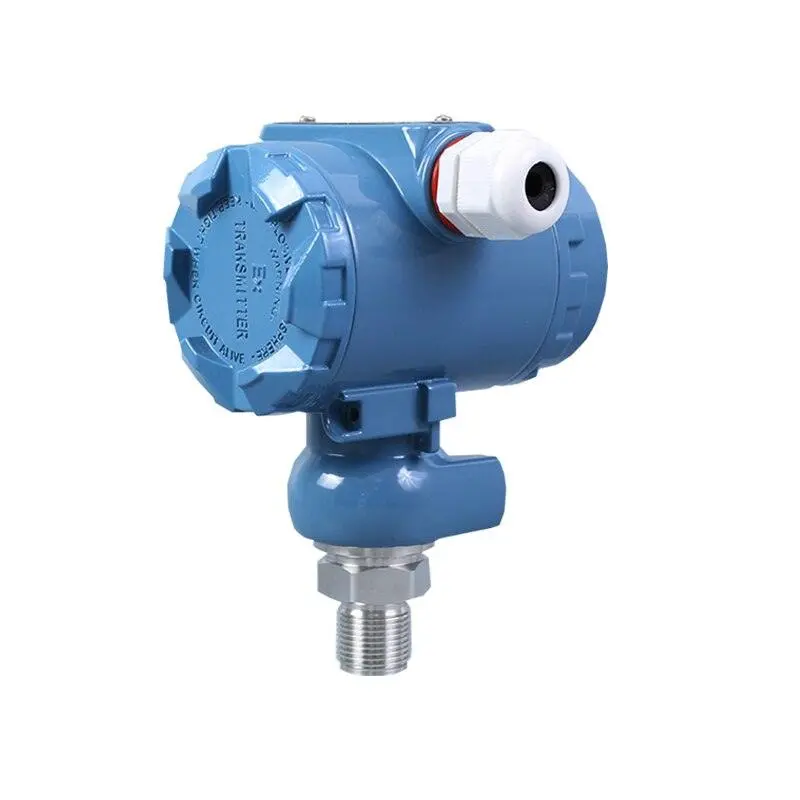

4-20ma LED Pressure Sensor Silicon Vacuum Absolute Water Pipe Pressure Transducer 16bar Fuel Pressure Transmitter price

Sensor: Diffusion silicon chip

Product name: Pressure transmitter

Power supply: DC24V

Output signal: 4~20mA

Origin: Mainland China

Model Number: ELPT400

Measure range: -0.1~0~100MPa

Max Measuring Range: 400 Bar & Above

Material: Stainless Steel

Connection thread: M20*1.5

Certification: CE,FCC,RoHS

Brand Name: KEJUN

Accuracy: 0.2%FS

low cost diffused silicon 4-20ma lcd display pressure transmitter 0 10bar water fuel pressure sensor

This link is special for:1. Measuring range: the one you choose2. Output signal: 4~20mA3. Power supply: DC24V4. Connection thread: M20*1.5

Notes:

What we can make:

1. Available measuring range: any range within -0.1Mpa~0~100Mpa (-1bar~0~1000bar).

2. Available output signal: 4~20mA, 0-10V, 0-5V, 0.5~4.5V, RS485.

3. Available power supply: 12~30Vdc, 24Vdc, 12Vdc

4. Available thread: M20*1.5, G1/2, G1/4, NPT1/2, NPT1/4, etc

So: if you need other parameters, please contact me.

And tell me the measuring range, output signal, power supply, thread size.

We can make special customization for you.

PRODUCT DATA SHEET DOWNLOAD

1>>. 2088 pressure transmitter used sensitive & high performance diffusion silicon piezoresistive chip.

2>>. The internal circuit board converts the pressure signal into standard analog signal,users can directly connect the transmitter with computer interface card,control instrument,intelligent instrument or PLC.

3>>. This pressure transmitter has many good features,small volume,light weight,easy to install,all stainless steel sealing structure,high anti-vibration and anti-impact performance.

4>>. This pressure transmitter is widely used in process control, aviation, aerospace, automobile, medical equipment and many other fields.

Technical Specifications
