Description

SPECIFICATIONS

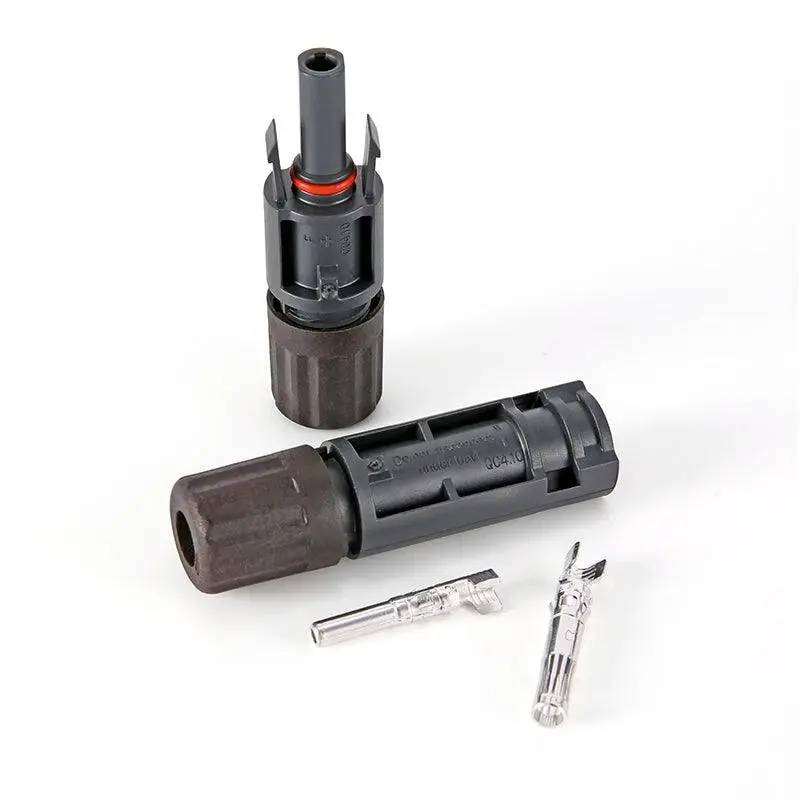

Free shipping  IP68 1500V Solar QC4 Conenctor PPO Housing Material solar connector PV Connector for 2.5/4/6mm2 Solar Cable

Origin: Mainland China

Model Number: QC4

Certification: CE

Certification: RoHS

Certification: UL

Rated current: 30A

Rated voltage: 1500V DC

Connector contact resistance: ≤0.5mΩ

Degree of waterproof: IP68

Flammability rating: UL94-V0

【High quality Material】WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!

【Widely Compatible With Solar Cable】Compatible with PV cables with different insulation diameters (2.5m㎡–6m㎡).

【Easy installing】Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

【IP68 Professional Waterproof】Good waterproof performance for outdoors usage.

Specifications

* Rated current: 30A (2.5m㎡–6m㎡)

* Rated voltage: 1500V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP68

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 2.5m㎡–6m㎡( include AWG13,AWG12, AWG11,AWG10 )

* Adapter Wire: OD 5mm-7mm

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃～ +85℃

* Connection: Clamp
