Description

SPECIFICATIONS

IP68 Waterproof Connector Electrical Cable Quick Connector Installation 2/3/4/5 Pin Cable Wire LED Light Outdoor Wire Connector

waterproof rating:: IP68

material:: Overall flame retardant material

Origin: CN(Origin)

Certification: CE

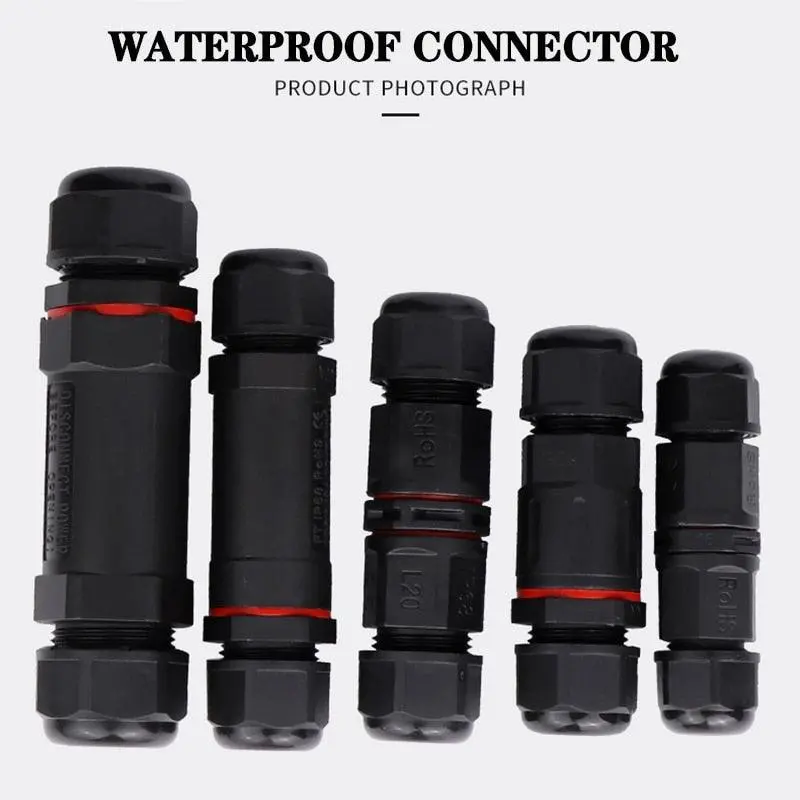

IP68 Waterproof Connector Electrical Cable Quick Connector Installation 2/3/4/5 Pin Cable Wire LED Light Outdoor Wire Connector

product name :IP68 waterproof connector series
Working temperature -40℃~85℃
Applicable cable Φ3~7MM 6~12MM 10~16MM
Applicable material PA66 nylon flame retardantTerminal material: brass nickel plated
Connection method: screw crimpingRated voltage current: 450V-500V 20A-30ANumber of cores: 2 cores / 3 cores / 4 cores/ 5 coresWiring:

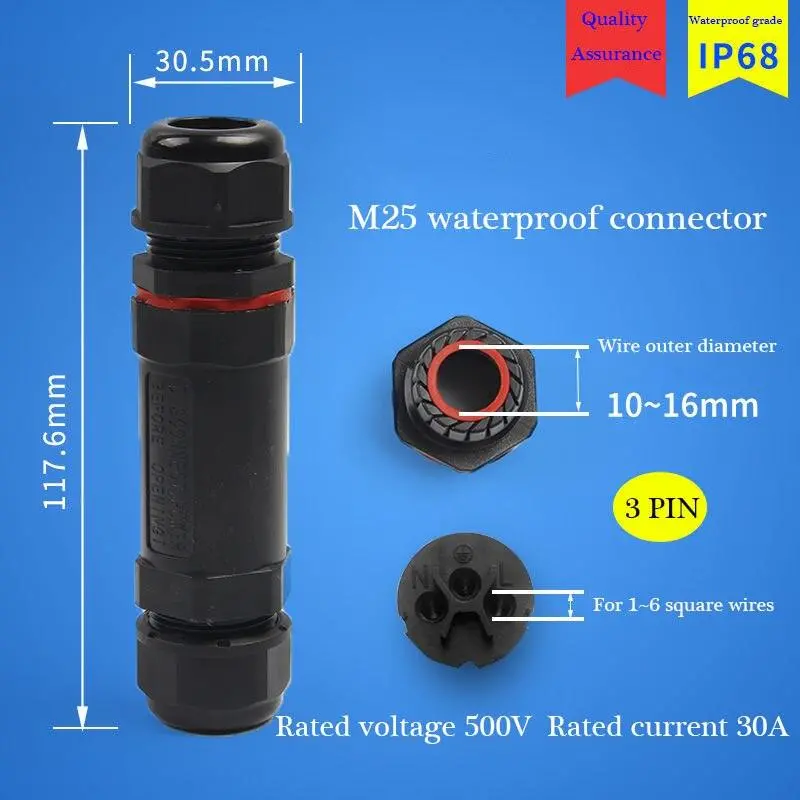

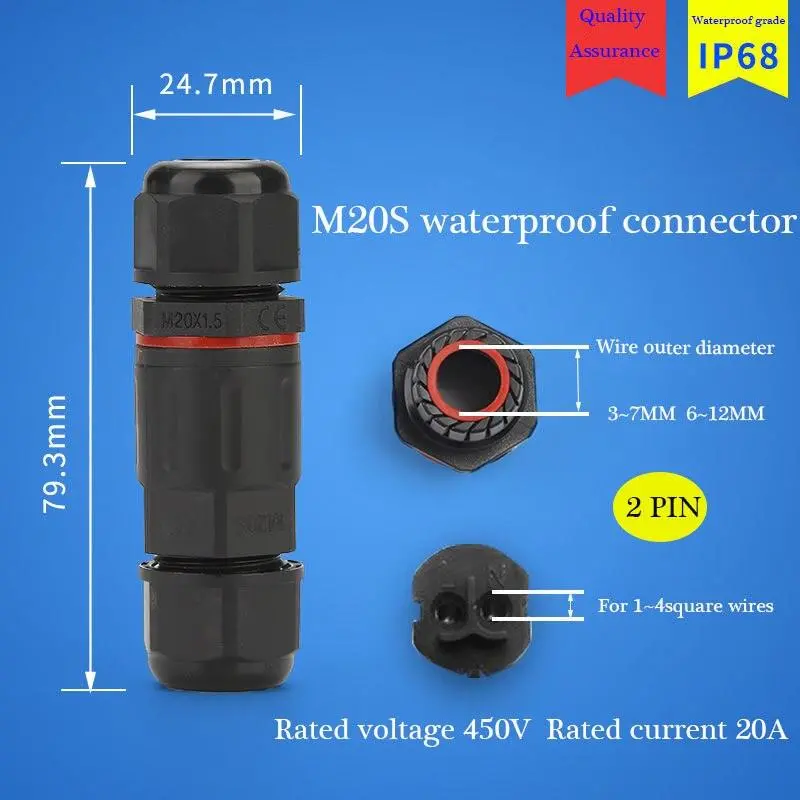

M20s2Pin0.3mm ²-4.0mm ² M253PIN1.5mm ²-6mm ²
M20s3Pin0.3mm ²-4.0mm ² M254PIN1.0mm ²-6mm ²

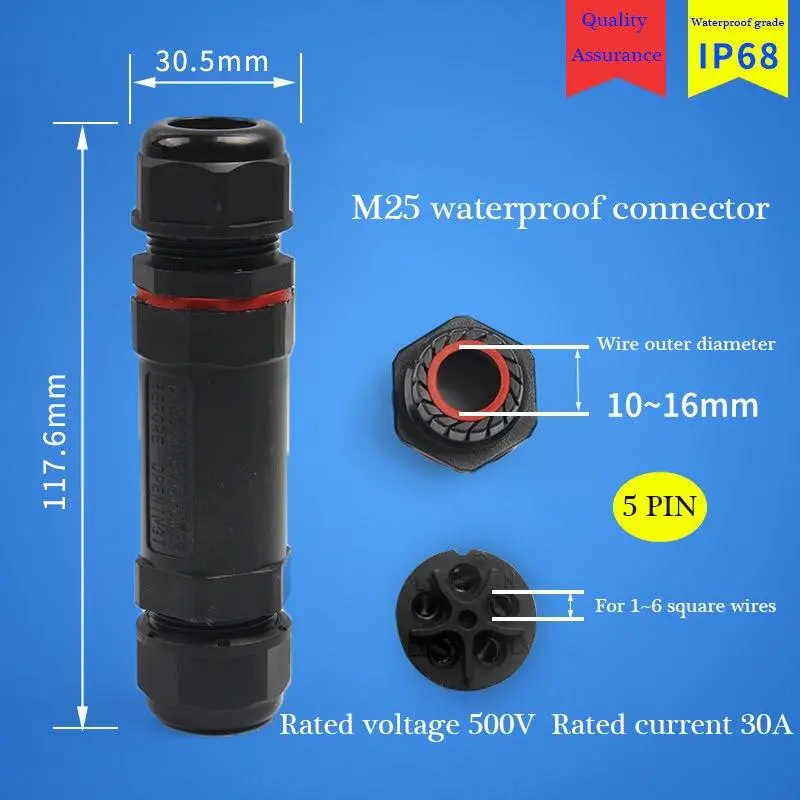

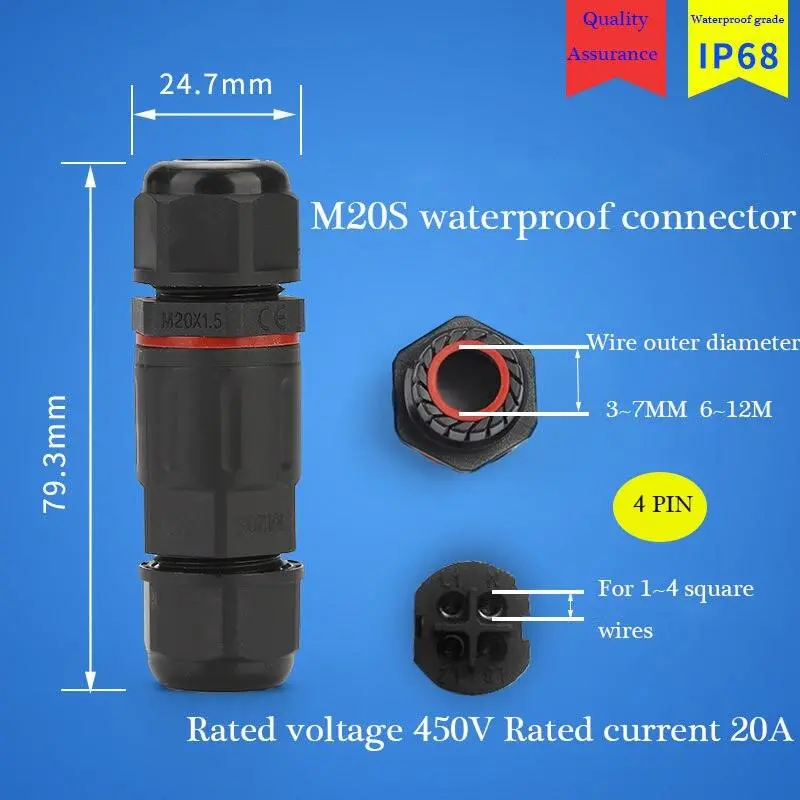

M20s4Pin0.3mm ²-2 , 5mm ² M255PIN0.75mm ²-6mm ²

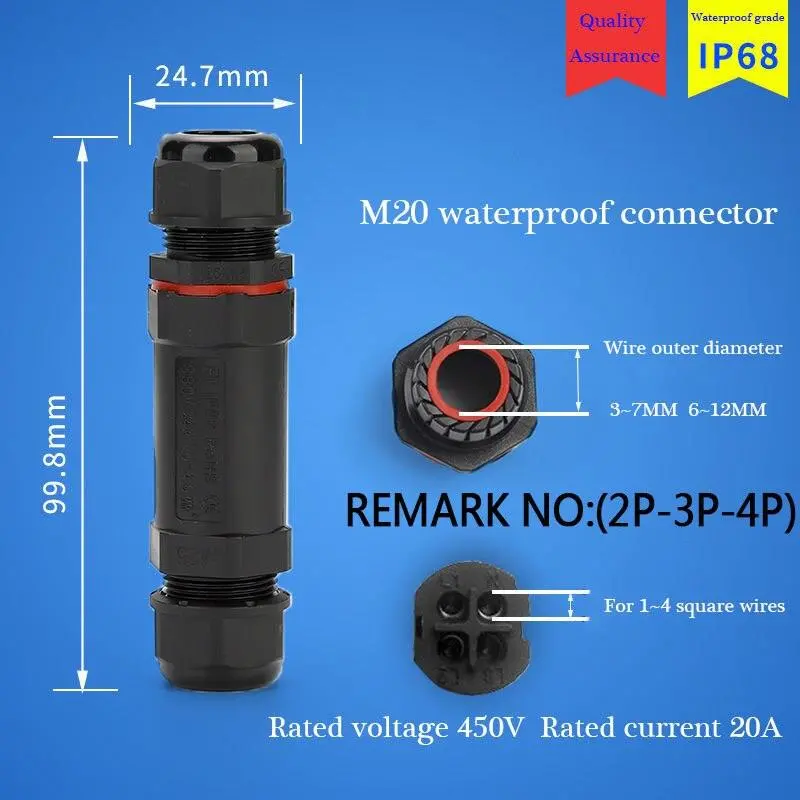

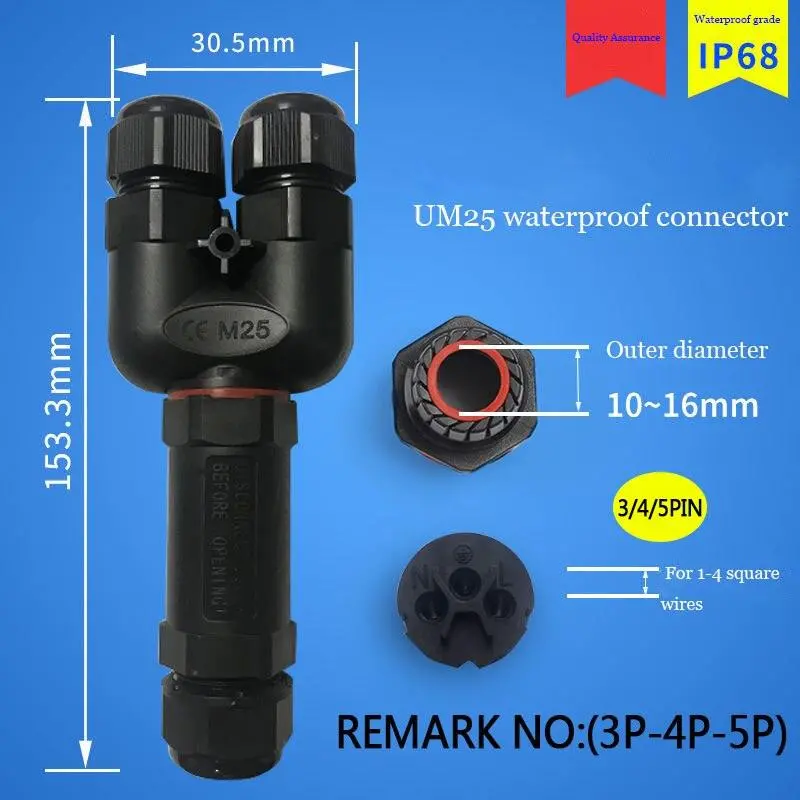

M202Pin0.3mm ²-4.0mm ² UM253PIN1.5mm ²-6mm ²
M203Pin0.3mm ²-4.0mm ² UM254PIN1.0mm ²-6mm ²
M204Pin0.3mm ²-2.5mm ² UM255PIN0.75mm ²-6mm ²
Scope of application:
Products are widely used in: park street lights, water pump wiring, engineering sites, urban outdoor lighting projects, lighthouses, cruise ships, aviation, industrial equipment, cables, sprinklers…
