Description

SPECIFICATIONS

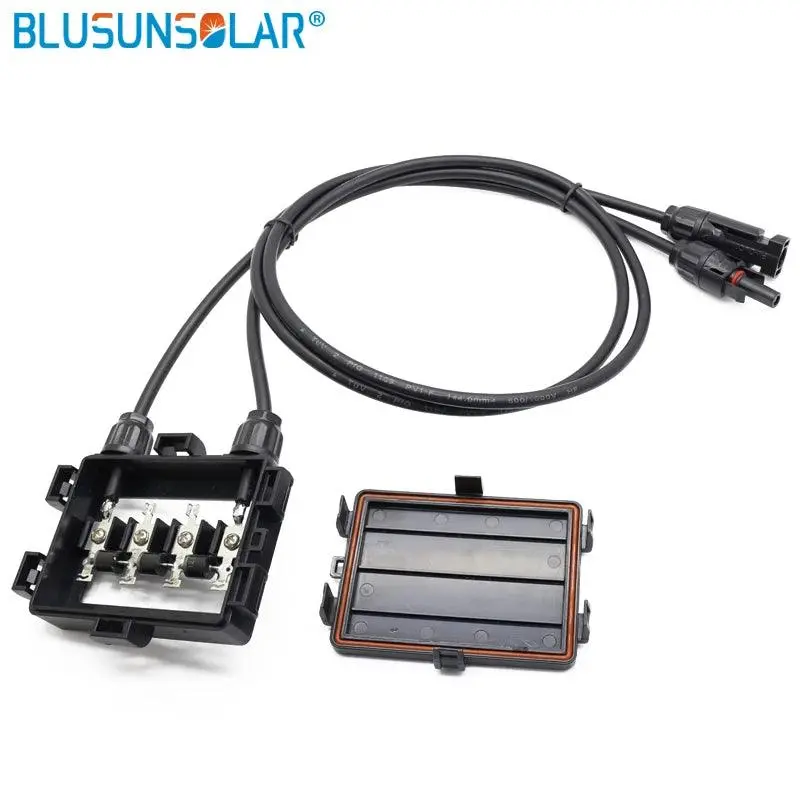

Waterproof IP65 4 Way PV Solar Junction Box for Solar Panel with 4.0mm2 Cable and 3 Diodes 15A

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: 4 way pv junction box

Certification: CE

Amount of Rails: 4 rail terminals

Rated Voltage: TUV 1000V DC

Rated Current: 8A

Proof Voltage: TUV 6000V AC(1Min) / UL 2200V DC (1Min)

Contact Material: Copper, Tin Plated

BOX Materiai: PPO

Protection Degree: IP65

Protection Class: Class II

Pollution Degree: 2

Pin Od: 4.0mm

5 pcs/lot Waterproof IP65 4 Way PV Solar Junction Box

for Solar Panel with 4.0mm2 Cable and 4 Diodes

Max Voltage:1000V

Junction box Current:3-15A

Temperature Rane:-40~+85

Protection:Class 2

Waterproof:IP65

Flame class:UL94V-0

Box material:PPO

Joining of ribbon:soldering

Use for solar panel:60W-80W

Product No.	DLC608
Amount of rails	4 rail terminals
Rated Voltage	TUV 1000V DC
Rating current	8A
Cable size	4.0mm
Pin OD	4.0mm
Proof voltage	TUV 6000V AC(1Min) / UL 2200V DC (1Min)
Pollution degree	2
Protection class	Class II
Contact Material	Copper, tin plated
Contact resistance	≤5mΩ
Protection degree	IP 65
Withdrawal Force	≥50N
Temperature Range	-40~+85
Flame Class	UL94V-0
