Description

SPECIFICATIONS

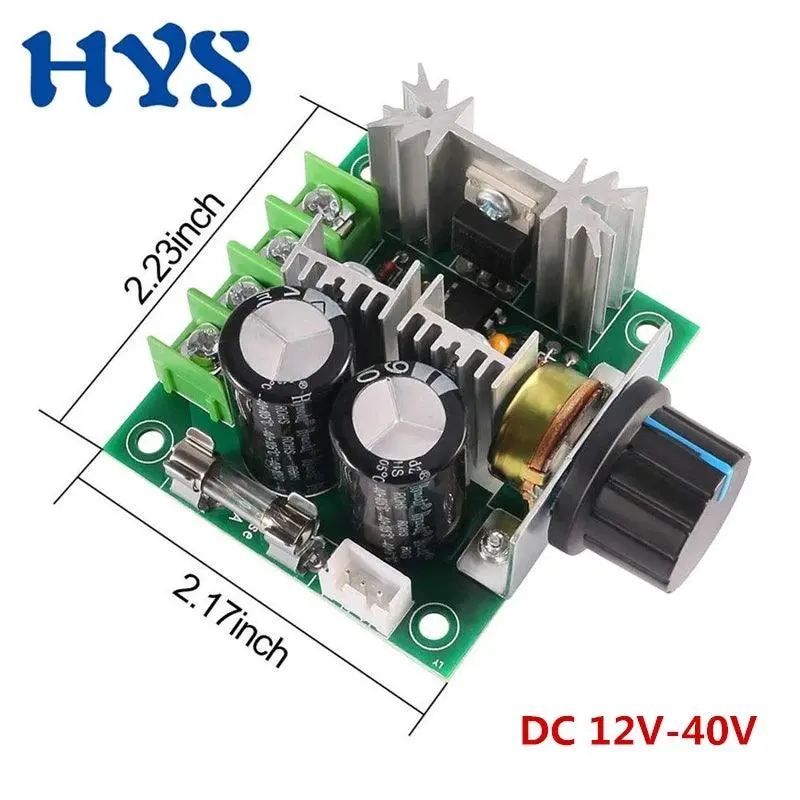

DC 12V-40V 10A 400W PWM Controller Speed Motor Pomp Control Regulate Speed Adjustable Power Pump Drive Module dc motor controller 12v

Motor Type: DC Motor

Origin: Mainland China

12V-40V 10A Speed Control
Control the speed of a DC motor with this controller.
High efficiency, high torque, low heat generating.
With reverse polarity protection, high current protection.
Specification
Model: CCMHC
Working Voltage: DC 12V – DC 40V.
Control Power:0.01 – 400W.
Current: Rated 8A, Max 10A.
Static Current:0.02 A ( Standby ).
PWM Duty Cycle:10% -100%.
PWM Frequency:13 KHz.
Material: Plastic, metal.
Size (L*W*H): 6cm x 5.5cm x 2.8cm/2.36″x 2.16″x1.10″(approx)
4 hole diameter: 3 mm(approx)

DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function.
