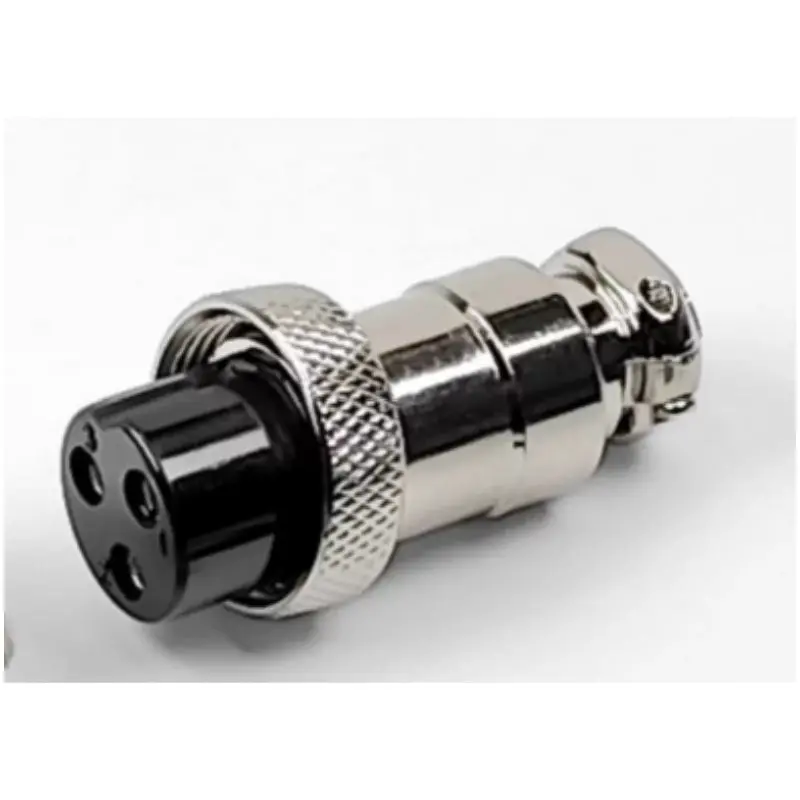

GX20 Diamond Flange Aviation Connector, 2-15 Pin, M19, Male Female Plug Socket

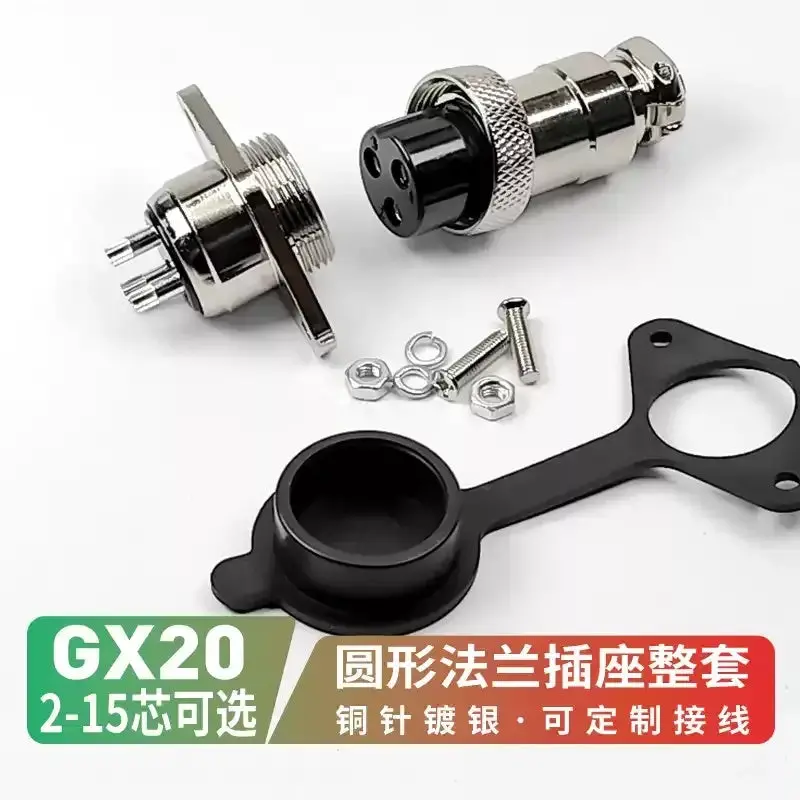

Product Overview

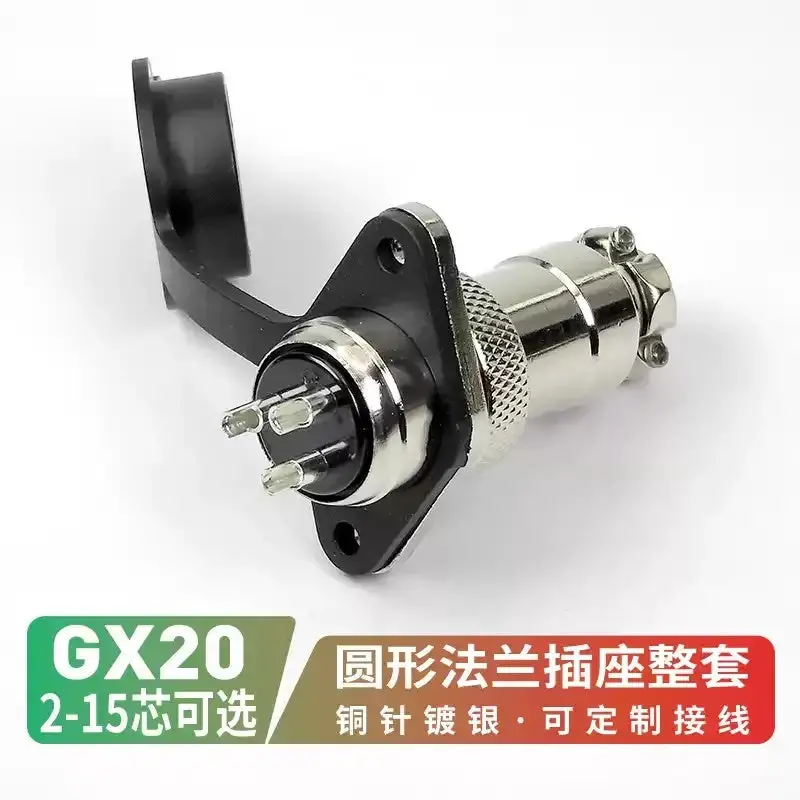

The GX20 series diamond flange aviation connector is a high-reliability industrial electrical connection solution, designed for secure power and signal transmission in automation equipment, CNC machinery, and control systems. Featuring a standard M19 thread, diamond (rhombus) flange mount, and gold-plated copper contacts, this connector delivers exceptional conductivity, corrosion resistance, and long service life. With its zinc alloy housing, bakelite insulator, and screw-thread locking mechanism, it ensures stable, vibration-resistant connections in harsh industrial environments, making it ideal for industrial wiring, equipment modification, and precision instrument connections.
Key Specifications

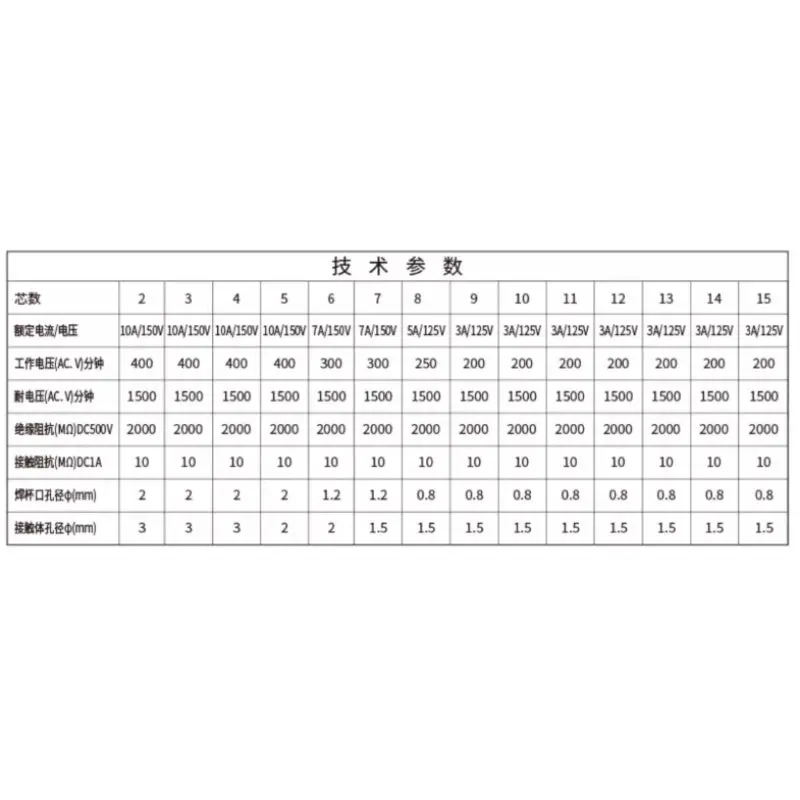

| Item | Details |
|---|---|
| Model | GX20 (Diamond Flange Type) |
| Thread Size | M19 (19mm) |

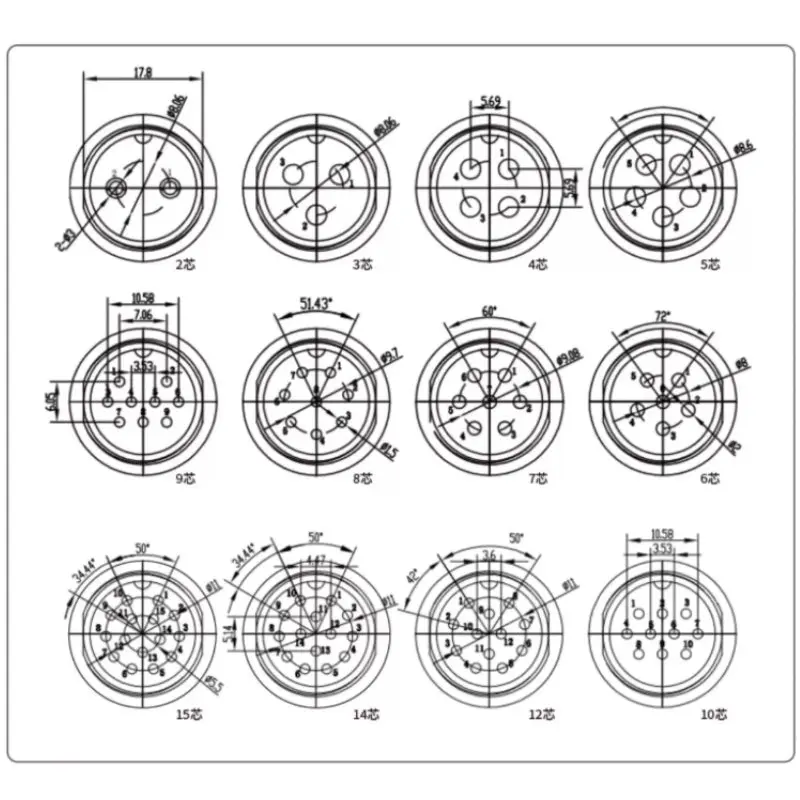

| Pin Count | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 |
| Rated Current/Voltage | 10A/150V (2-5Pin), 7A/150V (6-7Pin), 5A/125V (8Pin), 3A/125V (9-15Pin) |
| Operating Voltage (AC) | 400V (2-5Pin), 300V (6-7Pin), 250V (8Pin), 200V (9-15Pin) |
| Withstand Voltage (AC) | 1500V (All Models) |
| Insulation Resistance | ≥2000MΩ (DC 500V) |
| Contact Resistance | ≤10mΩ (DC 1A) |
| Housing | Zinc Alloy (High Strength, Anti-Corrosion) |
| Insulator | High-Grade Bakelite (Heat Resistant, Flame Retardant) |
| Contacts | Gold-Plated Solid Copper (High Conductivity, Anti-Oxidation) |
| Mating Type | Screw Thread Locking (Anti-Vibration, Anti-Detachment) |
| Mating Cycle | 500+ Times |
| Operating Temperature | -20°C ~ +85°C |

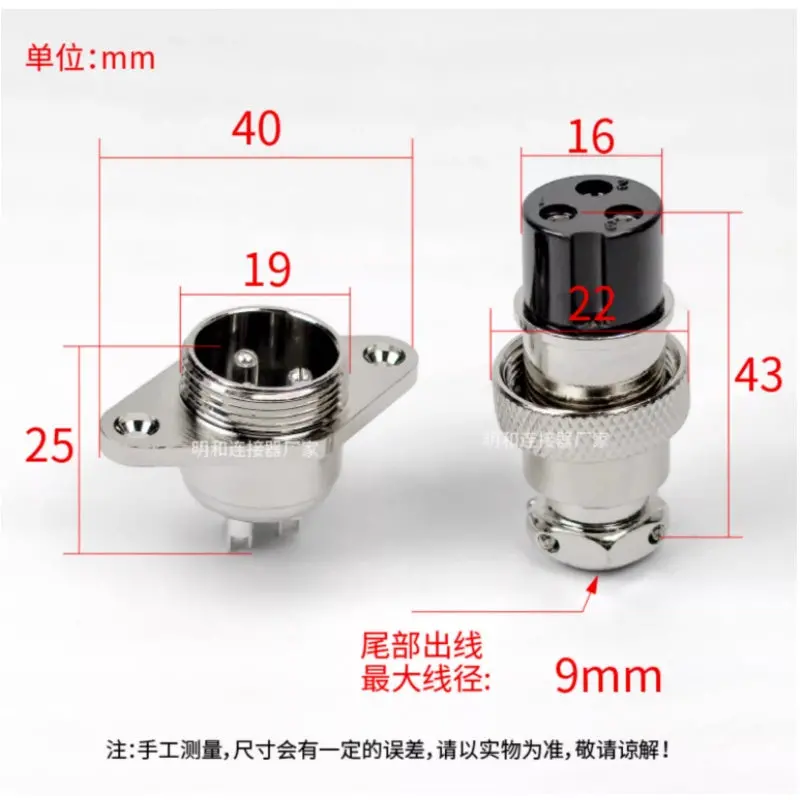

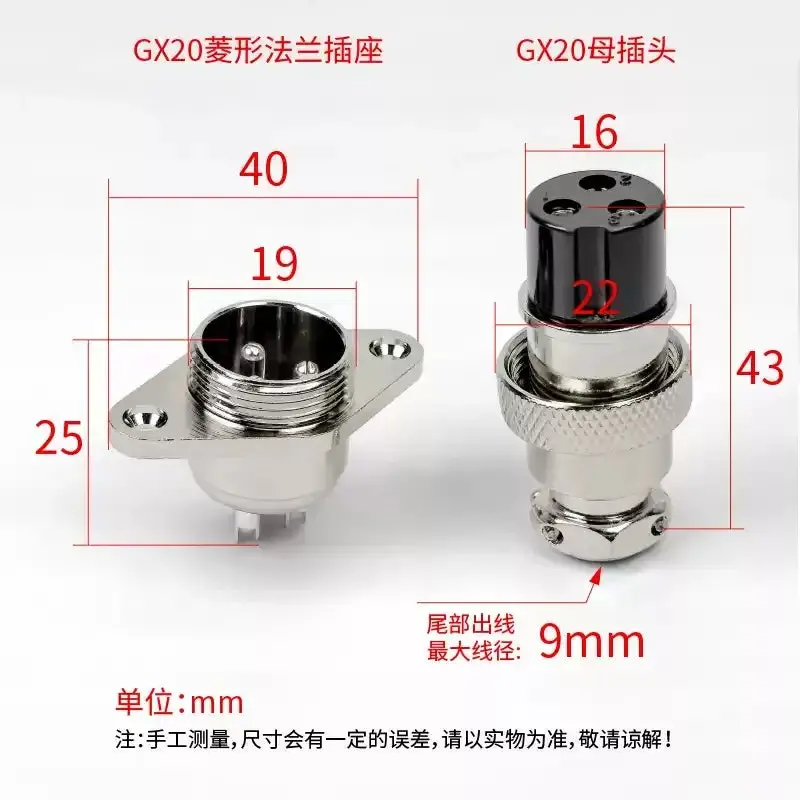

| Max Cable Diameter | 9mm |
Core Features

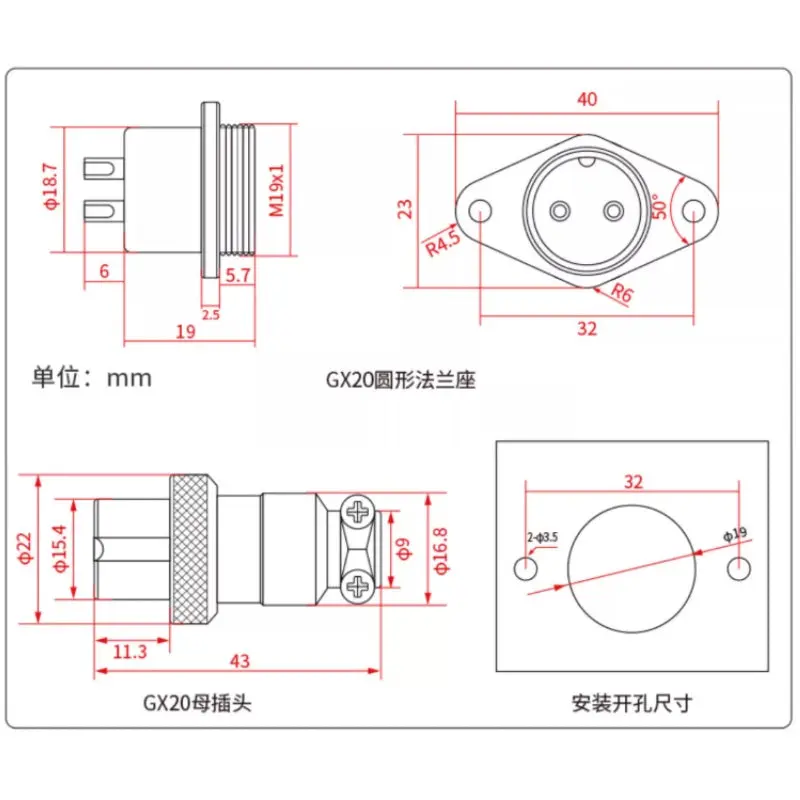

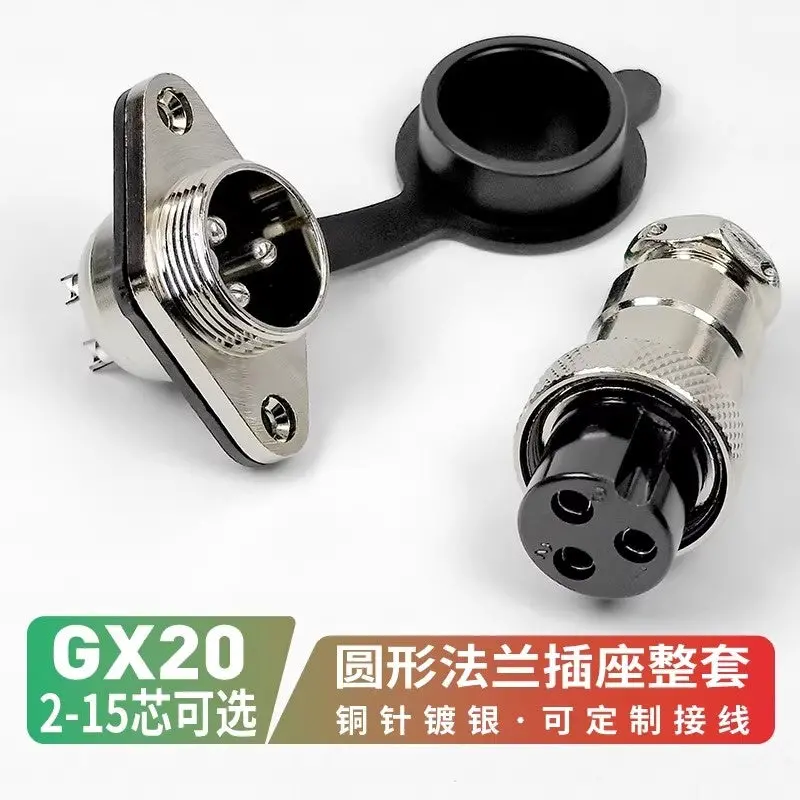

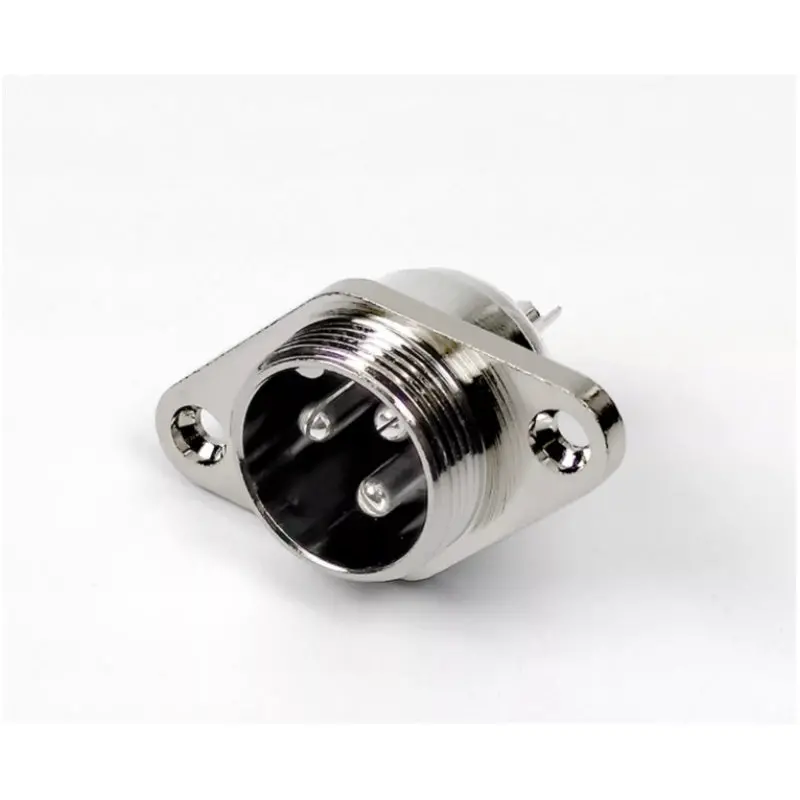

- Diamond Flange Panel Mount Design
Unique diamond (rhombus) flange with M19 thread for secure, flush panel installation, compatible with most industrial control boxes and equipment enclosures, preventing rotation and ensuring a tight fit. - Gold-Plated Copper Contacts
High-purity solid copper contacts with gold plating provide excellent electrical conductivity, low contact resistance, and superior corrosion/oxidation resistance, ensuring stable signal and power transmission even in harsh environments. - Durable Zinc Alloy Housing
Robust zinc alloy shell offers high mechanical strength, impact resistance, and anti-corrosion performance, protecting internal components from damage and extending service life. - Screw-Thread Locking Mechanism
Reliable screw-thread connection securely fastens male and female connectors, preventing accidental disconnection during operation, even under heavy vibration. - Premium Bakelite Insulator
High-temperature resistant bakelite insulator with excellent insulation performance, flame retardancy, and wide temperature range adaptability, ensuring safety in high-load industrial environments. - Wide Pin Count & Cable Compatibility
Available in 2 to 15 pin configurations to meet diverse wiring needs, with a maximum cable diameter of 9mm, suitable for various power and signal transmission applications. - Long Service Life
Tested for 500+ plugging cycles without performance degradation, ensuring long-term reliability and reducing maintenance costs.
Application Scenarios
- Industrial automation equipment, CNC machinery, and production lines
- Electrical control panels, power distribution systems, and signal transmission
- Medical equipment, precision instruments, and audio-visual devices
- Automotive modification, aerospace, and industrial robotics
- Outdoor and harsh environment electrical systems (vibration-resistant, corrosion-resistant)
Important Notes
- Pin Selection: Choose the correct pin count based on your wiring and current requirements.
- Installation: Ensure the panel is clean and flat for a secure fit. Tighten the screw lock firmly to prevent loosening.
- Soldering: Use appropriate soldering techniques for the contact size to ensure reliable connections.
- Temperature: Operate within the specified temperature range (-20°C ~ +85°C) for optimal performance.
