Description

SPECIFICATIONS

GA25-310 12V 2W 16 21 35 46 77 100 177 220 375 830 1800 RPM

High Torque DC Brush Motor Low Speed Gear Compatible 6V (GA25-B2418)

Brand Name: Anmiy

Certification: NONE

Origin: Mainland China

Output Power: 2.1W

Commutation: Brush

Type: Micro Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: Home Appliance

Model Number: GA25-310-S0214D

310 DC Brush Motor Series, Include 2 Family, click for details:1) 310 (B2418): High-speed (No Gear)
2) GA25-310 (GA25-B2418): Common Gear More DC Brush Motor Series (310 Series’s Brother), click for details.

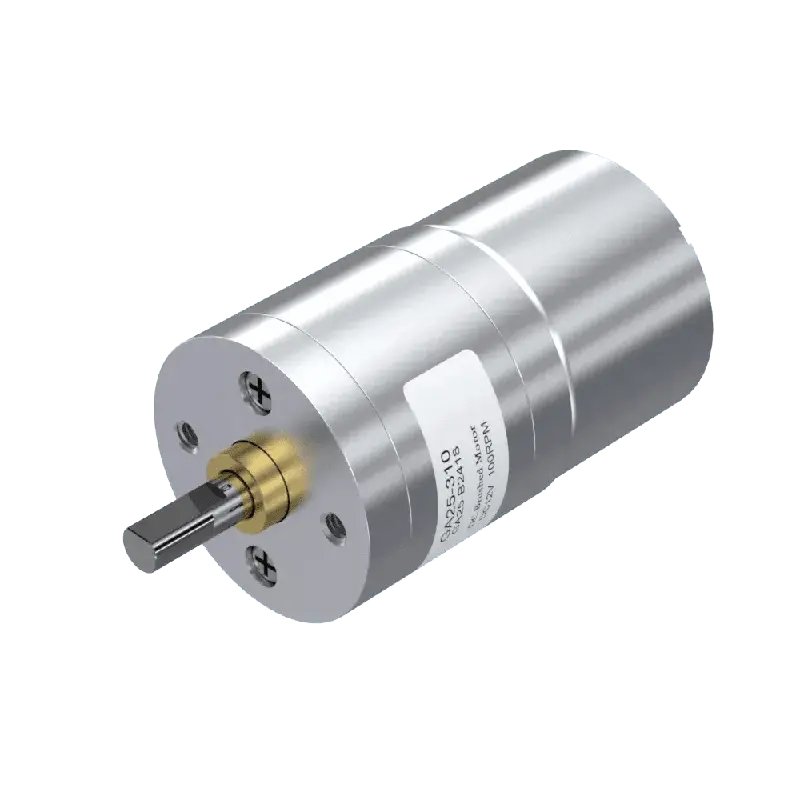

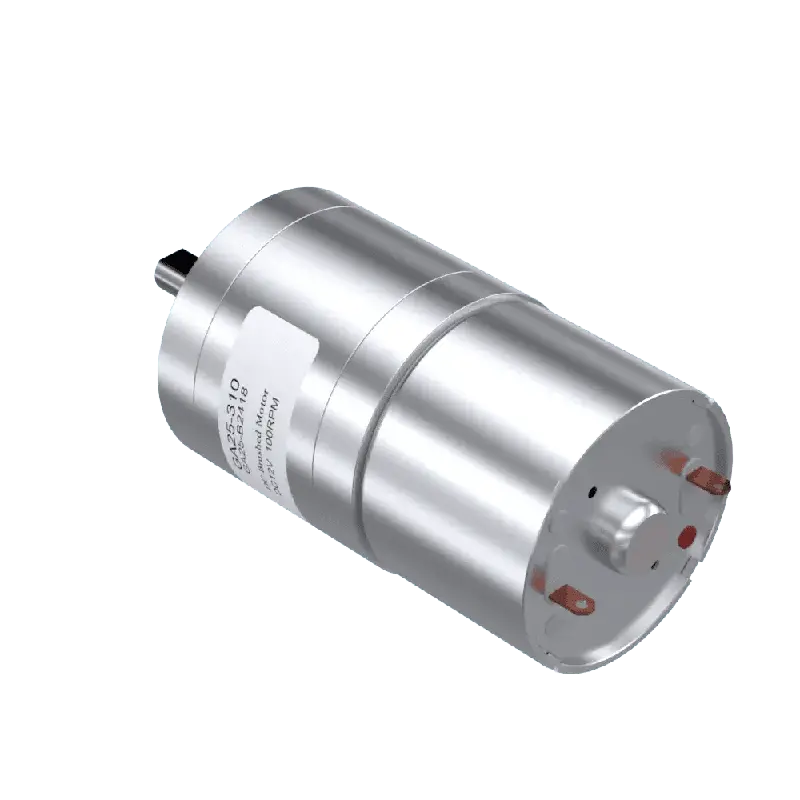

GA25-310 (GA25-B2418) DC brush geared motor with high purity copper wire, all metal gears, supports speed regulation and forward and reverse rotation, widely used in household appliances, automatic control, DIY design, etc.

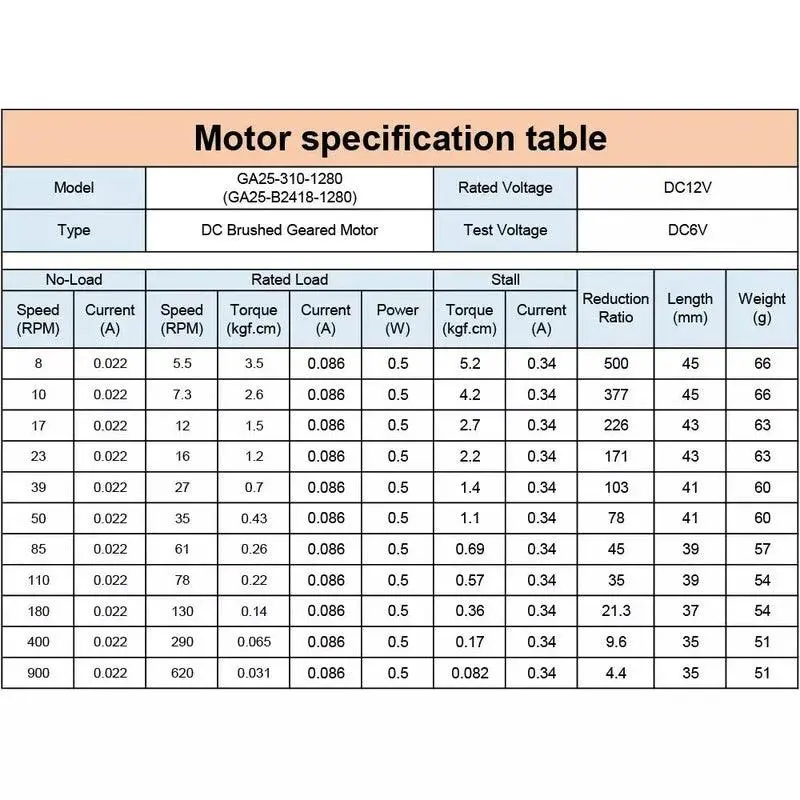

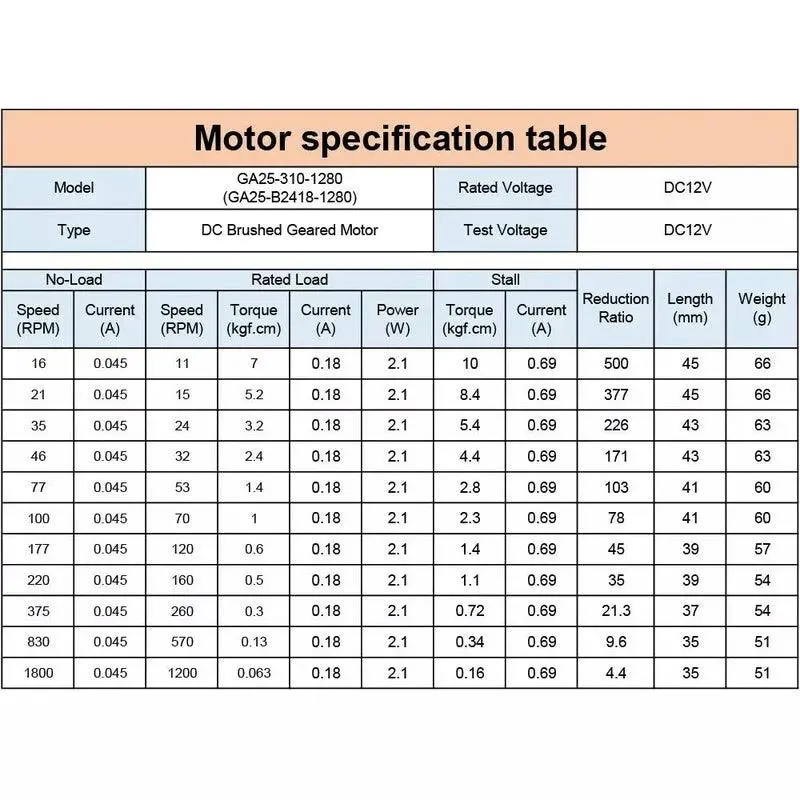

The rated voltage of this motor is DC12V, which can be reduced to 9V, 6V, etc. The no-load speed at different voltages are (RPM):

12V	16	21	35	46	77	100	177	220	375	830	1800
9V	12	15.5	26	34.5	58	75	131	165	277.5	615	1350
6V	8	10	17	23	39	50	85	110	180	400	900

More speeds can also be customized according to your needs. For details, please contact customer service.

GA25 series DC geared motors bracket (Click image below for details)
