SPECIFICATIONS

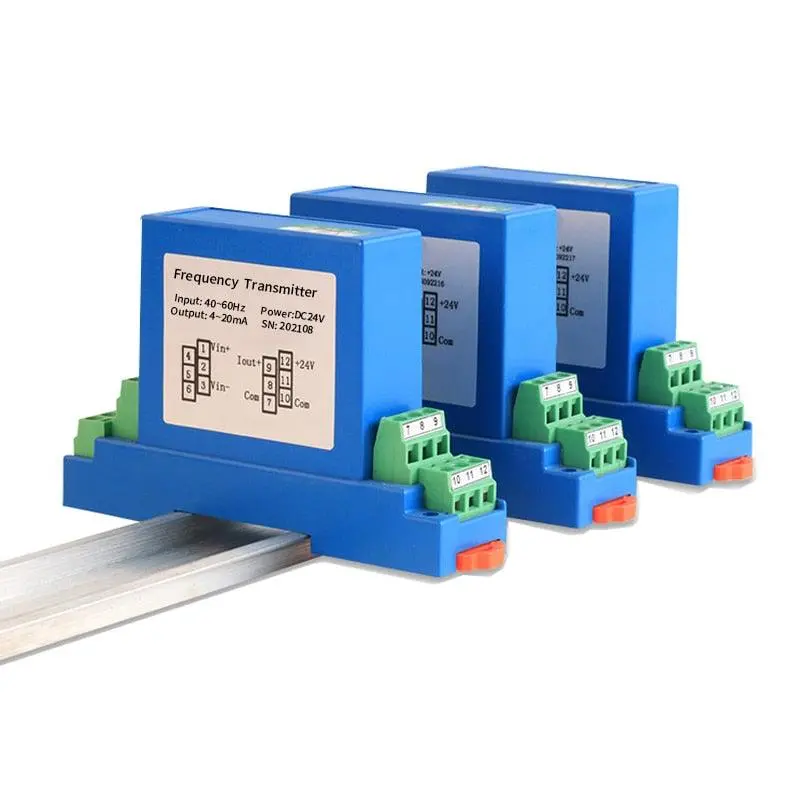

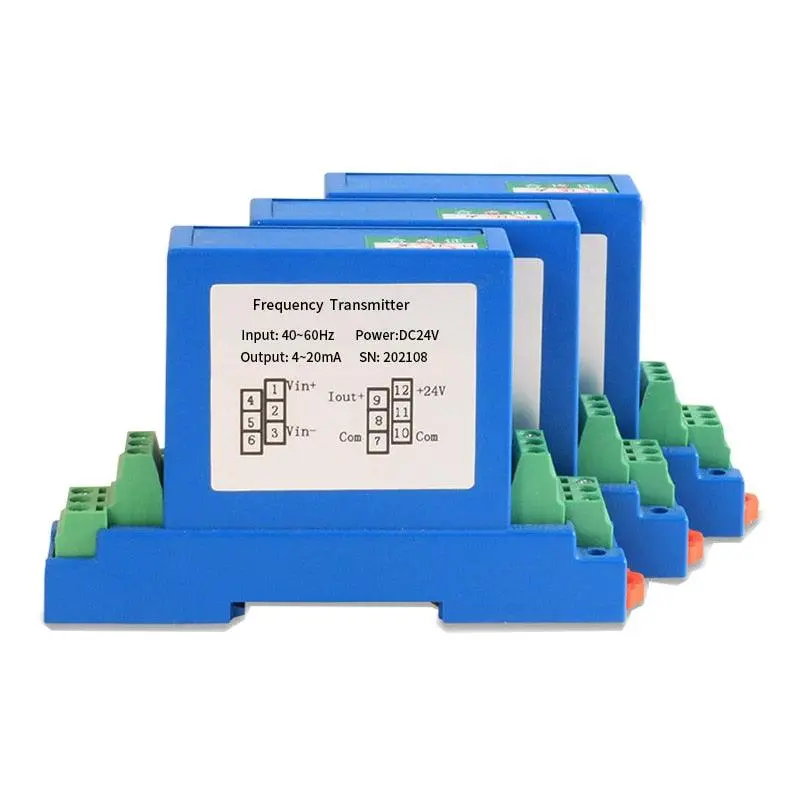

40-60hz 45-55hz Frequency Transducer High Frequency Transmitter with input 0-6KHz-100KHz,output 0-10V 4-20mA

Response time: <200ms

Product name: Frequency transducer

Power supply: DC12-24V

Output signal: 4-20mA,0-5V,0-10V,1-5V

Operating Temperature: -30℃~+85℃

Model Number: ELFTB-7

Measuring Range: 0-100KHz

Installation method: DIN 35mm rail+ plane screw fixation

Input frequency range: 0-100KHz

Display Type: Analog Only

Dimensions: No aperture

DIY Supplies: ELECTRICAL

Certification: CE

Brand Name: KEJUN

Accuracy Class: 0.2%FS

40-60hz 45-55hz Frequency Transducer High Frequency Transmitter with input 0-6KHz-100KHz,output 0-10V 4-20mA

NOTES:

The frequency transmitter we can make any range within 50-100KHz.

If you need other frequency range, please contact me.

We can make special customization for you.

 Product Description

1>>. Working principle: Linear photoelectric isolation principle

2>>. Usage: Used for isolation measurement of various waveform frequency signals from 50Hz to 100kHz.

3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.

4>>. Application: Widely used in various measuring frequencies and places that need to be converted into frequency signals.

5>>. Full channel configuration,parameters customized.
