Description

SPECIFICATIONS

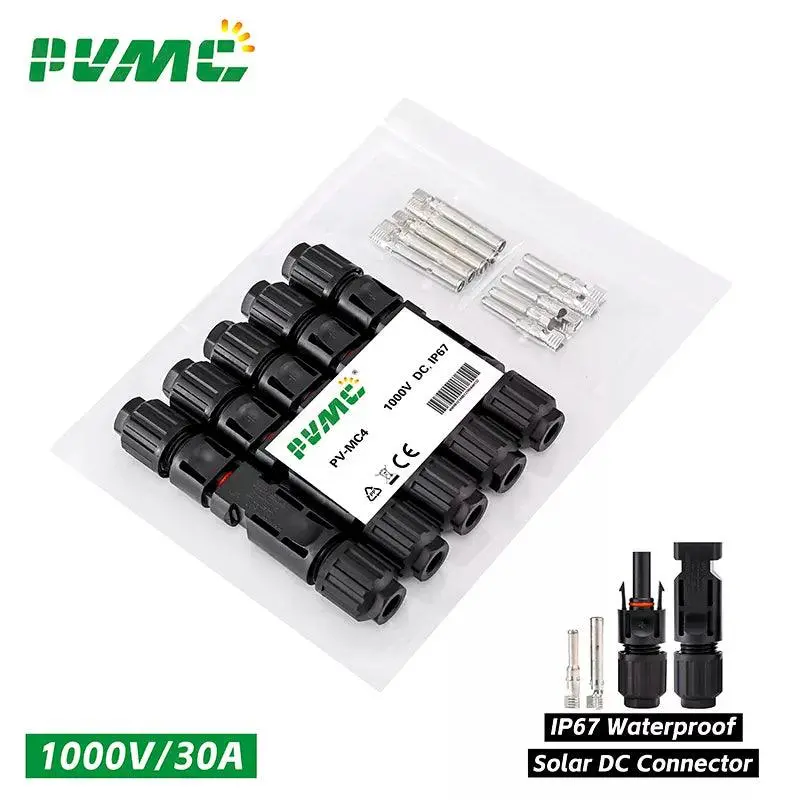

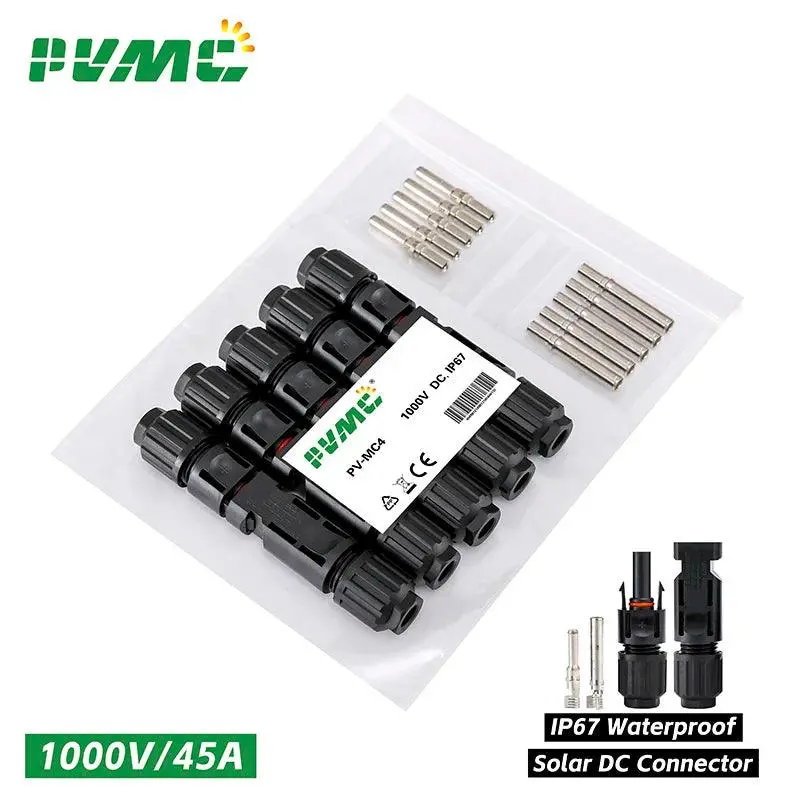

Free Shipping DC Solar Connector 1000V30A Solar Panel  Stecker Connectors Kit for PV/MC Cable 2.5/4/6mm2 1500V/45A

Brand Name: PVMC

Origin: Mainland China

Certification: CE

Rated voltage: 1000V/1500V

Rated current: 30A/45A

Degree of waterproof: IP67

Adapter Wire: OD 5mm-7mm

Connector Insulation material: PPO/PPE

Flammability rating: UL94-V0

Connector contact resistance: ≤0.5mΩ

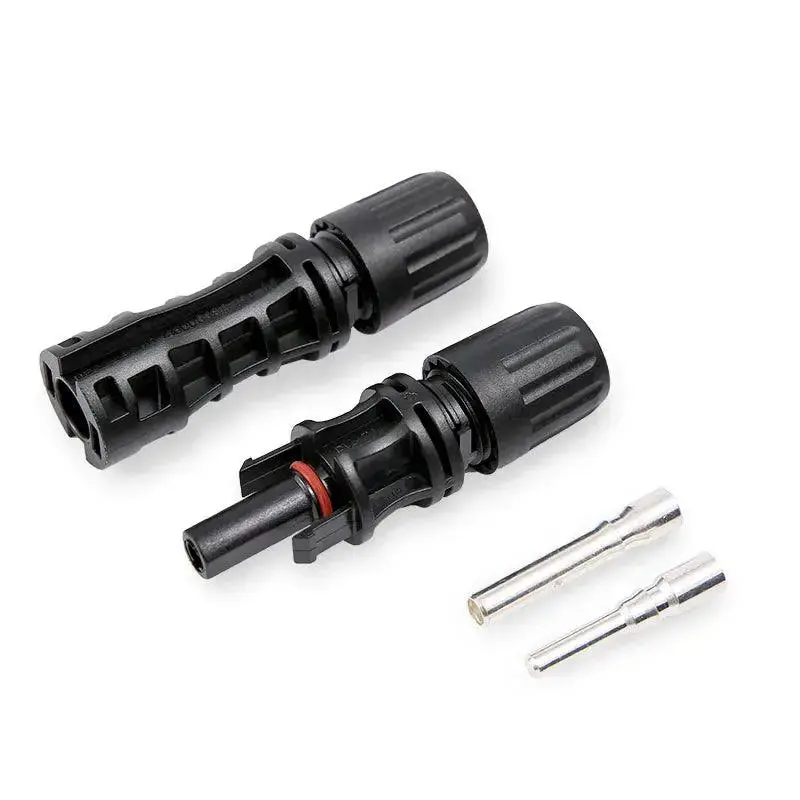

DC Solar Connector Solar Panel Branch Stecker Connectors for PV/MC Cable 2.5/4/6mm2

【High quality Material】WATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!

【Widely Compatible With Solar Cable】Compatible with PV cables with different insulation diameters (2.5m㎡–6m㎡).

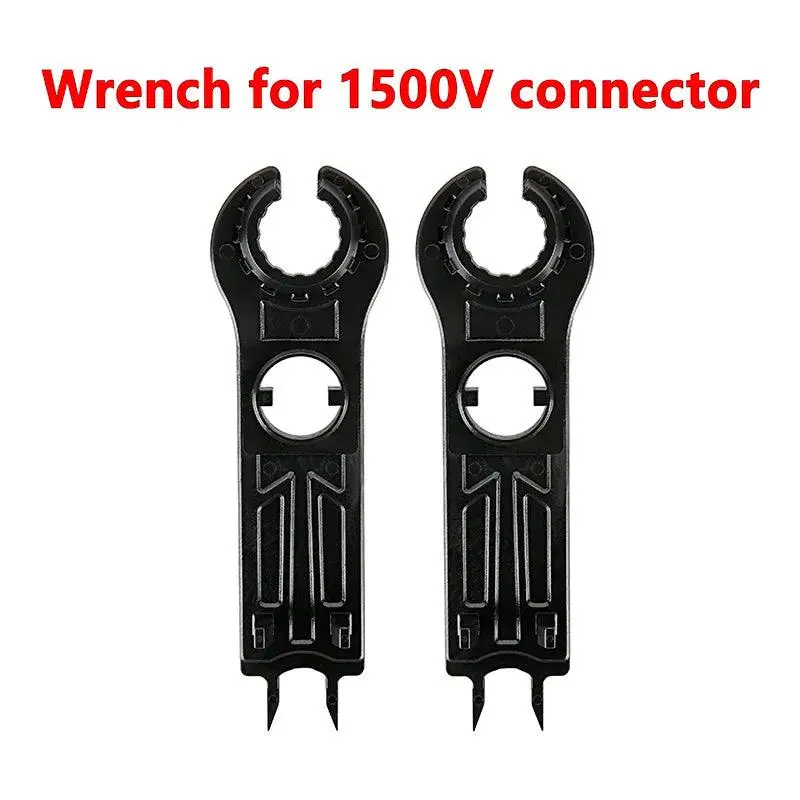

【Easy installing】Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.

【IP67 Professional Waterproof】Good waterproof performance for outdoors usage.

Specifications

* Rated current: 30A/45A

* Rated voltage: 1000V/1500V DC

* Connector contact resistance:≤0.5mΩ

* Degree of waterproof: IP67

* Flammability rating: UL94-V0

* Safety: Class II

* Suitable cable: 2.5m㎡–6m㎡( include AWG13,AWG12, AWG11,AWG10 )

* Adapter Wire: OD 5mm-7mm

* Connector conductor material: copper, Tin

* Connector Insulation material: PPO/PPE

* Insertion force: less or equal to 50N

* Withdrawal force: over or equal to 50N

* Operating temperature range: -40℃～ +85℃

* Connection: Clamp
