SPECIFICATIONS

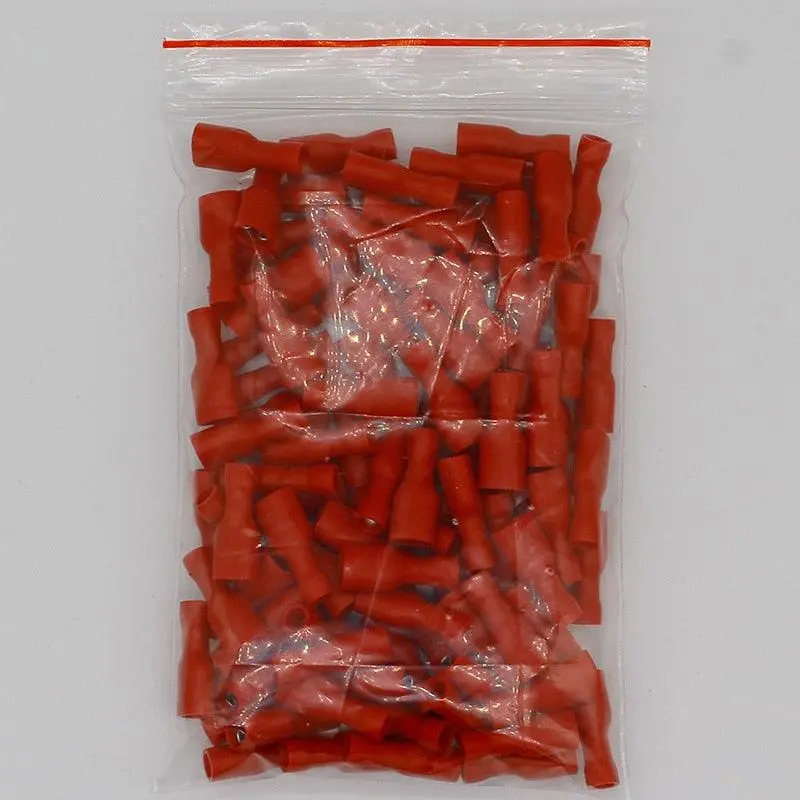

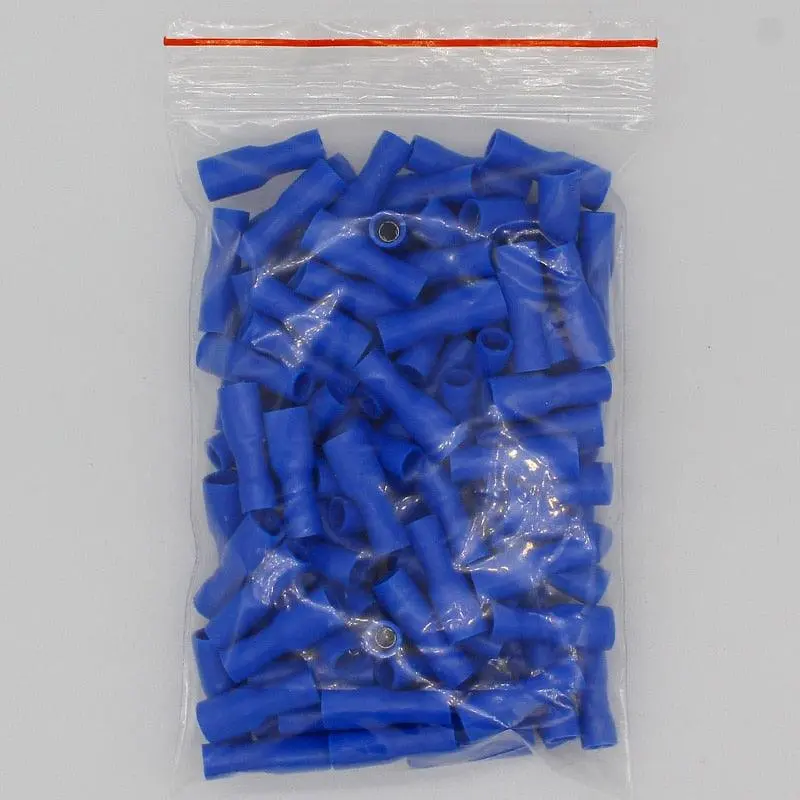

FDFD1.25-187 FDFD2-187 insulating Female Insulated Electrical Crimp Terminal Connectors 100PCS/Pack Cable Wire Connector FDFD
Model Number: FDFD1-187
Certification: CE
Brand Name: ELECAPITAL
| Cable size:0.5-1.5mm⊃2;(22-16AWG) max current:Imax=10A;Material Brass |
| Item NO. |
Nema Tab(mm) |
Dimension(mm) |
| B |
L |
DΦ |
dΦ |
| FDFD 1.25-110(5) |
0.5×2.8 |
4.6 |
19 |
3.8 |
1.7 |
| FDFD 1.25-187(5) |
0.5×4.75 |
5.6 |
20 |
3.8 |
1.7 |
| FDFD1.25-187(8) |
0.8×4.75 |
5.6 |
20 |
3.8 |
1.7 |

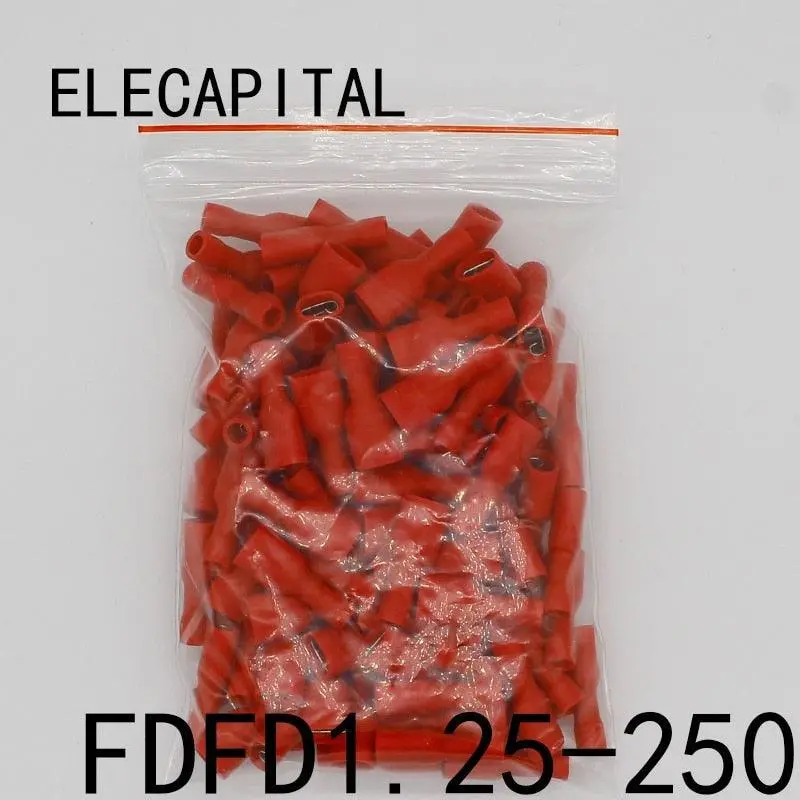

| FDFD 1.25-250 |
0.8×6.3 |
7.4 |
21.5 |
3.8 |
1.7 |
| Cable size:1.5-2.5mm⊃2;(22-16AWG) max current:Imax=15A;Material Brass |
| Item NO. |
Nema Tab(mm) |
Dimension(mm) |
| B |
L |
DΦ |
dΦ |
| FDFD 2-110(5) |
0.5×2.8 |
3.2 |
19 |
4.5 |
2.3 |
| FDFD 2-187(5) |
0.5×4.75 |
5.6 |
20 |
4.5 |
2.3 |
| FDFD2-187(8) |
0.8×4.75 |
5.6 |
20 |
4.5 |
2.3 |
| FDFD 2-250 |
0.8×6.3 |
7.4 |
21.5 |
4.5 |
2.3 |
| Cable size:4-6mm⊃2;(22-16AWG) max current:Imax=24A;Material Brass |
| Item NO. |
Nema Tab(mm) |
Dimension(mm) |
| B |
L |
DΦ |
dΦ |
| FDFD 5.5-250 |
0.8×6.35 |
7.4 |
25.5 |
5.7 |
3.4 |
|
|
|
|
|
|
|
|
|
|
|
|
