Description

SPECIFICATIONS

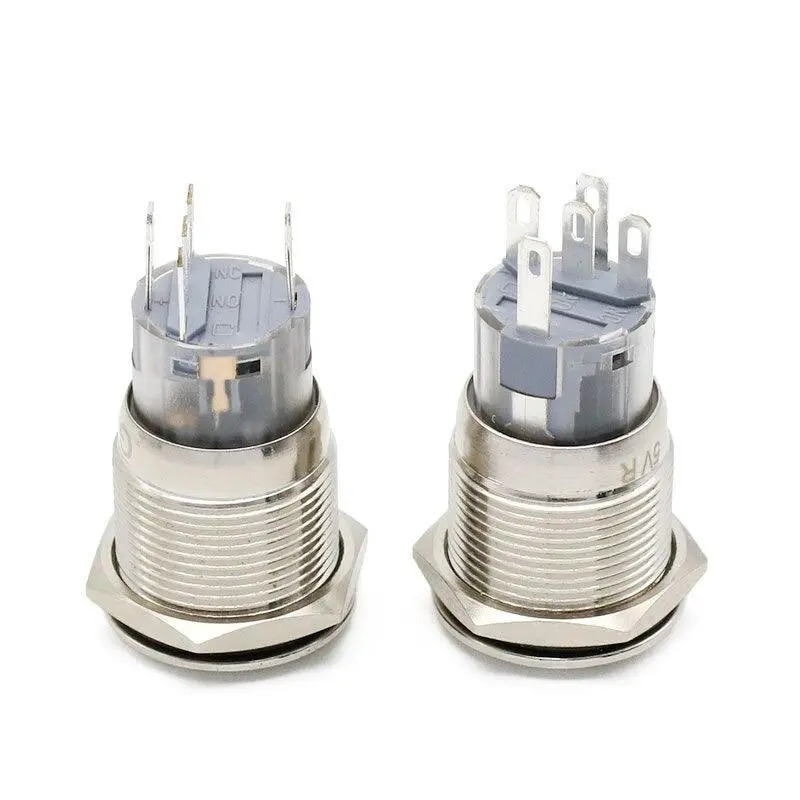

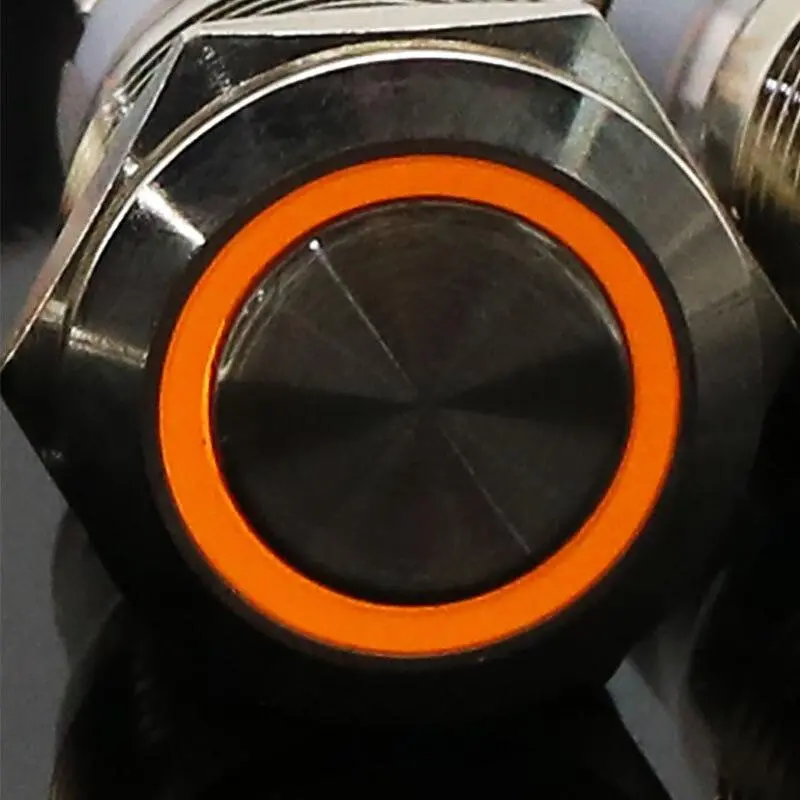

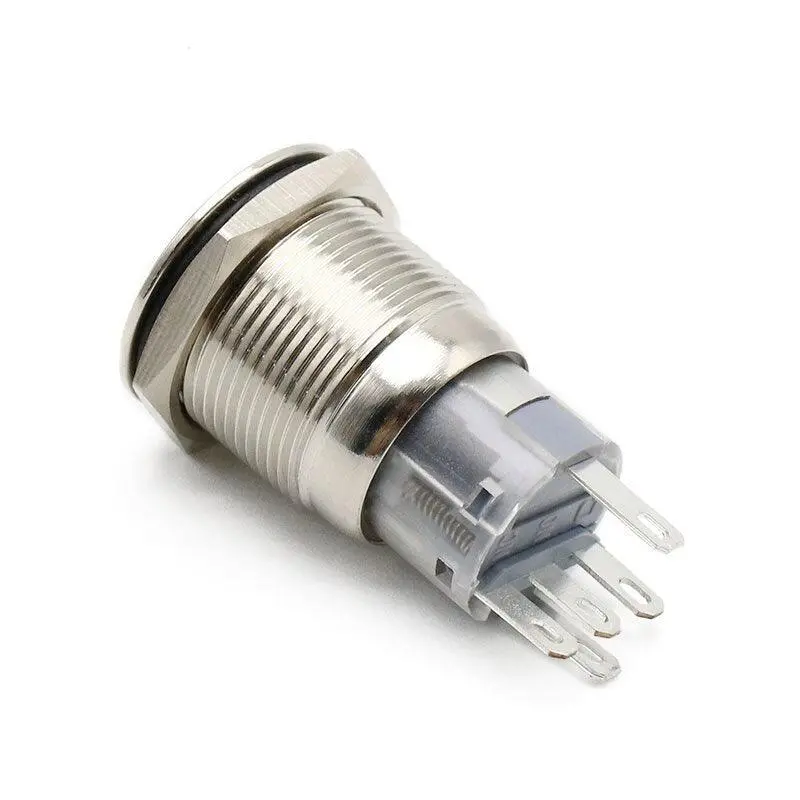

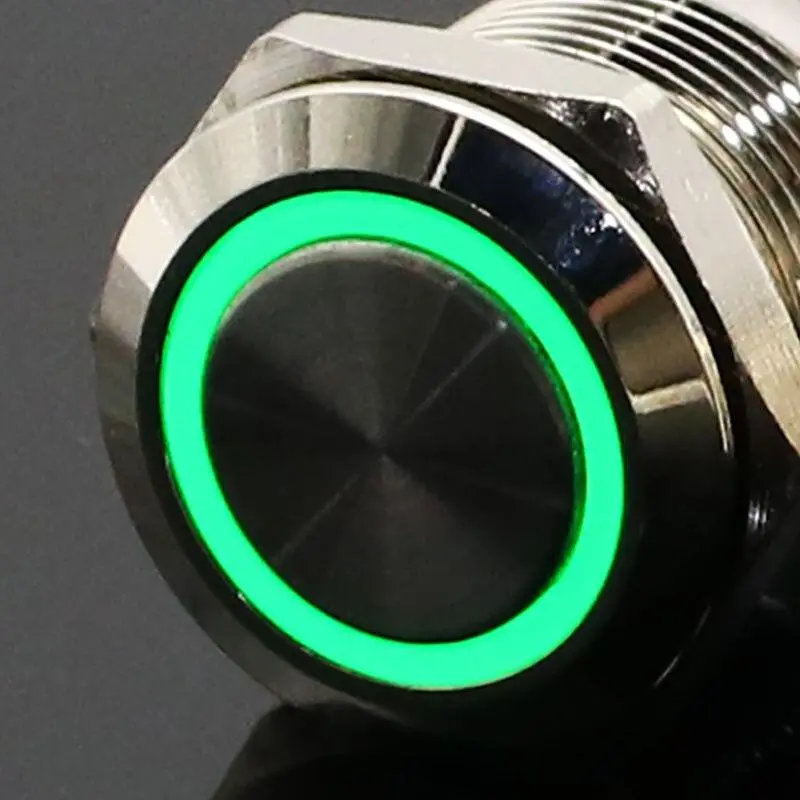

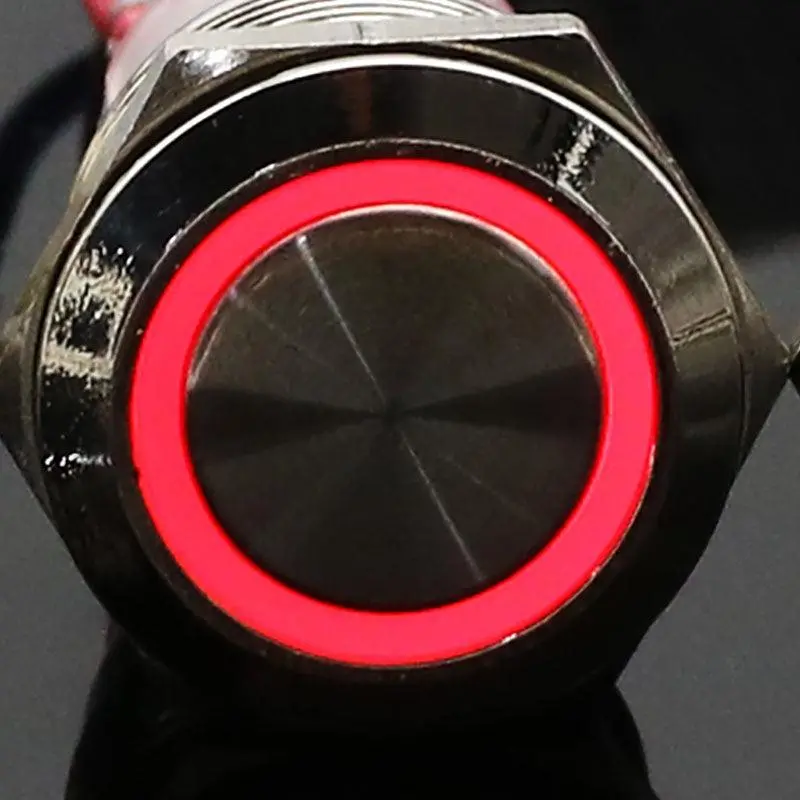

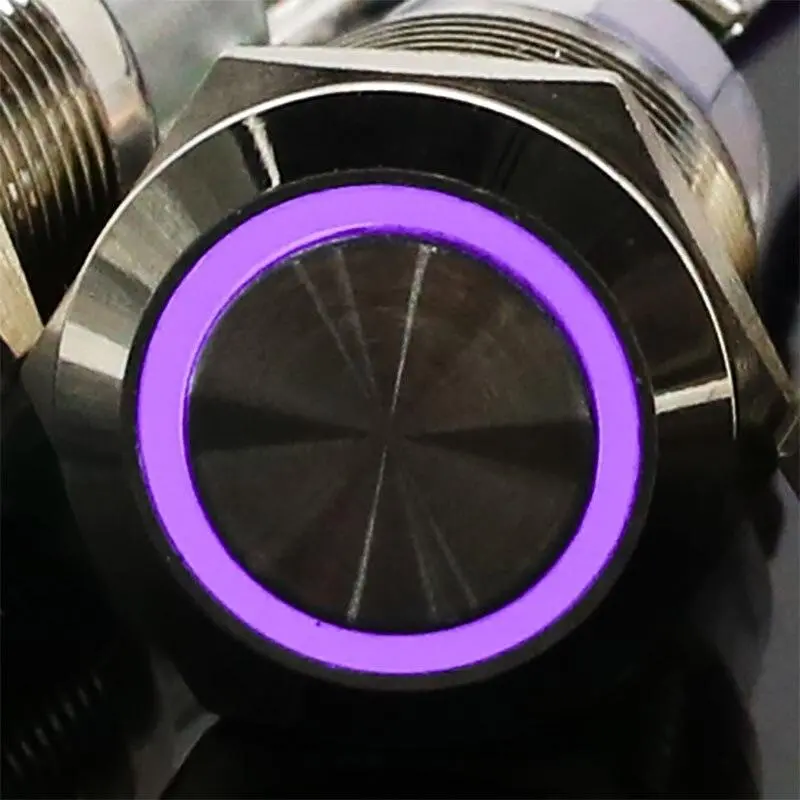

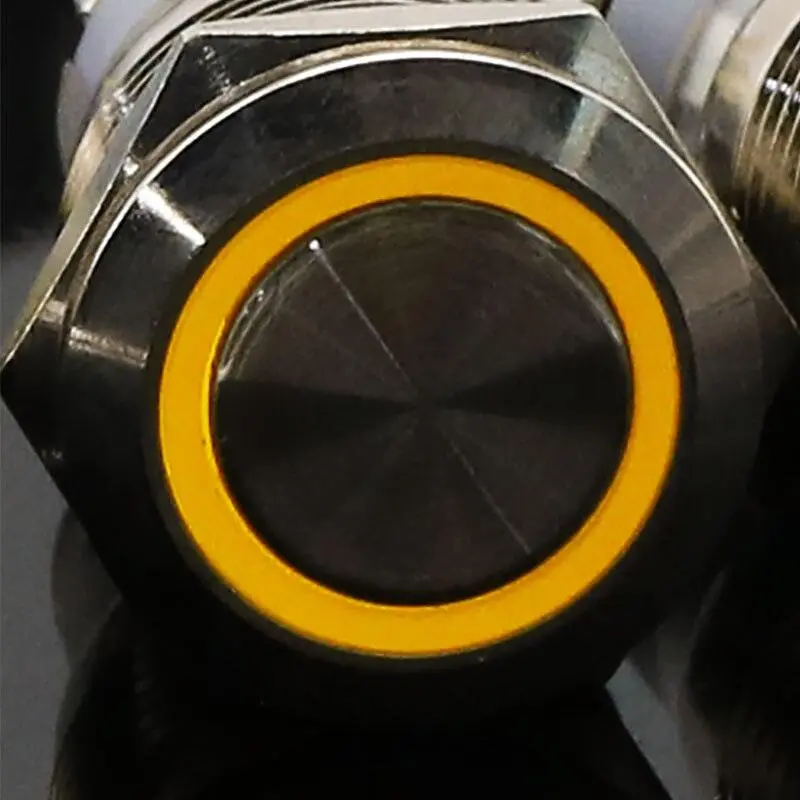

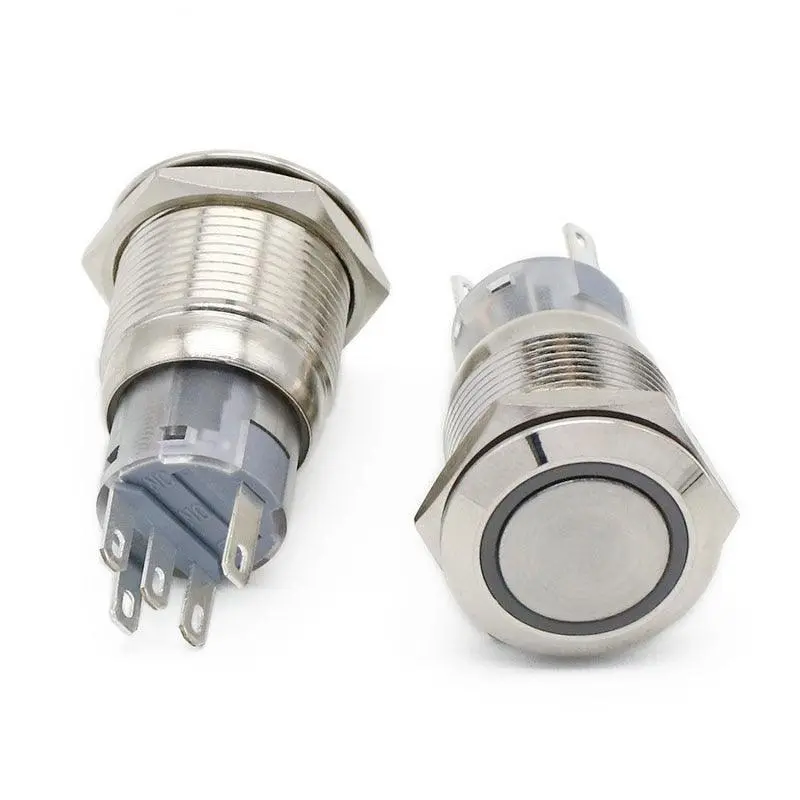

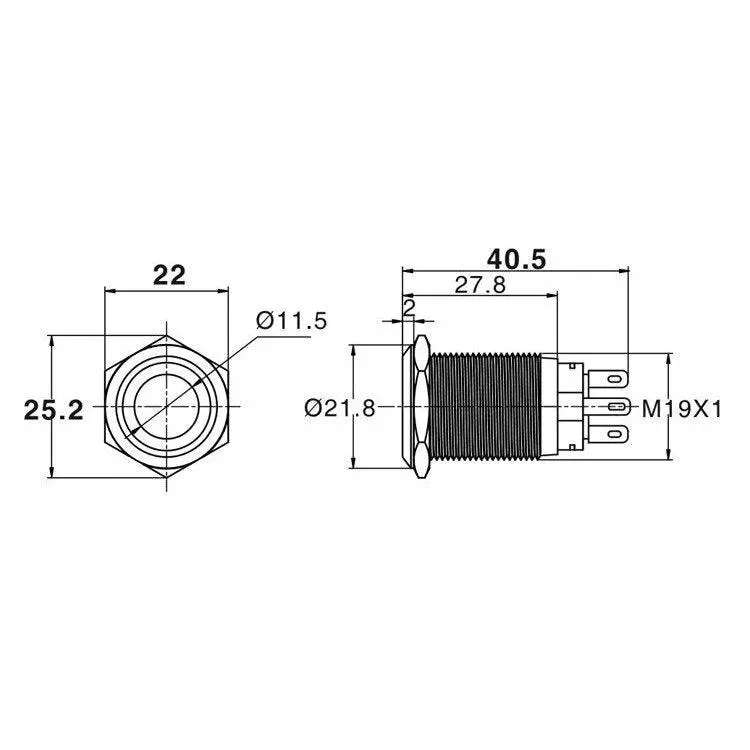

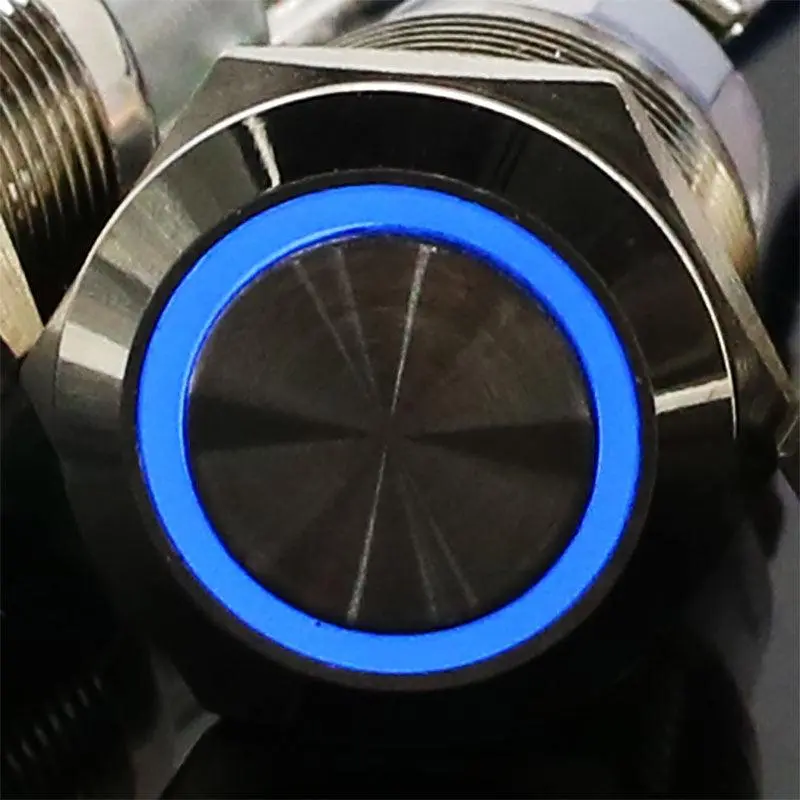

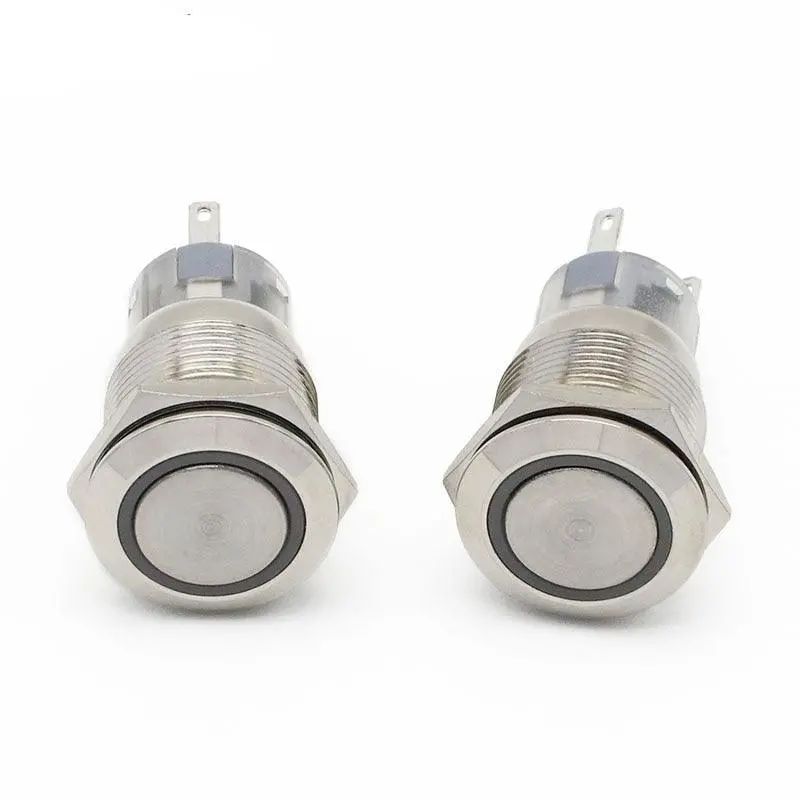

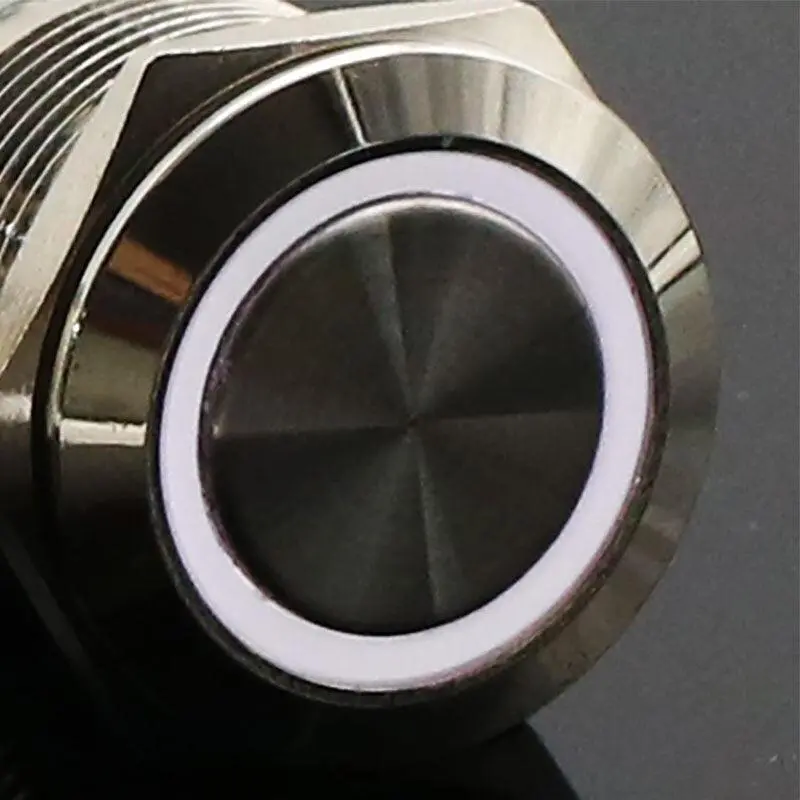

19mm Metal Push Button Switch Waterproof Latching Self-lock Fixation

Power Press Ring LED Light Illuminated 6 3V 5V 12V 24V 220V,waterproof latching push button switch

Warranty: 10 years

Voltage: 12V,24V,220V

Switch Type: Push Button Switch

Operating Temperature: -25°C to +55°C

Operating Humidity: 45 to 85% RH

Model Number: 19mm Push Button Switch

Minimum Applicable Load: 5V AC/DC, 1mA

Material: Stainless steel

Item Type: Switches

Item Type: Switches

Insulation Resistance: 100MΩ minimum (500V DC megger)

Features: Self Locking Lighting

Electrical Life: 100,000 operations minimum (at full rated load)

Degree of Protection: IP67, >10g

Contact material: Silver plated

Contact Resistance: 50MΩ maximum

Certification: CCC,UL,ce
