Description

SPECIFICATIONS

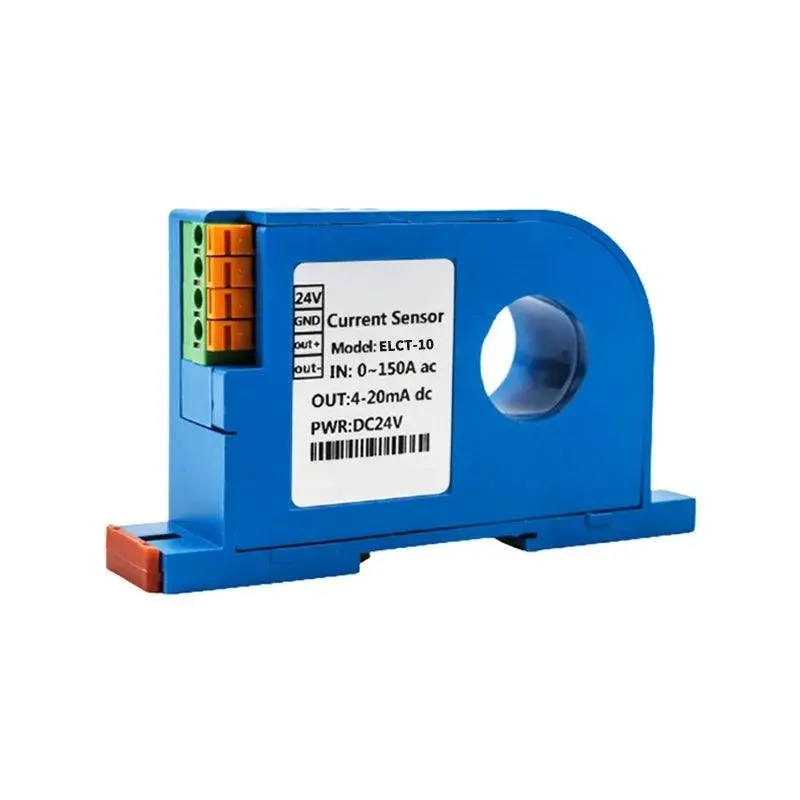

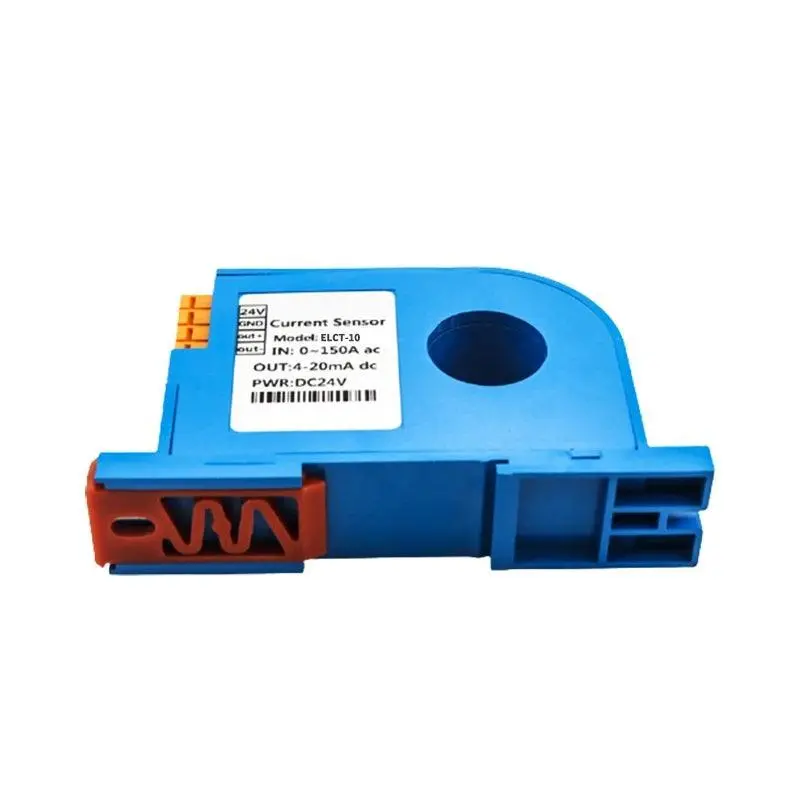

AC Current Transmitter Din Rail 0-1000A AC Current Sensor Open Loop Hall Current Transducer Output 4-20mA RS485

Brand Name: ZUIDID

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display Type: Analog Only

Supply Voltage: DC12V, DC24V, AC220V

Certification: CE

Model Number: ELCT-10

Dimensions: 22mm

Operating Temperature: -30℃~+85℃

Accuracy Class: 0.5%FS

Product name: Hall current transducer

Input current range: AC 0-1000A

Output signal: 4-20mA,0-5V,0-10V,RS485

Frequency range: 40-60HZ

Response time: <200ms

Installation method: DIN 35mm rail+ plane screw fixation

AC Current Transmitter Din Rail 0-1000A AC Current Sensor Open Loop Hall Current Transducer Output 4-20mA RS485

This link is special for AC current transducer.

DC current transducer link click here: DC current transducer

NOTES:

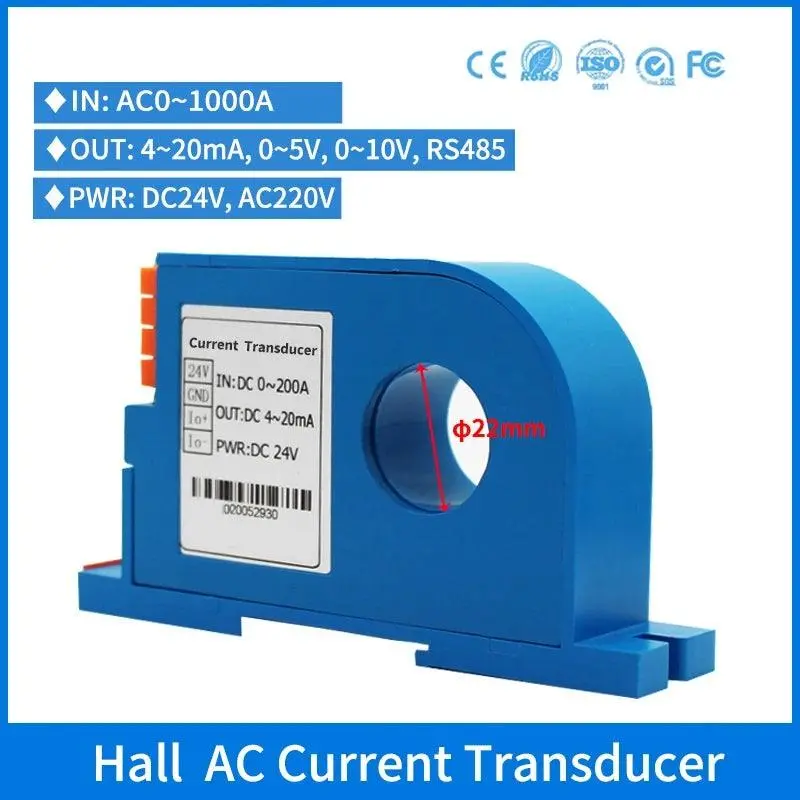

The aperture diameter is 22mm.

If you need other size (25mm, 31mm), please contact me.

We can make special customization for you.

 Product Description

1>>. Working principle: Open loop direct measurement.

2>>. Usage: Used for measuring DC,AC,pulse current and other arbitrary waveform current.

3>>. Advantages: Better cost-performance,low power consumption,small volume,light weight,easy installation,perforation input and no insertion loss.

4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.

5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.

6>>. Full channel configuration,parameters customized.

Technical Specifications

Product Features

Product Selection

Product Dimension

Wiring Diagram

Product Application
