Description

SPECIFICATIONS

BLDC three phase brushless sensorless motor controller BL01 15A violent fan modulation,brushless motor controller

DC5V6V9V12V36V forward and reverse

Motor Type: DC Motor

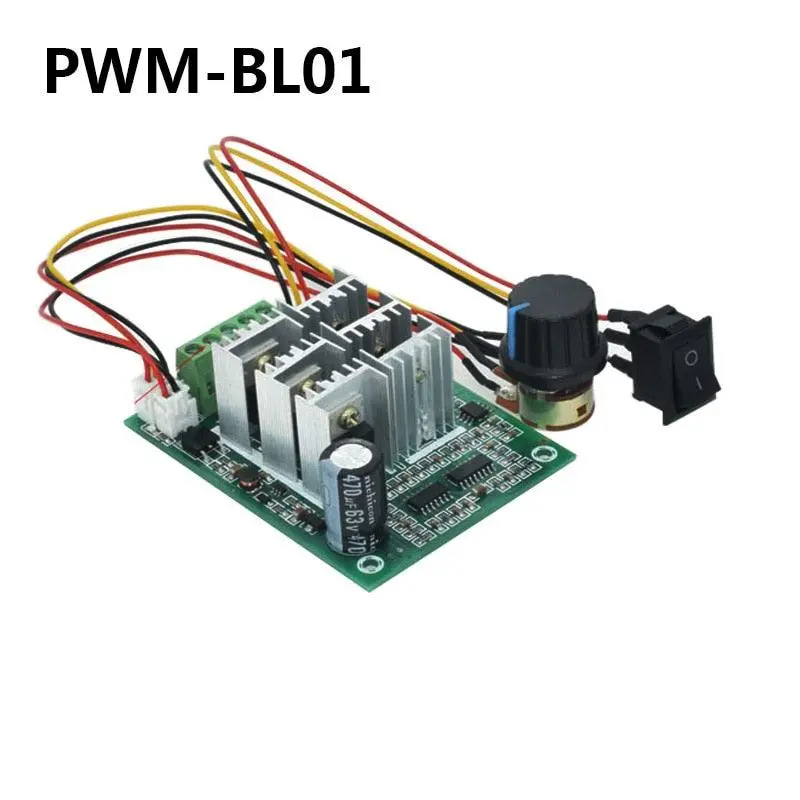

Model Number: PWM-BL01

Be careful:

 1.The input must be divided into positive negative poles (do not reverse it) 2.The input voltage should be equal to the rated voltage of the motor (DC5 to 36V). 3.DO NOT INPUT AC220V or burn down directly 4.The PWM controller must be loaded with equipment in order to work properly. Please do not test without load.—————————————————————————Parameter:Input vol: DC5-36V (Equal to the rated voltage of the motor )  Speed adjust range:  0-100%overload protection :15AForward reverse: YESSpeed regulation mode : 270 degrees of linear potentiometers (with switch) Applicable motor :DC three-phase brushless motorOutPut current:15A MAX POWER=12V*15A=180W
