SPECIFICATIONS

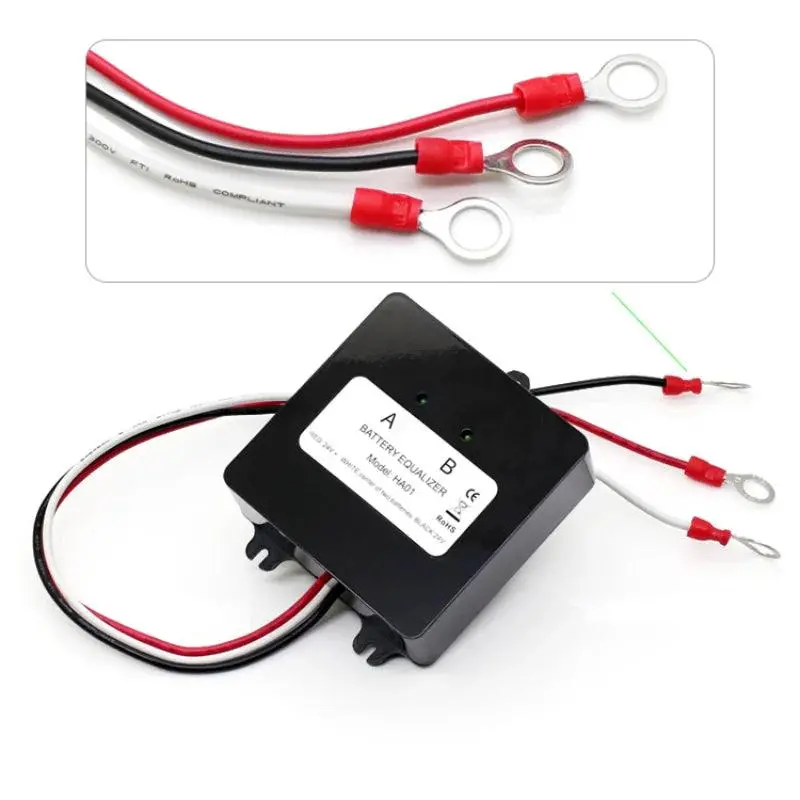

Name: Battery Equalizer for Two 12V Lead-Acid Batteries – HA01 Voltage Balancer for Series-Connected AGM/Flooded Cells
Brand: electrical center b2c
SKU: 45866
Availability: InStock

Battery Equalizer for 2x12V Flood AGM Lead Acid Batteries HA01 Voltage Balancer Lead Acid Battery Charger Regulator In Serial

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Model Number: HA01

Certification: CE

Battery nominal voltage: 2X12V

Optimizing current: 0-5A(balance current based on batteries voltage difference)

Quiescent current: <3mA

Size: 70*70*27 mm

Protection: Reverse polarity protection

Low voltage disconnect: 10V

Battery equalizer is used for the 12Vlead-acid batter is which are connected in series to keep battery voltage balance.(Gel/Fod/AGM lead acid batteri y.)

·When two or more in-series connected batter is are in charging/discharging/free status.The battery voltages maybe become different.One batery voltage is high and one is low.

·The batery equalizer wil equalize/balance the battery voltage when it detect there are 20mV between two batter is.It will shunt current from one battery(the higher voltage one) to the other battery(the lower voltage one) .Until their battery voltage almost becomes same.This wil improve battery’s performance and extent battery’s lifetime.

Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
1 piece for 24V system;
2 pieces for 36V system;
3 pieces for 48V system;
