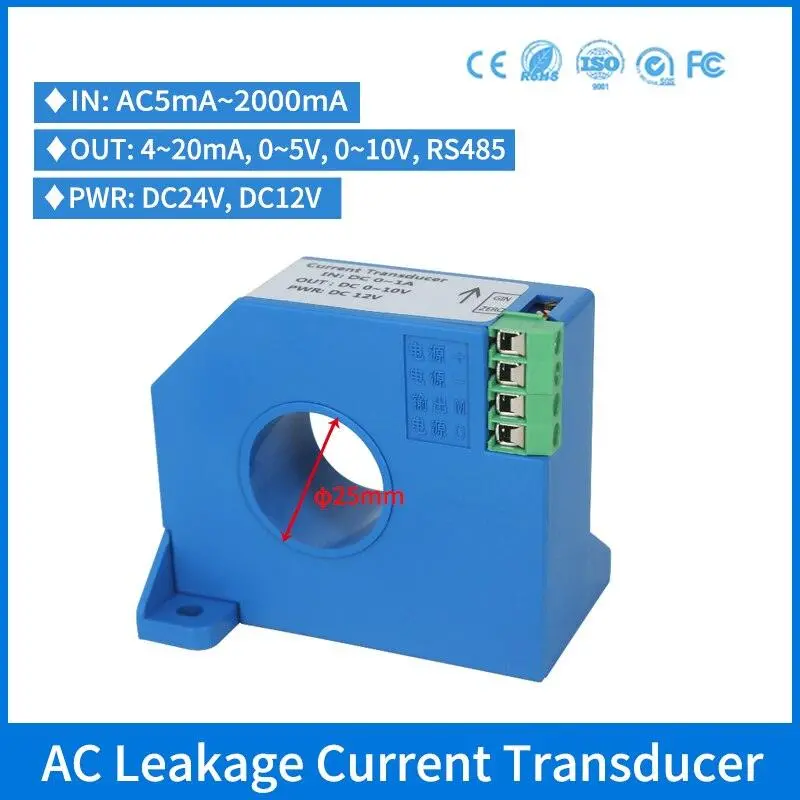

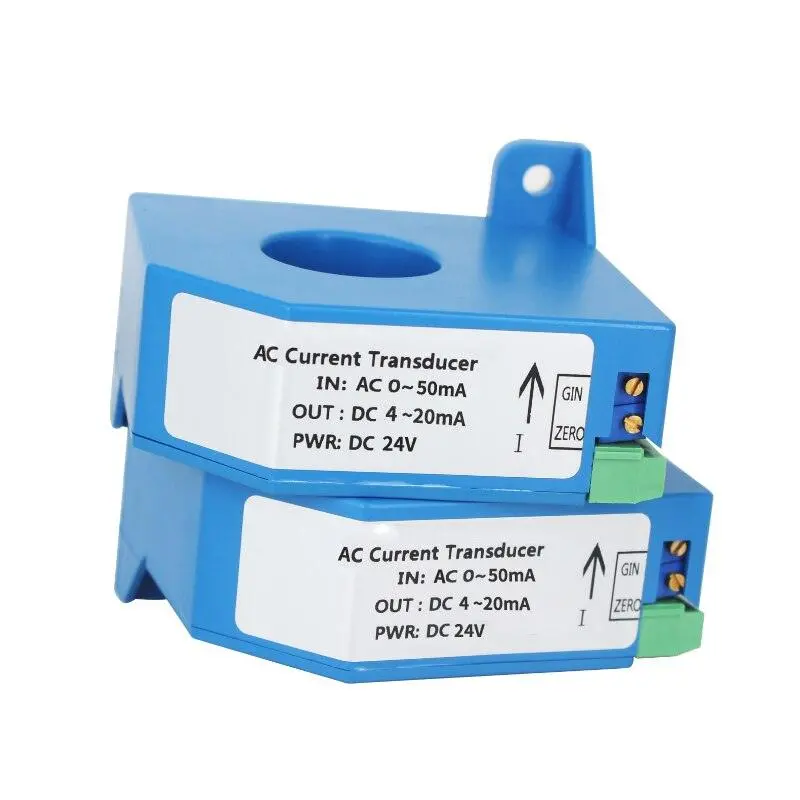

AC Leakage Current Transmitter — Adjustable Ranges (5/10/20 mA), 4–20 mA or 0–10 V Output

Original price was: $62.91.Current price is: $41.94.

Quantity
SKU: N/A Category: Brand:

Description

SPECIFICATIONS

AC 5ma 10ma 20ma Leakage Current Transmitter Analog Output 4-20ma 0-10v AC Leakage Current Sensor Transducer

Supply Voltage: DC12V-24V, AC220V

Response time: <200ms

Product name: Leakage current transducer

Output signal: 4-20mA,0-5V,0-10V,1-5V

Origin: Mainland China

Operating Temperature: -30℃~+85℃

Model Number: ELLCT-12

Installation method: DIN 35mm rail+ plane screw fixation

Input current range: AC 5mA-2000mA

Frequency range: 40-60HZ

Display Type: Analog Only

Dimensions: 25mm

DIY Supplies: ELECTRICAL

Certification: CE

Brand Name: KEJUN

Accuracy Class: 0.5%FS

Leakage Current Sensor Transducer DATA SHEET DOWNLOAD

NOTES:

The leakage current transducer can make any range within DC5mA to 2000mA.

If you need other current range, please contact me.

We can make special customization for you.

 Product Description

1>>. Working principle: AC adopts new transformer electromagnetic isolation principle,DC adopts magnetic modulation principle.

2>>. Product application: Measuring AC/DC leakage current,various small current,AC/DC high voltage.

3>>. Product advantages: Good performance,high stability,small size,easy installation,perforation input.

4>>. Product applications: Leakage monitoring system,line detection,signal system,current difference measurement,insulation detection,high voltage measurement.



Explore more from our collection.

Additional information

Color

4-20mA output, 0-5Vdc output, 0-10Vdc output, 1-5Vdc output
Measuring Range

AC 0-5mA, AC 0-10mA, AC 0-20mA, AC 0-30mA, AC 0-50mA, AC 0-100mA, AC 0-200mA, AC 0-300mA, AC 0-500mA, AC 0-600mA, AC 0-800mA, AC 0-1000mA, AC 0-1100mA, AC 0-1200mA, AC 0-1300mA, AC 0-1500mA, Customization
Size|Voltage

25mm aperture, DC24V powered
