Description

SPECIFICATIONS

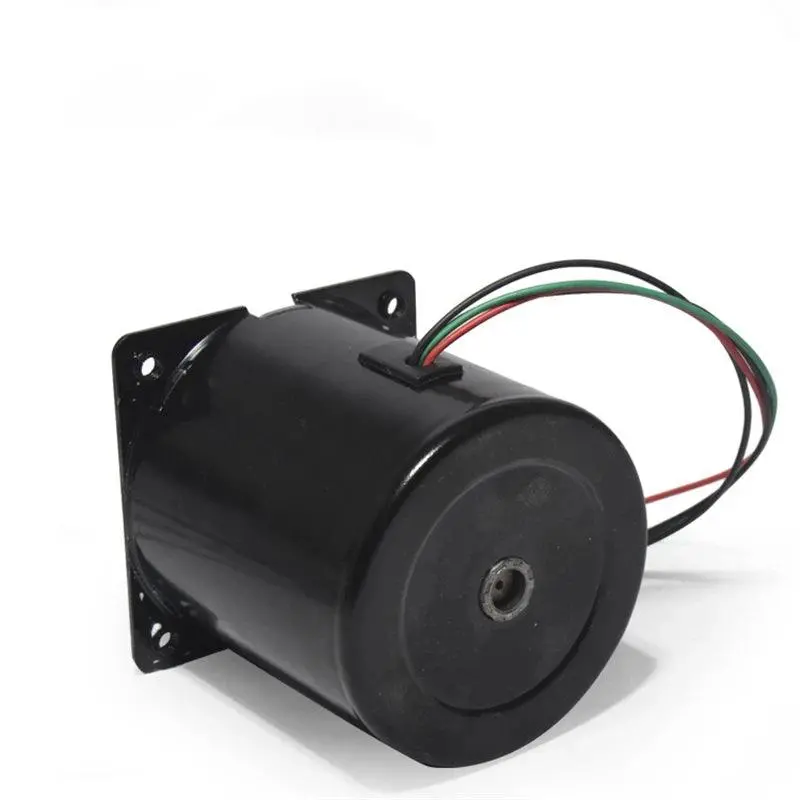

80KTYZ AC 60W Permanent Magnet Synchronous Motor 220V 5rpm -110rpm High Torque 137KG Slow Speed Machine Motor Small Engine

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Efficiency: IE 1

AC Voltage: 115/120 V

Origin: Mainland China

Phase: Single-phase

Protect Feature: Totally Enclosed

Certification: RoHS

Certification: CCC

Model Number: 80ktyz

Output Power: 60W

Type: Synchronous Motor

ac gear motor low rpm,10rpm,6 rpm gear motor,60 rpm motor,high torque low rpm ac electric motor,high torque low rpm ac motor,30 rpm motor

Features:

Low speed

Large torque

Positive and negative control

Can be recycled for 24 hours

Synchronization

No inertia

Pure copper wire

Metal gear

This motor is mainly used for: stage lighting, electric curtains, monitoring PTZ, air conditioners, Christmas trees, advertising light boxes, dynamic painting, water control, a plastic machine, Dianjiao Ji, a press, the screen machine, Electronic equipment and so on.

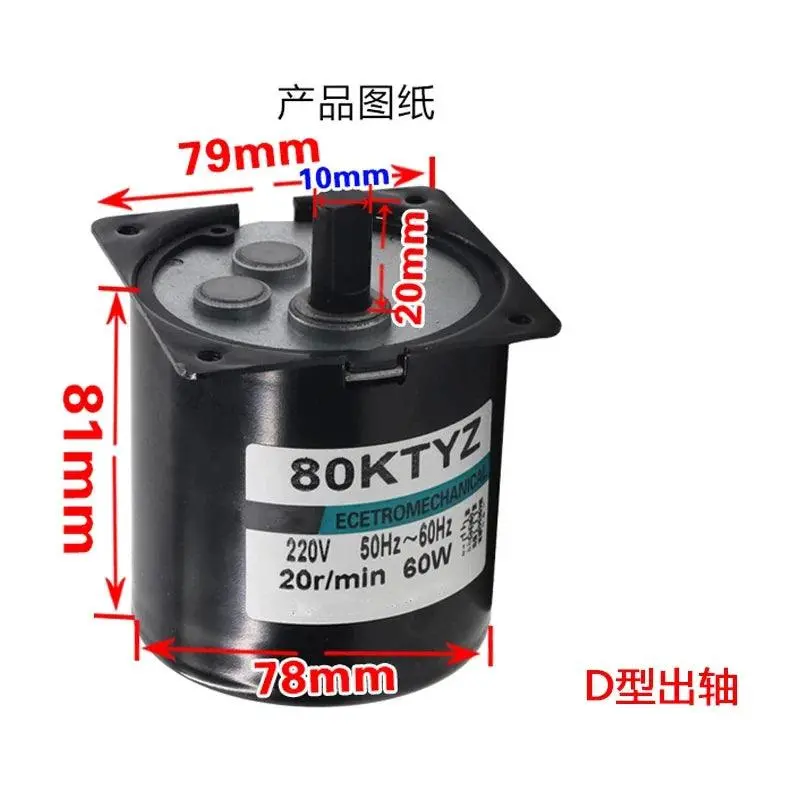

The motor dimensions and main parameters are as follows:
Body diameter 78MM, body height 81MMPower: 60W Rotation direction: CW / CCW
Input voltage: 220VAC
Operating Temperature and Humidity: Temperature range -10C to + 50C, humidity range30% ~ 80%.
Storage Temperature: Range Temperature-20C to + 60C

⚠️ Important Notice

Q: Application Scope?
A: Works with any mechanical automation equipment if size, voltage, speed & torque meet your needs.
Q: Speed Adjustable?
A: No, it’s a synchronous motor. We ship the exact speed you order—choose carefully!
Q: Reversible?
A: Yes, it can rotate clockwise & counterclockwise.
Q: Normal Operating Temp?
A: Below 85°C.

---

🛠️ Product Info

60KTYZ Capacitor Reversible Claw-Pole PM Synchronous Motor
Bidirectional rotation (CW/CCW).
Typical Uses: Instruments, automation, laminators, stage lighting, PTZ, valves, curtains, towel machines, rotating antennas, fiber optic lights, electric furniture, dishwashers, educational devices.
Also For: Peristaltic pumps, HVAC valves, mahjong machines, money counters, barbecue equipment, all types of electric curtains & awnings.
