Description

SPECIFICATIONS

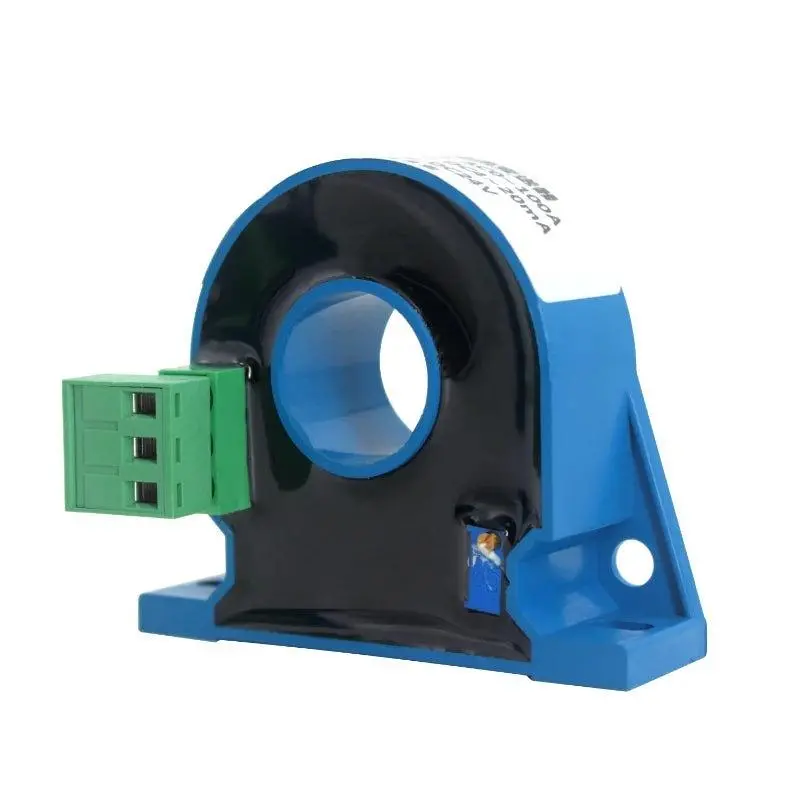

Hall Effect Current Sensor 600A Closed Loop Split Core AC Current Transmitter 4-20mA AC CT Hall Current Transducer,closed loop current transducer,hall current transducer

Supply Voltage: DC12V-24V, AC220V

Response time: <200ms

Product name: Hall current transducer

Output signal: 4-20mA,0-5V,0-10V,RS485

Origin: Mainland China

Operating Temperature: -30℃~+85℃

Model Number: ELCTK-8

Installation method: DIN 35mm rail+ plane screw fixation

Input current range: AC 0-1500A

Frequency range: 40-60HZ

Display Type: Analog Only

Dimensions: 20mm,35mm

DIY Supplies: ELECTRICAL

Certification: CE

Brand Name: KEJUN

Accuracy Class: 0.5%FS

Hall Effect Current Sensor 1500A Closed Loop Split Core AC Current Transmitter 4-20mA AC CT Hall Current Transducer

This link is special for AC current transducer.

DC current transducer link click here: DC current transducer

NOTES:

1. Current range: any range within AC/DC0~1500A

2. Output signal: 4~20mA, 0-10V, 0-5V, RS485

3. Power supply: 12Vdc, 24Vdc, 220Vac

4. Aperture diameter: 20mm,35mm,45mm,55mm,75mm

So: if you need other parameters, please contact me.

And tell me the current range, output signal, power supply, aperture diameter.

We can make special customization for you.

Product Description

1>>. Working principle: Open loop direct measurement.

2>>. Usage: Used for measuring DC,AC,pulse current and other arbitrary waveform current.

3>>. Advantages: Better cost-performance,low power consumption,perforation input and no insertion loss.

4>>. Application: Frequency conversion speed control system,electric welding machine,electro-chemistry,power supply monitoring,electric locomotive,low level starting protection.

5>>. The input,output,power and outer shell are isolated,with strong anti-interference ability and high reliability.

6>>. Full channel configuration,parameters customized.

Technical SpecificationsProduct Features

Product SelectionProduct DimensionWiring DiagramProduct Application
