Description

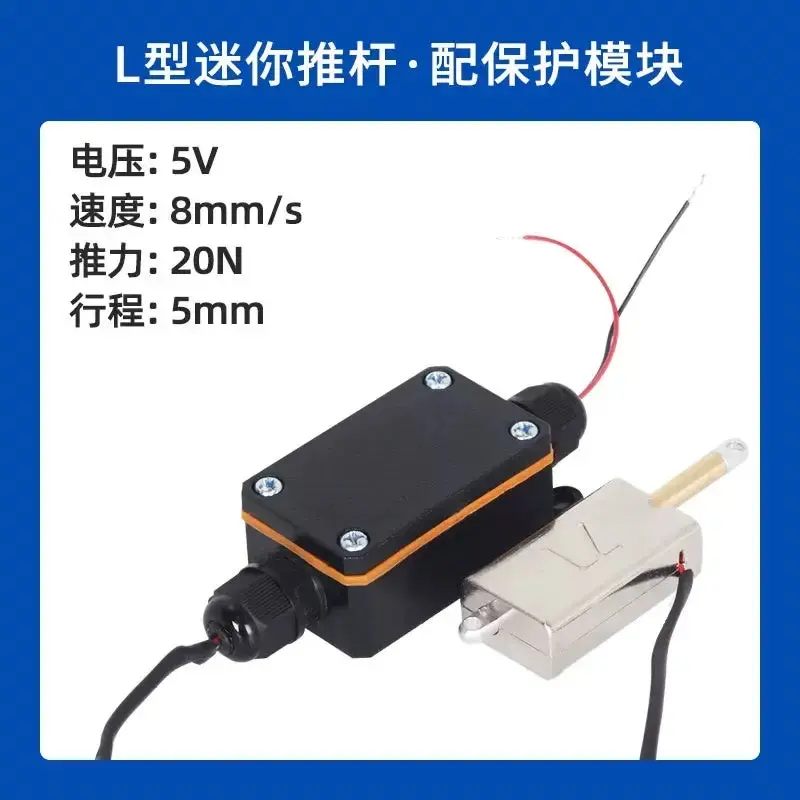

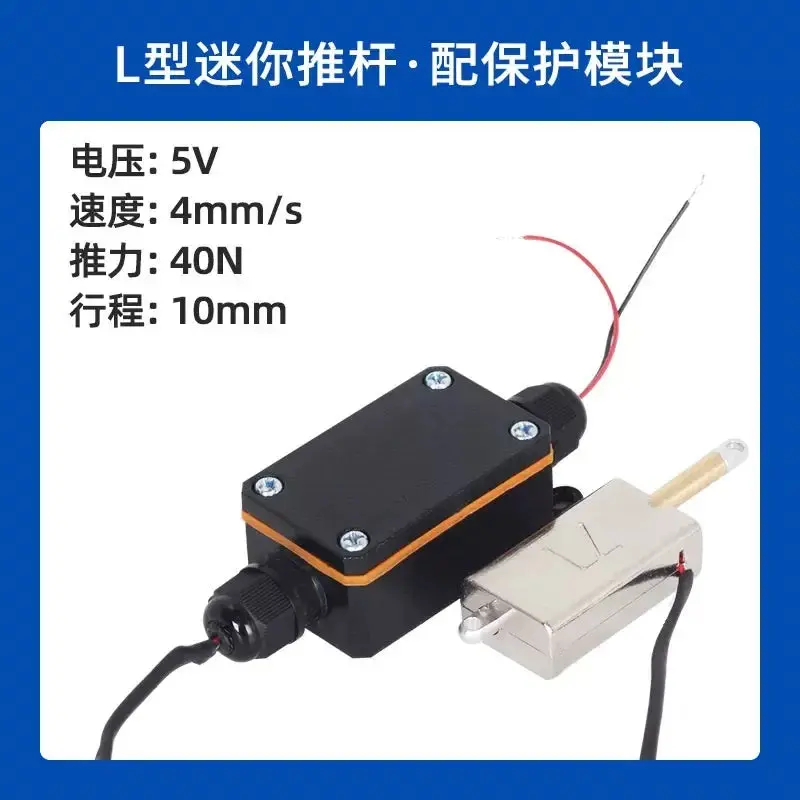

5V L-Type Mini Electric Linear Actuator, 4/8mm/s Speed, 20-40N Max Thrust, 5/10/15/20mm Stroke, Tiny Telescopic Push Rod Motor with Stall Protection
Specification
This L-shaped micro linear actuator is an ultra-compact telescopic motor designed for small-scale automation, robotics, and DIY projects. It operates on 5V DC with two speed options (4mm/s for high thrust, 8mm/s for faster movement) and features a maximum thrust of 40N. Available in fixed strokes of 5/10/15/20mm (customizable), it includes built-in stall protection (stops when encountering resistance) to prevent damage. The zinc alloy body and brass telescopic rod ensure durability, while low current draw (0.02A no-load) makes it ideal for battery-powered applications. Perfect for small robots, door locks, mini lifting mechanisms, and precision projects requiring compact linear motion.
DATA SHEET
|
Name |
Parameter |
|
Product Type |
Linear Actuator / Micro Linear Actuator |
|
Model Number |
LMNTL |
|
Rated Voltage |
5V DC |
|
Speed Range |
4mm/s / 8mm/s |
|
Max Thrust |
20N / 40N |
|
Stroke Length |
5/10/15/20mm (Customizable 0-20mm) |
|
Material |
Zinc Alloy Body + Brass Telescopic Rod |
|
Protection Features |
Stall Protection (Stall Stop) |
|
Control Module |
With Protection Module Included |
|
No-Load Current |
0.02A |
|
Operating Temperature |
-26°C ~ +85°C |
|
Duty Cycle |
10% (2min ON / 18min OFF) |
|
Application |
Small Robotics, DIY Projects, Door Locks, Precision Automation |
|
Features |
Ultra-Compact, Low Power Consumption, Durable, Easy Installation |
