Description

SPECIFICATIONS

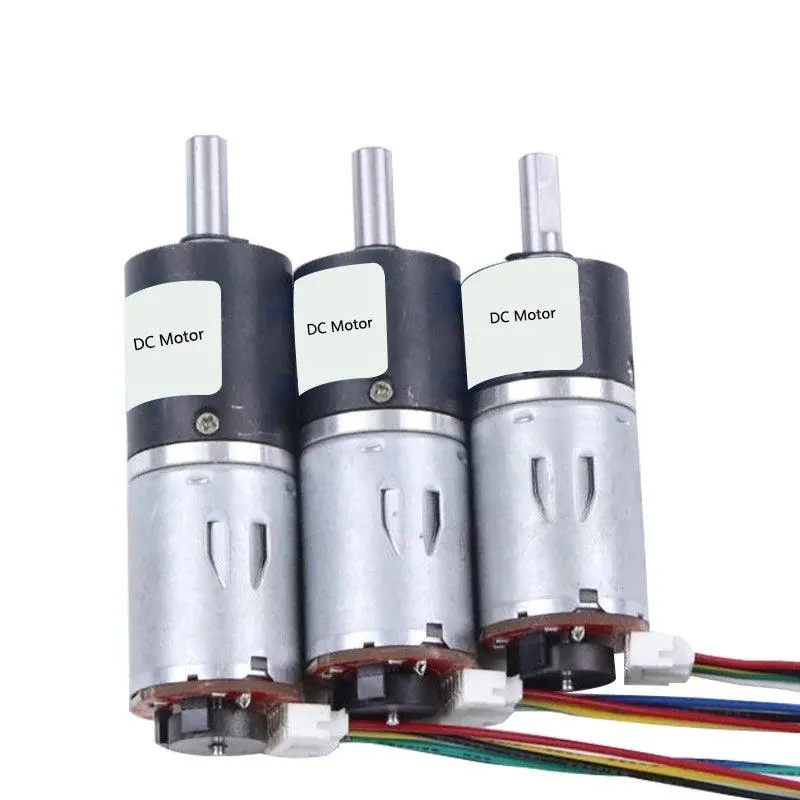

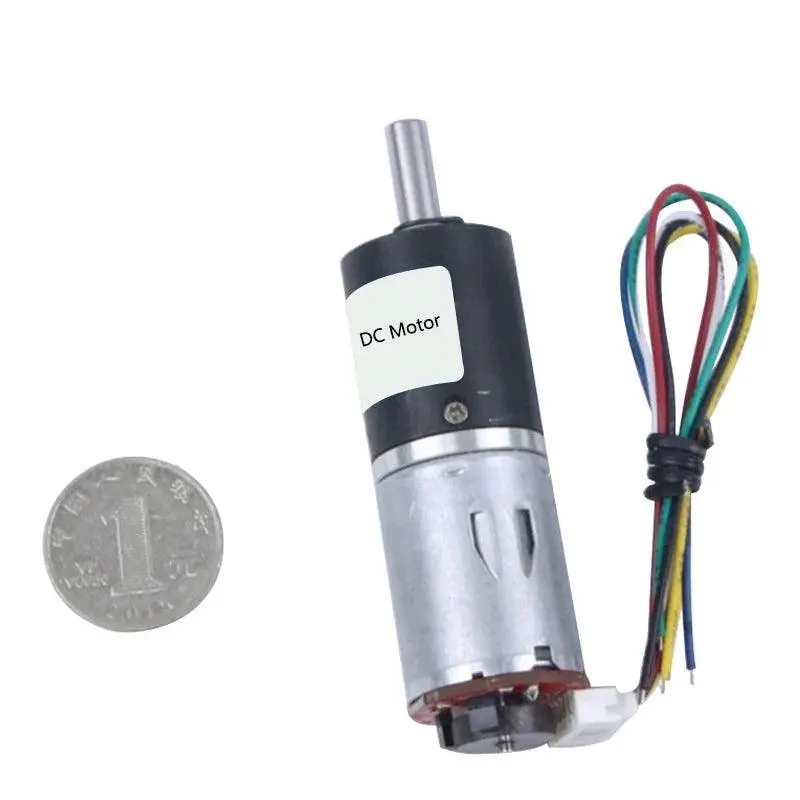

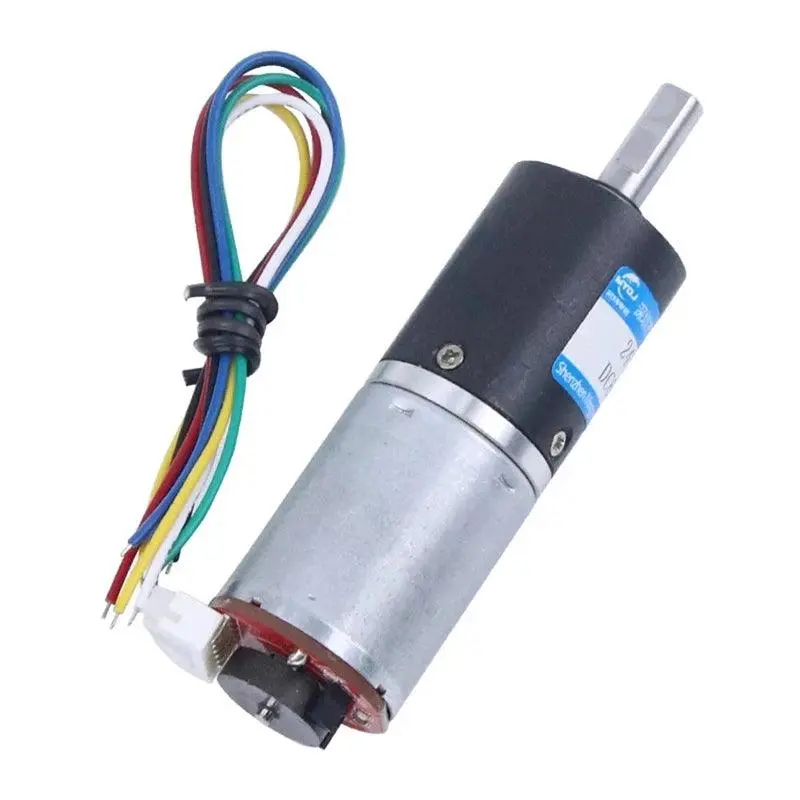

370 Motor 24mm Diameter Planetary Gear DC 6v 12v 24v Geared Motor Micro Electric Moter With Encoder,dc motor with encoder,brushless dc motor with encoder,bldc motor with encoder,brushless motor with encoder

Brand Name: HYSMOTOR

Certification: CCC

Certification: ROHS

Origin: Mainland China

Continuous Current(A): 1.4a-0.8a

Commutation: Brush

Type: Gear Motor

Protect Feature: Drip-proof

Construction: Permanent Magnet

Usage: BoAt

Usage: car

Usage: Electric Bicycle

Usage: Fan

Usage: Home Appliance

Efficiency: IE 1

Model Number: my24gp-370

Torque: 25kg.cm

Wiring method:

Red:motor +

Black:encoder – (The positive and negative poles should not be wrongly connected to 3.3-5V)

Yellow:signal feedback(11 signals when the motor rotates one circle)

Green:signal feedback(11 signals when the motor rotates one circle)

Blue:encoder + (The positive and negative poles should not be wrongly connected to 3.3-5V)

White:motor – (The exchange can control the forward and reverse rotation of the motor)
