Description

SPECIFICATIONS

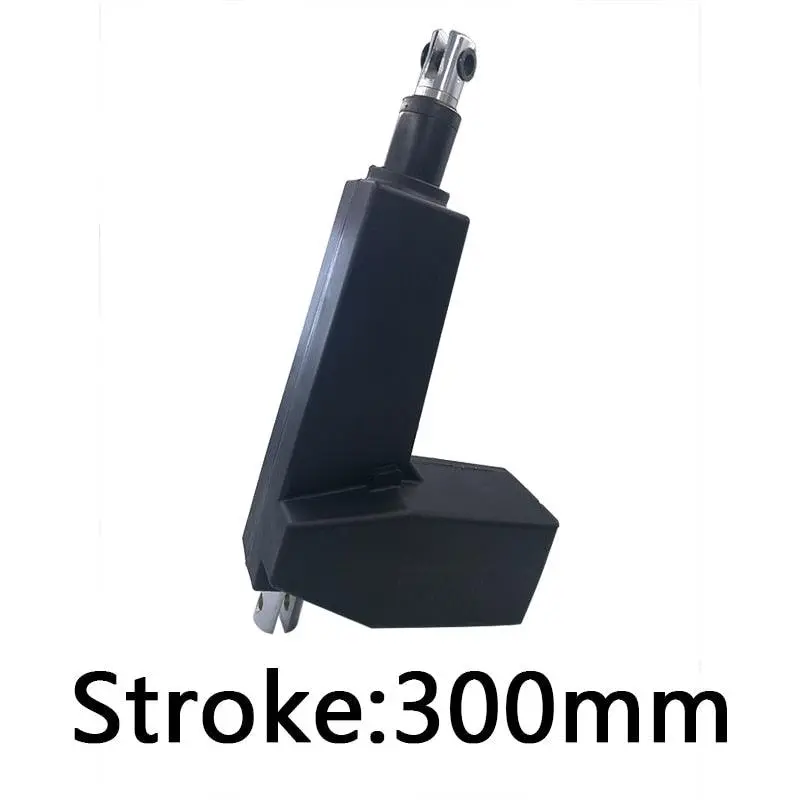

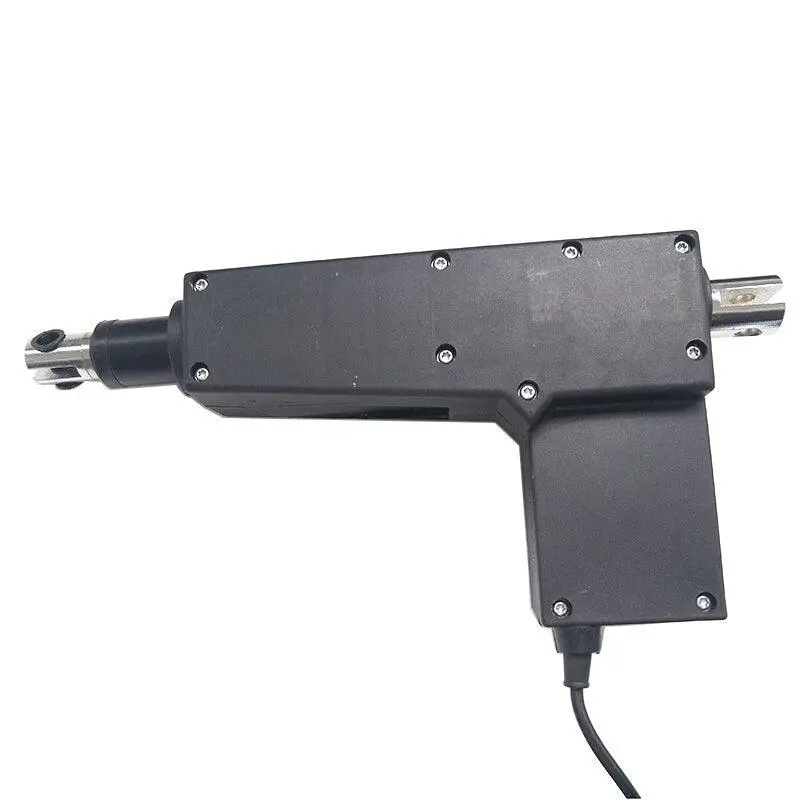

Stroke 300mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N push pull force hospital ICU electric chair bed

Usage: Home Appliance

Type: Gear Motor

Torque: Stroke 300mm

Protect Feature: Drip-proof

Output Power: other

Model Number: Stroke 300mm

Efficiency: IE 2

Continuous Current(A): current

Construction: Permanent Magnet

Commutation: Brush

Certification: ce

Stroke：

50mm 100mm 150mm200mm250mm 300mm350mm400mm450mm500mm

Input                                      12V/24V

Limited switch                        Built-in

Color                                      Black

Operation temperature           -26 ~ +65 degree

IP class options                      IP54

***********************************************************

8000N  linear actuator reference：

Push force	Pull force	Speed(no load)
8000N	6000N	7-10   mm.s
6000N	4500N	12-14 mm.s
4000N	3000N	16-18 mm.s
2000N	1500N	24-26 mm.s

The self-locking force of the linear actuator is about 80%

***********************************************************

L min=175+Stroke (S)

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch.

Stroke means the movement length of linear actuator

Lmax=L (min)+Stroke(S)

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch.
